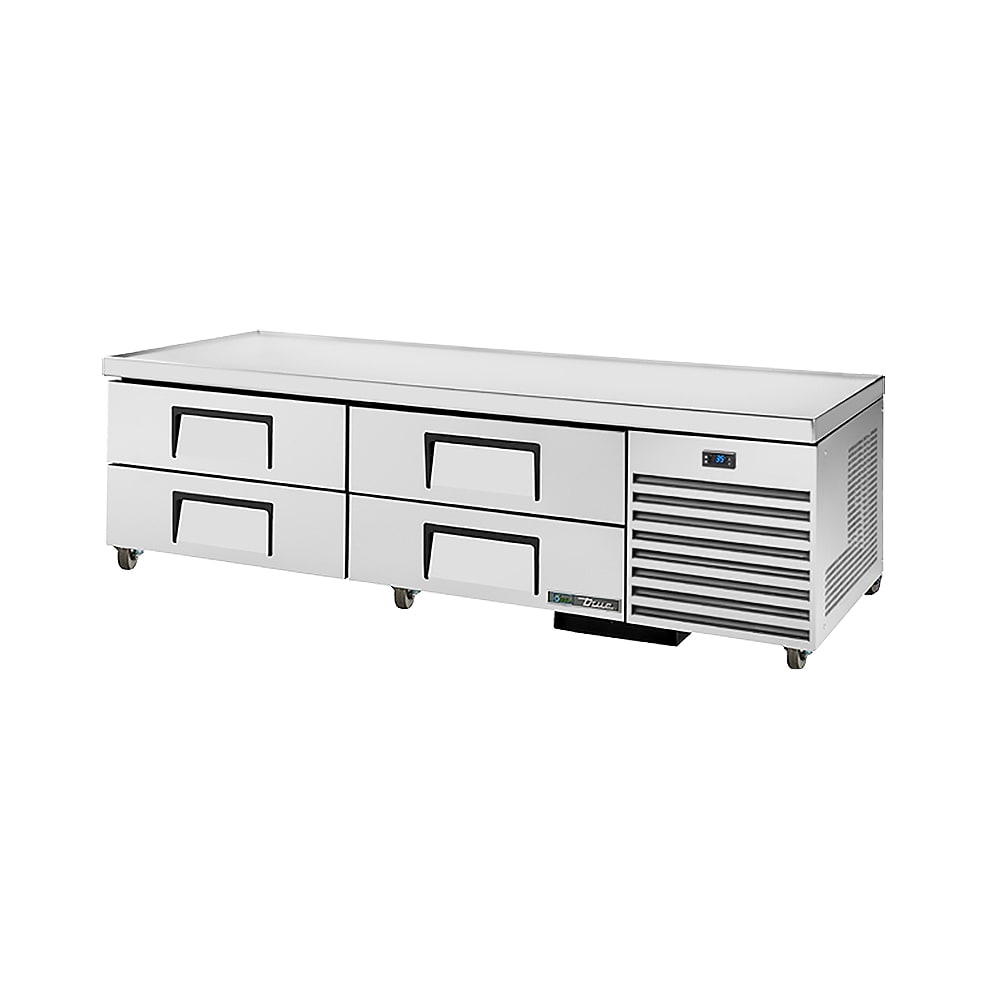

80in Refrigerated Chef Base, 2 Section, 4 Drawers
True - Model 598-TRCB79
|
True®’s refrigerated chef bases are designed with enduring quality that protects your long term investment.
Photo Includes Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS
|
SOLID 2 DRAWER CHEF BASE-
79"
|
MODEL TRCB79 |
STANDARD FEATURES:
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.
- Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
- Cabinet top is one piece, heavy duty reinforced 300 series stainless steel. Drip resistant V edge protects against spills. Supports up to 717 lbs. (326 kg).
- All stainless steel front and cabinet ends. Matching aluminum finished back.
- Each drawer accommodates (3) 12"L x 20"W x 4"D (305 mm x 508 mm x 102 mm) food pans (sold separately).
- Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
- Foamed-in-place, high density polyurethane insulation (CFC free).
Features, Options & Specifications Subject to Change Without Notice. |
|
|
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply. |
- 230 - 240V / 50 Hz.
- 6" (153 mm) standard legs (1 set of 4, leg mounting plates required).
- 6" (153 mm) seismic/flanged legs (1 set of 4, leg mounting plates required).
- Heavy, 16 gauge tops.
|
- Additional size drawer divider bars.
- Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
|
|
| |
 |
|
CLICK IMAGE FOR LARGER VIEW
|
|
ROUGH - IN DATA |
This Product is recommended for commercial purposes only. |
|
Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8"
| Model |
Drawers |
Dimensions
(Inches) |
HP |
Volts |
Amps |
NEMA
Config. |
Cord
Length
(total feet)
|
Crated
Weight
|
| L |
D
|
H * |
| TRCB79 |
4 |
79 |
30 1/2 |
20 1/2 |
1/3 |
115/60/1 |
8.8 |
5-15P |
7 |
450 |
|
Depth does not include 1" for rear bumpers.
* Height does not include 5" for castors or 6" for optional legs. |
|
|
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only) |
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE |
|
Model |
Elevation |
Right |
Plan |
3D |
| TRCB79 |
TFQY49E |
TFQY49S |
TFQY49P |
TFQY493 |
|
| |
|
|
|
View Installation Manuals for True Refrigeration Equipment
Product Specifications
- Product Spec Sheet
- Crated Weight: 450.00 lbs.
- Category: Chef Base and Equipment Stands
- Doors/Drawers: 4 Drawers
- Length (in): 80
- Manufacturer: True
- Also Known As: TRCB79, TRCB-79, TRUTRCB79, TRUE TRCB-79, 890TRCB79, 675-017
