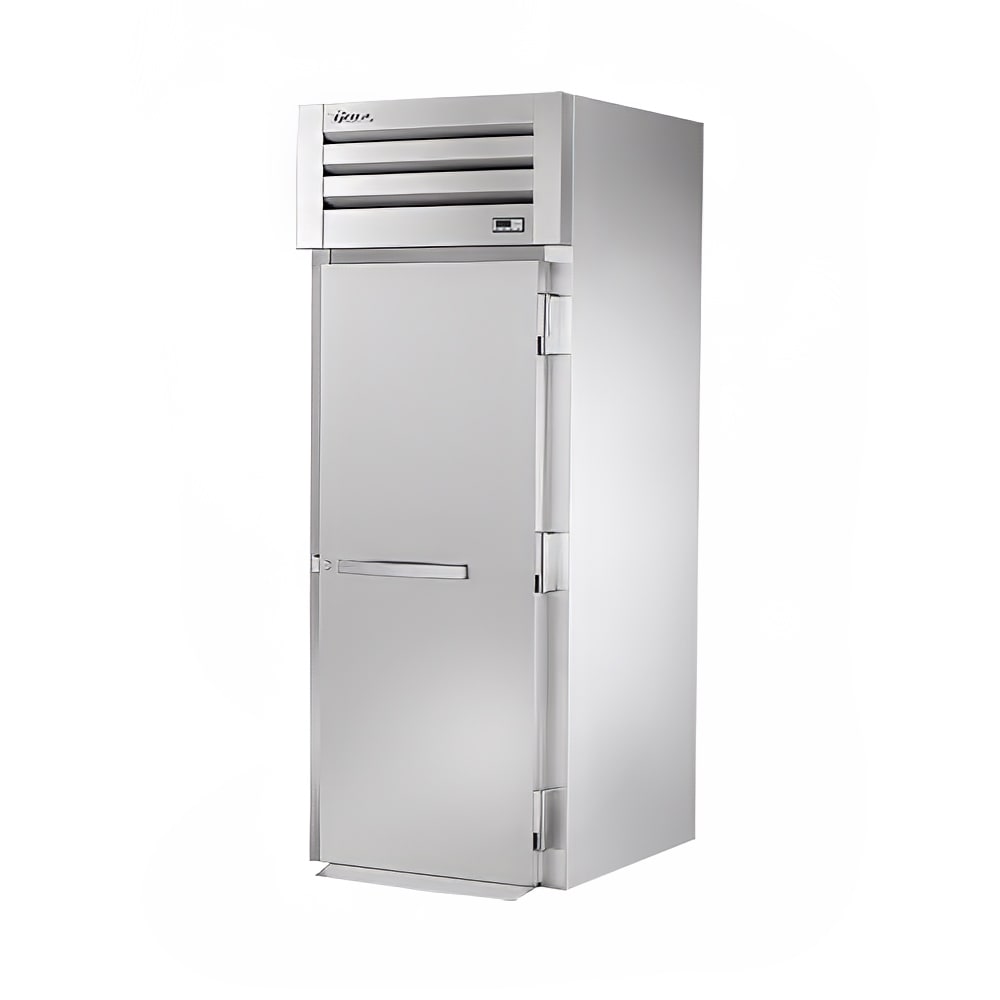

Refrigerator, Roll-In, 1 Section/SS Door, 37 cu ft

MODEL TR1RRI-1S

STANDARD FEATURES:

• Oversized and balanced, environmentally friendly (134A) refrigeration system - holds food safe 33°F to 38°F.
• Exterior - 300 series stainless steel front, top, bottom and back. Stainless steel sides.
• Interior - 300 series stainless steel walls, back, floor and door liner.
• TR1RRI-1S accepts roll-in rack (inboard castor) with maximum dimensions of 27"½W x 29"D x 66"H. (supplied by others).
• Exterior mounted digital electronic thermometer with manual defogger.
• Energy saver switch. Heavy gauge reversible doors. Three cam lift hinges per door - lifetime guaranteed.  Designed for easy product access with a full 180 degree open capability and stay open feature at 120 degrees.
• Reversible wiper gaskets for positive seal.
• 300 series stainless steel doors with recessed handles (lifetime guaranteed).
• Top mounted unit positioned out of food zone to maximize storage capacity.
• Glass condensate pan to prevent electrolysis.
• Hot gas condensate for energy efficiency.
• Heavy gauge stainless steel ramp standard for each door.
• Incandescent interior lighting. Magnetic door gaskets.
• Epoxy coated evaporator.
• Interior bumpers protect cabinet.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front, shroud, top, bottom, back and doors. 400 series stainless steel exterior sides.

• Interior - 300 series stainless steel interior cabinet side walls, back, door liner and floor. Construction of liner in accordance with NSF standards.

• Digital exterior temperature monitor with manual defogger control, large LED display for quick and easy temperature identification.

DOORS:

• 300 series stainless steel interior and exterior. Door gaskets of one piece construction, and removable without tools for ease in cleaning. Doors are reversible.

• Reinforced, heavy duty stainless steel interior floor.

• Heavy duty hinges. The face of each door fitted with a 12" long recessed handle with interlock. Handles are foamed-in-place to insure permanent attachment (lifetime guaranteed).

• Heavy gauge stainless steel ramp standard for each door.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam.

INTERIOR:

• Stainless steel bumper to prevent cart from damaging interior walls.

LIGHTING:

• Incandescent interior lighting. Light(s) activated by interior, manual on/off switch.

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Top mounted condensing unit.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain food safe 33°to 38°F interior cabinet temperature.

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to
  a dedicated outlet. A cord and plug set to be included..

• A sole use circuit is required.


OPTIONAL FEATURES/ACCESSORIES:
(At Extra Cost - Lead Time May Apply)

• Export units available - consult factory.
• Metal handle (solid doors only).
• Electronic temperature control.
• Correctional facility options - consult factory.
• Remote cabinets available (contact factory technical services for BTU information).
