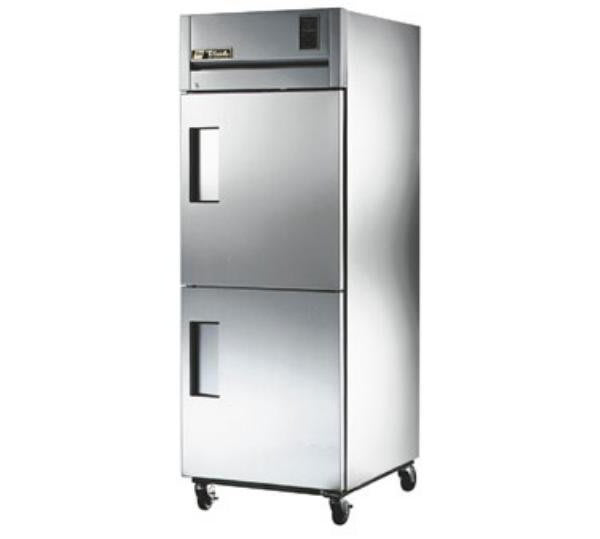

Refrigerator, Reach-In, 1 Section, SS Half Doors, 31 cu ft

MODEL TR1R-2HS

STANDARD FEATURES:

• Exterior - 300 series stainless steel front, doors, sides, top, bottom and back (the finest stainless available).
• Interior - 300 series stainless steel side walls, back, door liner & floor.
• Oversized and balanced, environmentally friendly 134A refrigeration system - holds food safe 33° F to 38° F.
• 300 series stainless steel doors with recessed handles (lifetime guaranteed).
• Door locks standard.
• Half-doors allow product segmentation for easy access.
• Exterior mounted digital electronic thermometer with manual defogger.
• Epoxy coated evaporator.
• Incandescent interior lighting.
• Hot gas condensate for energy efficiency.
• Positive seal self-closing doors with factory tested (over 1,000,000 times) lifetime guaranteed door hinges and torsion type closure system.
• 4" diameter swivel castors standard equipment - locking castors provided for front set.
• Environmentally friendly 134A refrigerant.
• Foamed-in-place polyurethane high density cell insulation (CFC free).
• Top mounted unit positioned out of food zone to maximize storage capacity.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).

REFRIGERATION SYSTEM:

• Oversized refrigeration system factory balanced using CFC free 134A refrigerant.

• Top mounted condensing unit.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain food safe 33° to 38° F interior cabinet temperature.

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front, shroud and doors. 300 series stainless steel exterior ends, top, back, and bottom.

• Interior - 300 series stainless steel interior cabinet side walls, back, door liner and floor. Construction of liner in accordance with NSF standards.

• Barrel locks standard. Locks keyed alike.

• Digital exterior temperature monitor with manual defogger control, large LED display for quick and easy temperature identification.

• Cabinet mounted on a welded, galvanized frame rail, enamel dipped and baked for permanent bond on all surfaces, provides additional corrosion protection. Frame rail fitted with 4" diameter polyolefin castors, (front castors include brakes).

DOORS:

• 300 series stainless steel exterior with white aluminum door liner to match cabinet interior. Door extends full width of cabinet shell. Door lock standard.

• Lifetime guaranteed adjustable torsion type closure system with extruded aluminum and stainless steel supports. The face of each door fitted with a 12" long recessed handle with interlock (lifetime guarantee on all handles and door hardware). Handles are foamed-in-place to insure permanent attachment.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Heavy gauge full or half height pilasters and tray slides/shelving factory installed at no charge.

• Interior kit must be indicated at time of order. Note: Tray slide sets and shelves can also be ordered individually.

• (1) interior kit option included per section at no charge.
  (4) different interior kits available. See optional accessories section..

LIGHTING:

• Incandescent interior lighting - safety shielded. Lights activated by rocker switch mounted above door.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.


OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 6" stainless steel legs.

• Seismic/Flanged legs.

• Kit #1 (9 sets of #1 type tray slides).

• Kit #2 (rod type 1 set covers 1/2 section).

• Kit #3 (6 sets of universal type tray slides).

• Kit #4 (3 chrome shelves and shelf supports).

• Stainless steel (electro polished) shelves.

• Chrome shelves.

• Metal handle (solid doors only).

• Cam lift hinge (solid door models only).

• Electronic temperature control.

• Universal pan slides.

• #1 pan slides.

• #2 or rod style pan slides.

• Curb mountable units.

• Export units available - consult factory.

• Correctional facility options - consult factory.

• Remote cabinets available (contact factory technical services for BTU information).
