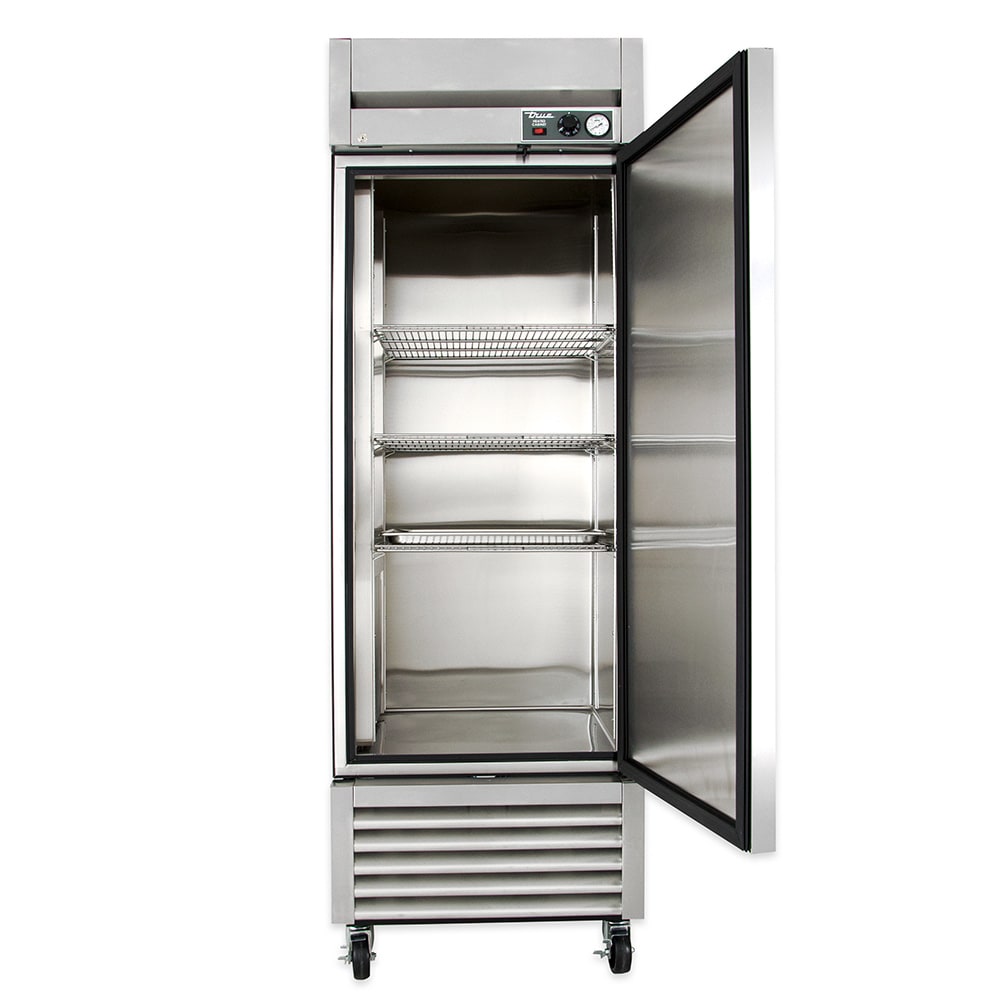

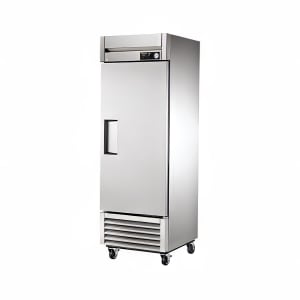

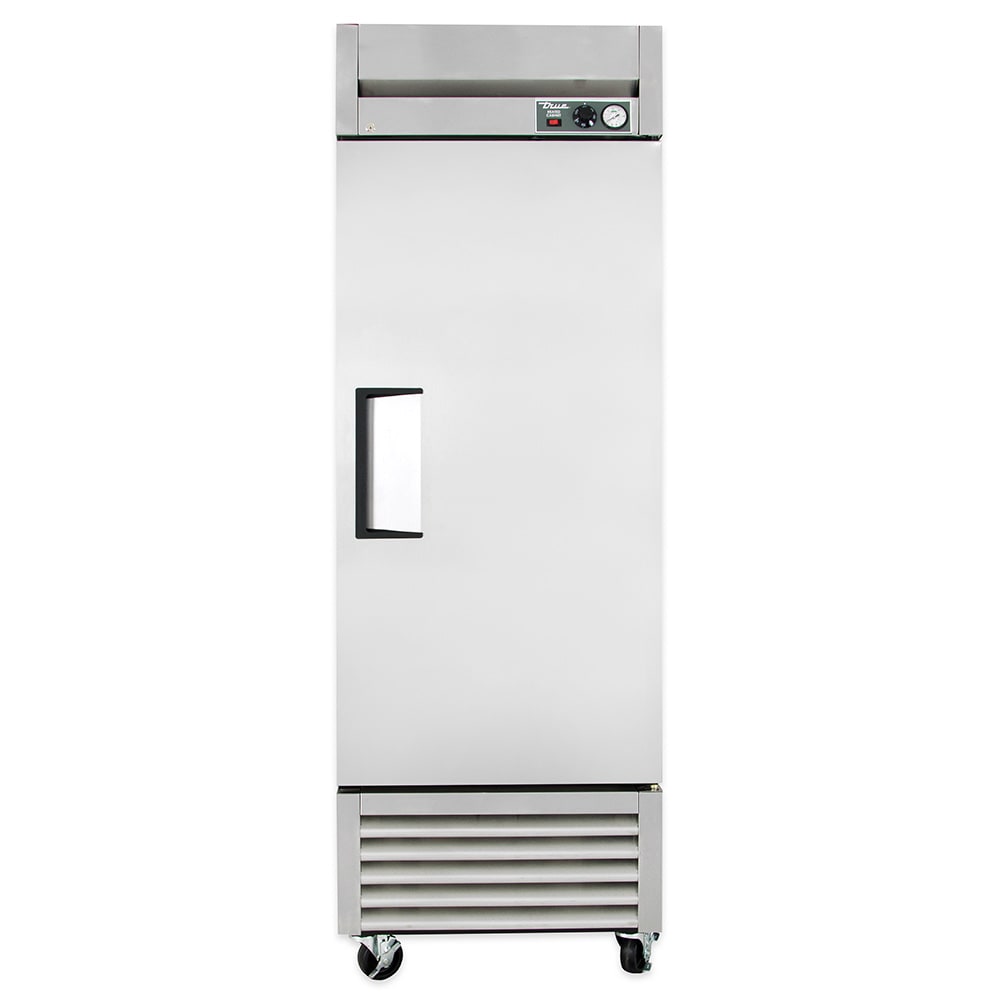

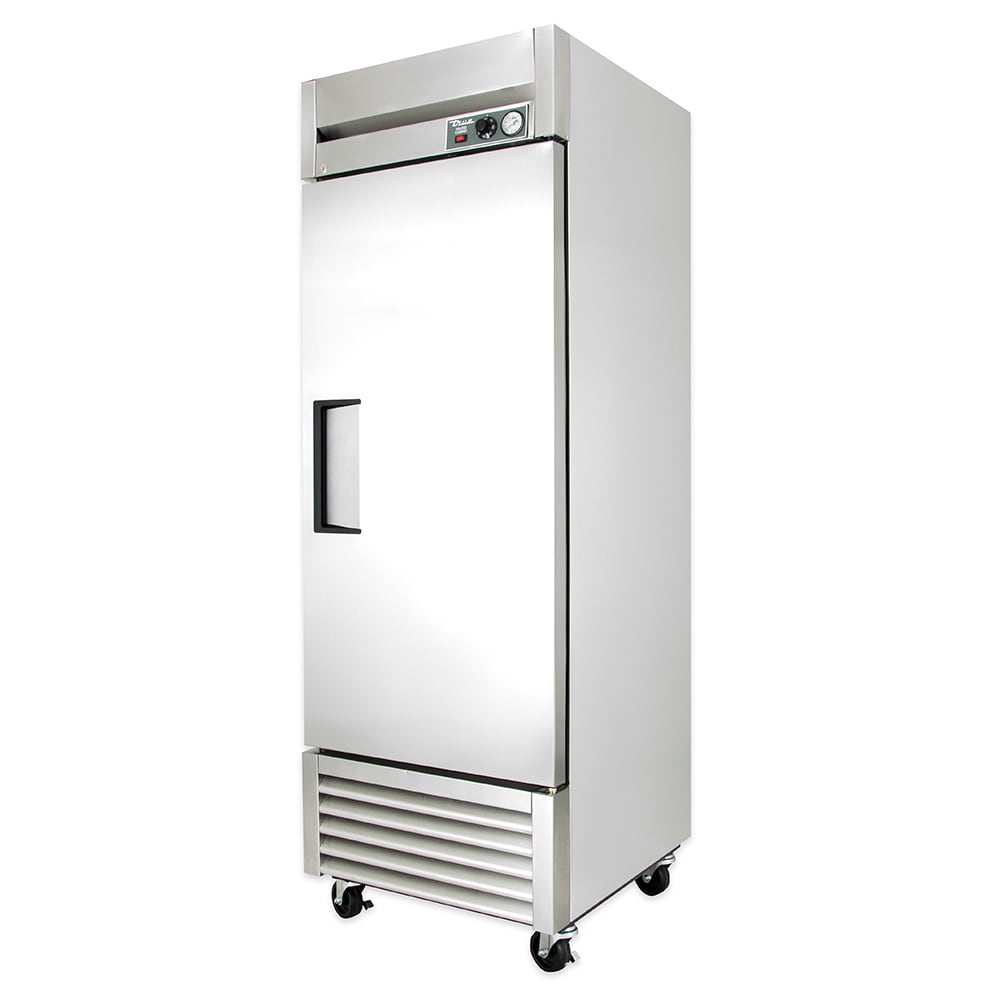

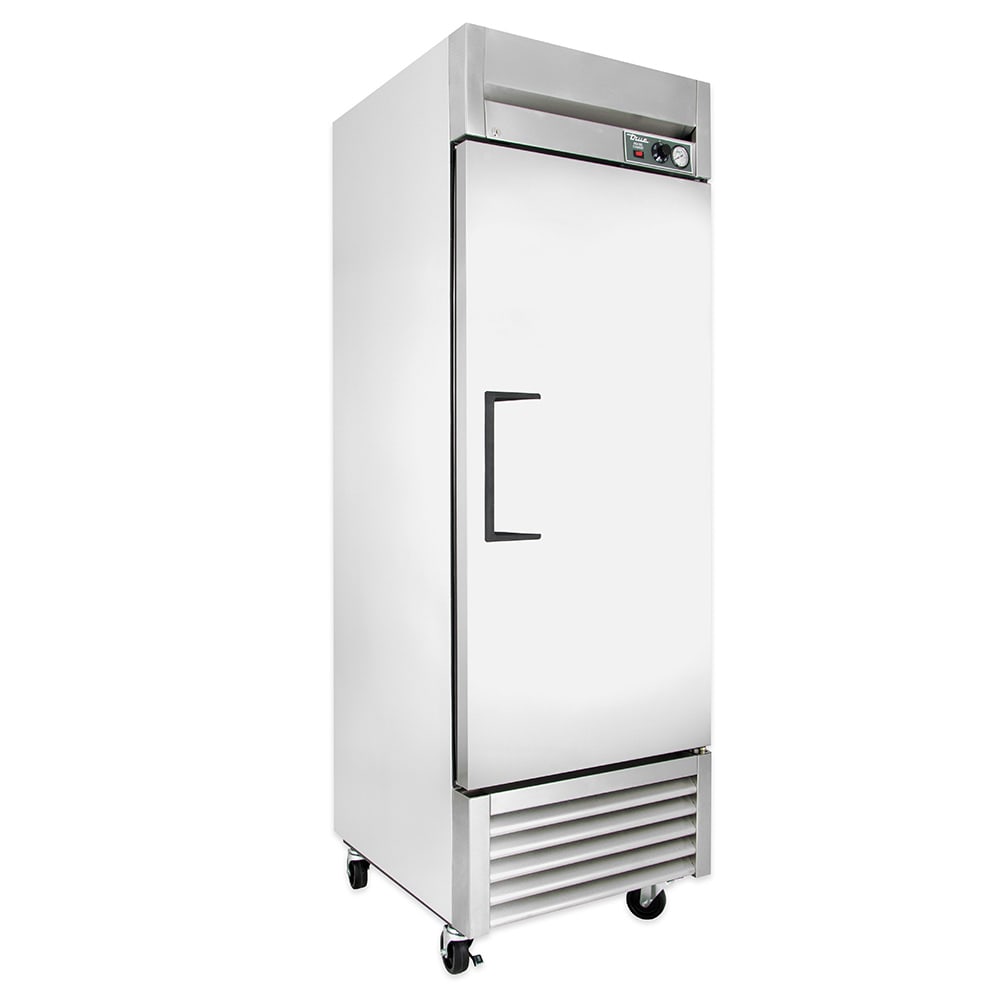

Heated Cabinet, Reach-In, 1 Section/SS Door, 3 Shelves, 23 cu ft

MODEL TH23

STANDARD FEATURES:

• Provides cabinet holding temperature of 80° F to 200° F (26.6° C to 93.3° C).

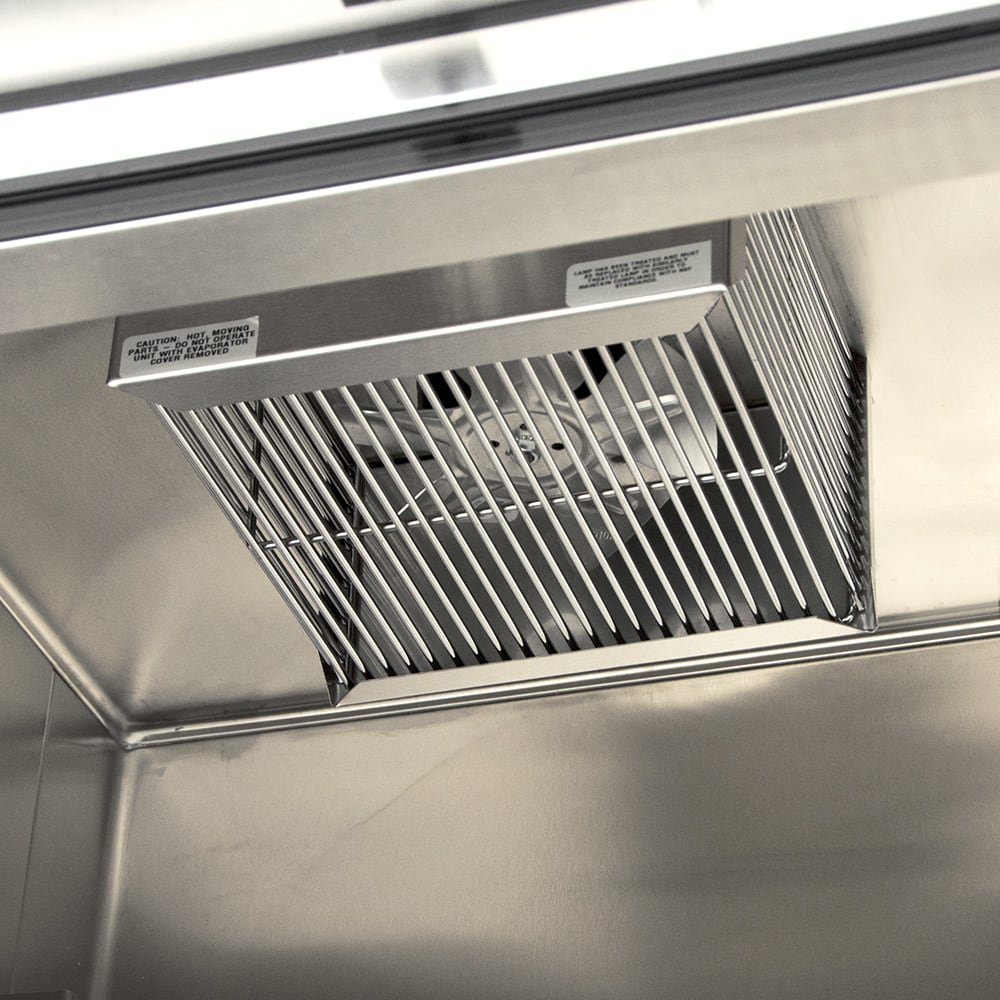

• Internal fan provides low velocity, forced-air heat distribution to assure even temperatures throughout the cabinet.
• Stainless steel, tube heating element for uniform generation of electric heat. Cabinet comes with a total of 850 watts. Heating element sheathed for corrosion resistance.
• Exterior - 300 series stainless steel front grill, shroud and door. Anodized quality aluminum exterior ends and back.
• Interior - 300 series stainless steel interior liner and floor.
• Cabinet comes standard with three (3), adjustable, heavy duty chrome plated wire shelves.
• Entire cabinet structure and solid door are foamed-in-place using high density, CFC free, polyurethane insulation.

HEATING SYSTEM:

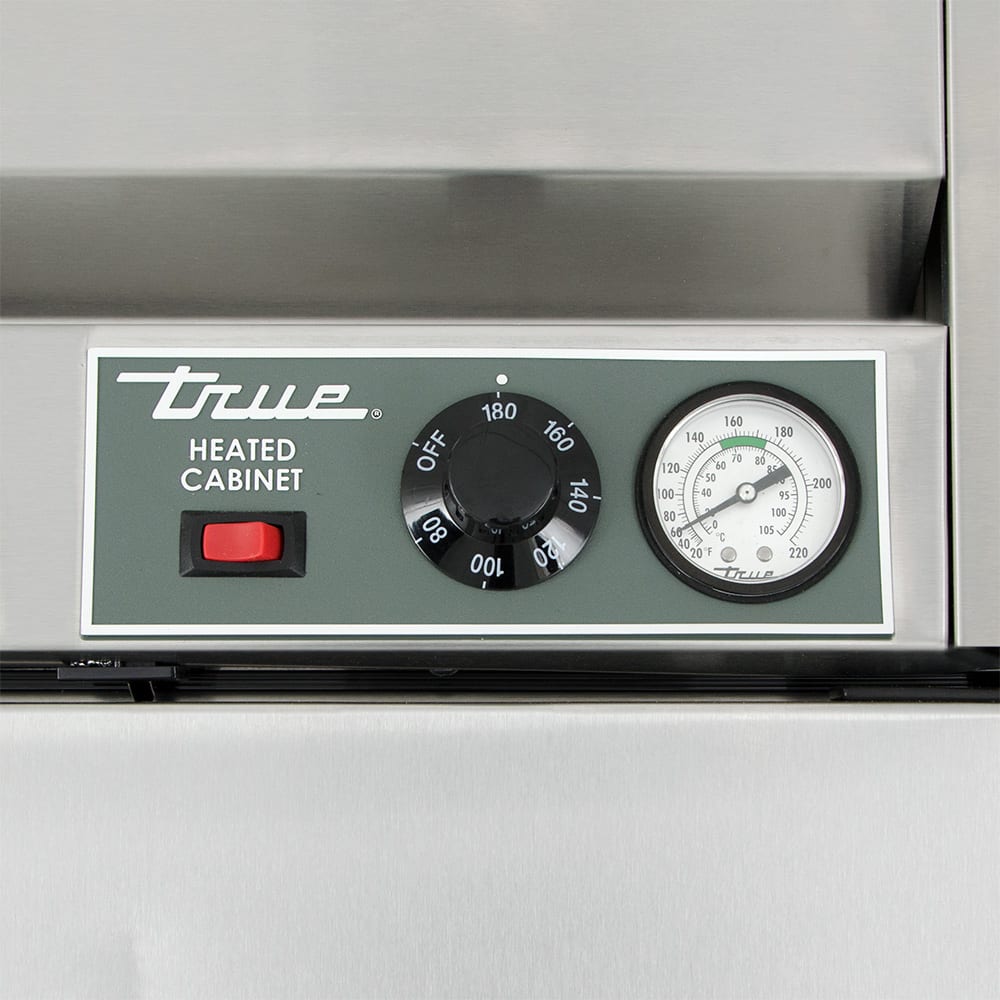

• Cabinet is designed to provide holding temperatures of 80° F to 200° F (26.6° C to 93.3° C). Heating system controlled by exterior on/off switch and temperature control dial.

• Stainless steel, tube heating element for uniform generation of electric heat. Cabinet comes with a total of 850 watts. Heating element sheathed for corrosion resistance.

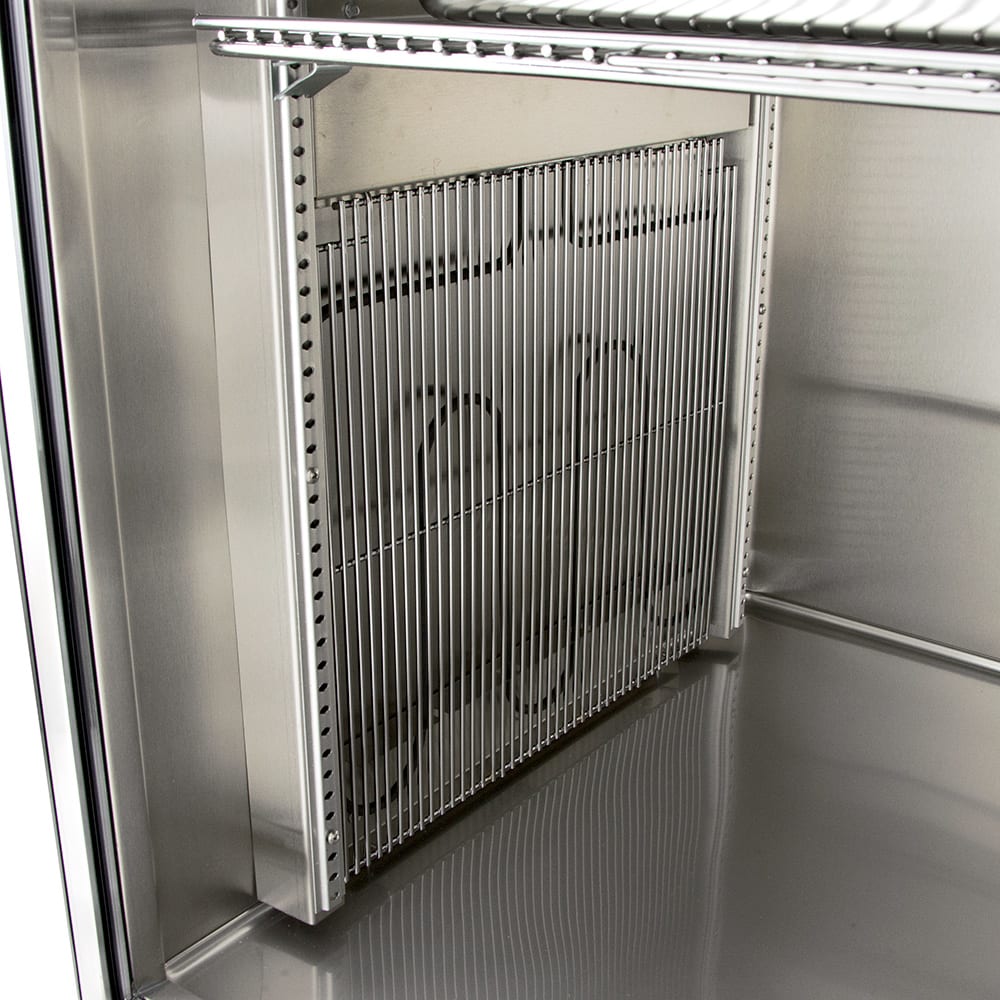

• Low-velocity fans to assure even temperature distribution throughout the cabinet.

• Manually controlled vent located on top of the cabinet for positive humidity control.

• Exterior dial thermometer; accurate direct reading of internal cabinet temperature.

CABINET CONSTRUCTION:

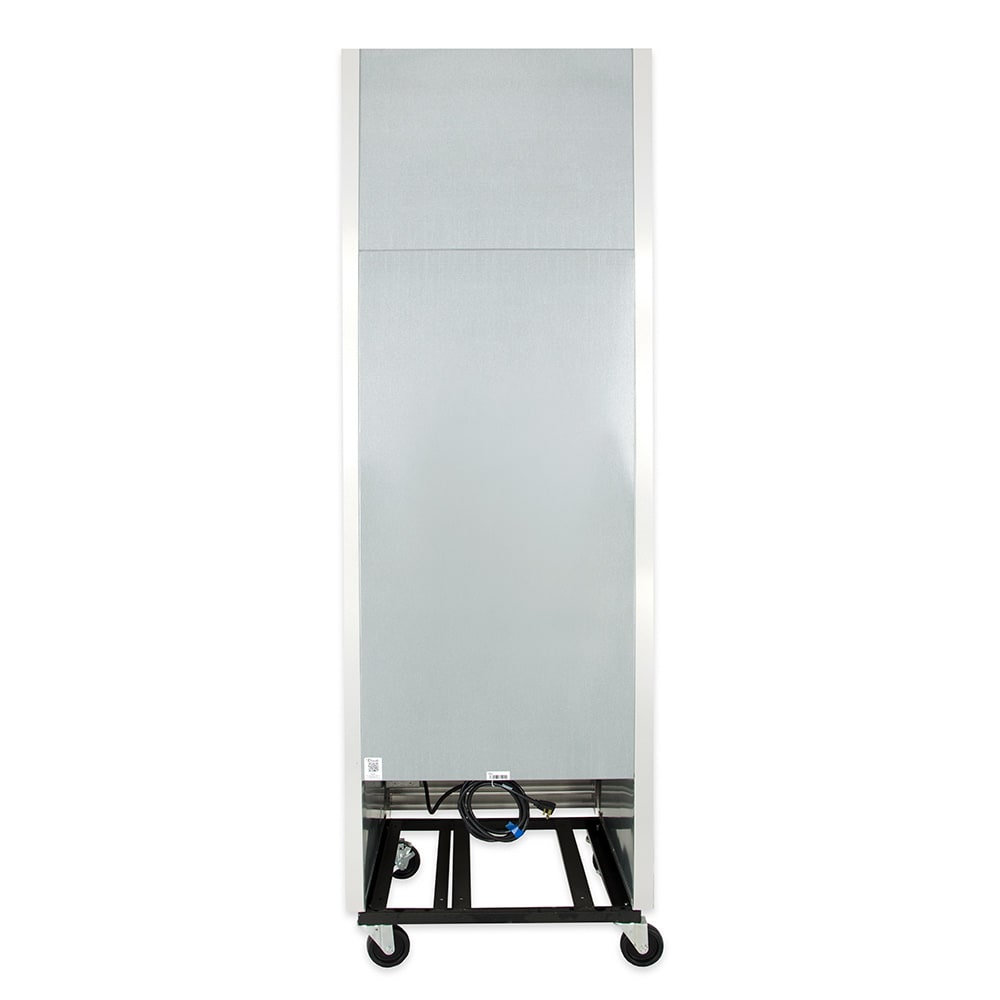

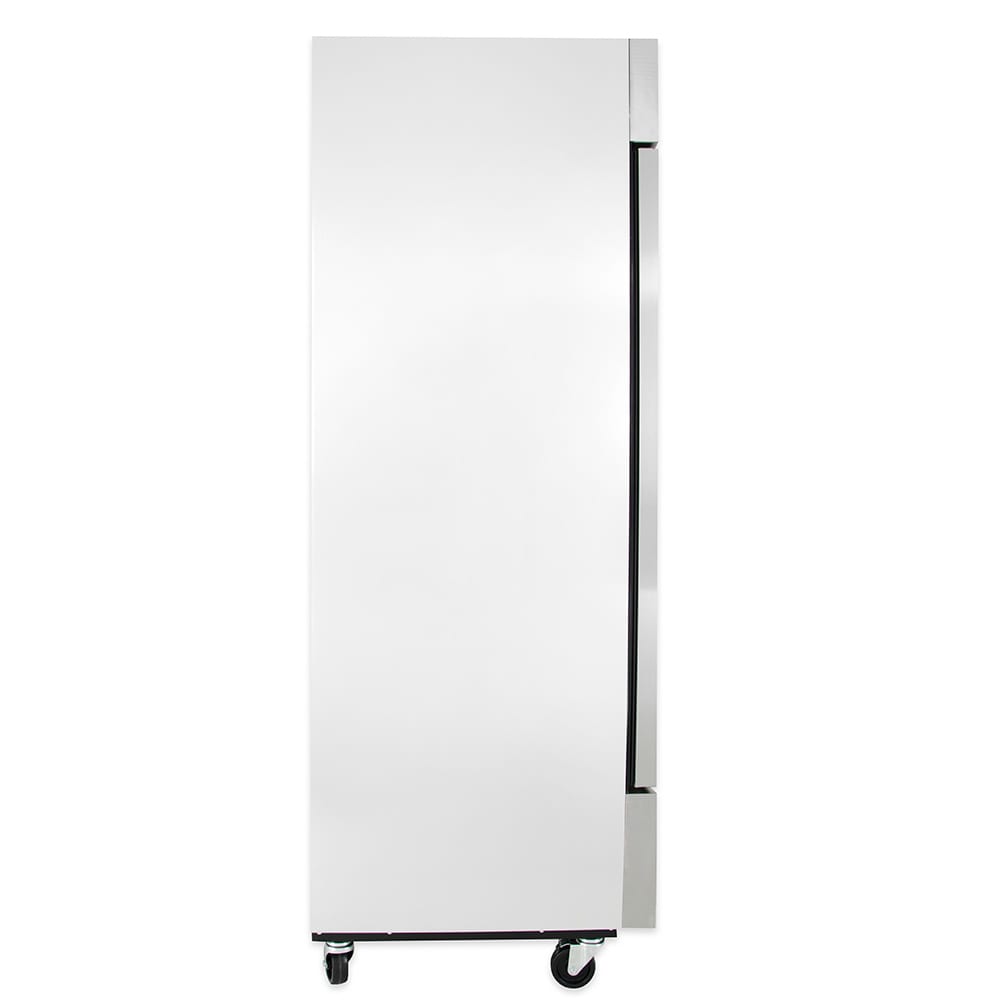

• Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends and back.

• Interior - 300 series stainless steel interior liner and floor.

• Insulation - entire cabinet structure and solid door are foamed-in-place using high density, CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

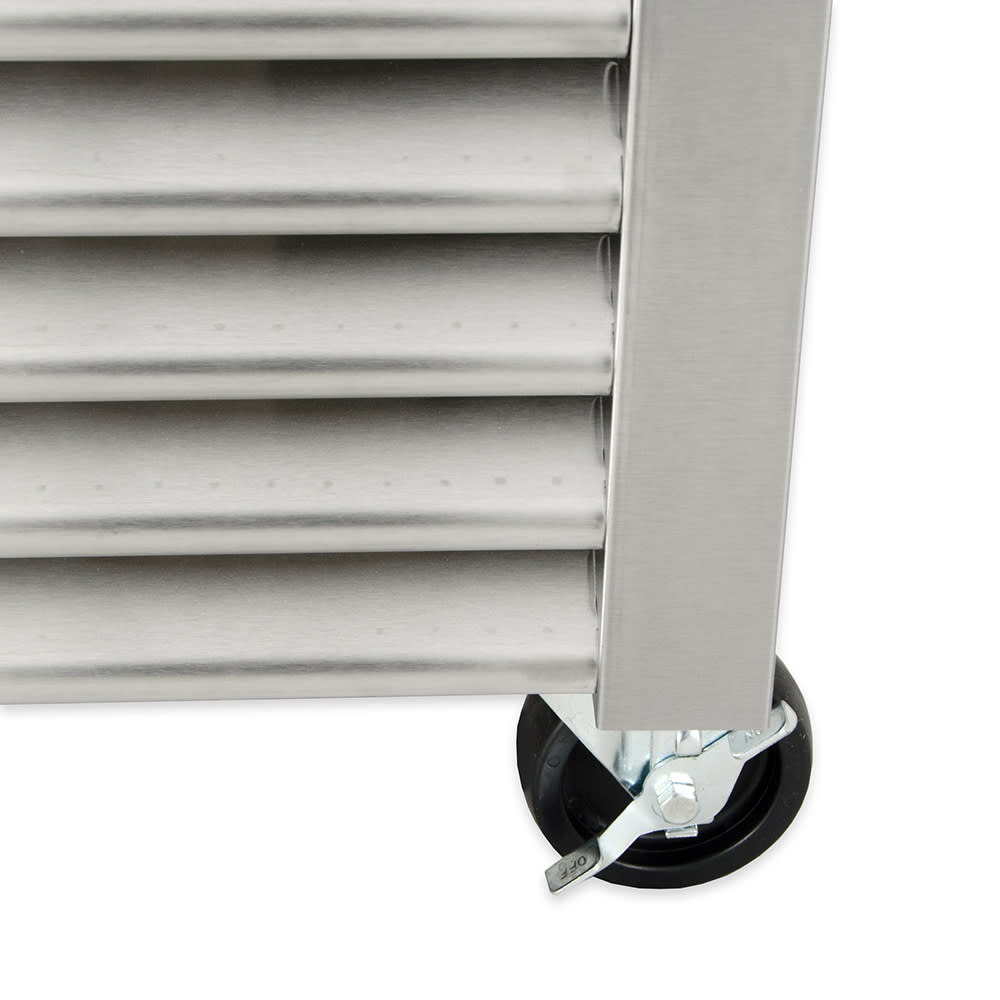

• Frame rail fitted with 4" diameter stem castors - locks provided on front set.

DOORS:

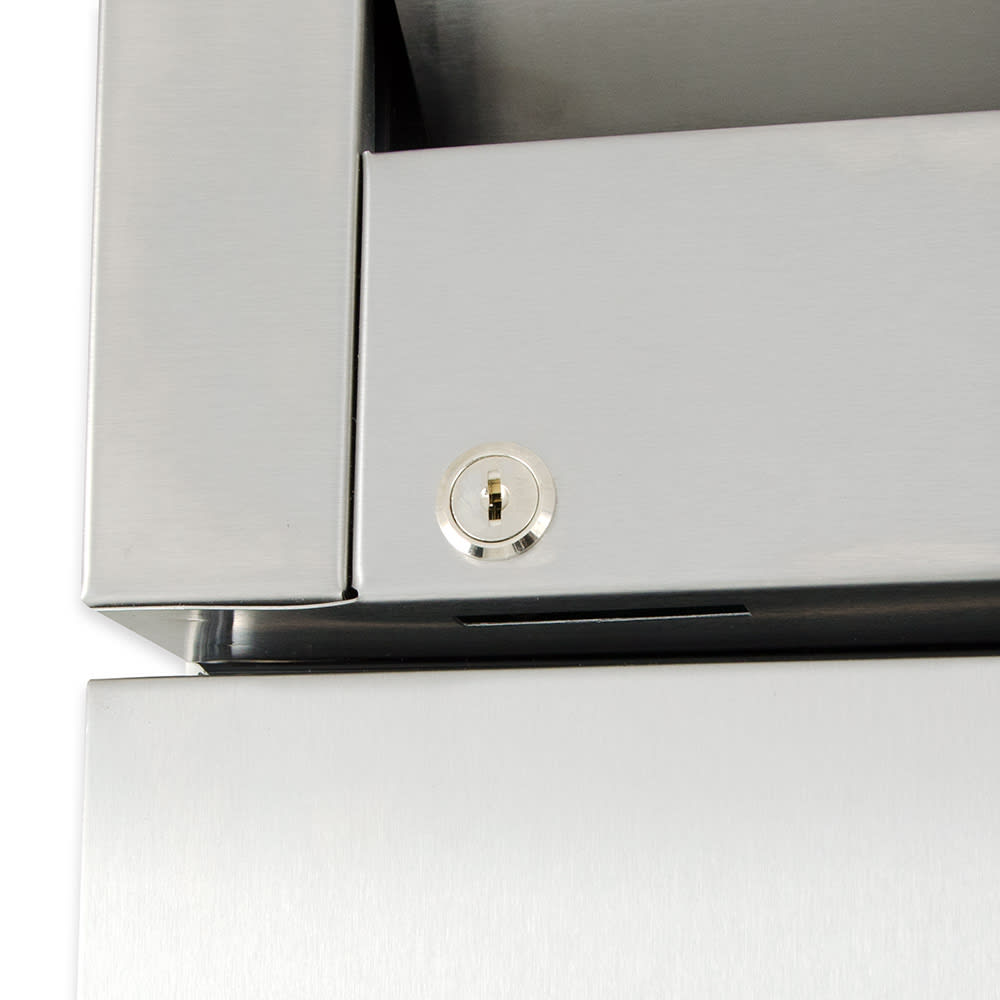

• 300 series stainless steel exterior and door liner. Door opens within cabinet dimension. Door lock standard.

• Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.

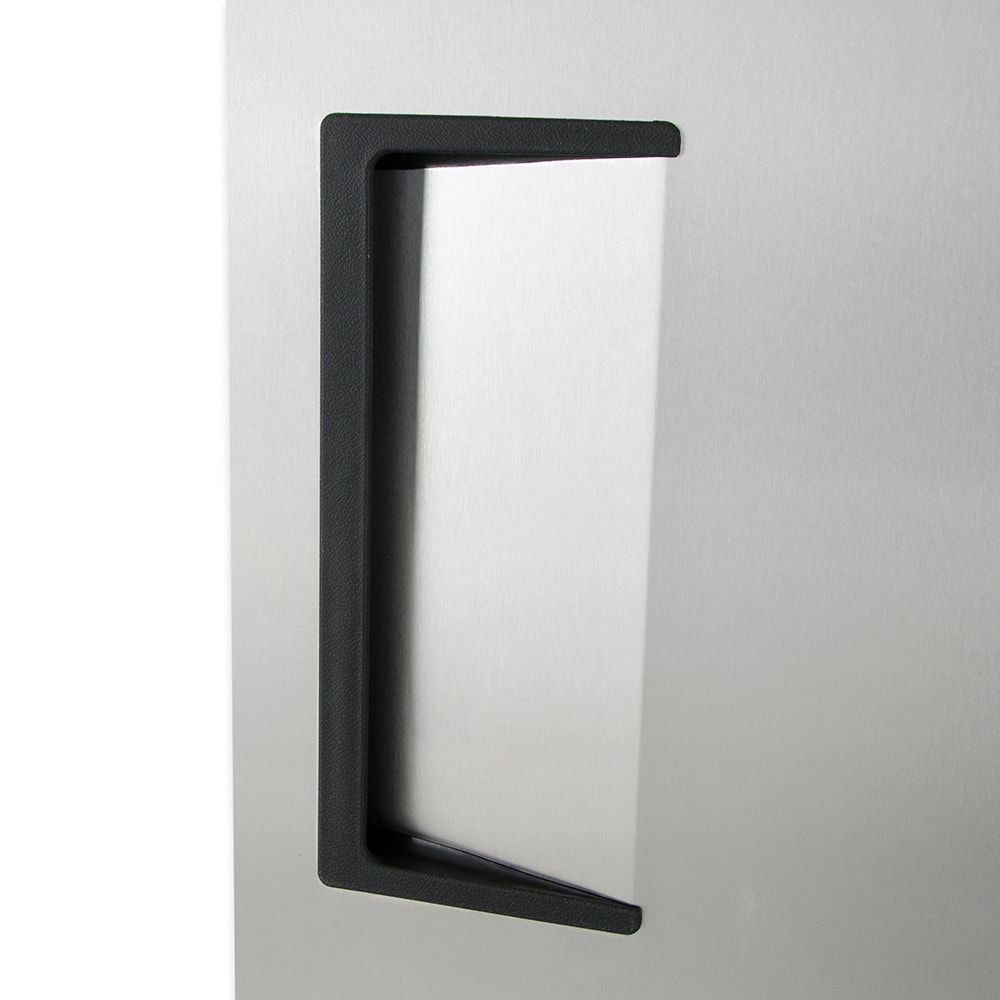

• Lifetime guaranteed recessed door handle standard. Door fitted with 12" long recessed handle that is foamed in-place with a sheet metal  interlock to insure permanent attachment.

• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING:

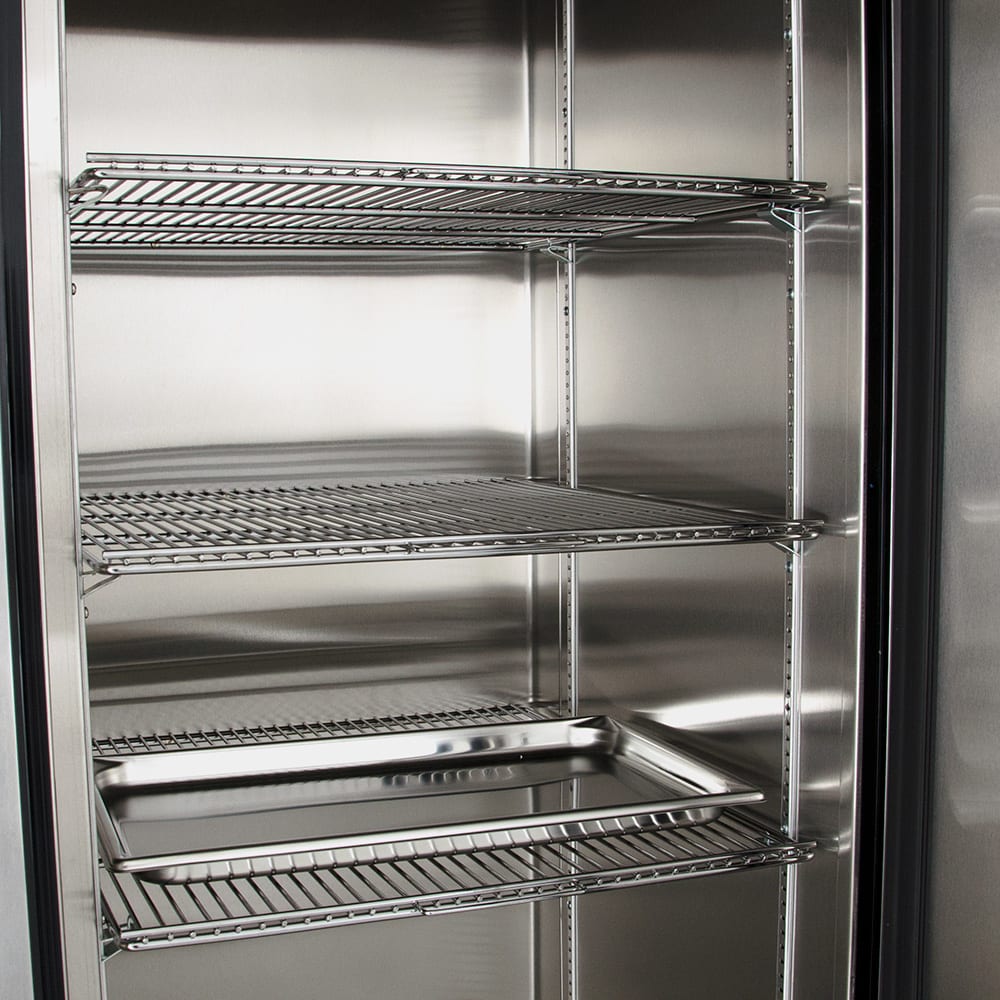

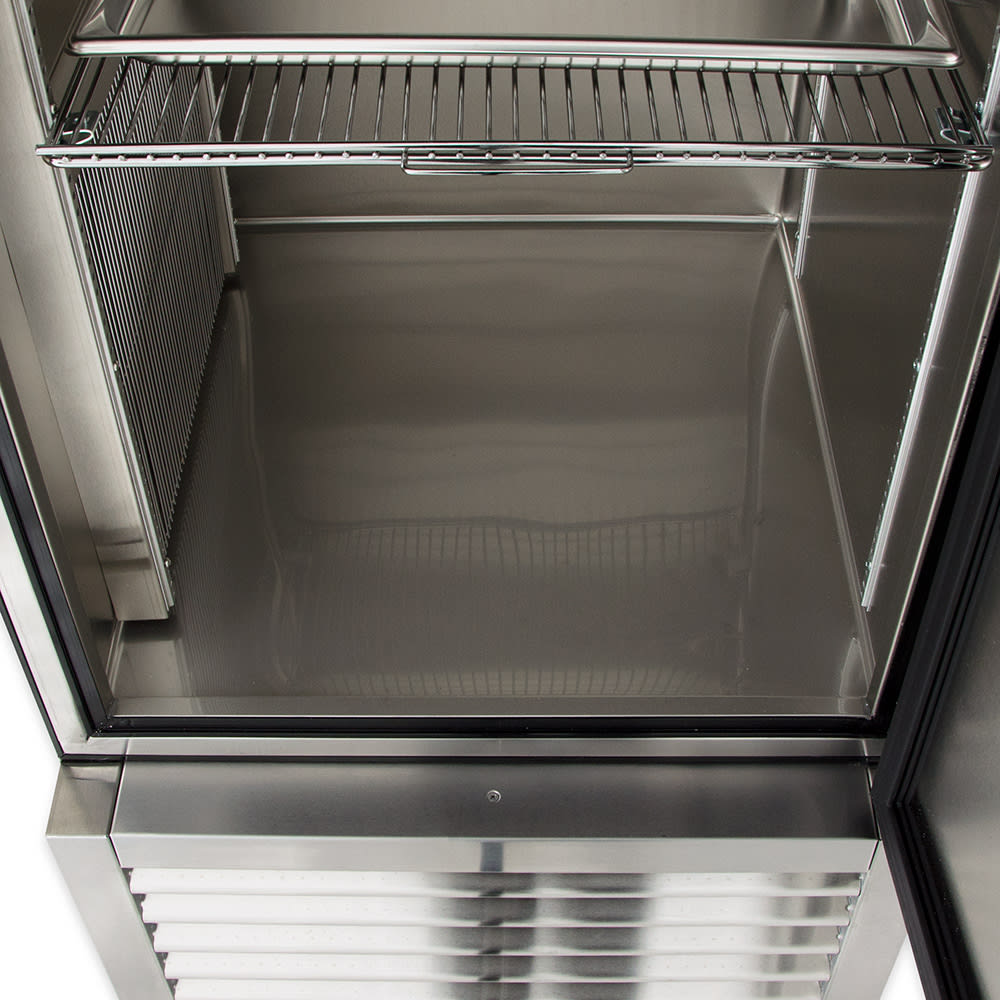

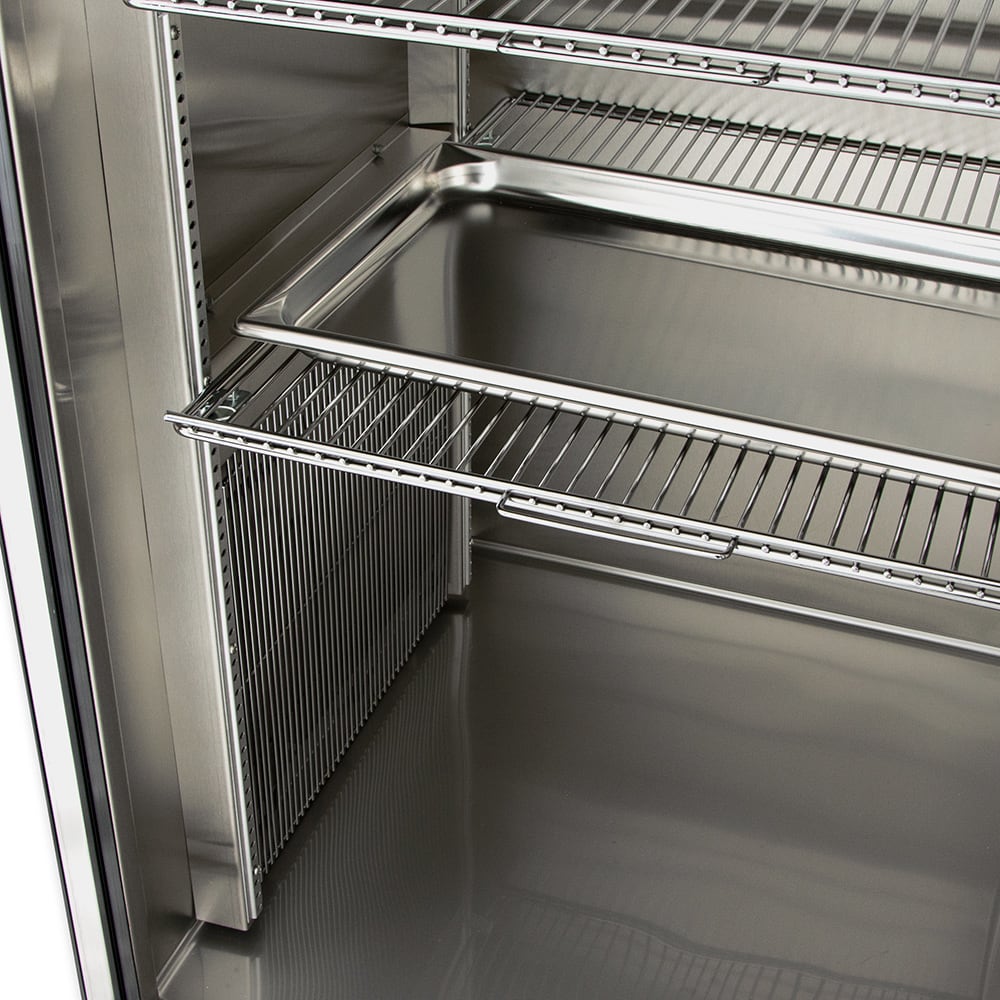

• Three (3) adjustable, heavy duty chrome plated wire shelves 217/16"L x 231/4"D (545 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.

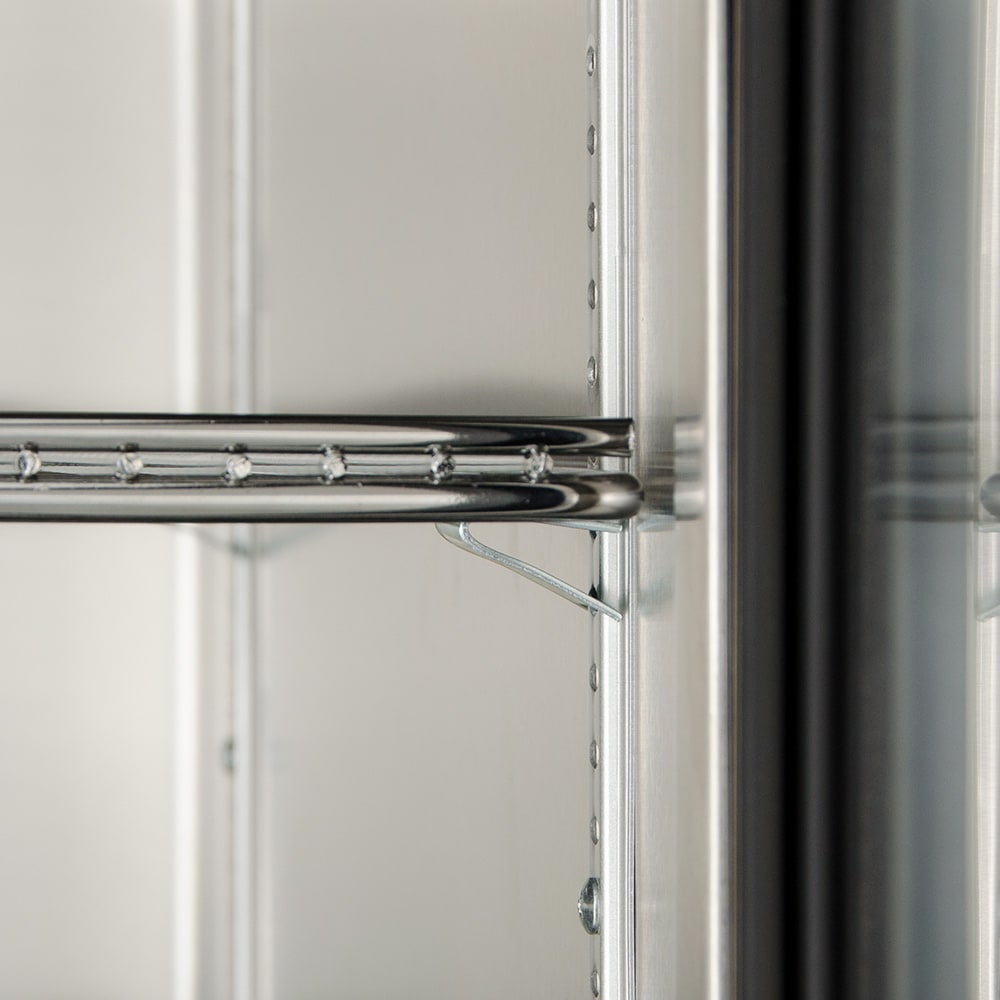

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING:

• Incandescent interior lighting; safety shielded.

MODEL FEATURES:

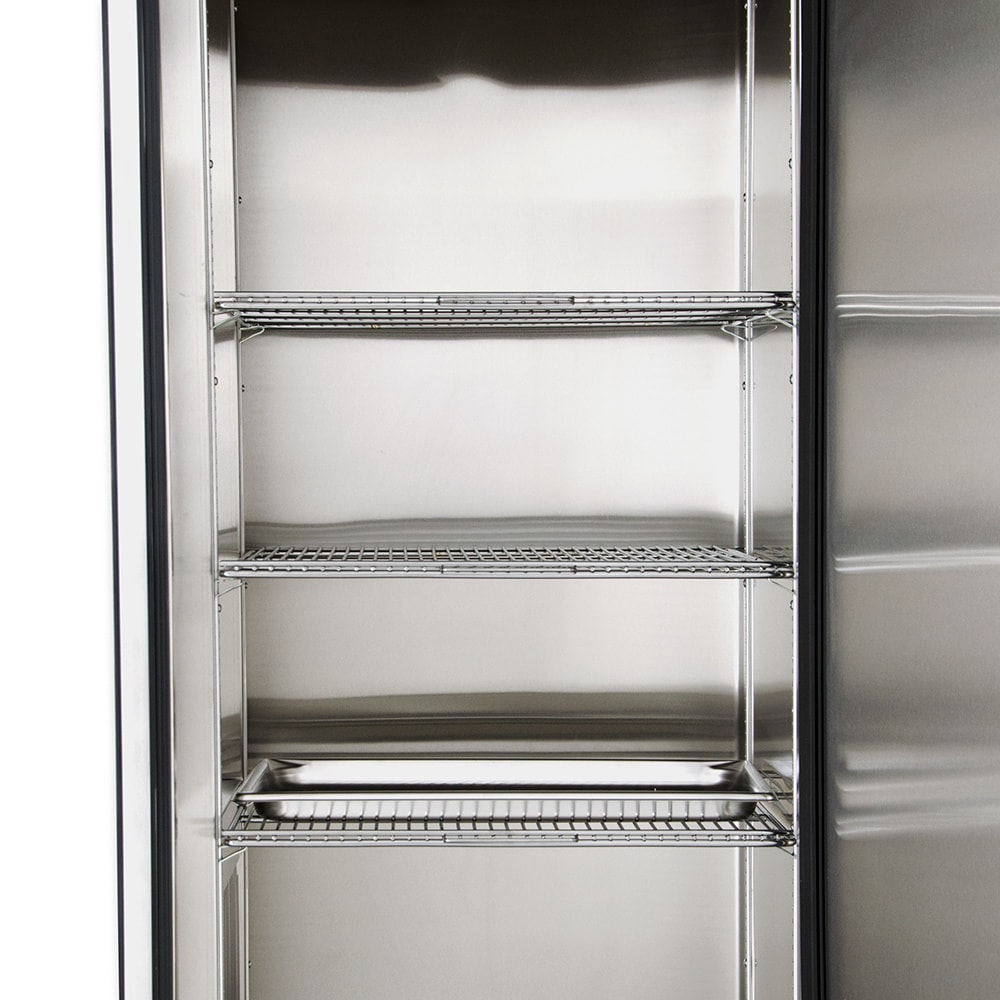

• 12"L x 20"W x 1"D (305 mm x 508 mm x 26 mm) humidity pan standard for contents requiring high humidity.

• True heated cabinets are designed to hold warm baked or cooked food. Cabinets are not designed to heat ambient or cold products.

• NSF-7 compliant for open food product.

ELECTRICAL CHARACTERISTICS:

• True requires a sole use circuit be dedicated for the unit.

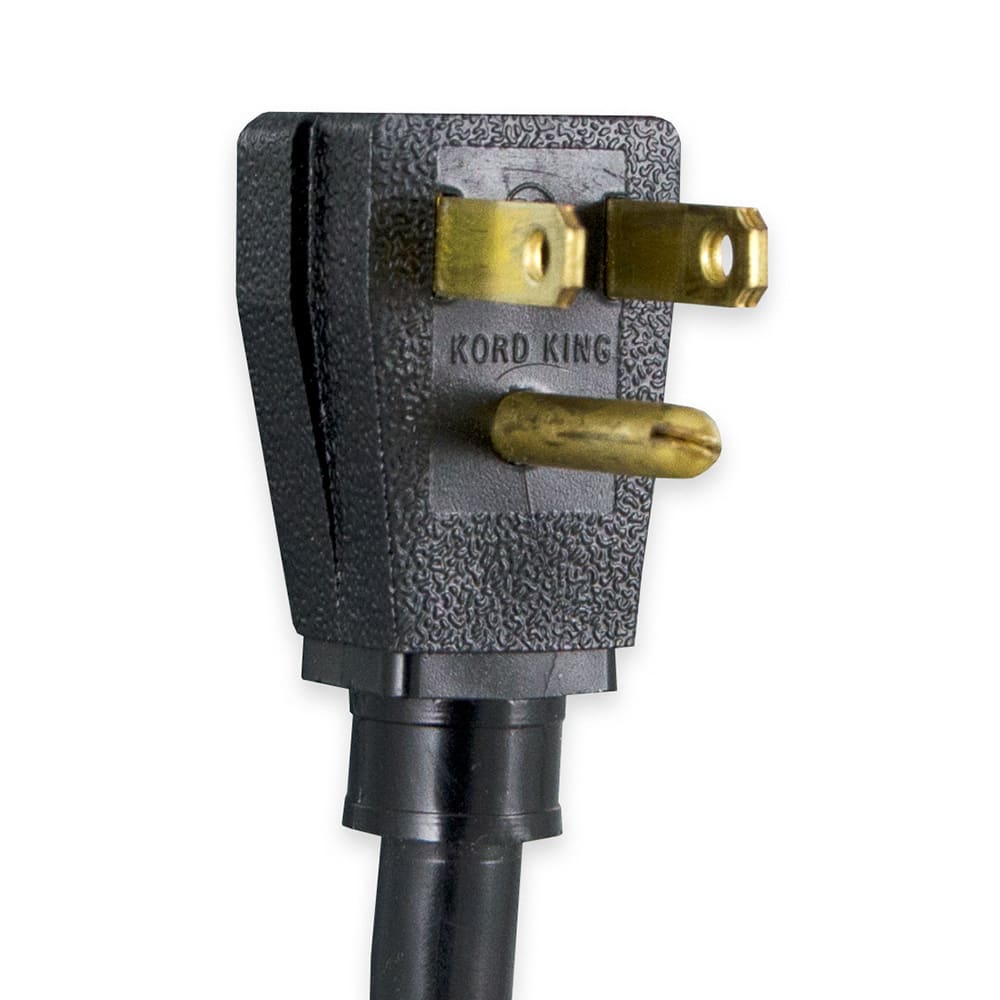

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included. True requires that a sole use circuit be dedicated for the unit.



OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• Alternate door hinging (factory installed).

• Additional shelves.

• Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

• Full door bun tray rack. Holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

CLICK IMAGE FOR LARGER VIEW

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
