	TG Series - Heated Cabinet

True® introduces its latest offering designed specifically to meet the needs of consultants.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

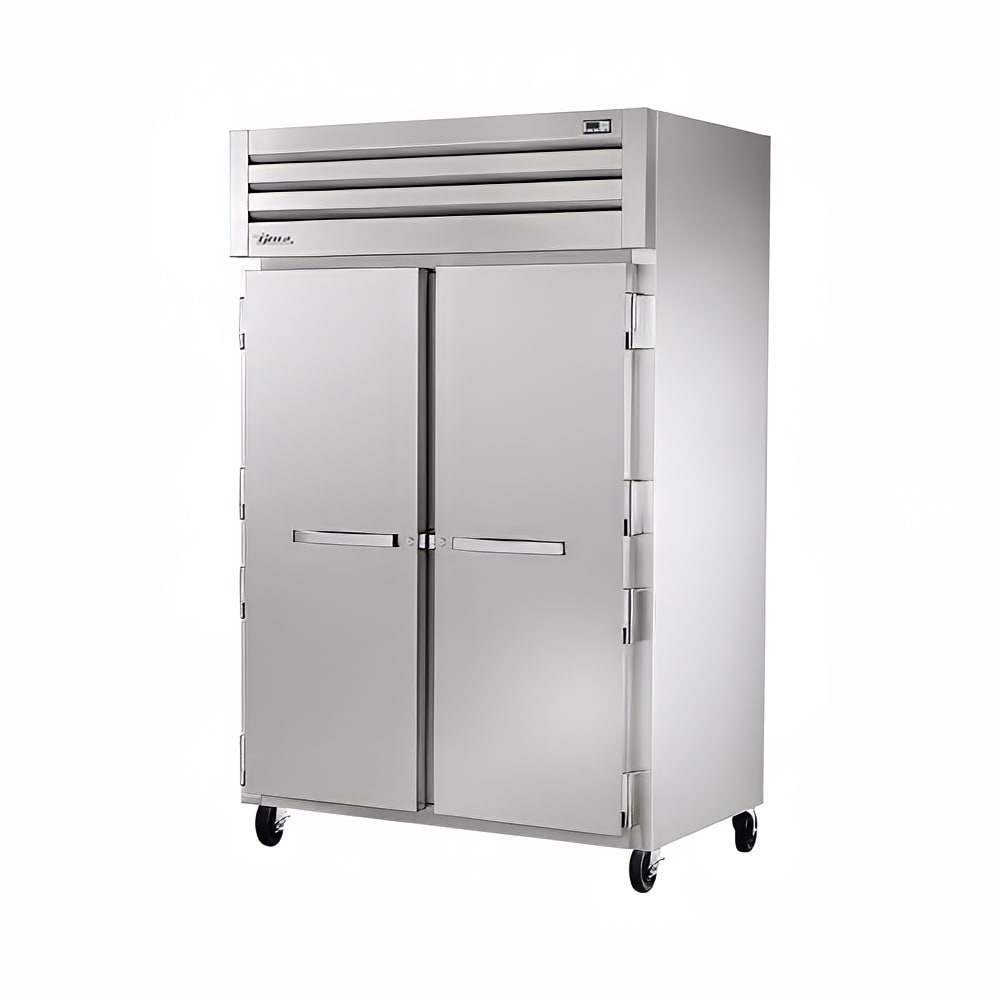

Reach-In Solid Door Heated Cabinet
2 Door
56 Cubic Feet

MODEL TG2H2S

STANDARD FEATURES:

Provides cabinet holding temperature of 80˚F to 180˚F (26.67˚C to 82.22˚C).
Internal fan provides low velocity, forced-air heat distribution to assure even temperatures throughout the cabinet.
(2) stainless steel 1000 watt finned tube heating elements per section for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.
300 series stainless steel door, front, and bottom. The very finest stainless; higher tensile strength for fewer dents and scratches.
Anodized aluminum interior cabinet liner. 300 series stainless steel door liner and floor with coved corners.
Three (3) adjustable, heavy duty chrome plated wire shelves 25"L x 27 3/4"D (635 mm x 705 mm) with 1" (26 mm) standoff. Four (4) chrome plated shelf clips to be included per shelf.
Entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.
Positive seal self-closing doors with 120 degrees stay open feature. Lifetime guaranteed door hinges and recessed door handles.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

KIT OPTIONS:
Up-charge and lead times may apply.

4" (102 mm) diameter swivel castors.
Seismic/flanged legs.
All stainless steel legs.
Stainless steel (electro polished) shelves.
Chrome shelves.
Universal pan slides.
#1 pan slides.
#2 rod style pan slides.
Curb mountable units.
Export units - consult factory.
Prison package options - consult factory.
Metal door handle.
Remote cabinets (condensing units supplied by others), consult factory technical service department for BTU information.

Kit #1: Nine sets of #1 type tray slides, bottom support of one 18" x 26" (456 mm x 661 mm) pan or two 14" x 18" (356 mm x 456 mm) pans.
Kit #2: One set half-section #2 steel rod tray slides, rim support of one 18" x 26" (456 mm x 661 mm) pan.
Kit #3: Six sets of universal type tray slides, bottom support of one 18"x 26"(456 mm x 661 mm) pan, two 14"x18" (356 mm x 456 mm) pans or two 12" x 20" (305 mm x 508 mm) pans.
Kit #4: Three chrome shelves 25"L x 27 3/4"D (635 mm x 705 mm) with 1" (26 mm) standoff and chrome plated shelf supports.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model	Doors	Capacity (Cu. Ft.)	Dimensions (Inches)			Watts	Volts	Amps	NEMA Config.	Cord Length (total feet)	Crated Weight
			L	D	H *
TG2H2S	2	56	51 3/8	34 3/4	78 1/4	4000	115/208-240/1	8.3	14-20P	9	565
* Height does not include 6" for leg height ( castors available on single section models only). Does not include 1" for system mechanical components. Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit. Note: TG2H-2S requires hard wiring

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TG2H2S
