Home > Shop By Vendor > TRUE Refrigeration > True Underbar Refrigeration > True Club Top Direct Draw Beer Dispensers
Home > Equipment > Restaurant Refrigeration > Underbar Refrigeration > Club Top Direct Draw Beer Dispensers

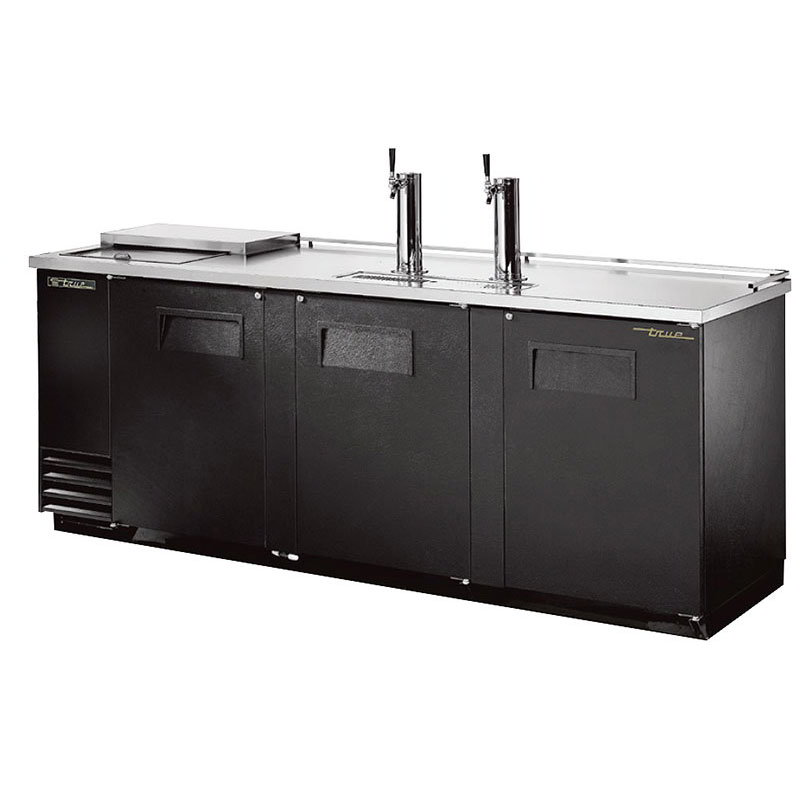

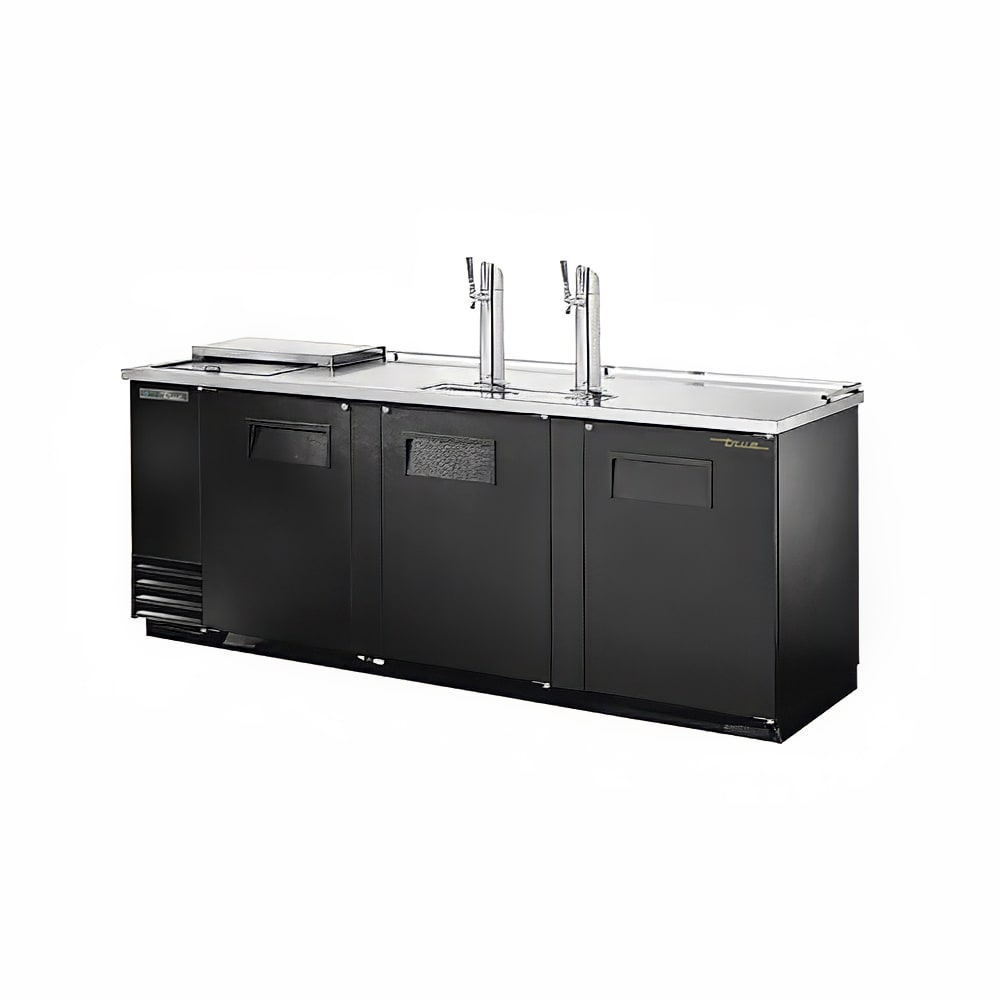

91inClub Top Draft Beer Cooler, 2 Faucets, 3 Door, Holds 4 Kegs

Click for Larger Image
Download Product Spec Sheet Download the Adobe Acrobat Reader software to view the spec sheet

91inClub Top Draft Beer Cooler, 2 Faucets, 3 Door, Holds 4 Kegs
Retail Price: $6,928.00
KaTom Price: $2,632.85
You Save: 62%
Lease-Finance for as low as $54.26 per month
Manufacturer: True
Model #: 598-TDD4CT
Priced Per: Each
Shipping Weight: 435.00 pounds
Quantity in Basket: none

Quantity:

TDD Series - Underbar Refrigeration

True®'s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.



Photo May Include Optional Accessories!
TYPICALLYS SHIPS IN 5 - 10 DAYS


 Club Top Direct Draw Beer Dispensers
HALF barrels: 4
doors: 3


MODEL TDD4CT
STANDARD FEATURES:
  • Easy to reach refrigerated storage area under slide top for chilled product or glasses.
  • Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5&deg C to 3.3&deg C).
  • Exterior - heavy duty, wear resistant laminated black vinyl front and sides. Matching black aluminum back. All stainless steel counter top.
  • Interior - 300 series stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF approved for pre-packaged and bottled product.
  • Adjustable, heavy duty PVC coated shelf.
  • 3" (77 mm) diameter stainless steel insulated beer column. Cold air is directed into beer column to reduce foaming and maximize draft beer profits.
  • Anodized aluminum glass rail provides convenient storage for glasses on top.
  • Entire cabinet structure and solid door are foamed-in-  place using high density, CFC free, polyurethane insulation.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • 230 - 240V / 50 Hz.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 21/2" (64 mm) diameter castors.
  • 4" (102 mm) diameter castors.
  • Double headed draft standard.
  • Two-way tapper manifold.
  • Three-way tapper manifold.
  • Draft cap.
  • Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.



ROUGH - IN DATA

This Product is recommended for commercial purposes only.
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
Model Doors Half
Barrels
 		 Dimensions
(Inches)		 HP Volts PH Amps NEMA
Config.		 Cord
Length
(total feet)
 		 Crated
Weight

L D  H
TDD4CT 3 swing 4 90 3/8 27 1/8 38 1/2 1/3 115/60/1   8.5 5-15P 7 435

* Height does not include 13 3/4" for draft arm.




WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

Model Elevation Side Plan 3D
TDD2 TFHY03E TFHY03S TFHY03P TFHY033



View Installation Manuals for True Refrigeration Equipment

Related Item(s)
Image Code Name Price
True 4 inch Caster Set for TBB4G 598-872017 True 4 inch Caster Set for TBB4G $347.60
Novelty Basket, 19-1/4 inch W x 17-1/8 inch D 598-832056 Novelty Basket, 19-1/4 inch W x 17-1/8 inch D $222.37
Round Cover, Chrome Plated, To Be Used When Draft Standard Not Required 598-831233 Round Cover, Chrome Plated, To Be Used When Draft Standard Not Required $120.91
Double Headed Draft Standard, Chrome 598-873101 Double Headed Draft Standard, Chrome $408.22
2 Way Air Distributor / Manifold 598-873116 2 Way Air Distributor / Manifold $96.23
3 Way Air Distributor / Manifold 598-873117 3 Way Air Distributor / Manifold $113.67
Surge Protector, Hardwired, 115V 598-801892 Surge Protector, Hardwired, 115V $106.21
Surge Protector, Hardwired, 208V/220V 598-801893 Surge Protector, Hardwired, 208V/220V $106.31
Surge Protector, 115 V, Plug In 598-842506 Surge Protector, 115 V, Plug In $106.21
Single Head Draft Beer Standard, Chrome 598-873100 Single Head Draft Beer Standard, Chrome $267.22
Triple Head Draft Beer Standard, Chrome 598-873105 Triple Head Draft Beer Standard, Chrome $979.09
Draft Pressure Kit, Includes Regulator and 5 lb CO2 Tank 598-873124 Draft Pressure Kit, Includes Regulator and 5 lb CO2 Tank $510.26
CO2 Tank, 5 lbs Filled 598-873125 CO2 Tank, 5 lbs Filled $336.06
Cleaning Kit for Draft Standard 598-873132 Cleaning Kit for Draft Standard $155.14
TrueTrac Shelf Organizer, 1 Liter / Wine, Black, for Left Side 598-874992 TrueTrac Shelf Organizer, 1 Liter / Wine, Black, for Left Side $107.87
TrueTrac Shelf Organizer, 1 Liter / Wine, Black, for Right Side 598-874994 TrueTrac Shelf Organizer, 1 Liter / Wine, Black, for Right Side $107.87
6 inch Legs, Set of 6, Frame Style, 6 inch on 23-3/4 inch Frame 598-872021 6 inch Legs, Set of 6, Frame Style, 6 inch on 23-3/4 inch Frame $347.61
Castors, Set of 6, 2-1/2 inch on 23-3/4 inch Frame 598-880202 Castors, Set of 6, 2-1/2 inch on 23-3/4 inch Frame $347.61
6 Inch Legs, Seismec / Flanged, Set of 6, Frame Style 598-880351 6 Inch Legs, Seismec / Flanged, Set of 6, Frame Style $409.66
