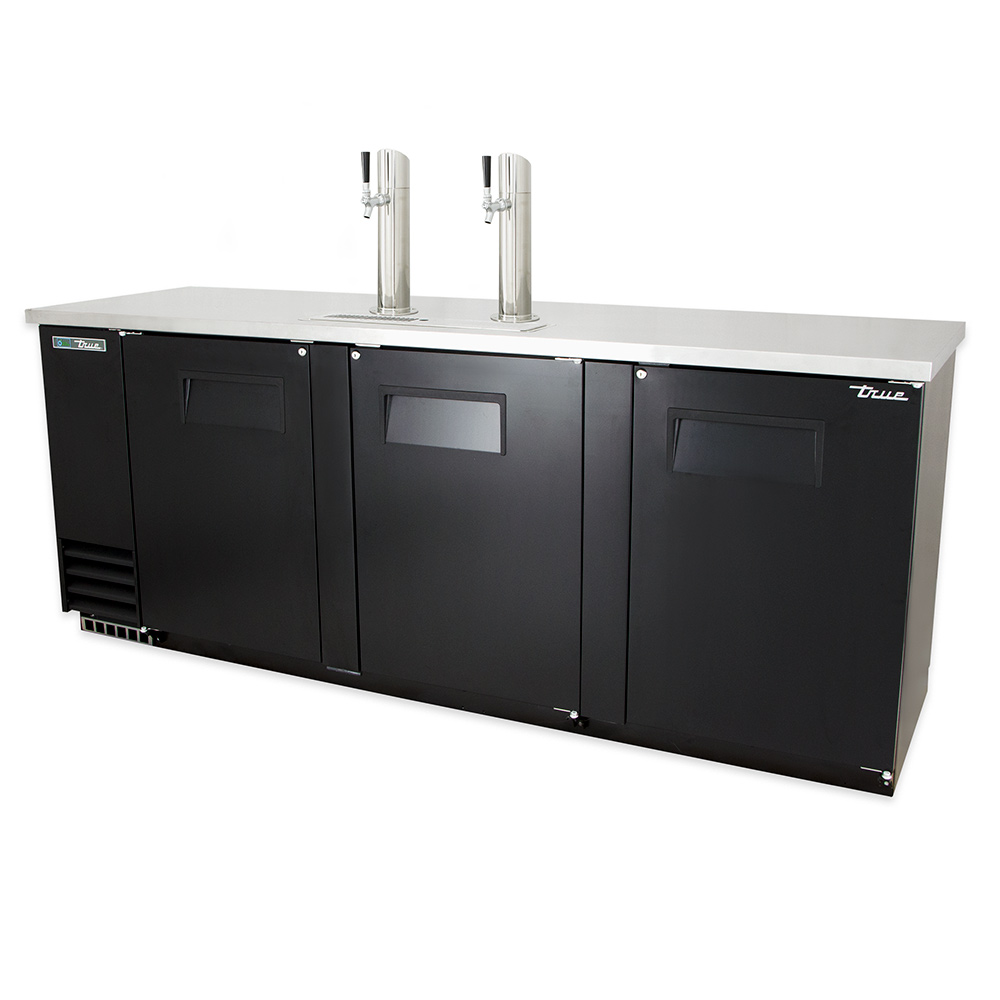

91in Draft Beer Cooler, 2 Faucets, 3 Door, Holds 4 Kegs

TDD Series - Underbar Refrigeration True® direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service. Photo May Include Optional Accessories! Product typically ships in 5 - 10 days. Direct Draw Beer Dispensers HALF barrels: 4 doors: 3   MODEL TDD4 STANDARD FEATURES: Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C). Exterior - heavy duty, wear resistant laminated black vinyl front and sides. Matching black aluminum back. All stainless steel counter top. Interior - 300 series stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF approved for pre-packaged and bottled product. 3" (77 mm) diameter stainless steel insulated beer column. Cold air is directed into beer column to reduce foaming and maximize draft beer profits. Entire cabinet structure and solid door are foamed-in-  place using high density, CFC free, polyurethane insulation. Features, Options & Specifications Subject to Change Without Notice. OPTIONAL ACCESSORIES: Up-charge and lead times may apply. 230 - 240V / 50 Hz. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. 2 1/2" (64 mm) diameter castors. 4" (102 mm) diameter castors. Double headed draft standard. Two-way tapper manifold. Three-way tapper manifold. Draft cap. Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.     CLICK IMAGE FOR LARGER VIEW   ROUGH - IN DATA This Product is recommended for commercial purposes only. Specifications subject to change without notice. Chart dimensions rounded up to the nearest 1/8" . Model Doors Half Barrels   Dimensions (Inches) HP Volts PH Amps NEMA Config. Cord Length (total feet)   Crated Weight   L D H TDD4 3 4 90 3/8 27 1/8 37 1/3 115/60/1   8.5 5-15P 7 415 * Height does not include 15 1/4" for draft arm.     WARRANTY One year warranty on all parts and labor and an additional 4 year warranty on compressor. (U.S.A. only) SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Model Elevation Side Plan 3D TDD4 TFHY01E TFHY02S TFHY01P TFHY013

View Installation Manuals for True Refrigeration Equipment
