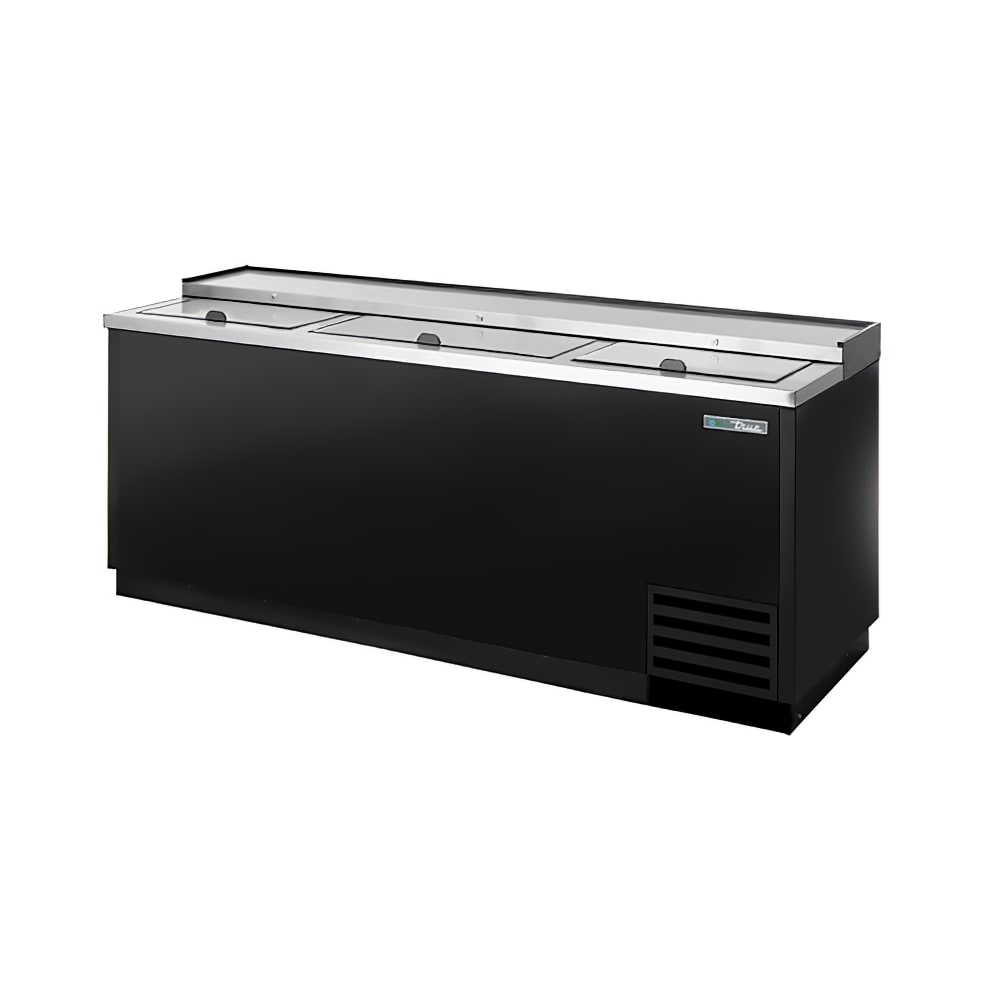

81in Bottle Cooler, Deep Well, Flat Top W/3 Lids, Holds (30cs) 12oz Bottles
True - Model 598-TD8030
|
True®' horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
Photo Includes Optional Accessories!
IN STOCK AVAILABLE FOR IMMEDIATE PICKUP OR SHIPPING
|
Horizontal bottle coolers
deep well
CASES BOTTLES.: 30
CASES CANS: 42
|
MODEL TD8030 |
STANDARD FEATURES:
- Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
- Forced-air cooling, positively guided air flow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet.
- Exterior - all stainless steel countertop and lid, heavy duty, wear resistant laminated black vinyl exterior front and sides, matching black aluminum back.
- Interior - long lasting, heavy duty galvanized steel. NSF approved for pre-packaged and bottled product.
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Entire cabinet structure foamed-in-place using high density, CFC free, polyurethane insulation.
- Heavy duty, 10 mil thick pure grade PVC coated adjustable bin dividers.
- Removable, bottle cap opener and cap catcher.
Features, Options & Specifications Subject to Change Without Notice. |
|
|
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply. |
- 230 - 240V / 50 Hz.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2 1/2" (64 mm) diameter castors.
|
- Ratchet lock.
- Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
|
|
| |
 |
|
CLICK IMAGE FOR LARGER VIEW

|
|
ROUGH - IN DATA |
This Product is recommended for commercial purposes only. |
|
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
| Model |
Lids |
Capacity |
Bin
Dividers |
Dimensions
(Inches) |
HP |
Volts |
Amps |
NEMA
Config. |
Cord
Length
(total feet)
|
Crated
Weight
|
| 12 oz. Bottle. |
12 oz. Cans |
L |
D |
H |
| TD8030 |
3 |
30 Cases |
42 Cases |
6 |
80 1/2 |
26 5/8 |
33 3/8 |
1/3 |
115/60/1 |
8.7 |
5-15P |
9 |
365 |
|
Depth does not include 1 1/2" for cap catcher and 1" for rear bumpers.
note: 12 oz. bottles refers to 12 oz. longneck bottles. |
|
|
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only) |
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE |
|
Model |
Elevation |
Right |
Plan |
3D |
| TD8030 |
|
|
|
|
|
| |
|
|
|
View Installation Manuals for True Refrigeration Equipment
Product Specifications
- Product Spec Sheet
- Crated Weight: 365.00 lbs.
- 12 Oz. Bottles/Cans: 30 / 42
- Category: Bottle Cooler
- Construction: Black Front & Sides
- Size: 3 Section
- Manufacturer: True
- Also Known As: TD-80-30, TRUE TD-80-30, TRUTD8030, 890TD8030, TD8030
