37in Bottle Cooler, SS, Deep Well, Flat Top W/Lid, Holds (11cs) 12 oz Bottles

True - Model 598-TD3612S

598-TD3612S

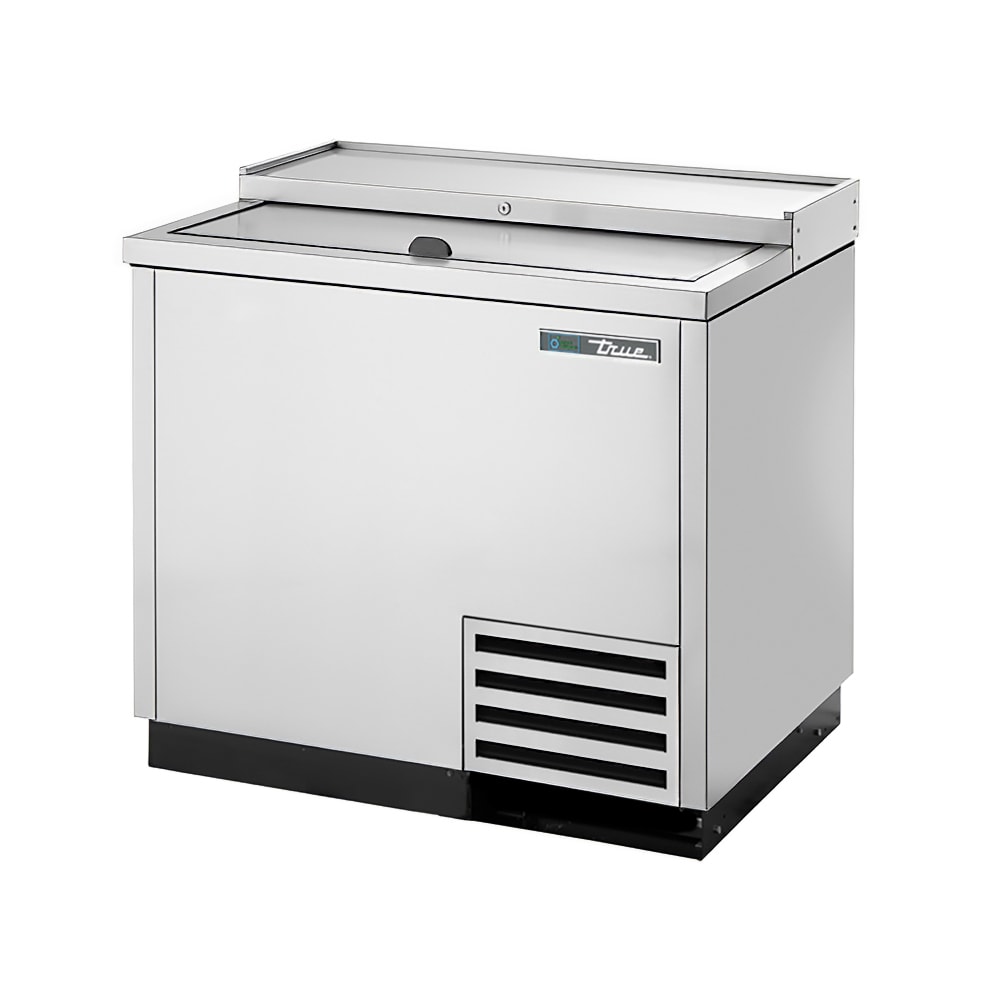

Click to view larger image of 598-TD3612S

KaTom Price $1,231.31

Priced Per: Each

Retail Price: $3,513.00

You Save: 65%

Quantity in Basket: none

Read about Huge Tax Savings!

Calculate Shipping

Add product to basket to estimate shipping.

TD Series - Underbar Refrigeration


True's horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.



Photo Includes Optional Accessories!
TYPICALLY SHIPS IN 5 - 10 DAYS

 STAINLESS STEEL - DEEP WELL
Horizontal bottle cooler
deep well
CASES BOTTLES: 11
CASES CANS: 14.5

MODEL TD3612S
STANDARD FEATURES:
  • Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
  • Forced-air cooling, positively guided air flow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet.
  • Exterior - all stainless steel countertop and lid.
  • Interior - long lasting, heavy duty galvanized steel. NSF approved for pre-packaged and bottled product.
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Entire cabinet structure foamed-in-place using high density, CFC free, polyurethane insulation.
  • Heavy duty, 10 mil thick pure grade PVC coated adjustable bin dividers.
  • Removable, bottle cap opener and cap catcher.
Energy Efficiency/Compliance:
This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy Commission efficiency standards.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • 230 - 240V / 50 Hz.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 21/2" (64 mm) diameter castors.
  • 3" (77 mm) diameter castors.
  • Ratchet lock.
  • Low temperature models hold 20° F (-6.7° C) for applications with high ambient temperatures. Designed for full alcohol beverages only [some low alcohol products freeze below 32° F (0° C)].
  • Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.




CLICK IMAGE FOR LARGER VIEW


SPECIFICATION IMAGES SHOWN: TD3612



ROUGH - IN DATA

This Product is recommended for commercial purposes only.
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8".
Model Lids Capacity Bin
Dividers		 Dimensions
(Inches)		 HP Volts Amps NEMA
Config.		 Cord
Length
(total feet)
 		 Crated
Weight

12 oz. Bottles 12 oz. Cans L D * H
TD3612S 1 11 Cases 14 1/2 Cases 2 36 3/4 26 5/8 33 3/8 1/5 115/60/1 4.6 5-15P 7 210

Depth does not include 1 1/2" for cap catcher and 1" for rear bumpers.
note: 12 oz. bottles refers to 12 oz. longneck bottles.




WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

Model Elevation Right Plan 3D
TD3612S TFKY04E TFKY01S TFKY04P TFKY043



View Installation Manuals for True Refrigeration Equipment

Product Specifications

  • Product Spec Sheet
  • Crated Weight: 210.00 lbs.
  • 12 Oz. Bottles/Cans: 11 / 14
  • Category: Bottle Cooler
  • Construction: SS Front & Sides
  • Size: 1 Section
  • Manufacturer: True
  • Also Known As: TD-36-12-S, TRUE TD-36-12-S, TRUTD3612S, 890TD3612S, TD3612S
