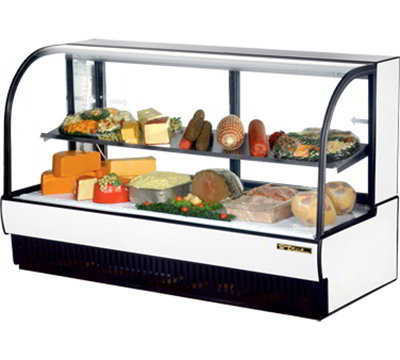

78in Curved Glass Deli Case, Glass Ends, Glass Slide Rear Drs
True - Model 598-TCGR77CD
|
True®'s refrigerated deli case combines efficient, high volume merchandising and superior refrigeration with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.

Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

View Our Color Selections Here
▼

|
cold deli bakery
2 Door
43 CUBIC FEET
|
MODEL TCGR77CD |
STANDARD FEATURES:
- Self-contained, environmentally friendly (CFC free) 134A refrigeration system.
- Superior low velocity, high volume airflow design maintains 38°F to 40°F (3.3°C to 4.4° C) without drying out product. Ideally suited for delicate bakery products.
- Cabinet is NSF-7 certified to hold open food product.
- Insulated, double pane curved glass front and side glass panels provide extra large viewing area to maximize bakery product presentation. Front glass tilts forward for easy cleaning.
- One (1) adjustable, lighted, stainless mezzanine shelf.
- Low UV emitting fluorescent lighting system.
- Front and sides standard with white laminated panels, five additional color options available at no charge. Stainless steel top.
Features, Options & Specifications Subject to Change Without Notice. |
|
|
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply. |
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2 1/2" (64 mm) diameter castors.
- Custom exterior laminates.
|
- Additional shelves (non-lighted).
- Non-lighted stainless steel mezzanine shelves.
- Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
|
|
| |
 |
|
CLICK IMAGE FOR LARGER VIEW

|
|
ROUGH - IN DATA |
This Product is recommended for commercial purposes only. |
|
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8".
| Model |
Doors |
Capacity
(Cu. Ft.)
|
# of
Shelves |
Dimensions
(Inches) |
HP |
Volts |
PH |
Amps |
NEMA
Config. |
Cord
Length
(total feet)
|
Crated
Weight
|
| L |
D |
H |
| TCGR77CD |
2 slide |
43 |
1 |
77 7/8 |
35 1/2 |
47 7/8 |
3/4 |
115/60/1 |
|
15.5 |
5-15P |
9 |
N/A |
|
|
|
|
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only) |
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE |

|
Model |
Elevation |
Right |
Plan |
3D |
Back |
| TCGR77CD |
N/A |
N/A |
N/A |
N/A |
N/A |
|
| |
 |
|
|
View Installation Manuals for True Refrigeration Equipment
Product Specifications
- Product Spec Sheet
- Crated Weight: 780.00 lbs.
- Category: Deli & Display Cases
- Cubic Feet: 43
- Length (in): 77-7/8
- Storage: None
- Style: Curved Glass
- Type: Refrigerated
- Manufacturer: True
- Also Known As: TCGR-77-CD, TRUE TCGR-77-CD, TRUTCGR77CD, 890TCGR77CD, TCGR77CD
