73in Curved Glass Deli Case, Service Type, 2 Adj Shelves, Gl Slide Rear Drs

True - Model 598-TCGG72

598-TCGG72

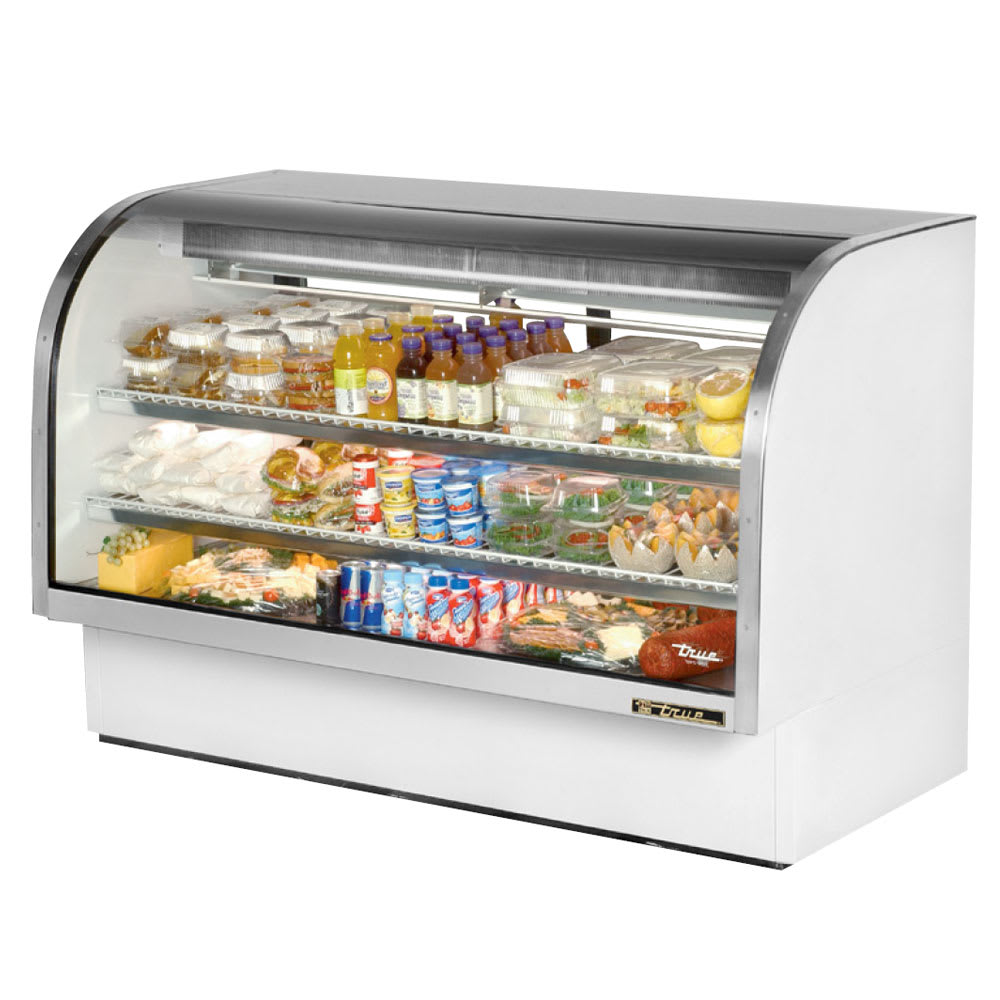

Click to view larger image of 598-TCGG72

KaTom Price $5,508.11

Priced Per: Each

Retail Price: $15,715.00

You Save: 65%

Quantity in Basket: none

Read about Huge Tax Savings!

Calculate Shipping

Add product to basket to estimate shipping.

TCGG Series - Curved Glass Deli Case:


True® s curved glass deli display case combines efficient, high volume merchandising and superior refrigeration with an elegant curved glass front for sophisticated presentation of deli products.



Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS


 TRUE 72" CURVED DELI CASE
2 DOORS
37.1 CUBIC FEET


MODEL TCGG72
STANDARD FEATURES:
  • True®'s curved glass deli display case combines efficient, high volume merchandising and superior refrigeration with an elegant curved glass front for sophisticated presentation of deli products.
  • Superior gravity coil refrigeration system maintains 38° F to 40° F (3.3° C to 4.4° C) for the freshest display of meats and cheeses designed to increase sales and profits.
  • Self-contained, environmentally friendly (CFC free) 134A refrigeration system.
  • Cabinet is NSF-7 certified to hold open food product.
  • Insulated double pane glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.
  • Full length adjustable stainless steel mezzanine shelf with light.
  • Low UV emitting fluorescent lighting system.
  • All stainless steel interior and exterior.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • Additional lighted stainless steel mezzanine shelves.
  • Non-lighted stainless steel mezzanine.
  • Ratchet locks.
  • Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.




CLICK IMAGE FOR LARGER VIEW



ROUGH - IN DATA

This Product is recommended for commercial purposes only.
Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8" .
Model Doors Capacity
(cu. Ft.)
 		 Shelves Pans
(top)		 Dimensions
(Inches)		 HP Volts Amps NEMA
Config.		 Cord
Length
(total feet)
 		 Crated
Weight

L D H *
TCGG72 2 37.1 2   72 1/4 35 1/4 47 3/4 3/4 115/60/1 16.0 5-20P 9 685

Depth does not include 7/8" for rear door handles.





WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

Model Elevation Right Plan 3D Back
TCGG72  TFD057E  TFD057S TFD057P   TFD0573    TFD057B



View Installation Manuals for True Refrigeration Equipment

Product Specifications

  • Product Spec Sheet
  • Crated Weight: 685.00 lbs.
  • Category: Deli & Display Cases
  • Cubic Feet: 37.1
  • Length (in): 72-1/4
  • Storage: None
  • Style: Curved Glass
  • Type: Refrigerated
  • Manufacturer: True
  • Also Known As: TCGG-72, TRUE TCGG-72, TRUTCGG72, 890TCGG72, TCGG72
