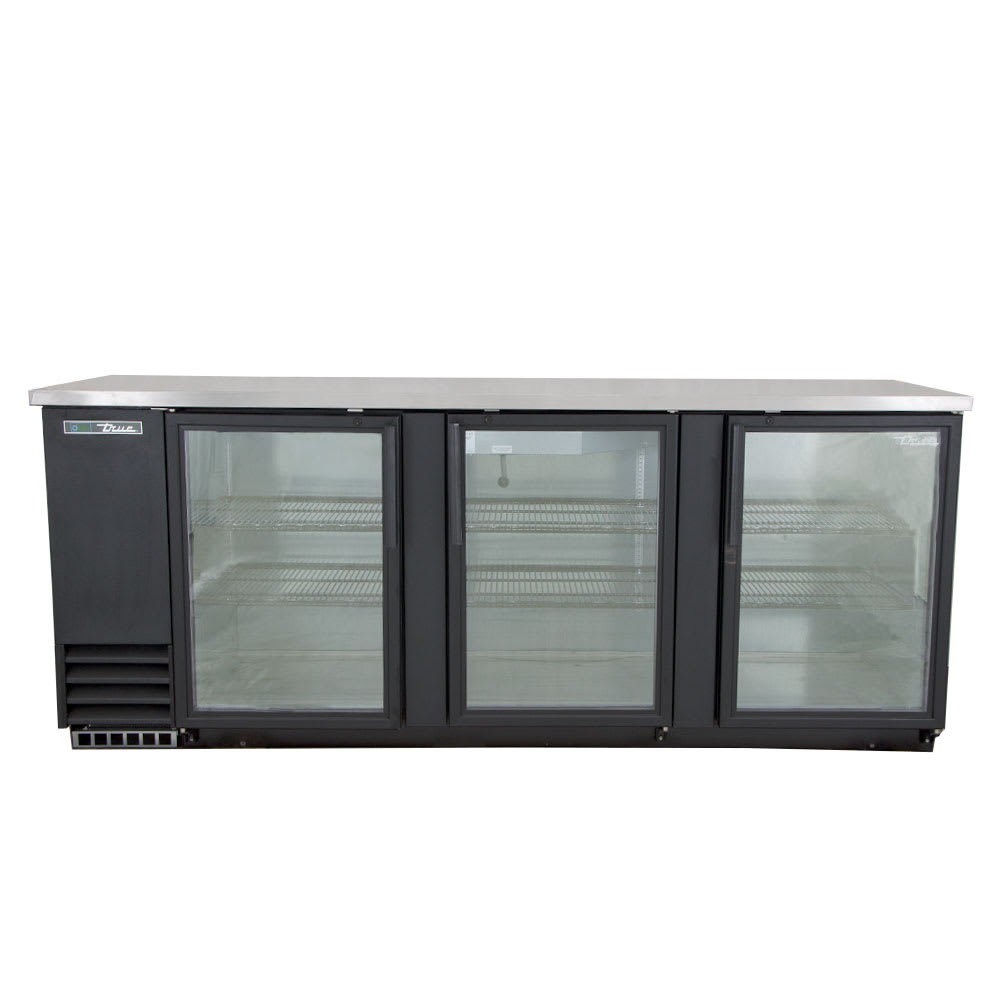

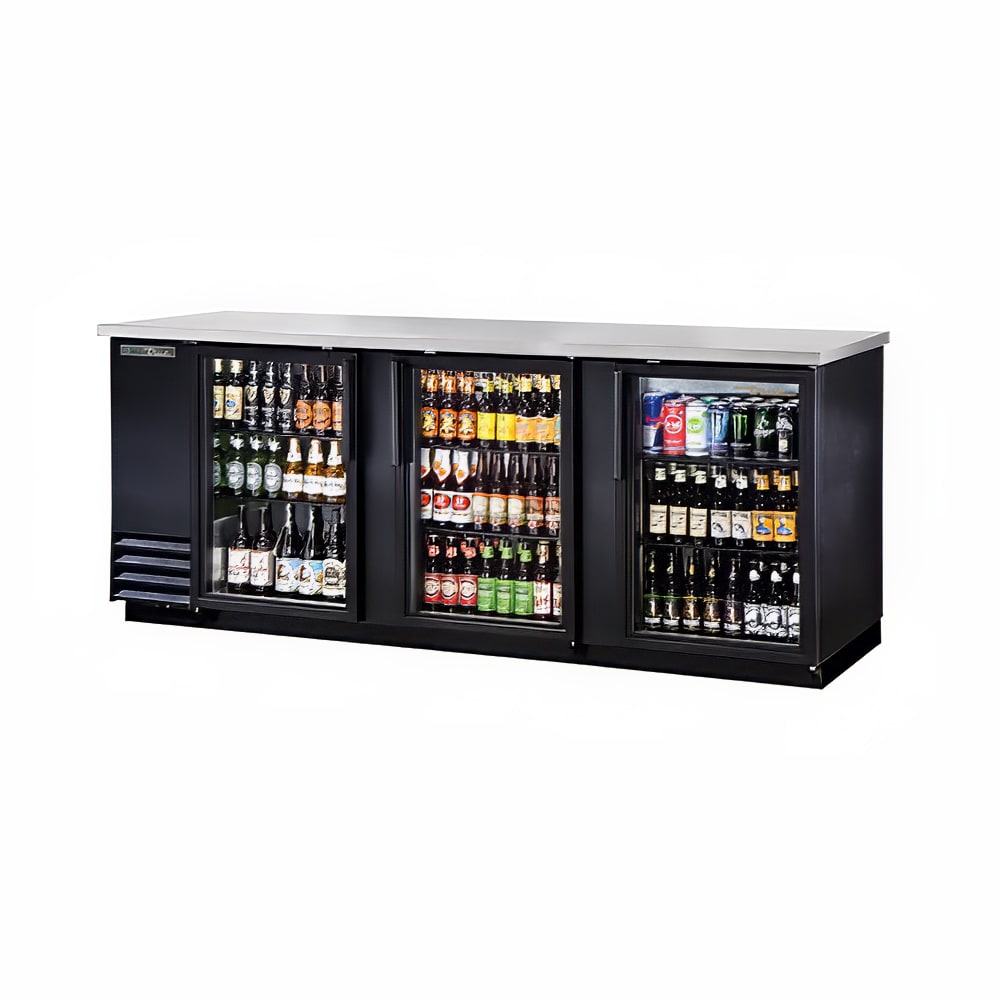

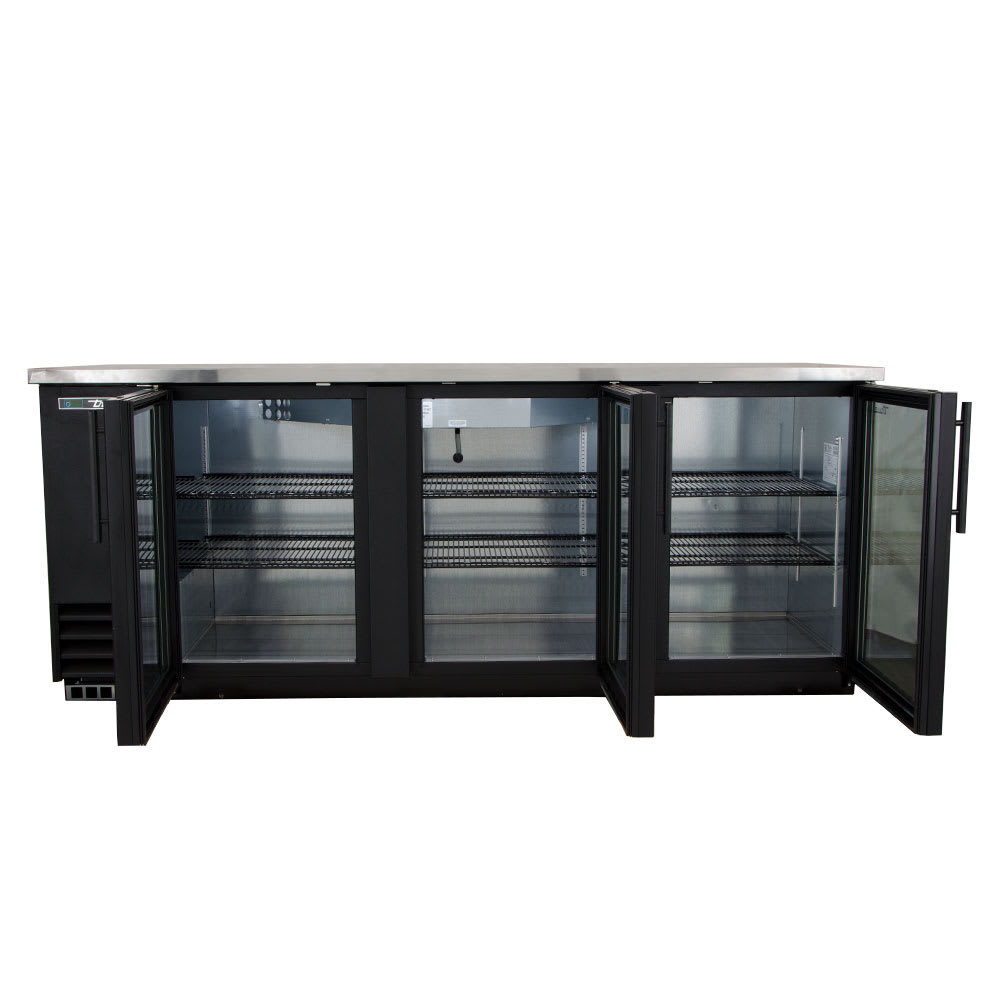

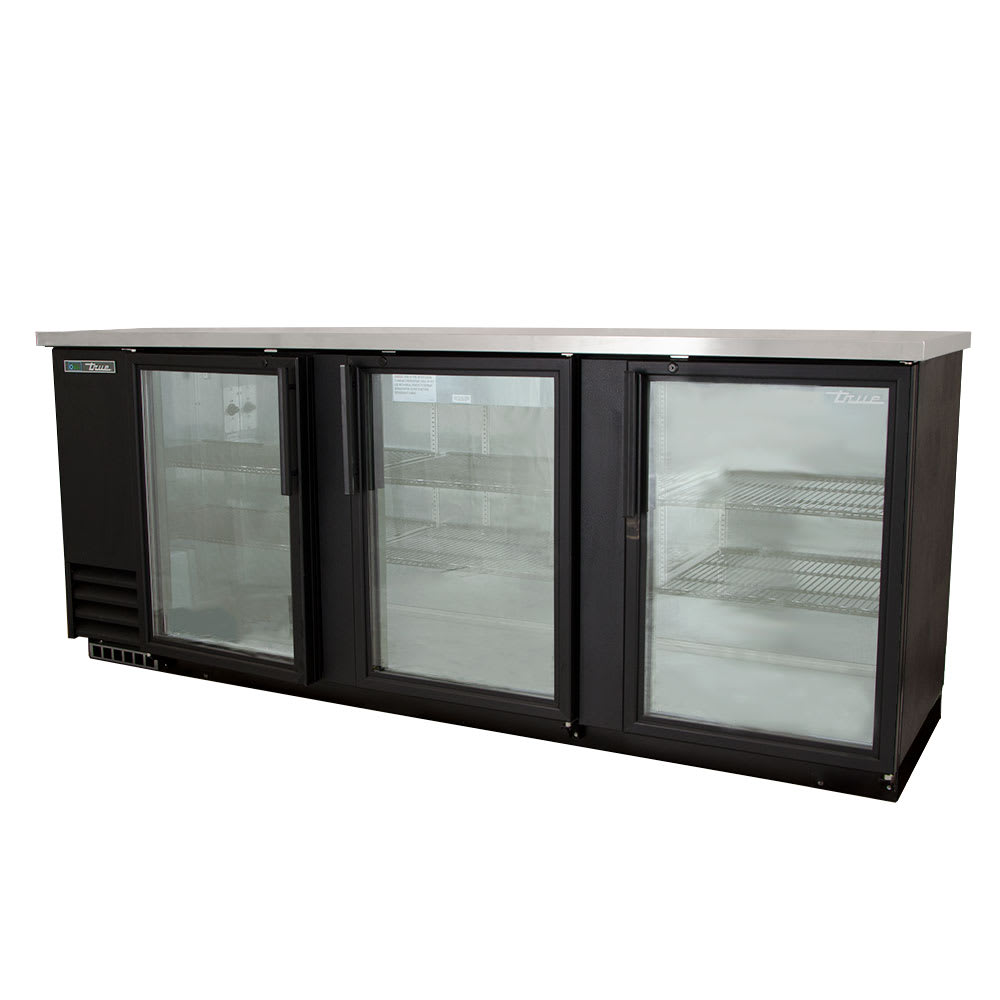

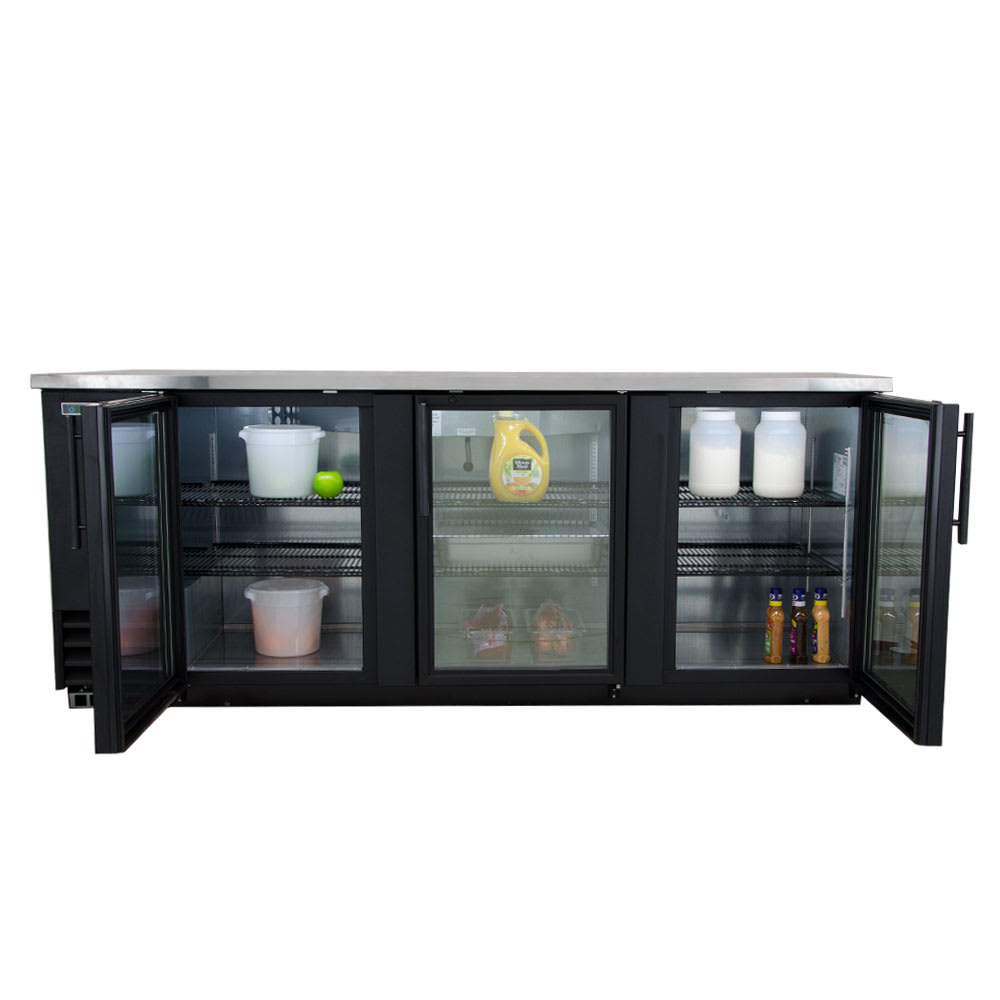

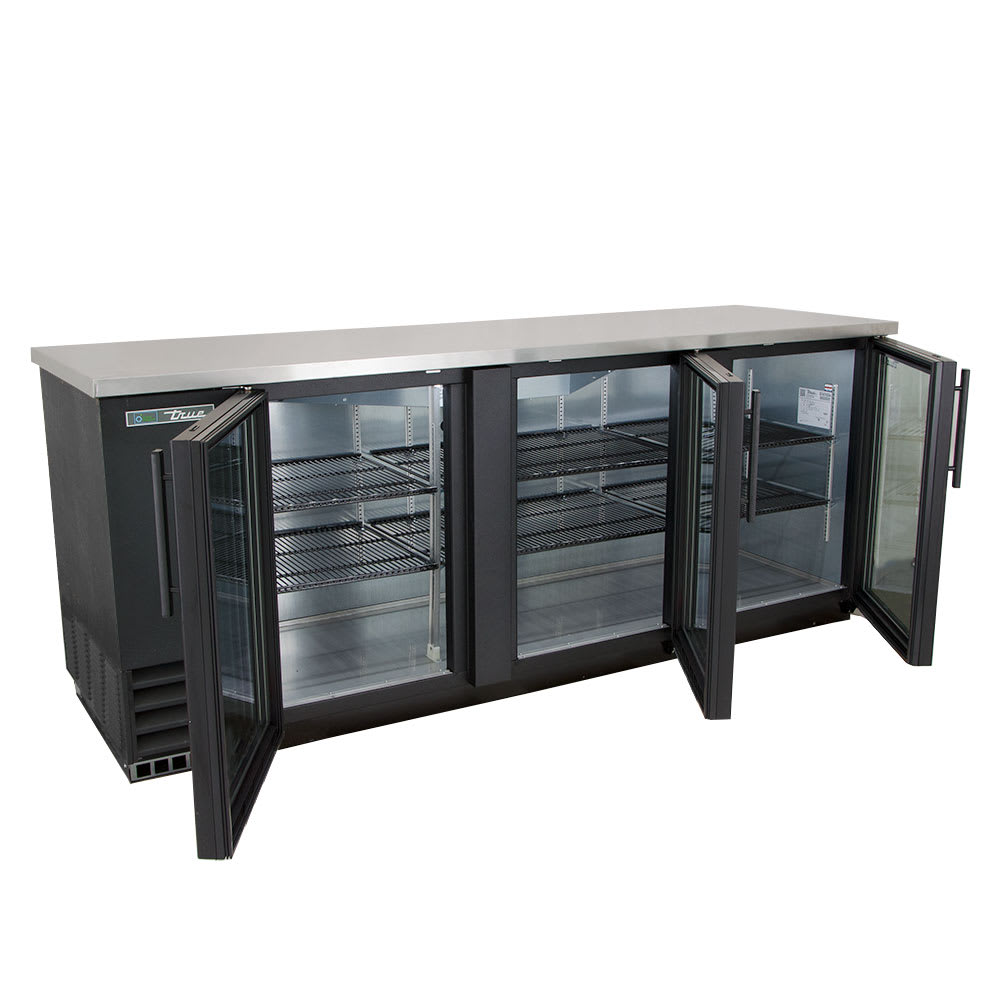

91in Back Bar Cooler, 3 Section/Glass Doors, 6 Shelves, Holds (209) 6-packs

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).

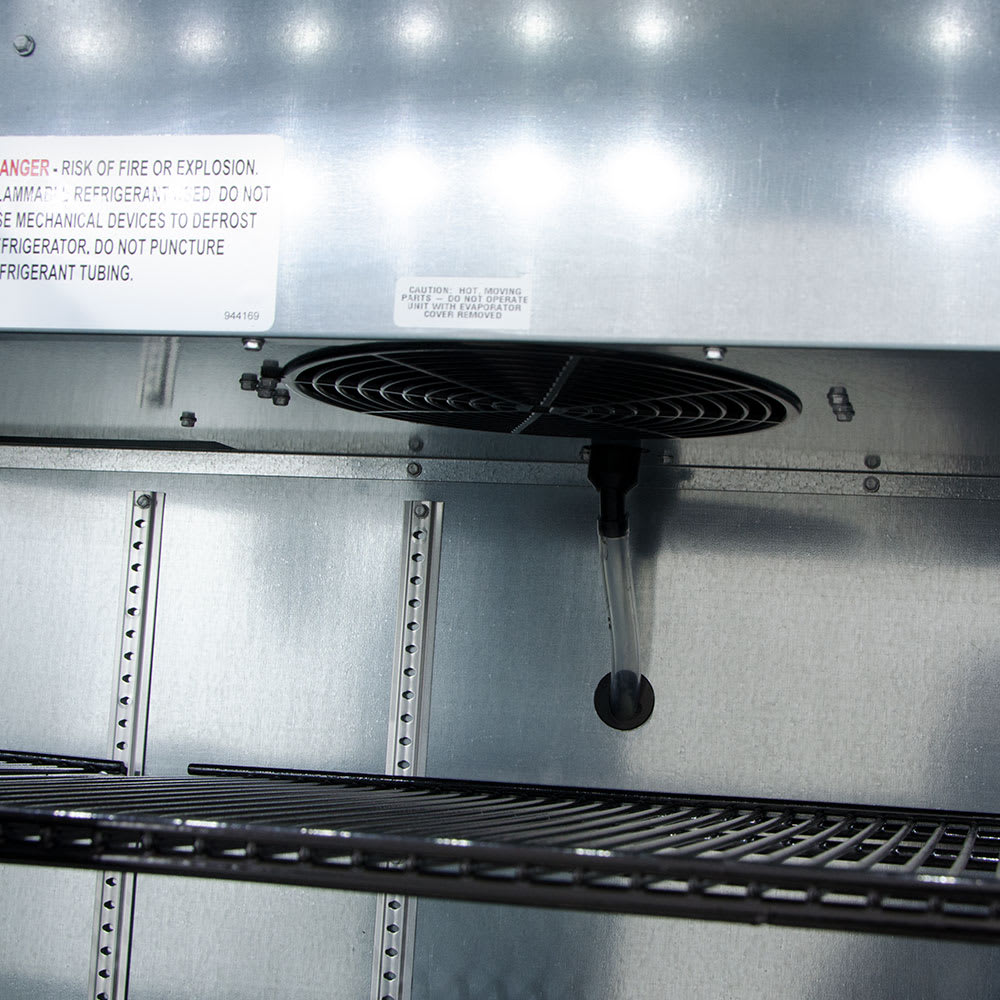

Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True back bar coolers a more efficient low velocity, high volume airflow design. This unique design ensures faster temperature pull down of warm product, colder holding temperatures and faster recovery in high use situations.

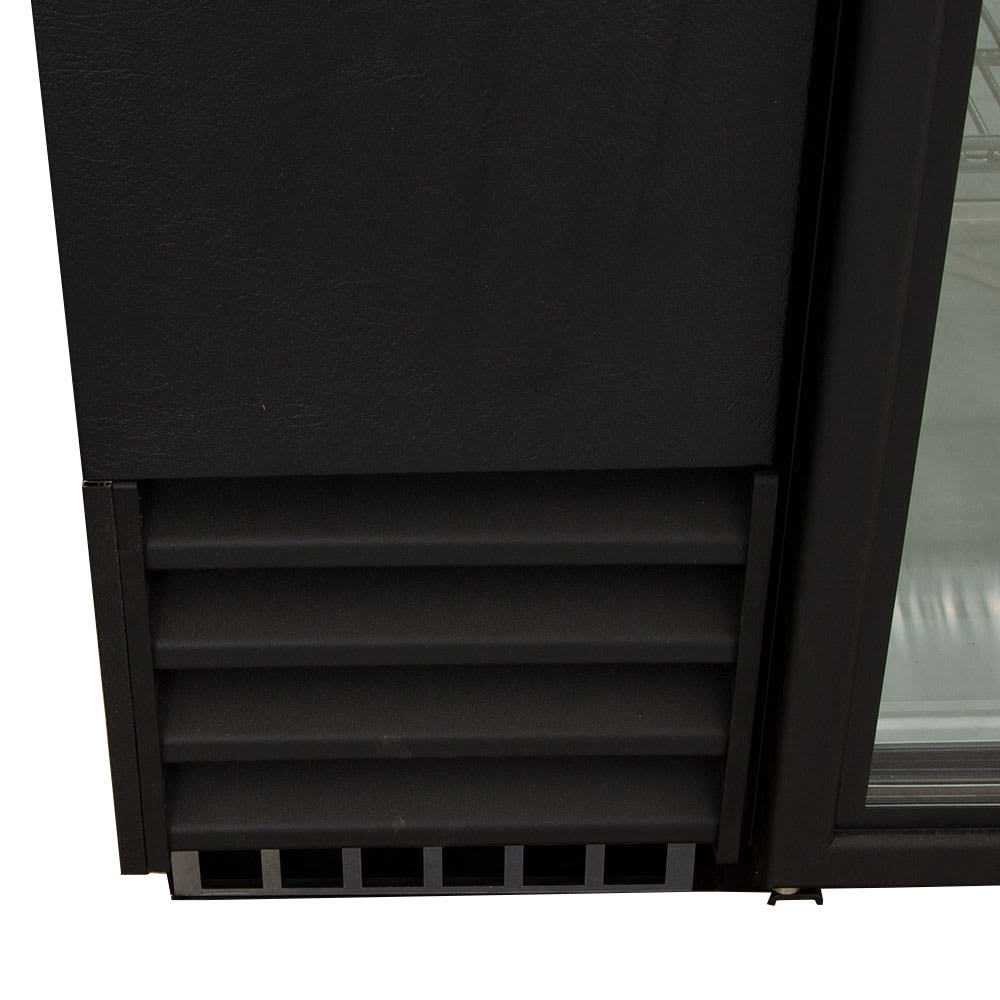

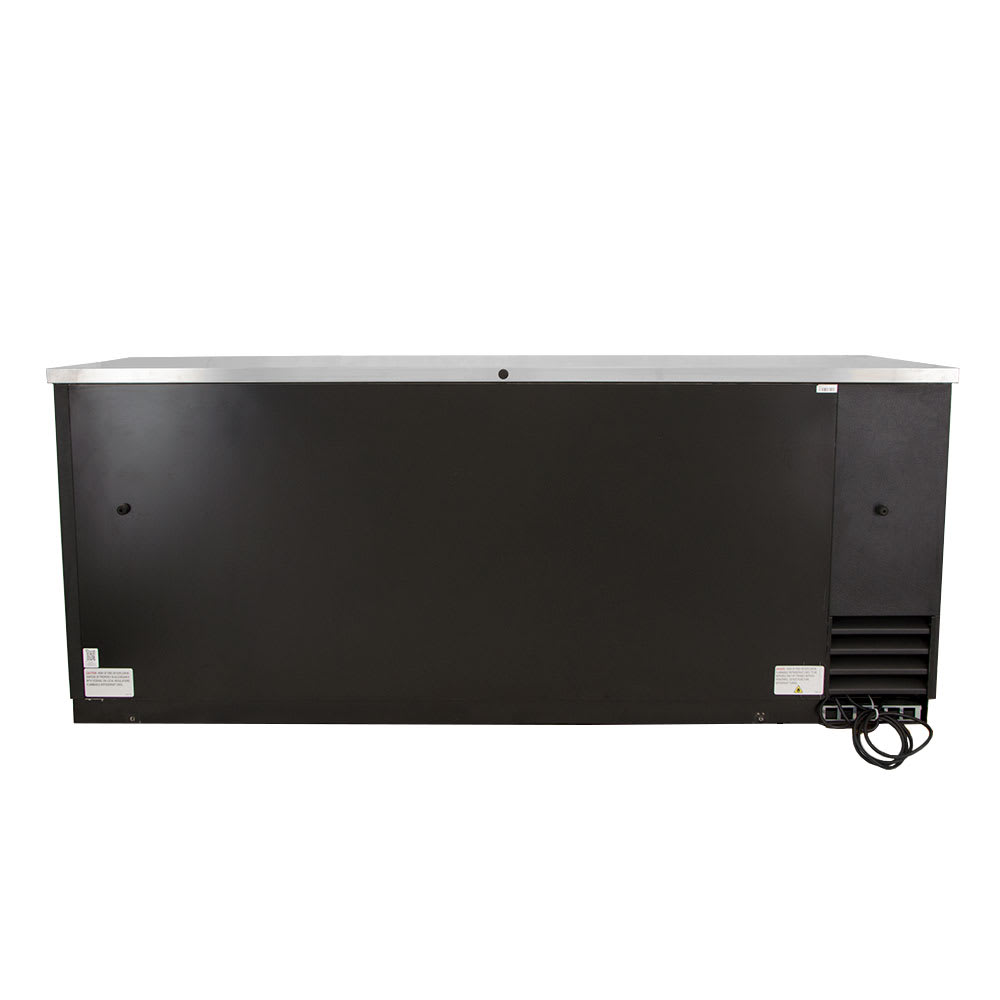

Condensing unit accessed from rear of unit for easy cleaning and maintenance.

CABINET CONSTRUCTION

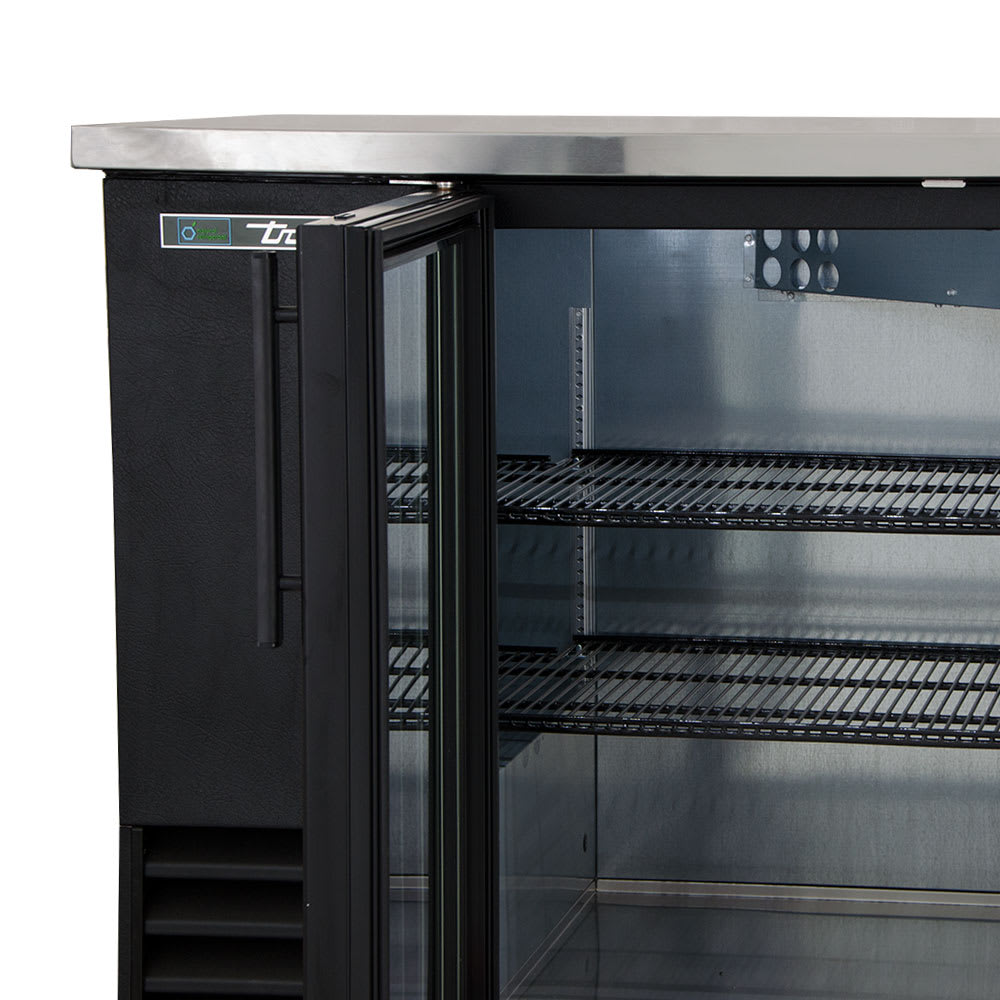

Exterior - heavy duty, wear resistant laminated black vinyl front and sides, matching black aluminum back. All stainless steel counter top.

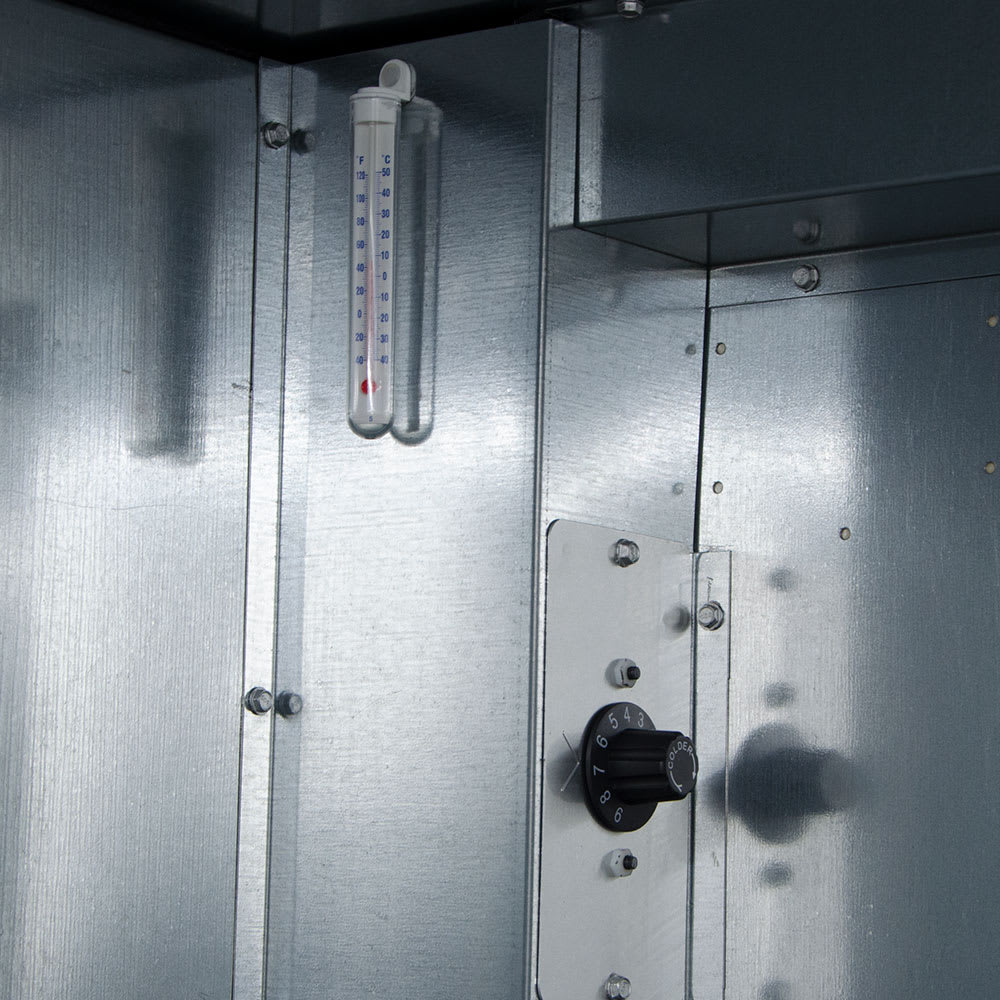

Interior - 300 series stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.

Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

Cabinet fitted with 4" (102 mm) diameter castors (legs not available).

DOOR

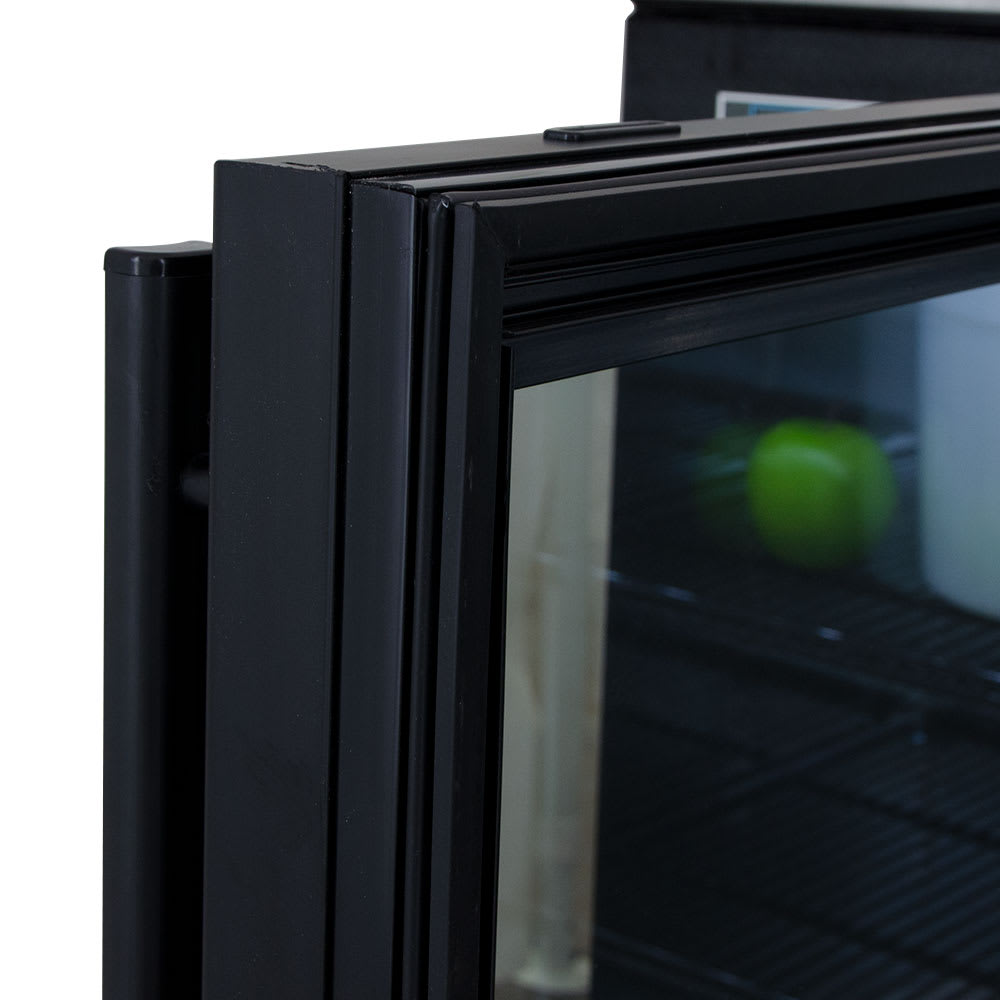

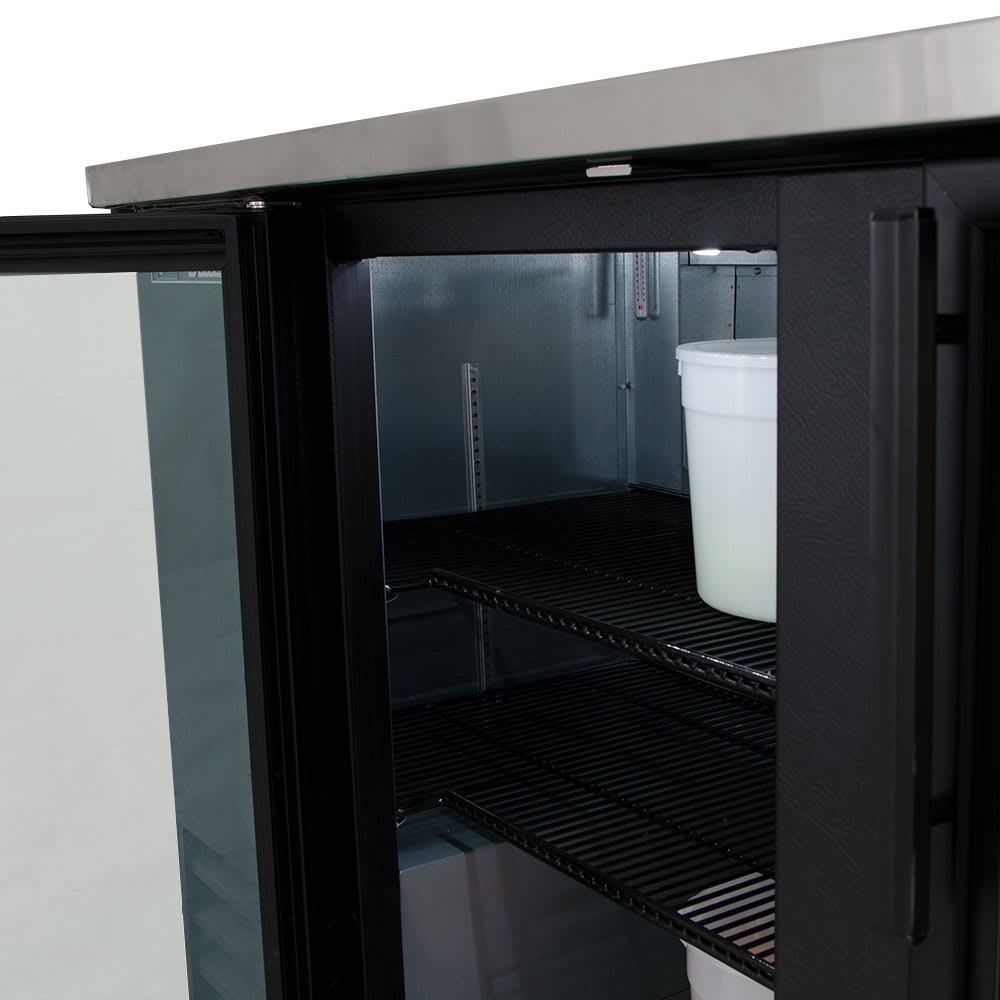

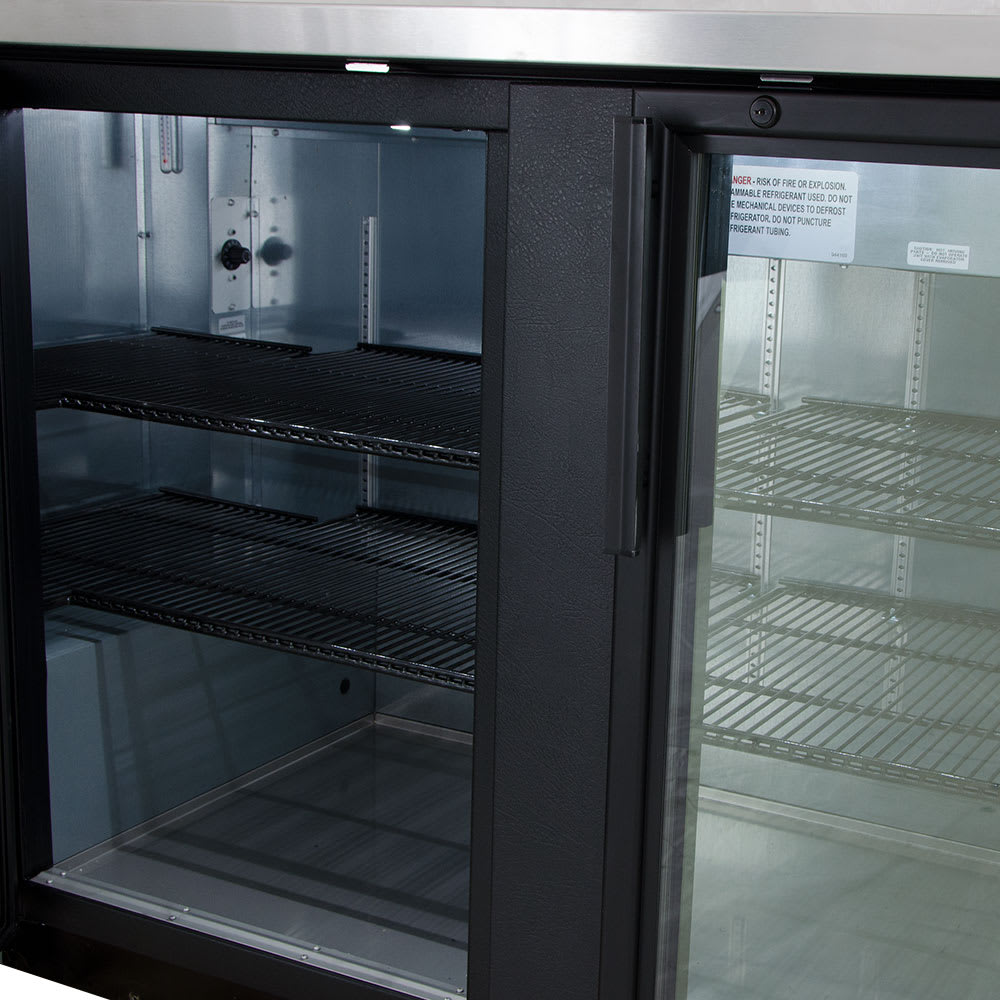

"Low-E", double pane thermal glass door assemblies with extruded aluminum frames. The latest in energy efficient technology.

Patented integrated door light (IDL) system for brighter, shadow free illumination.

Positive seal door.

Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

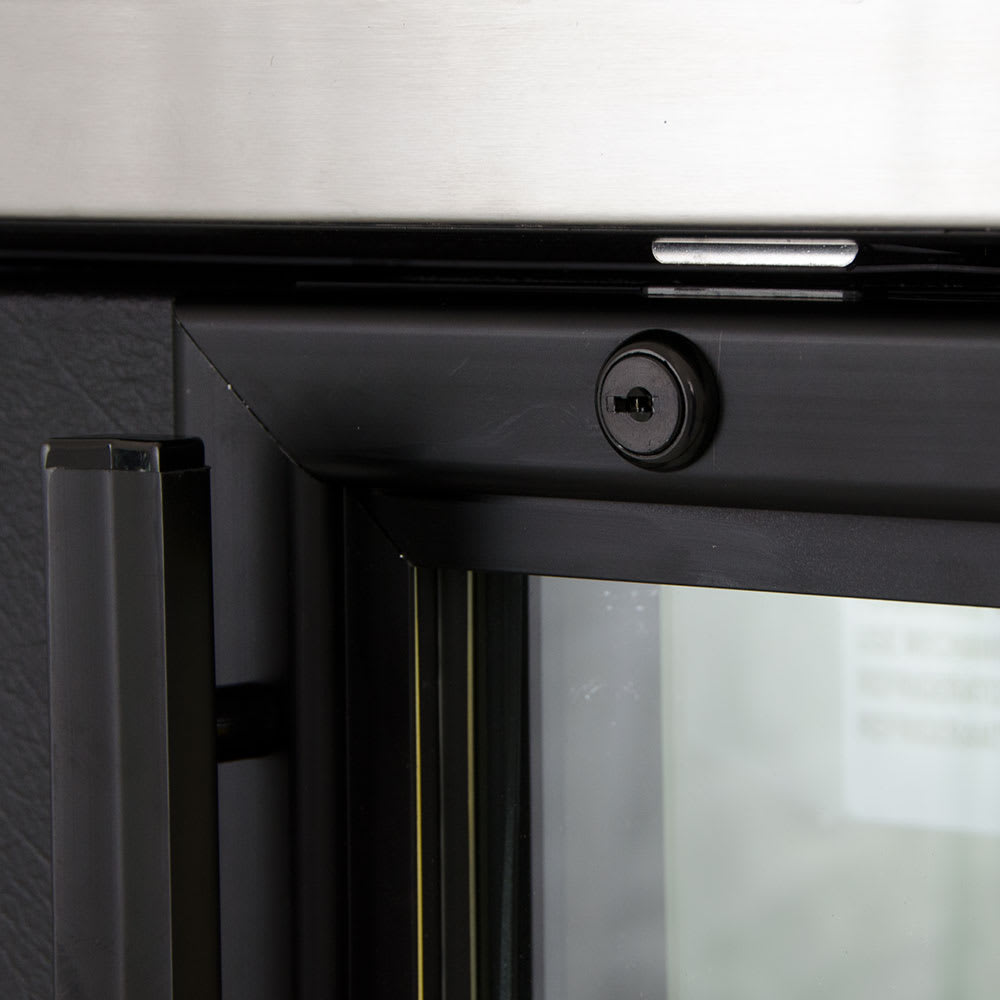

Door lock standard.

SHELVING

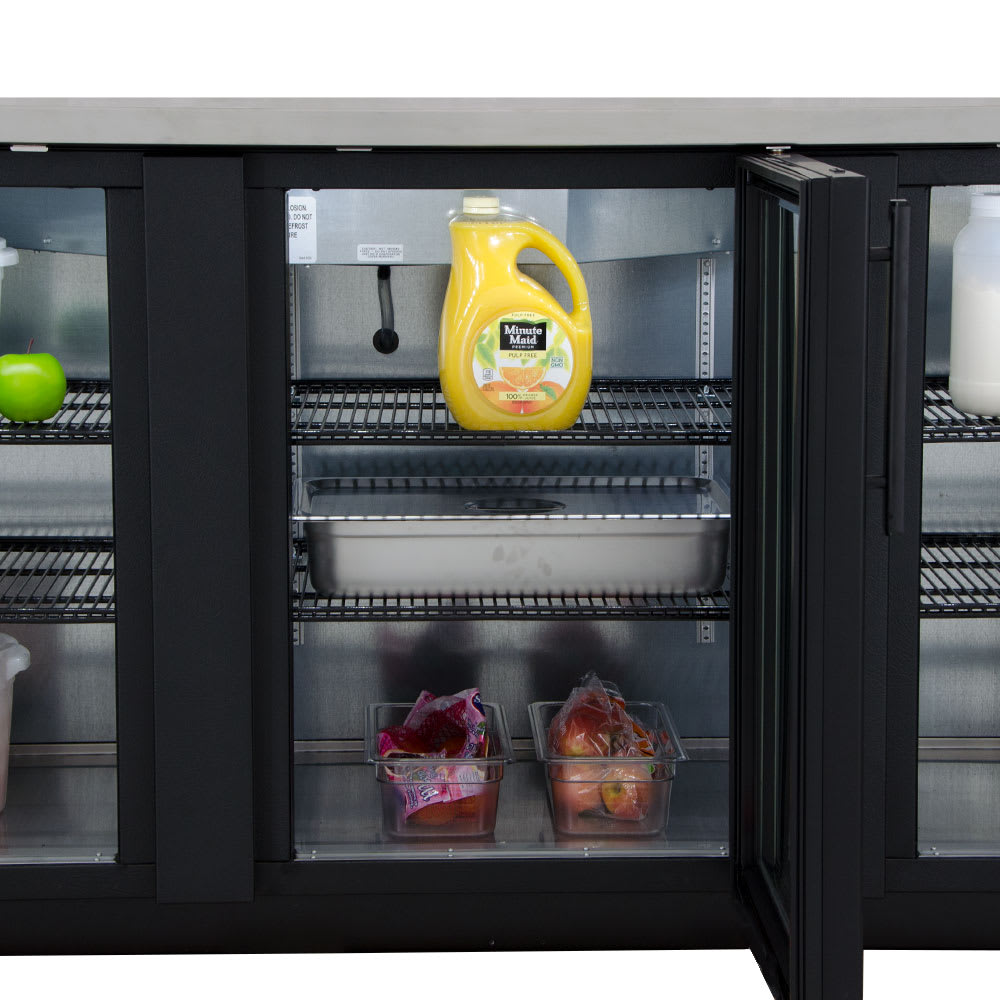

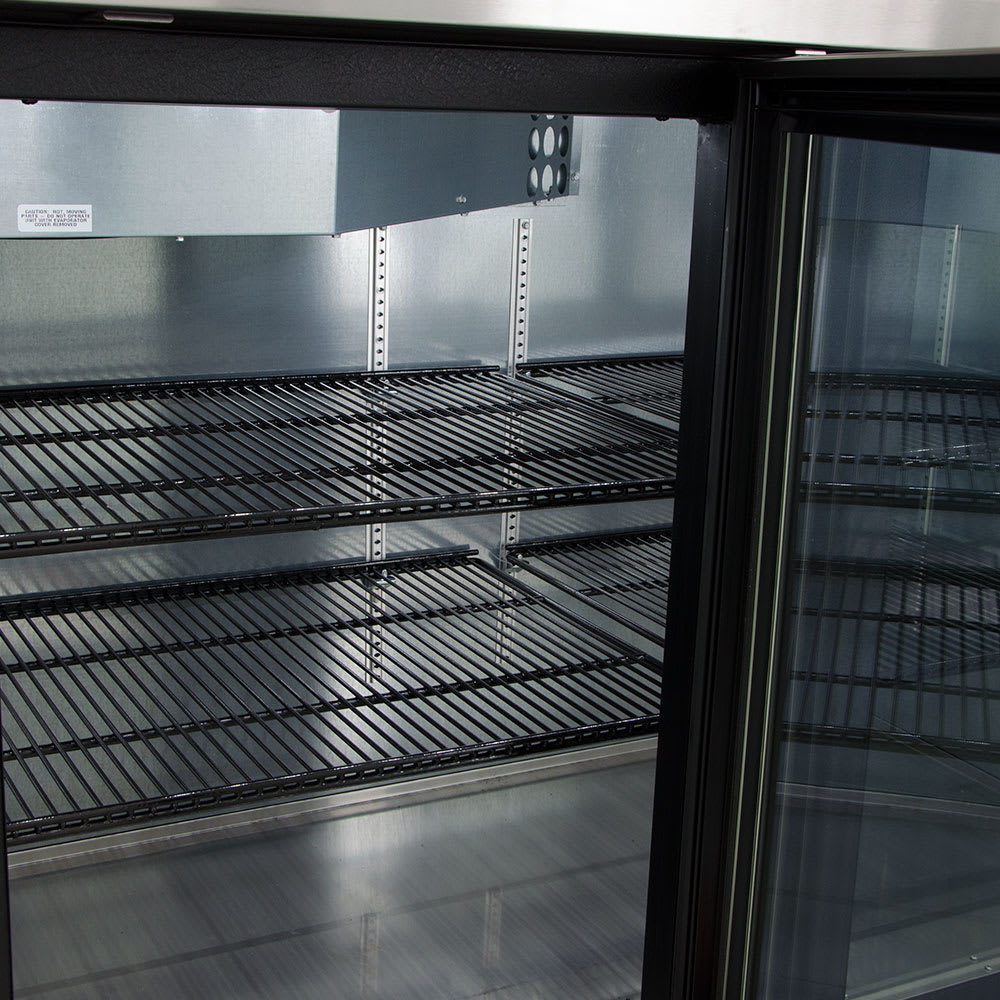

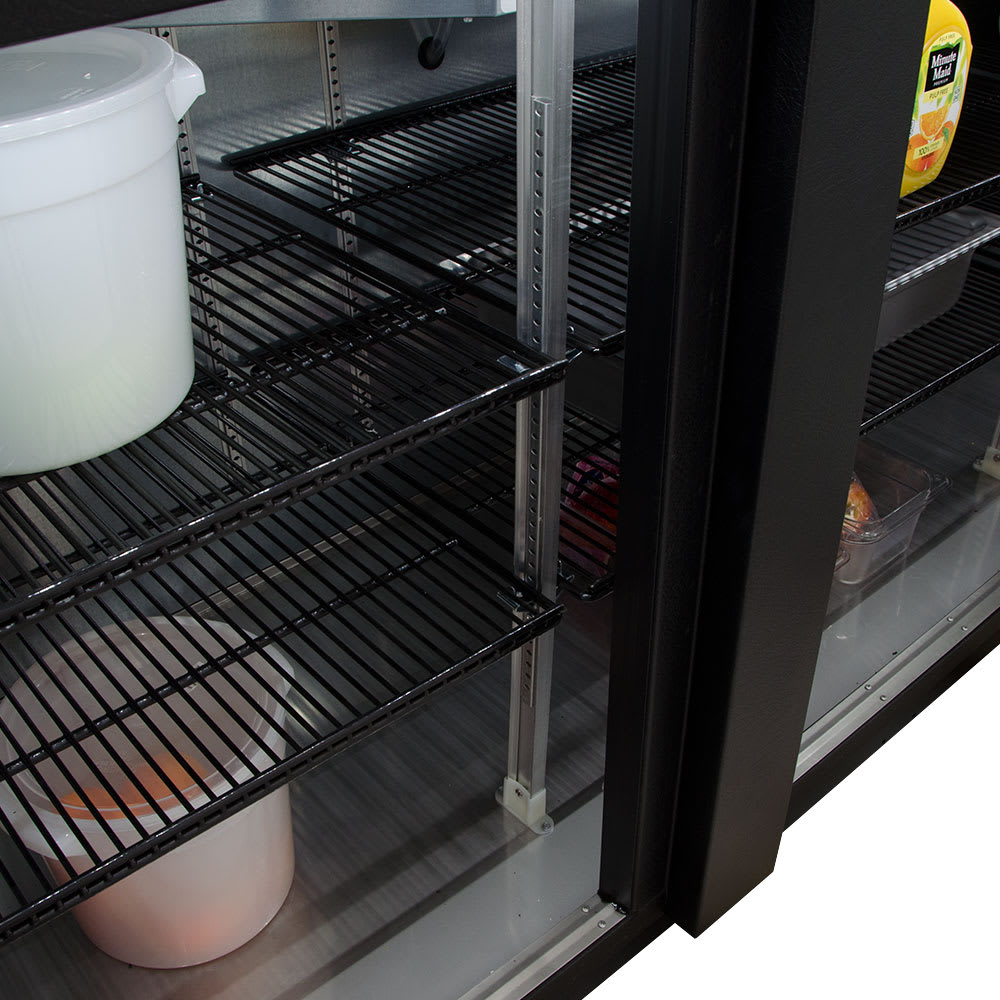

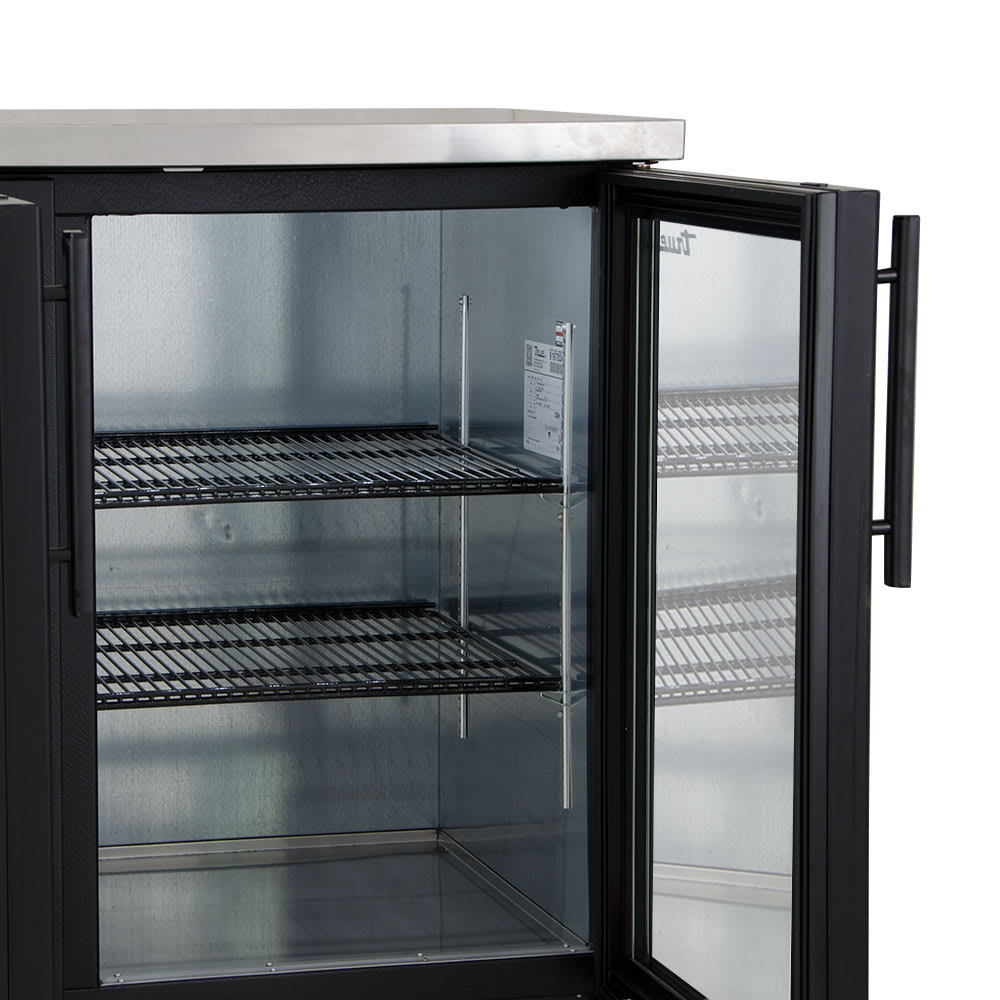

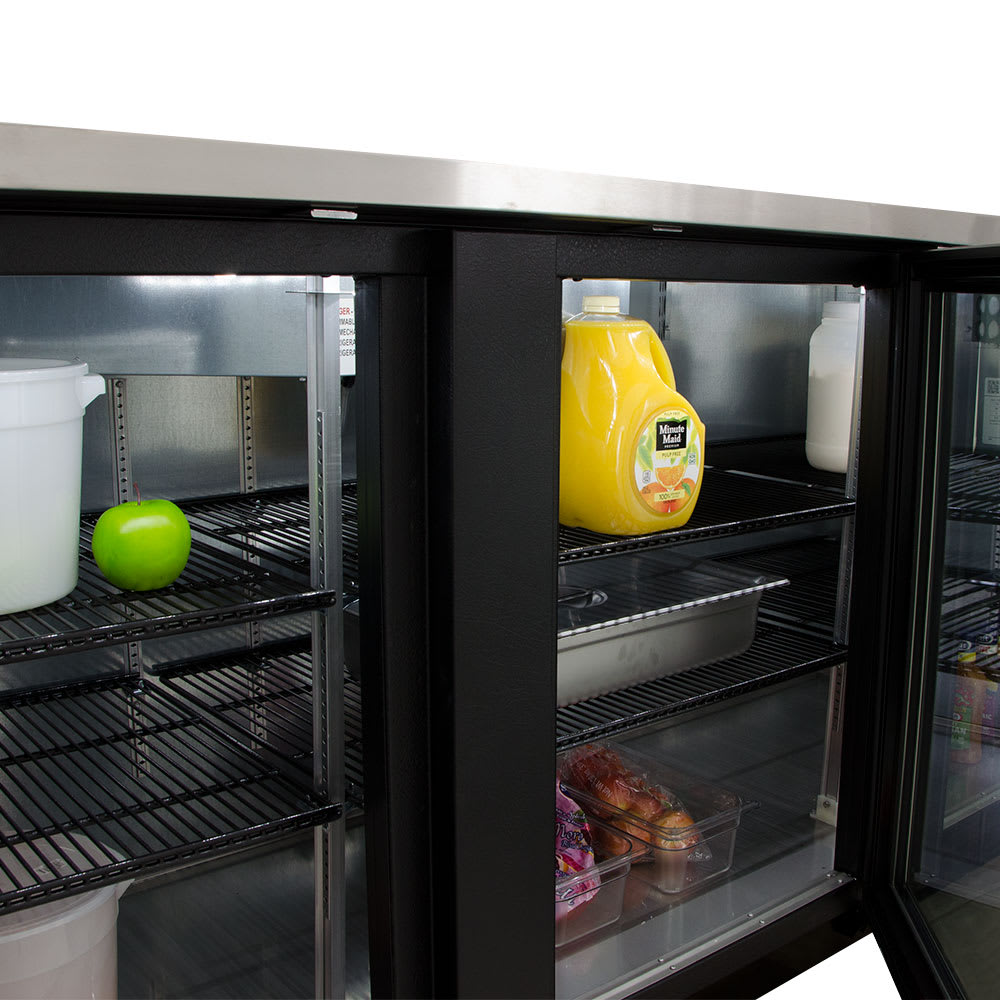

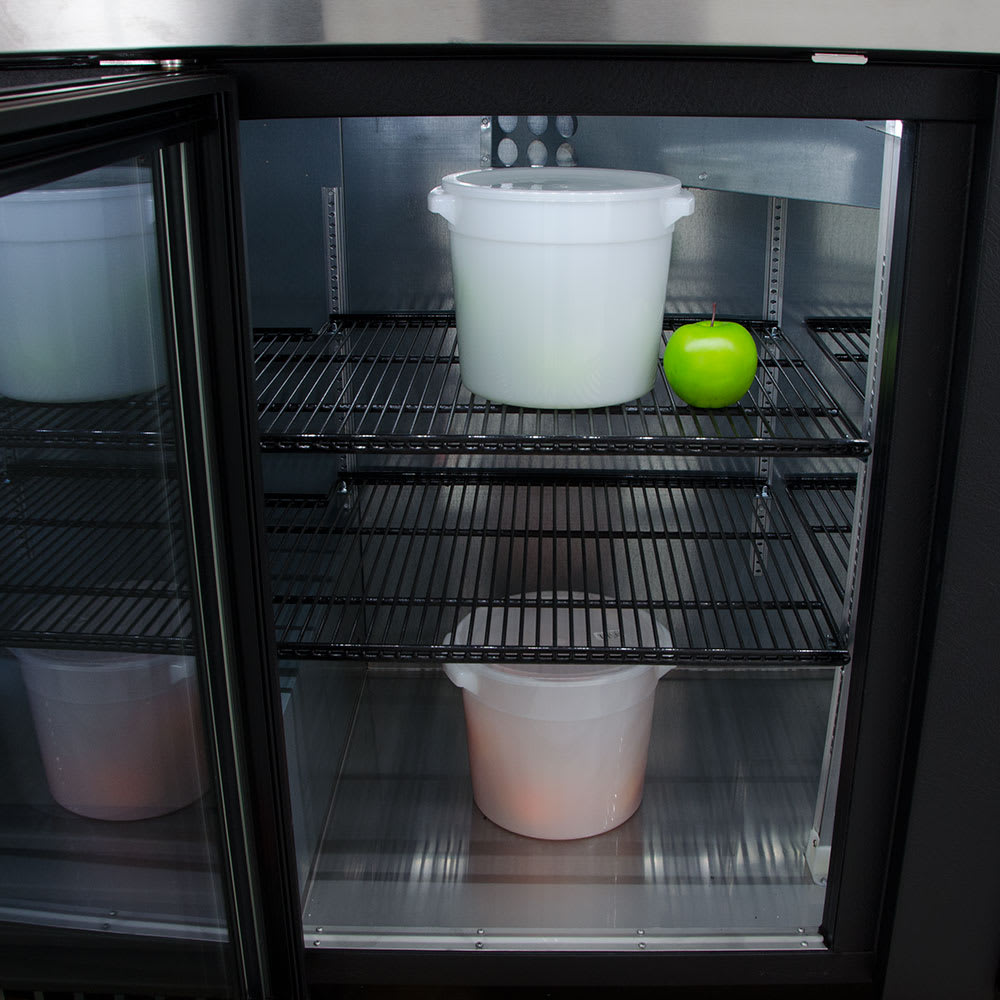

Six (6) adjustable, heavy duty, black PVC coated wire shelves. Two (2) left door dimensions are 32"L x 21-1/4"D (813 mm x 540 mm). Two (2) right door dimensions are 20-3/4"L x 21-1/4"D (528 mm x 540 mm). Four (4) chrome plated shelf clips included per shelf.

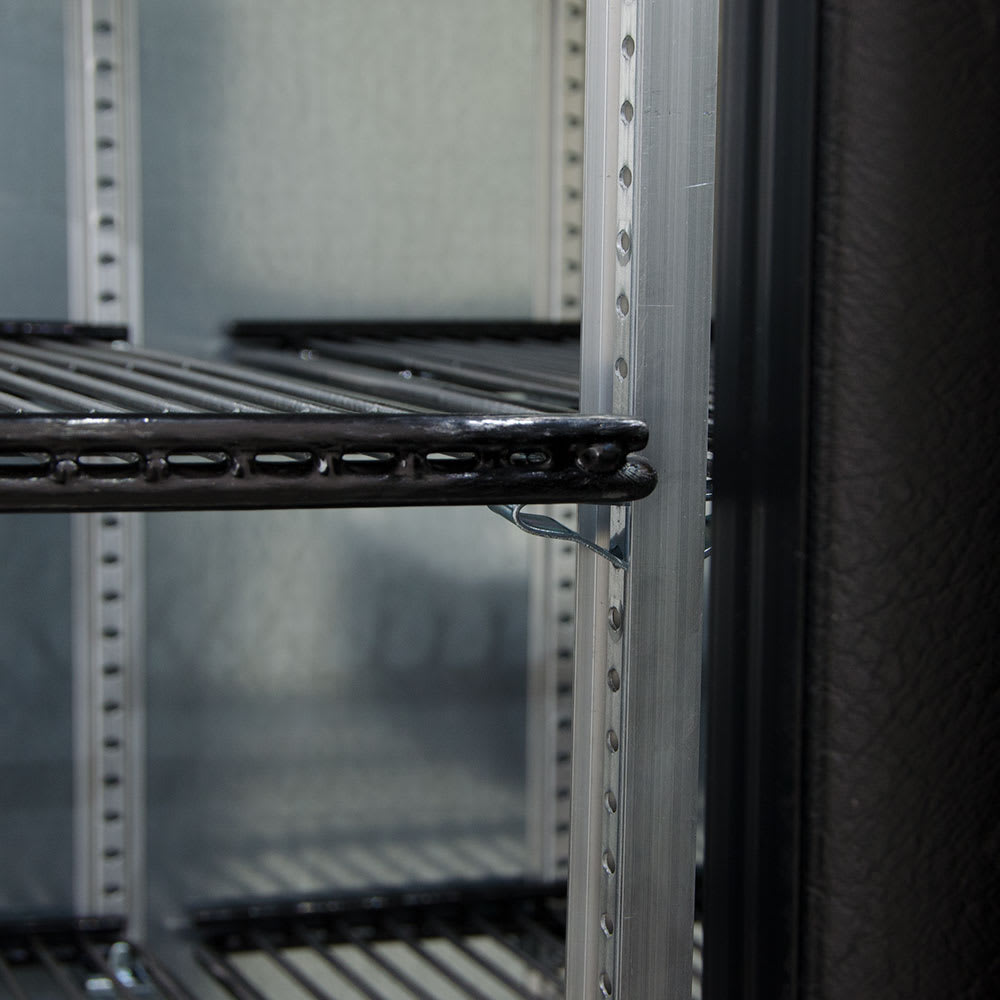

Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

Incandescent interior lighting.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the potential of corrosion.

Listed under NSF-7 for the storage and/or display of packaged or bottled product.

ELECTRICAL

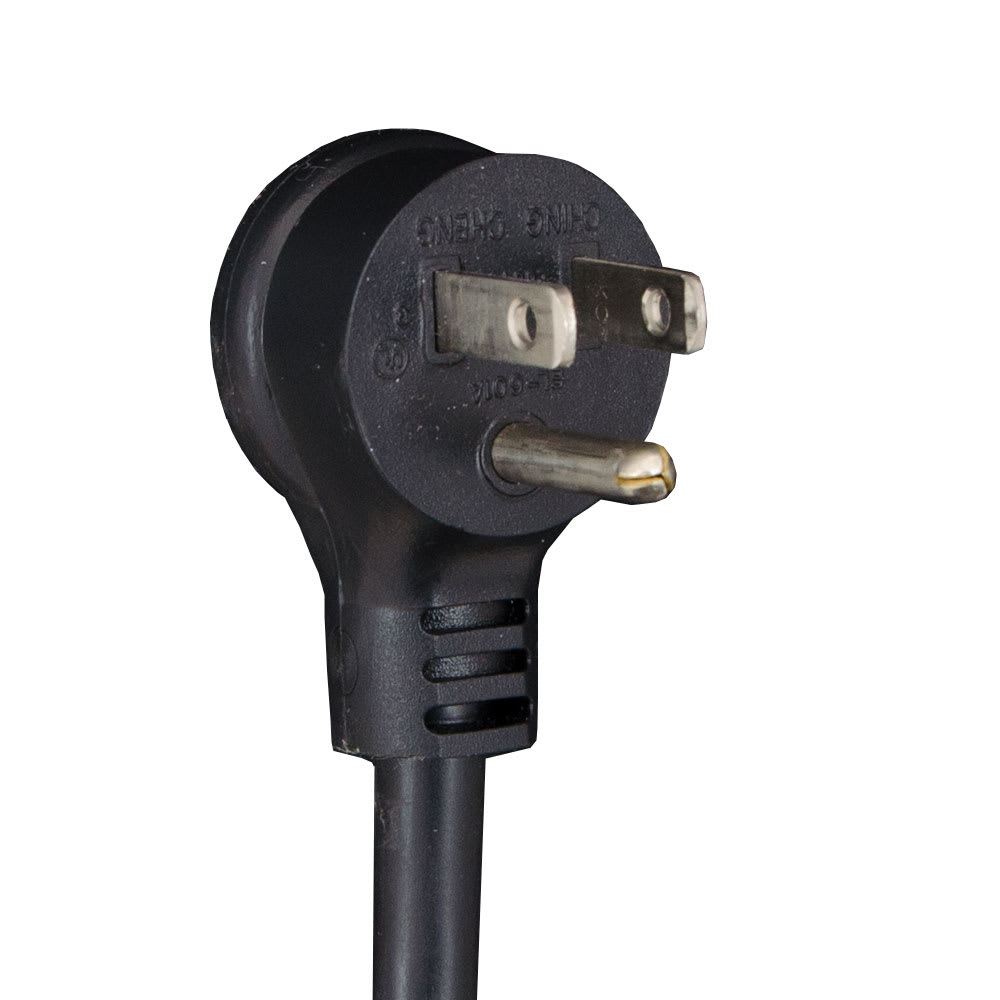

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES
Up-charge and lead times may apply.

230 - 240V / 50 Hz.

6" (153 mm) standard legs.

6" (153 mm) seismic/flanged legs.

2-1/2" (64 mm) diameter castors.

4" (102 mm) diameter castors.

Wine racks (left door only).

True Trac one (1) Liter beer and wine organizers.

True Trac 12 oz. (355 ml) beer bottle organizers.

Remote cabinets (condensing units supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Consult factory technical service department for BTU information.

Click Image for Larger View

Rough - In Data

• Model: TBB-4G
• Doors: 3 glass swing
• # of Shelves: 6
• Capacity (12 oz cans): 209 6-packs
• Capacity (1/2 barrels): 4
• Dimensions (Inches):
  • L: 90-3/8
  • D*: 27-1/2
  • H : 37
• HP: 1/2
• Volts: 115/60/1
• Amps: 10.7
• NEMA Config.:5-15
• Cord Length (total feet): 9

• This Product is recommended for commercial purposes only.
• Specifications subject to change without notice.
• * Depth does not include 1" for rear bumpers.
• * Depth does not include 1-3/8" for door handle.
