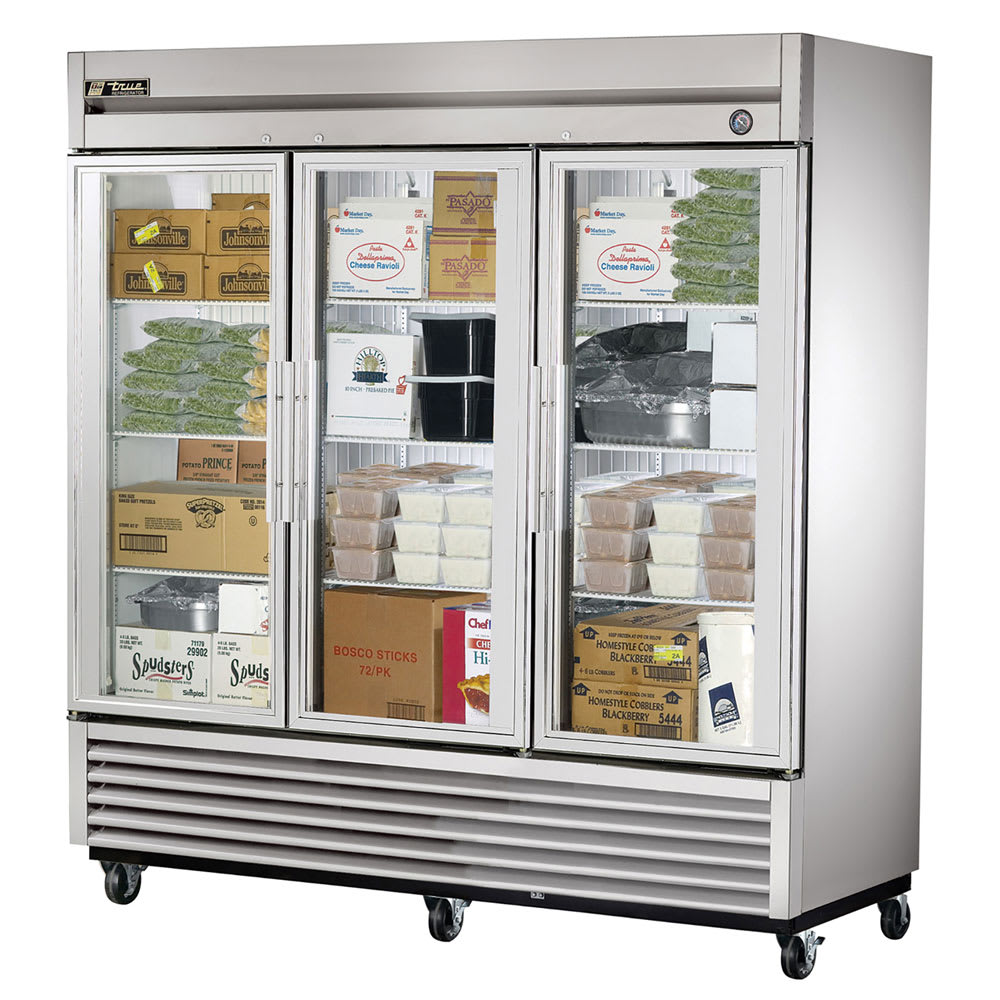

Freezer, Reach-In, 3 Section/Glass Doors, 72 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	T Series - Reach In’s:

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

Glass Door -10°F Freezers
3 DOORS
72 CUBIC FEET

MODEL T72FG

STANDARD FEATURES:

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.
Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains - 10° F (-23.3° C) cabinet temperatures. Ideally suited for both frozen foods and ice cream.
300 series stainless steel front. The very finest stainless with higher tensile strength for fewer dents and scratches.
Triple pane thermal glass doors.
Adjustable, heavy duty PVC coated shelves.
Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Bottom mounted units feature:

No stoop lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most
grease free area of kitchen.
Easily accessible condenser coil for
cleaning.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
Alternate door hinging (factory installed).
Additional shelves.
Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guards need to be removed).

Full door bun tray racks. Holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guards need to be removed).
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

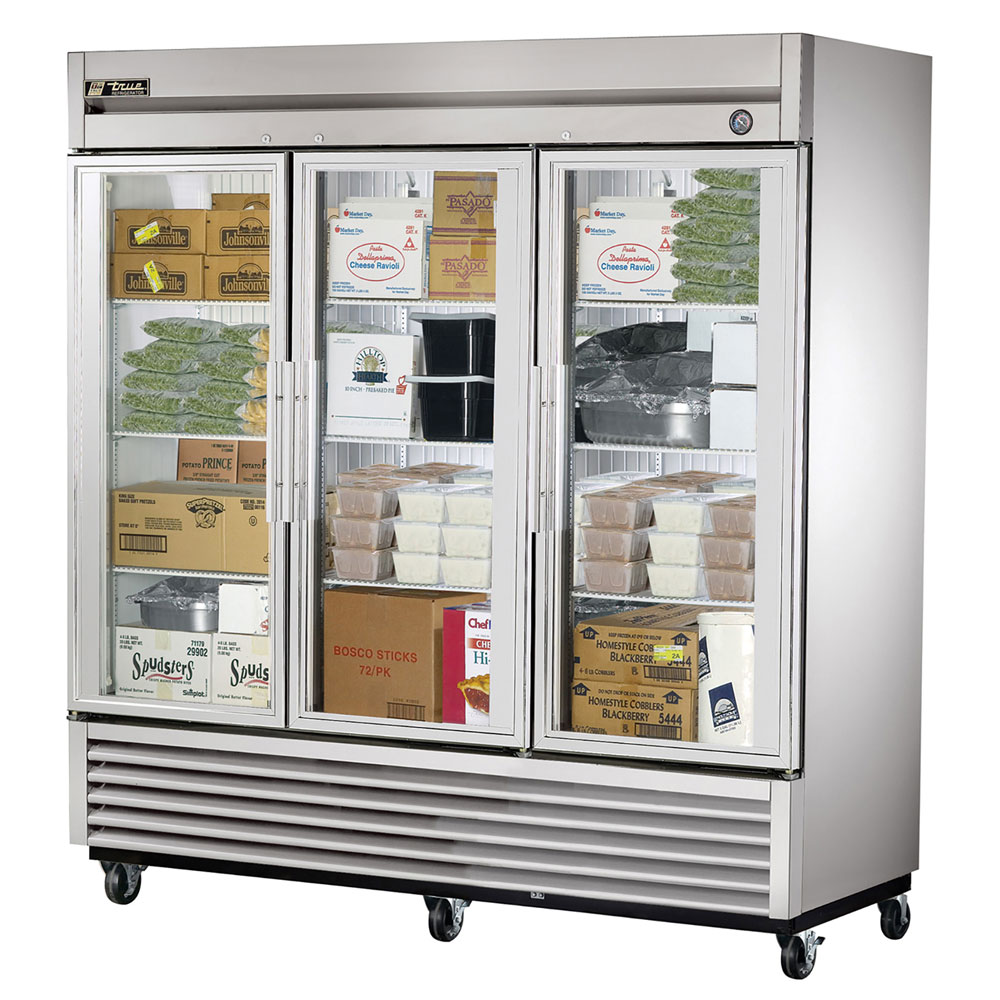

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8"

Model

Doors

Capacity
(cu. Ft.)

Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

H *

T72FG

78 1/8

29 3/4

79 1/8

1.5

115/208-230/1/60

14.1

14-20P

n/a

Depth does not include 1 3/8" for door handles.
* Height does not include 5" for castors or 6" for optional legs.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		T72FG
