Glass/Plate Chiller, Deep Well, SS Top/Lid, SS, (250) 8inMugs/(240) 10inSteins - Restaurant Equipment at KaTom Restaurant Supply


	T Series - Underbar Refrigeration

True®’s glass and plate chiller/frosters are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.

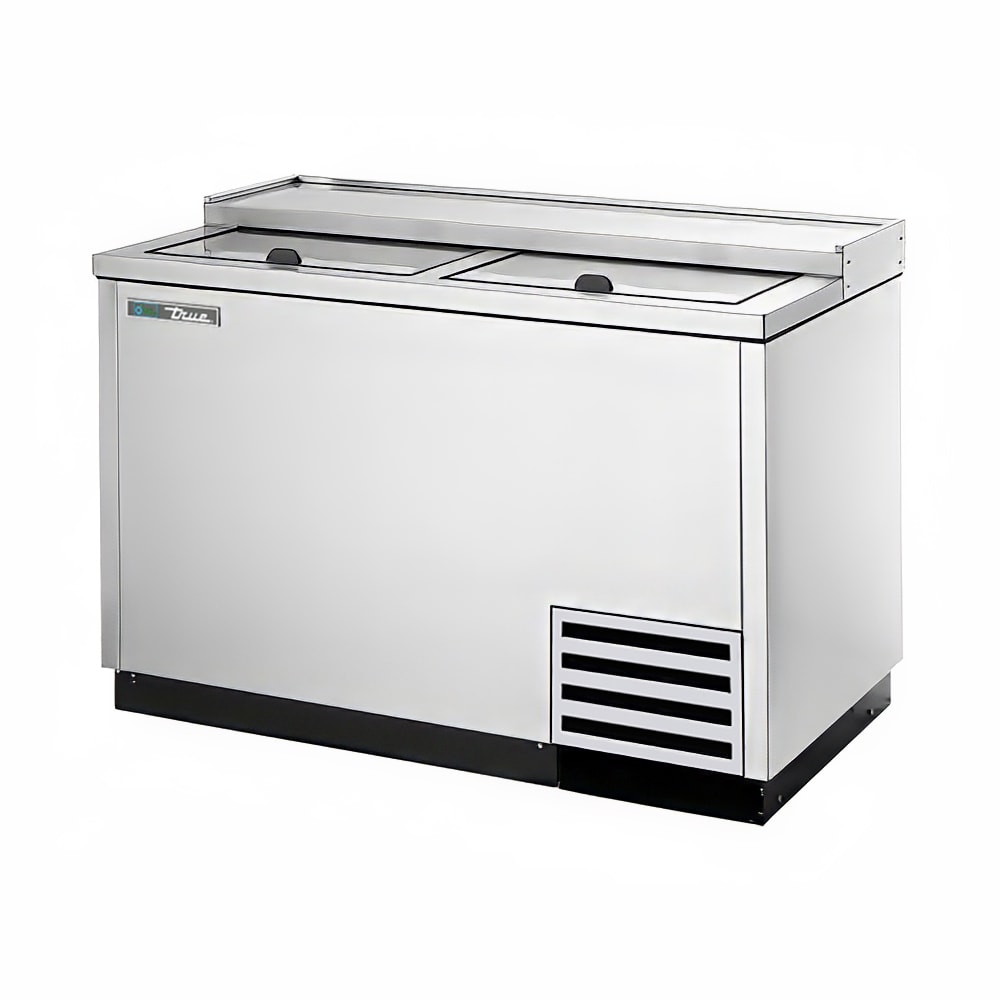

Photo Includes Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

stainless steel
Glass & Plate Chillers / Frosters
8" Mugs: 250
10" Steins: 240

MODEL T50GCS

STANDARD FEATURES:

Large storage capacity to meet the supply and demand requirements during peak hours.
Oversized, factory balanced, refrigeration system holds 0° F (-17.7° C) and below.
Forced-air cooling, positively guided air flow provide efficient balanced temperatures throughout the cabinet. This unique design insures fast frosting of dry glasses and plates.
Exterior - All stainless steel countertop, lid, front, and sides. Matching aluminum back.
Interior - long lasting, heavy duty galvanized steel.
Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.
Entire cabinet structure and lids are foamed-in-place using high density, CFC free, polyurethane insulation.
Heavy duty, 10 mil thick pure grade PVC coated adjustable shelves.
Use as a mug froster to create the ever popular frosty mug.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
230 - 240V / 50 Hz. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. 21/2" (64 mm) diameter castors. 3" (77 mm) diameter castors.	Ratchet lock. Floor racks Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8".

Model

Shelves

Capacity

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

8 oz. Mugs

10 oz. Steins

T50GCS

250

240

49 5/8

26 5/8

33 3/8

1/3

115/60/1

7.6

5-15P

265

Depth does not include 1" for rear bumpers.

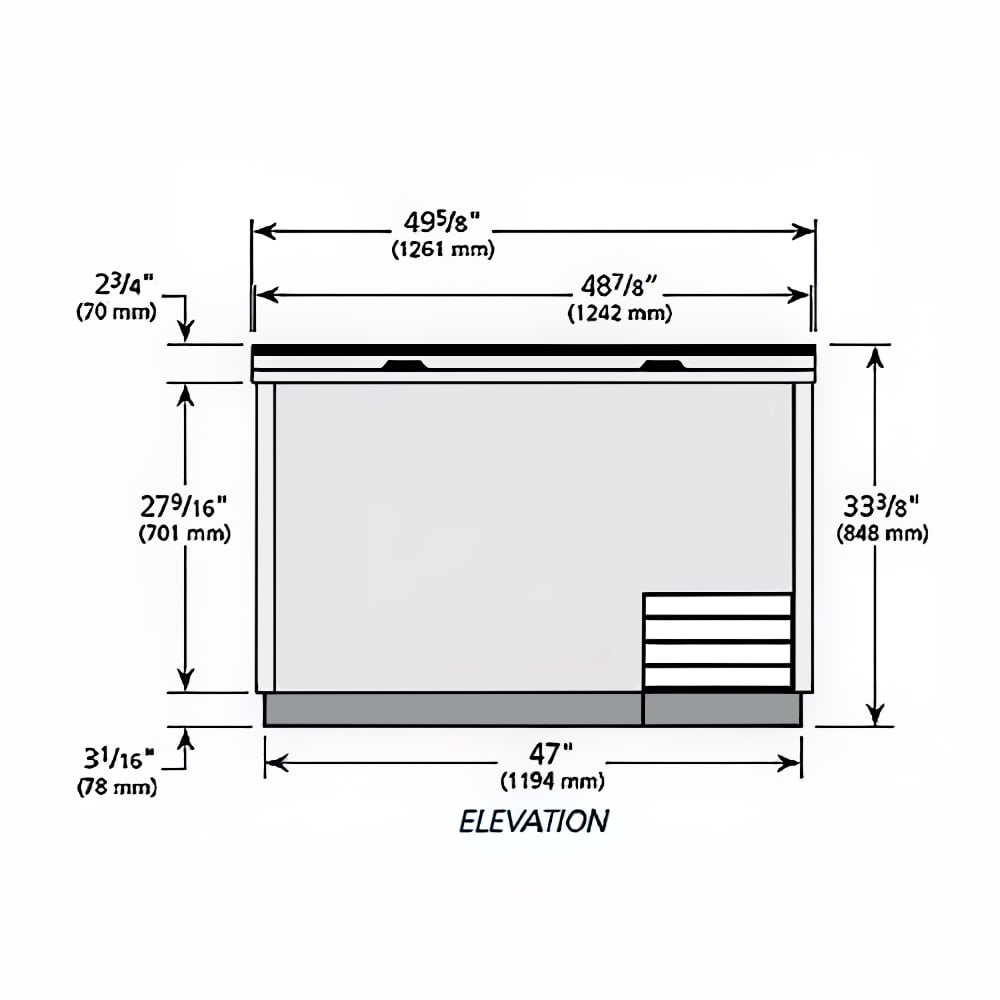

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		T50GCS	TFLY01E	TFLY01S	TFLY01P	TFLY013
