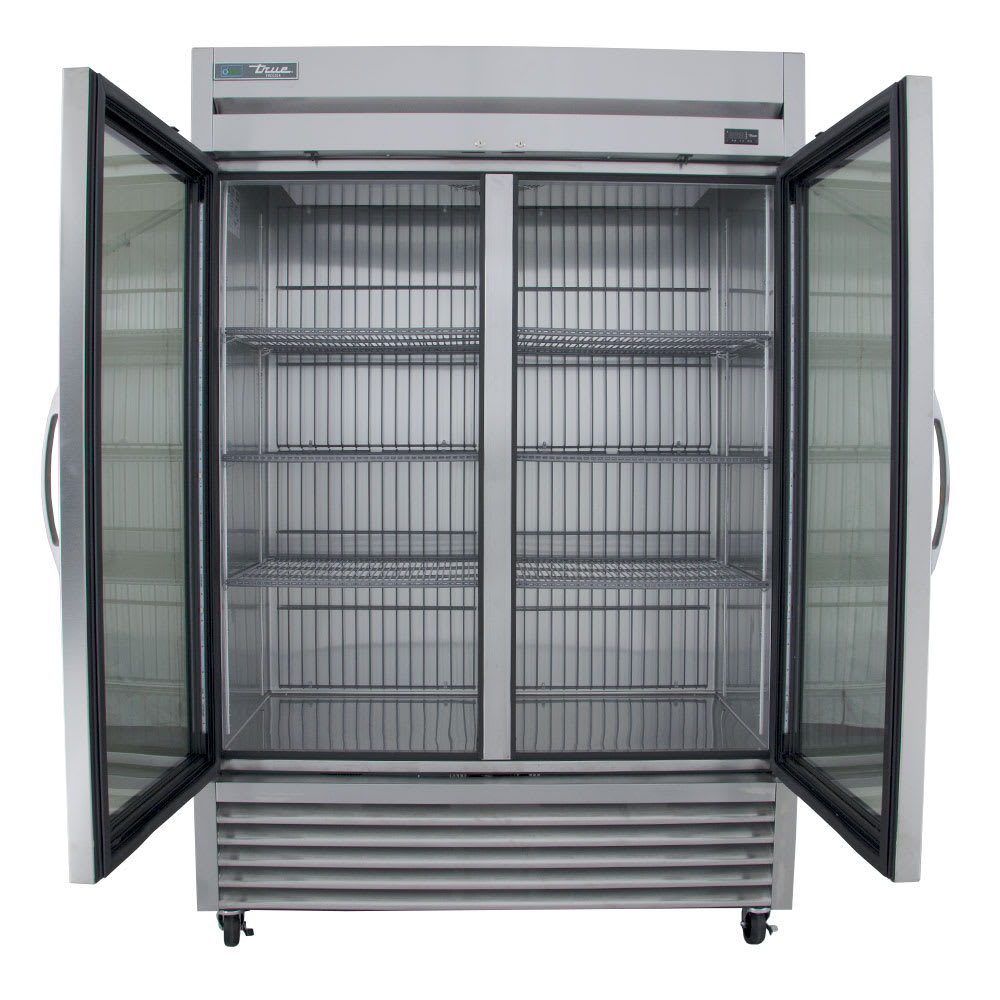

Freezer, Reach-In, 2 Section/Glass Doors, 49 cu ft

MODEL T49FG

STANDARD FEATURES:

• Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10˚F (-23.3˚C). Ideally suited for both frozen foods and ice cream.
• Energy efficient, triple pane thermal glass door.
• Adjustable, heavy duty PVC coated shelves.
• Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.
• Defrost system time-initiated, temperature-terminated. Saves energy consumption and provides  shortest  possible defrost cycle.

Bottom mounted units feature:

• No stoop lower shelf.
• Storage on top of cabinet.
• Compressor performs in coolest, most grease free area of kitchen.
• Easily accessible condenser coil for cleaning.

CABINET CONSTRUCTION:

• 300 series stainless steel front grill, shroud and doors. Anodized  quality aluminum exterior ends and back.

• Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor with coved corners.

• Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

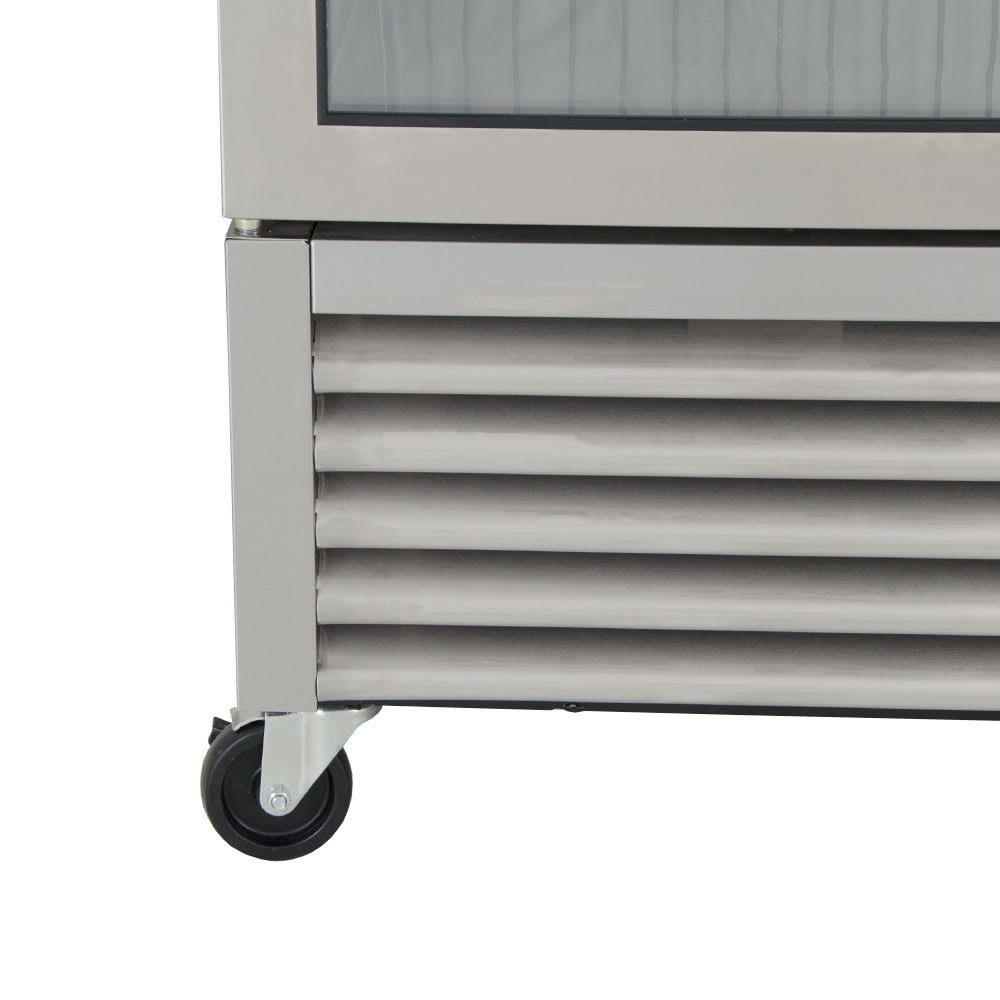

• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

DOORS:

• Triple pane thermal glass.

• Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.

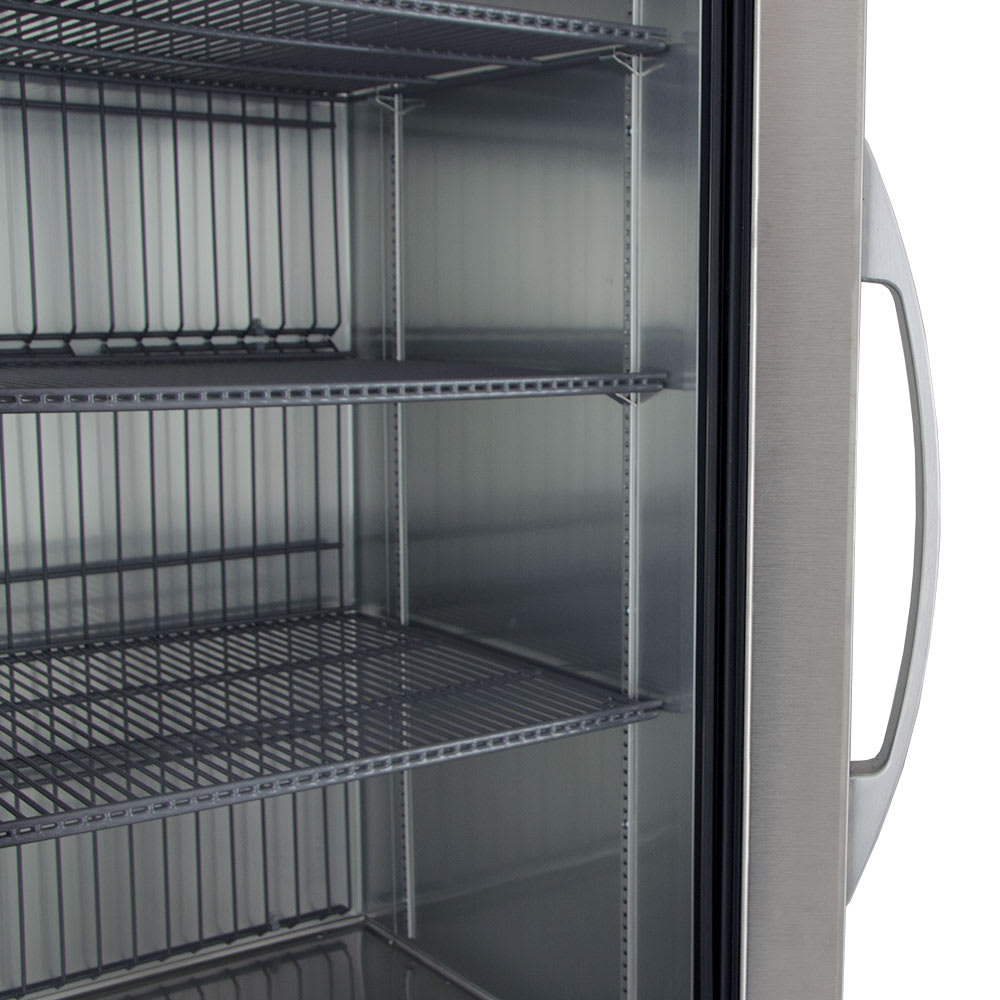

• Each glass door is fitted with a 15" (381 mm) long extruded aluminum handle.

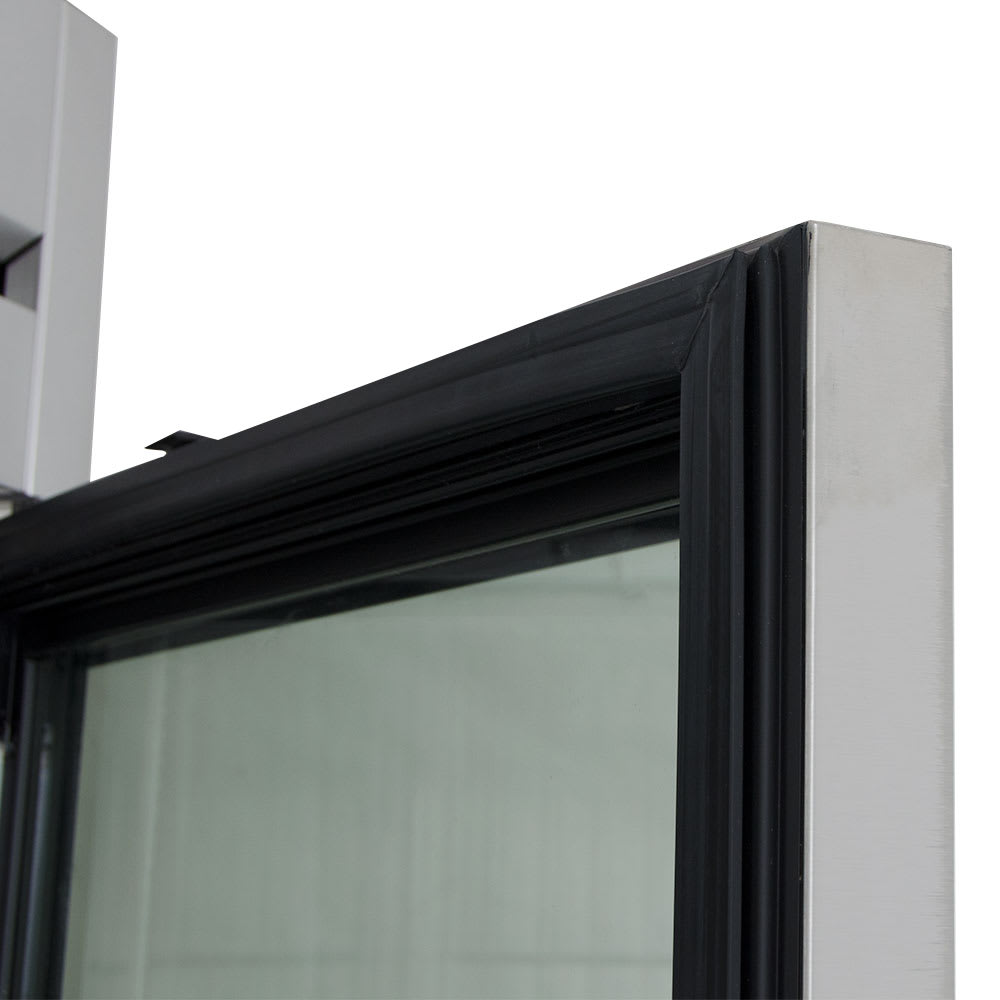

• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning .

SHELVING:

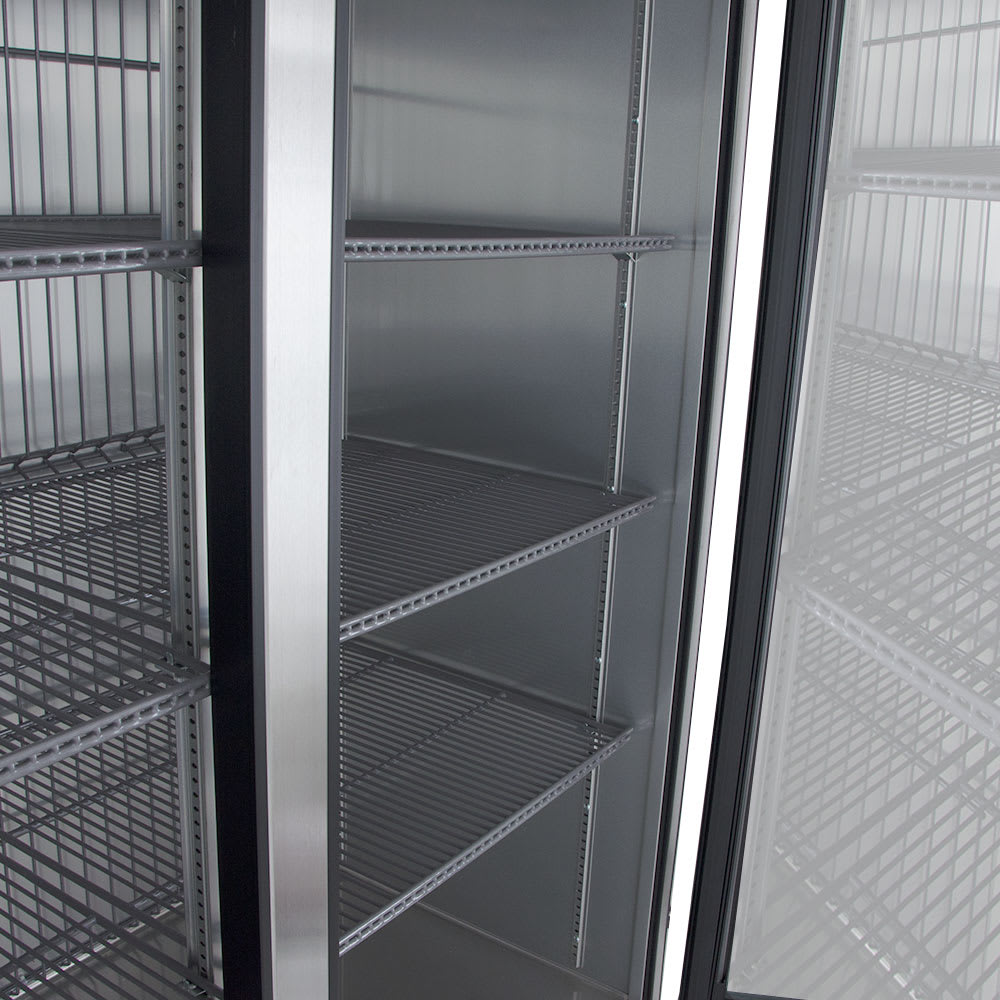

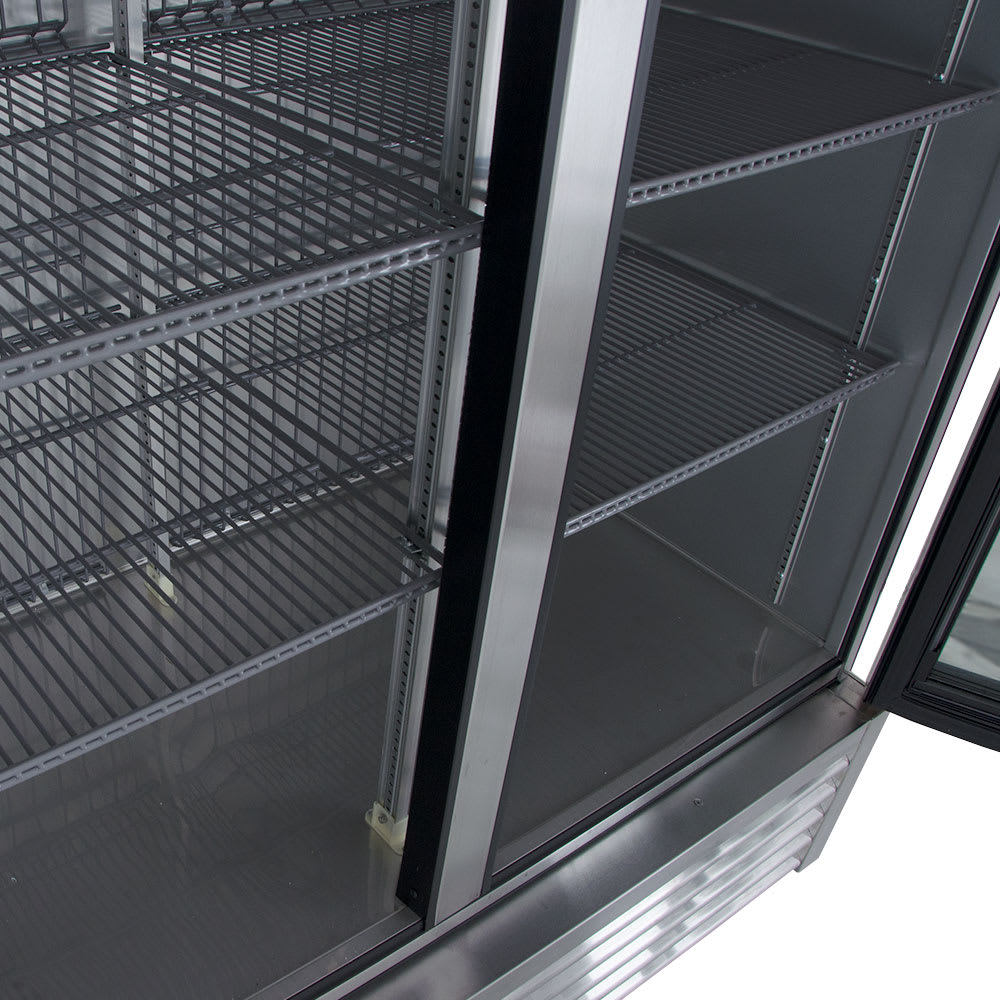

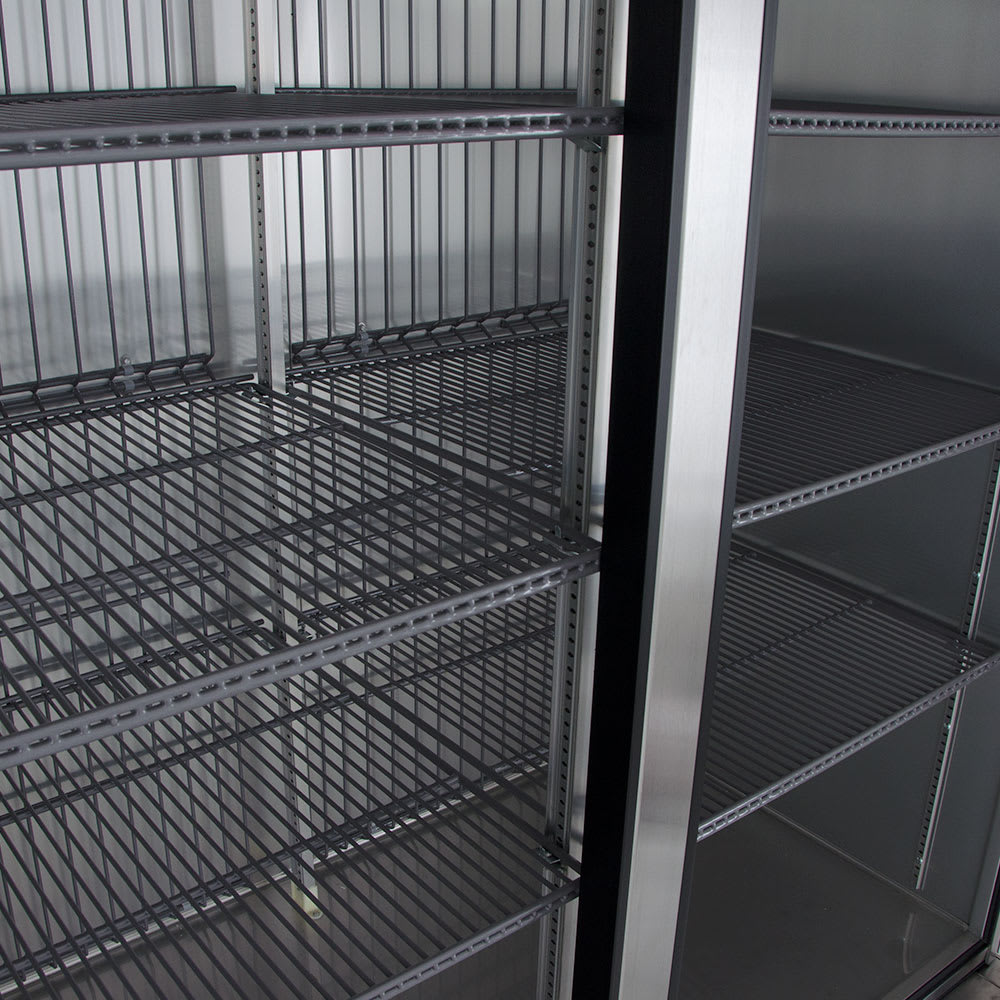

• Six (6) adjustable, heavy duty PVC coated wire shelves 24 9/16"L x 22 3/8"D (624 mm x 569 mm). Four (4) chrome plated shelf clips included per shelf.

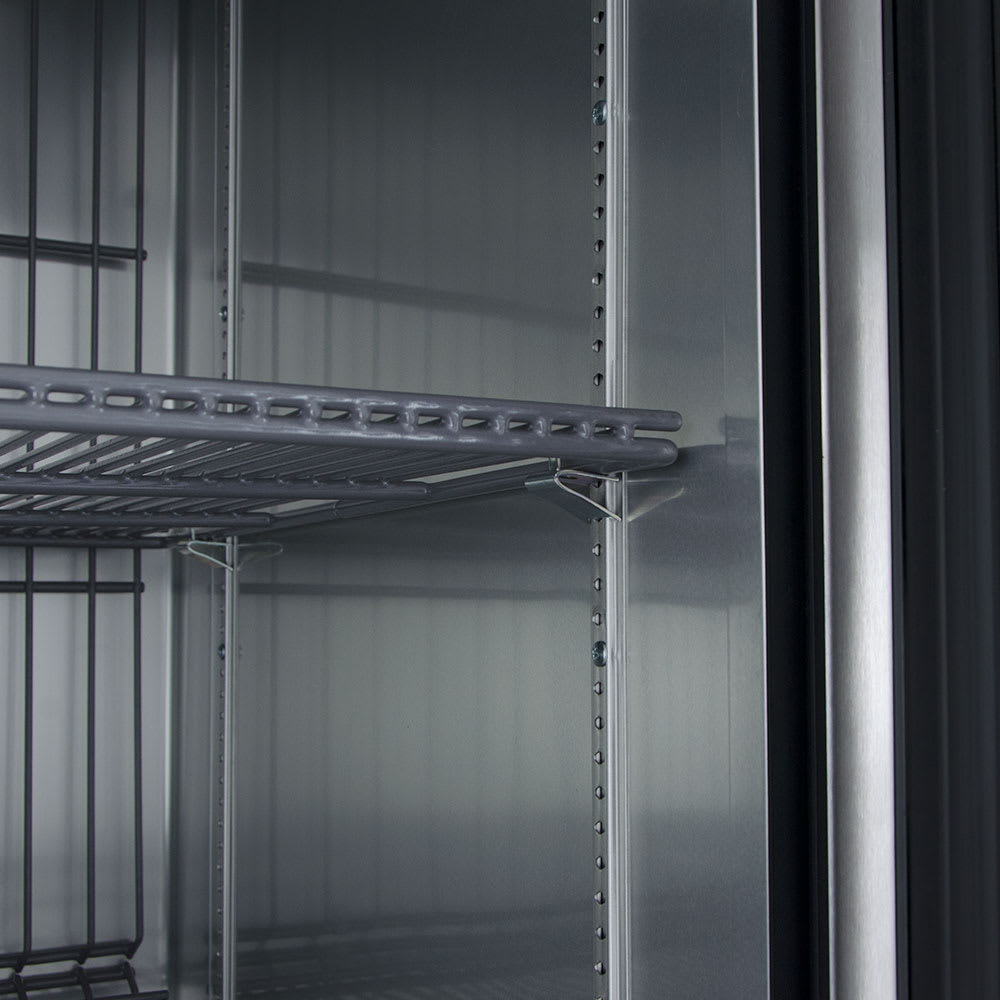

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

• Each shelf capable of supporting up to 250 lbs. (114 kg).

LIGHTING:

• Fluorescent interior lighting. Each glass door utilizes full-length, patented, integrated door light (IDL) system. Safety shielded.

MODEL FEATURES:

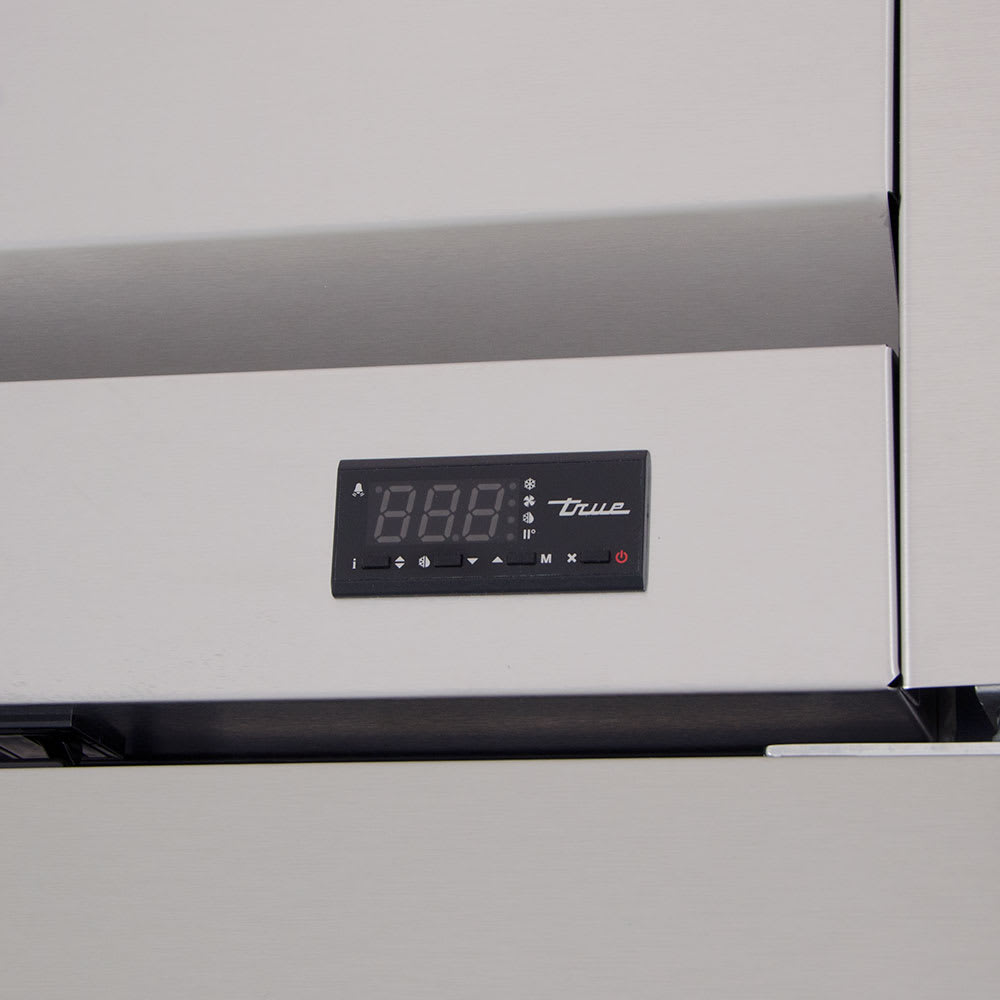

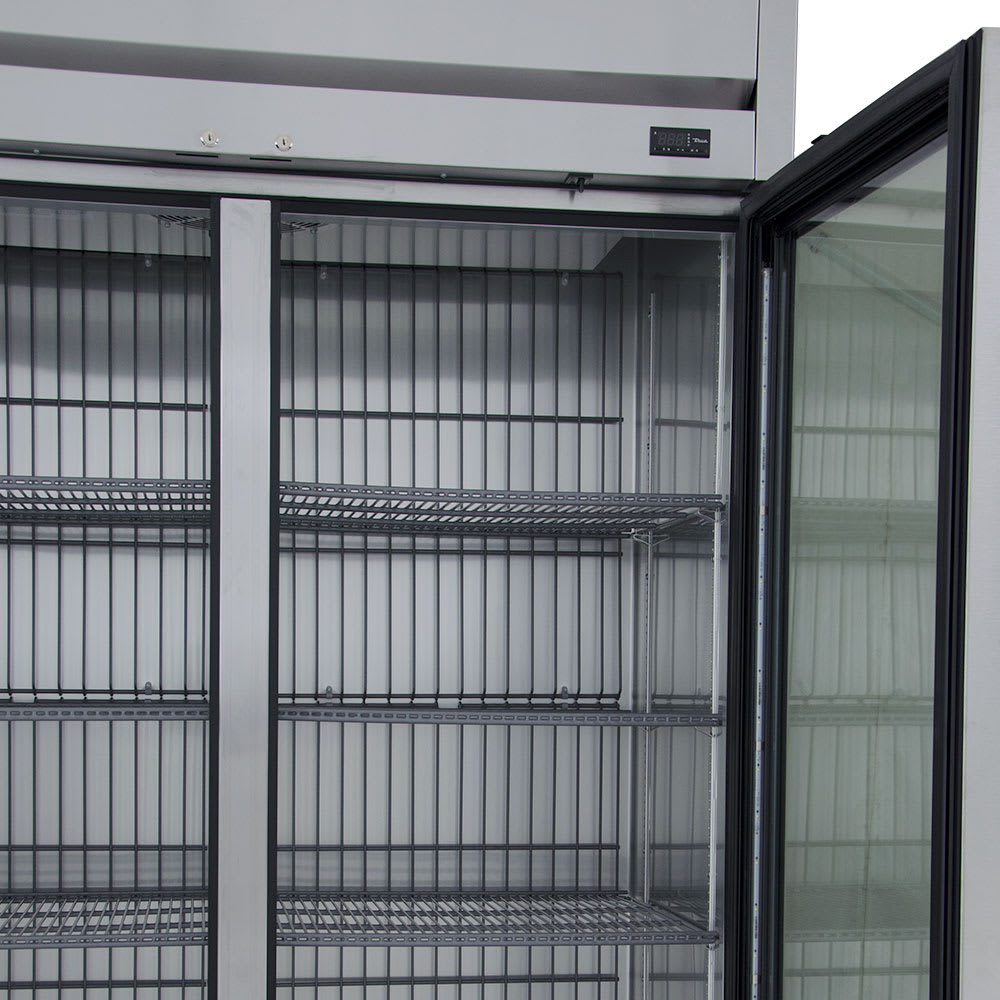

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

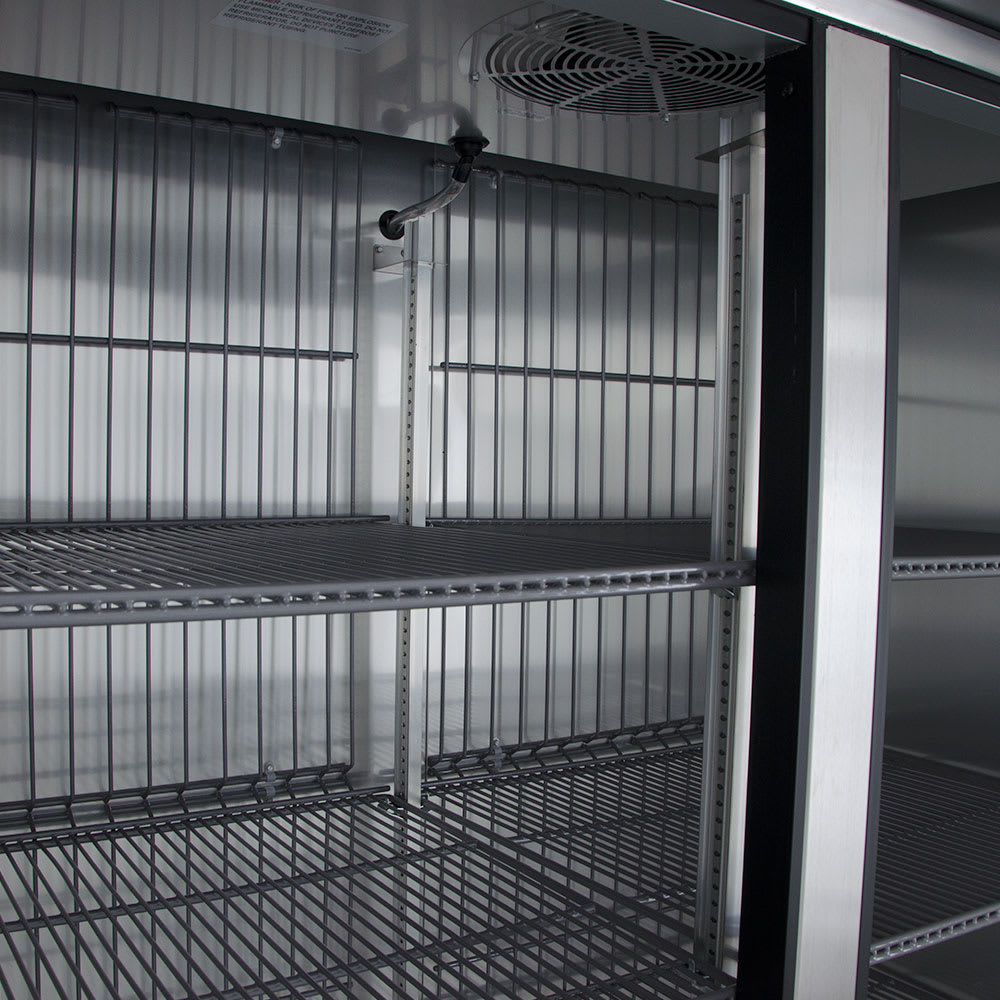

• Rear airflow guards prevent product from blocking optimal airflow.

• NSF-7 complaint for open food product..

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly  (CFC free) R404A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10°F (-23.3°C). Ideally suited for both frozen foods and ice cream.

• Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades give True reach-ins a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and  shorter run times in the busiest of food service environments.

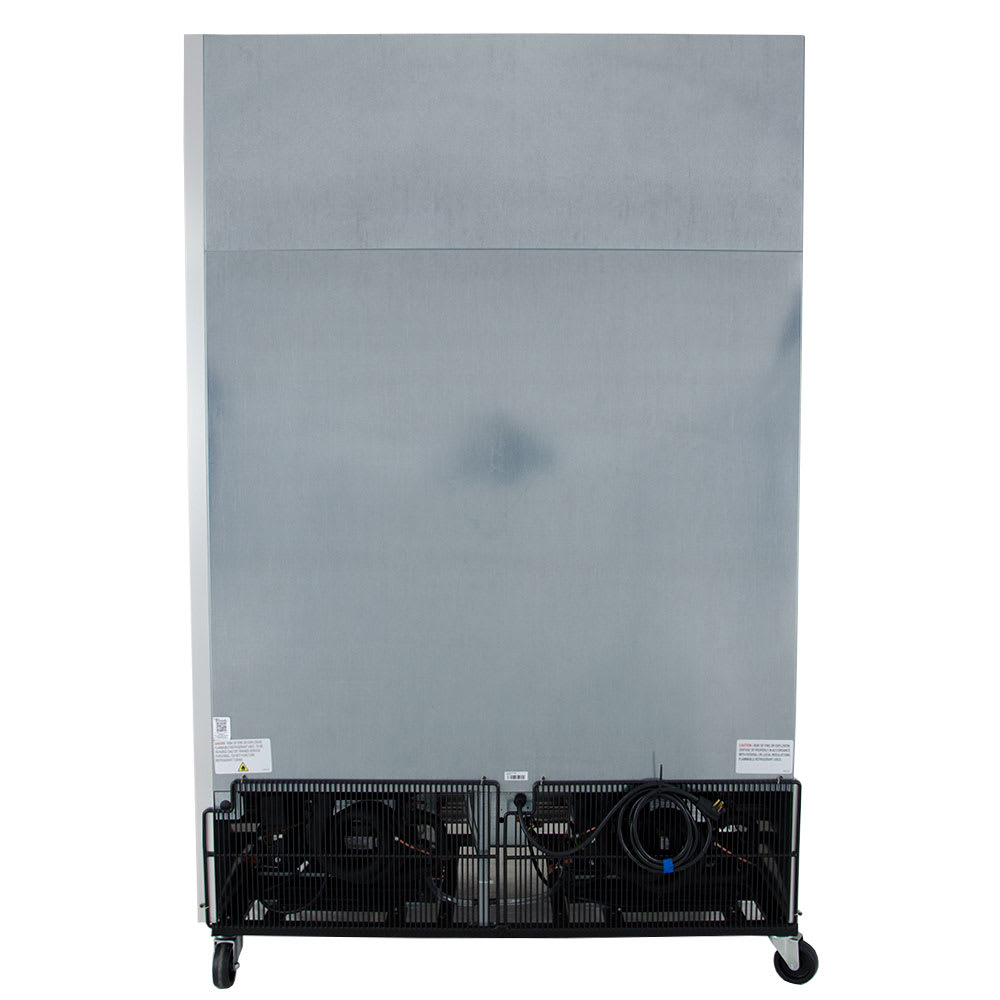

• Bottom mounted condensing unit positioned for easy cleaning. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

• Defrost system time-initiated, temperature terminated. Saves energy consumption and provides shortest possible defrost cycle.

ELECTRICAL CHARACTERISTICS:

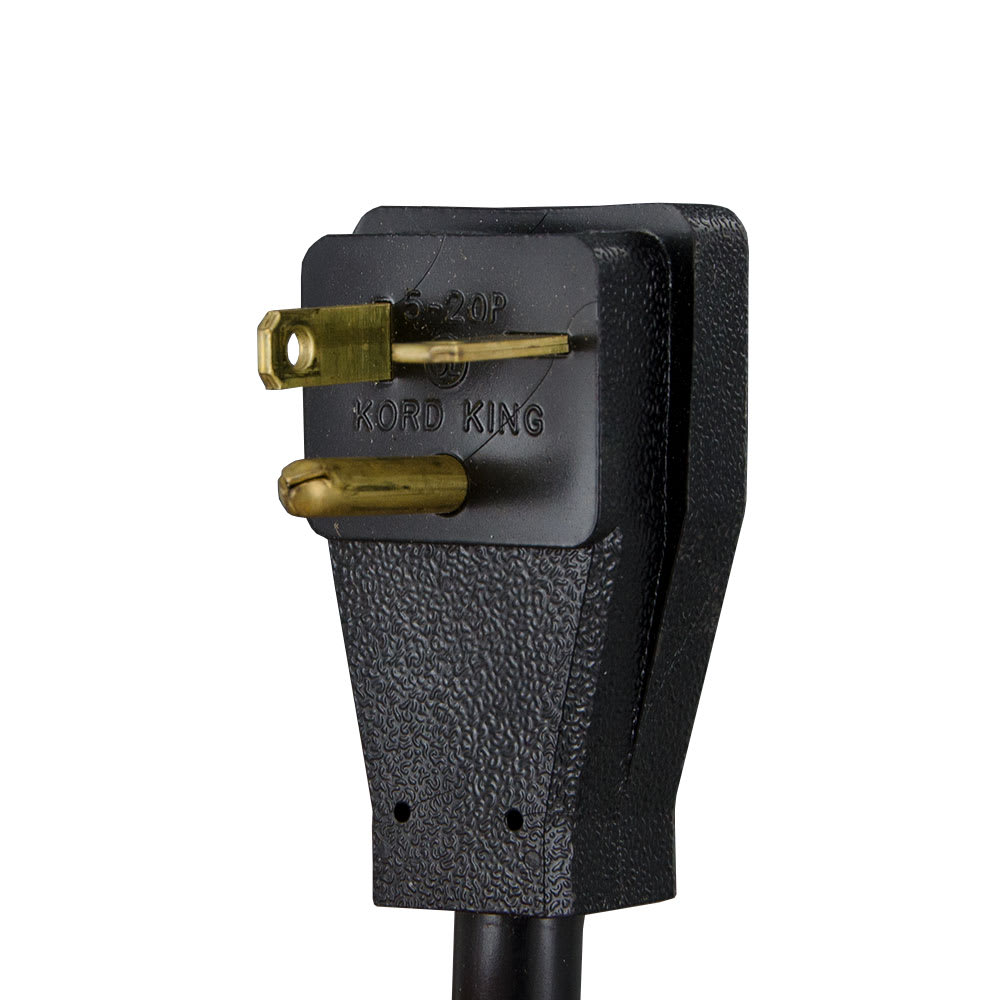

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.


OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• Door hinged on left. (factory installed)

• Additional shelves.

• 11/4" (32 mm) pricing strips.

• Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guard needs to be removed).

• Full door bun tray rack. Holds up to twenty two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guard needs to be removed).

• Remote cabinets (condensing unit supplied  by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

Specifications subject to change without notice.
