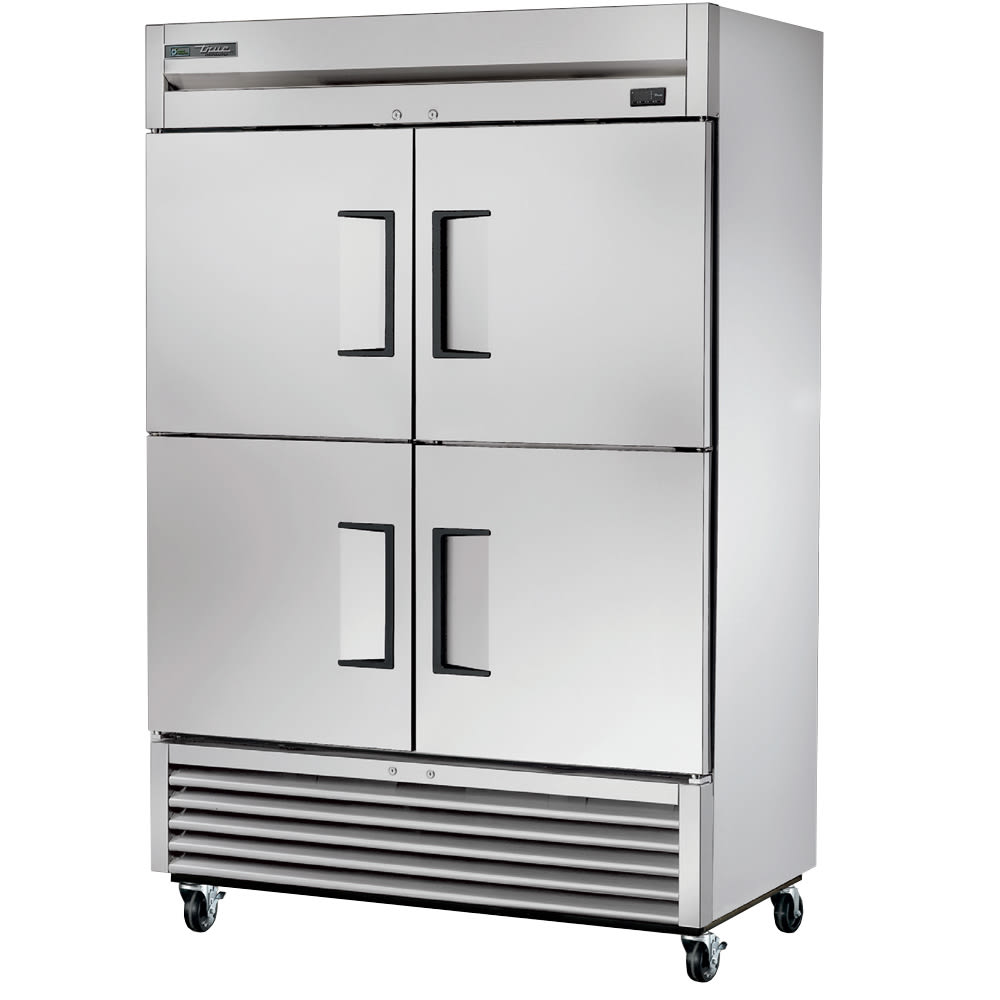

Refrigerator, Reach-In, 2 Section/SS Half Doors, 49 cu ft

MODEL T-49-4

STANDARD FEATURES:

• Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.
• Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C) for the best in food preservation.
• 300 series stainless steel solid doors and front. The finest stainless available; higher tensile strength for fewer dents and scratches.
• Adjustable, heavy duty PVC coated shelves.
• Positive seal self-closing doors Lifetime guaranteed door  hinges and torsion type closure system.

Bottom mounted units feature:

• No stoop lower shelf.
• Storage on top of cabinet.
• Compressor performs in coolest, most grease free area of kitchen.
• Easily accessible condenser coil for cleaning.

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends, back and top.

• Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor with coved corners.

• Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust  inhibiting enamel paint for corrosion protection inside and out.

• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

DOORS:

• 300 series stainless steel exterior with white aluminum door liner to match cabinet interior. Doors extend full width of cabinet shell. Door locks standard.

• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

• Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to insure permanent attachment.

• Magnetic door gaskets of one piece construction, removable without tools for ease  of cleaning.

SHELVING:

• Six (6) adjustable, heavy duty PVC coated wire shelves 24 9/16"L x 22 3/8"D (624 mm x 569 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

• Each shelf supports up to 250 lbs. (114 kg).

LIGHTING:

• Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

MODEL FEATURES:

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF-7 compliant for open food product.

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 33° F to 38° F (.5° C to 3.3° C) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-ins a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments.

• Bottom mounted condensing unit positioned  for easy maintenance. Compressor  runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.


OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 230-240V / 50 Hz

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• Doors hinged on right (factory installed).

• Doors hinged on left (factory installed).

• Additional shelves.

• Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
