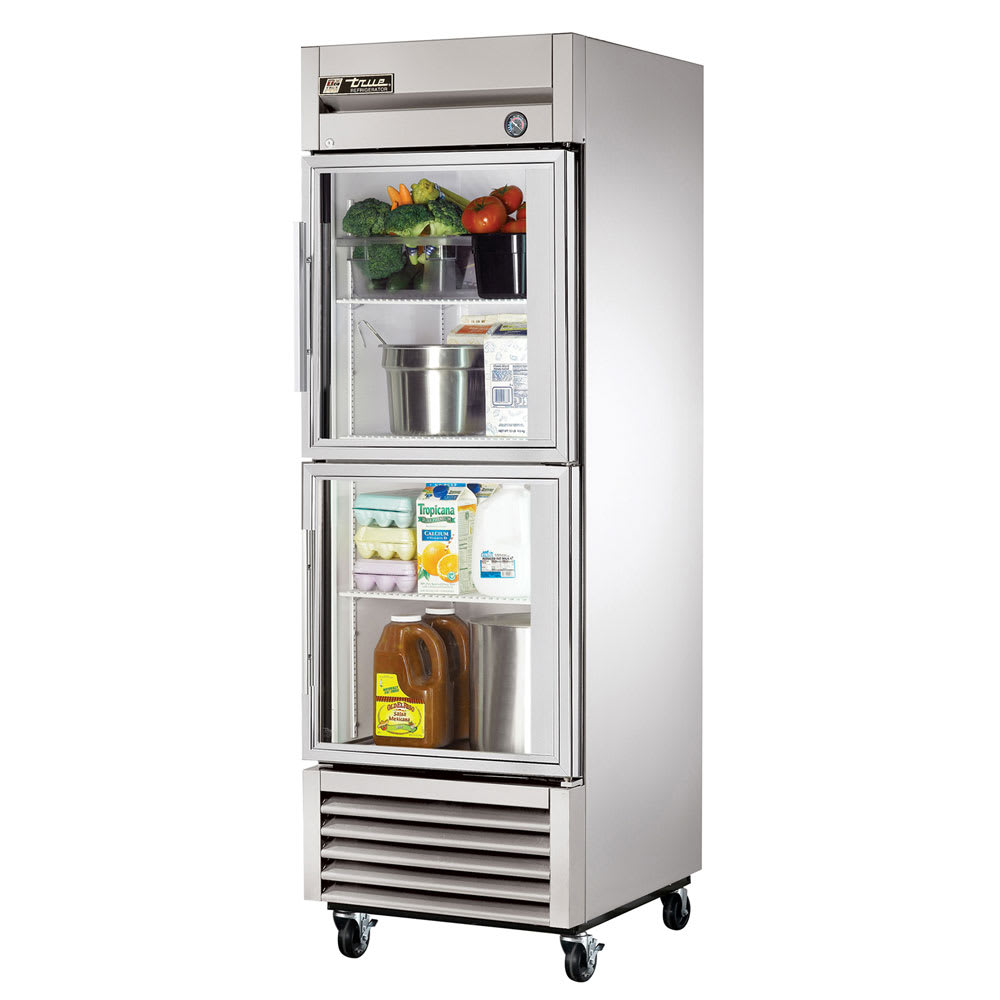

Refrigerator, Reach-In, 1 Section/Glass Half Doors, 23 cu ft

MODEL T-23G-2

STANDARD FEATURES:

• Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.
• Oversized, factory balanced, refrigeration system holds 33°F to 38° F (.5° C to 3.3° C) for the best in food preservation.
• Energy efficient, Low-E, double pane thermal glass doors.
• Patented integrated door light (IDL) system for high product visibility.
• Adjustable, heavy duty PVC coated shelves.
• Positive seal self-closing doors Lifetime guaranteed door  hinges and torsion type closure system.

Bottom mounted units feature:

• No stoop lower shelf.
• Storage on top of cabinet.
• Compressor performs in coolest, most grease free area of kitchen.
• Easily accessible condenser coil for cleaning.

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends and back.

• Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust  inhibiting enamel paint for corrosion protection inside and out.

• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

DOORS:

• Low-E, double pane thermal glass assembly with extruded aluminum frames. Door locks standard.

• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

• Each glass door is fitted with a 15" (381 mm) long extruded aluminum handle.

• Magnetic door gaskets of one piece construction, removable without tools for ease  of cleaning.

SHELVING:

• Three (3) adjustable, heavy duty PVC coated wire shelves 227/8"L X 231/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

• Each shelf supports up to 250 lbs. (114 kg).

LIGHTING:

• Fluorescent interior lighting. Each glass door utilizes full-length, patented, integrated door light (IDL) system. Safety shielded.

MODEL FEATURES:

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF-7 compliant for open food product.

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 33° F to 38° F (.5° C to 3.3° C) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-in’s a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments.

• Bottom mounted condensing unit positioned  for easy maintenance. Compressor  runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 230-240V / 50 Hz

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• Doors hinged on right (factory installed).

• Doors hinged on left (factory installed).

• Additional shelves.

• Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
