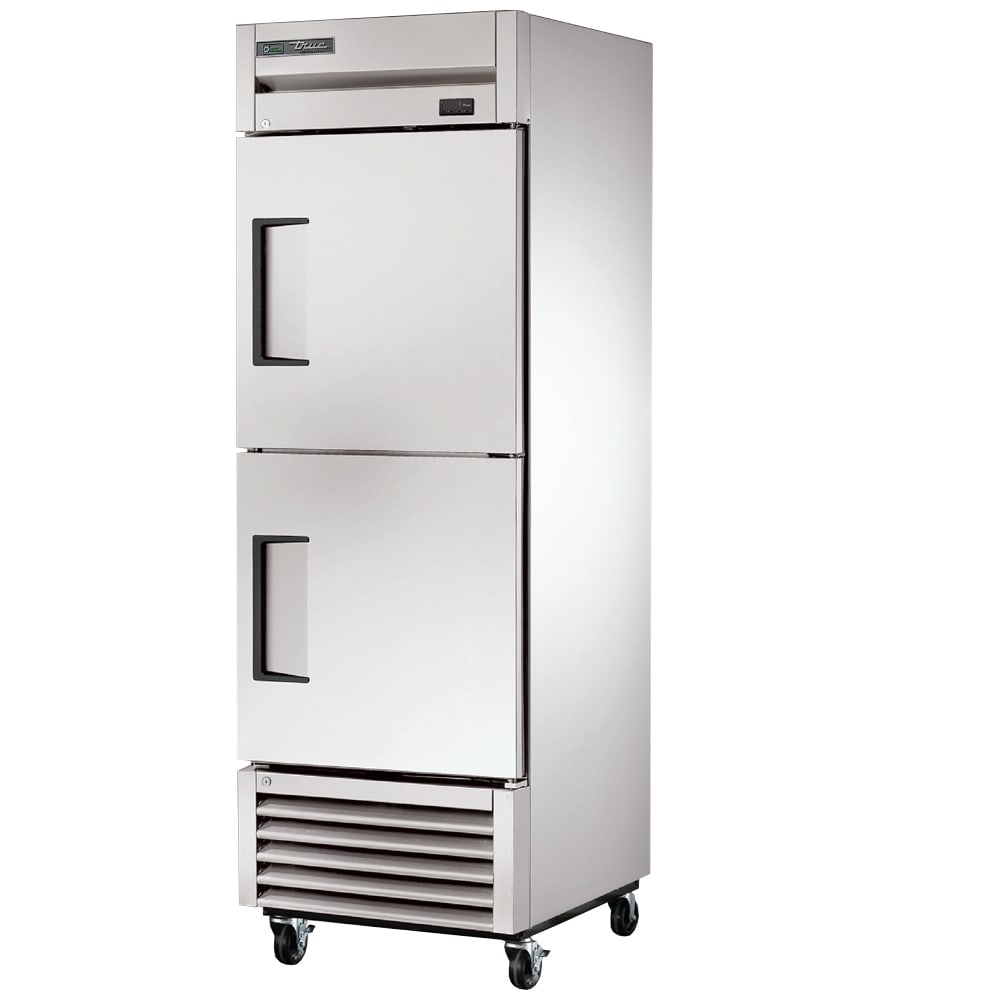

Refrigerator, Reach-In, 1 Section/SS Half Doors, 23 cu ft

True - Model 598-T232

Click to view larger image of 598-T232

KaTom Price $1,834.87

Priced Per: Each

Retail Price: ~~$5,235.00~~

You Save: 65%

Quantity in Basket: none

Read about Huge Tax Savings!

Calculate Shipping

Add product to basket to estimate shipping.

Product Info
Specs
Reviews
Related Items

T-Series Solid Door Model:

TRUE is the world’s largest
manufacturer
of glass door merchandisers.

IN STOCK: AVAILABLE FOR IMMEDIATE PICKUP / DELIVERY!

TRUE SOLID HALF DOORS REFRIGERATOR
23 CUBIC FT.

MODEL T-23-2

STANDARD FEATURES:

Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33° F to 38° .
300 series stainless steel doors & front. Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners.
Anodized quality aluminum top, sides and back.
Lifetime guaranteed recessed handles.
Exterior mounted temperature monitor. (not available for T-12).
Door locks (not available for T-12).
Magnetic door gaskets.
Adjustable vinyl coated wire shelves.
Epoxy coated evaporator.
Incandescent interior lighting (fluorescent interior lighting for glass door models).
Foamed-in-place high density polyurethane insulation (CFC free).
T-23: 4" diameter swivel castors standard equipment - locking castors provided for front set.
T-19: 2 1/2 inch diameter castors standard equipment.
T-12: leg levelers standard.
Slide out compressor can be serviced easily and accessed by a single repairman.
1 year parts & labor warranty (USA).
5 year compressor warranty.

CABINET CONSTRUCTION:

300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back.
NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners.
Barrel lock standard for each door (excluding T-12). Locks keyed alike. Dial exterior mounted temperature monitor.
Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors (T-23), 2 1/2 inch diameter castors (T-19), front castors include brakes. T-12 standard with leg levelers (2 1/2 inch diameter castors available).

DOORS:

300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction.
Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in-place to insure permanent attachment.

INSULATION:

Entire cabinet structure and solid door insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs.
Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

LIGHTING:

Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

REFRIGERATION SYSTEM:

Refrigeration system factory balanced using CFC free 134A refrigerant.
Bottom mounted condensing unit - easy access for maintenance.
Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33° F to 38° F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)
Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.
A sole use circuit is required.

OPTIONAL ACCESSORIES: (At Extra Cost - Lead Time May Apply)

Available with 6" stainless steel or optional seismic legs (not available for the T-12)
Additional shelves available.
Remote condenser available for T-23.
Left hinge door available for T-23; no charge (not field reversible).

CLICK IMAGE FOR LARGER VIEW

Clearance Required For Coolers (USA)
Sides inches/mm	Top inches/mm	Rear inches/mm
0 / 0	1 / 26	1 / 26

ROUGH - IN DATA

Specifications subject to change without notice.

Model

Doors

Capacity
(Cu. Ft.)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(feet)

Crated
Weight

H *

T-23-2 (1, 2)

2 S/S

29 1/2

78 3/8

1/3

115

7.5

5-15

275

(1) Available with full glass doors
(2) Available with solid half doors, glass half doors & combination solid/glass half doors
* Height does not include 5 inch for castor height or 6 inch for optional legs on T-23;
3 1/4 inch for castors on T-19, legs available; T-12 standard with leg levelers, available with optional 2 1/2 inch diameter castors, legs not available.
