Countertop Freezer Merchandiser, Glass Door, 2-1/2 Shelves, -10 F, 7 cu ft

GDM Series - Glass Door Merchandisers

TRUE is the world's largest manufacturer of glass door merchandisers.

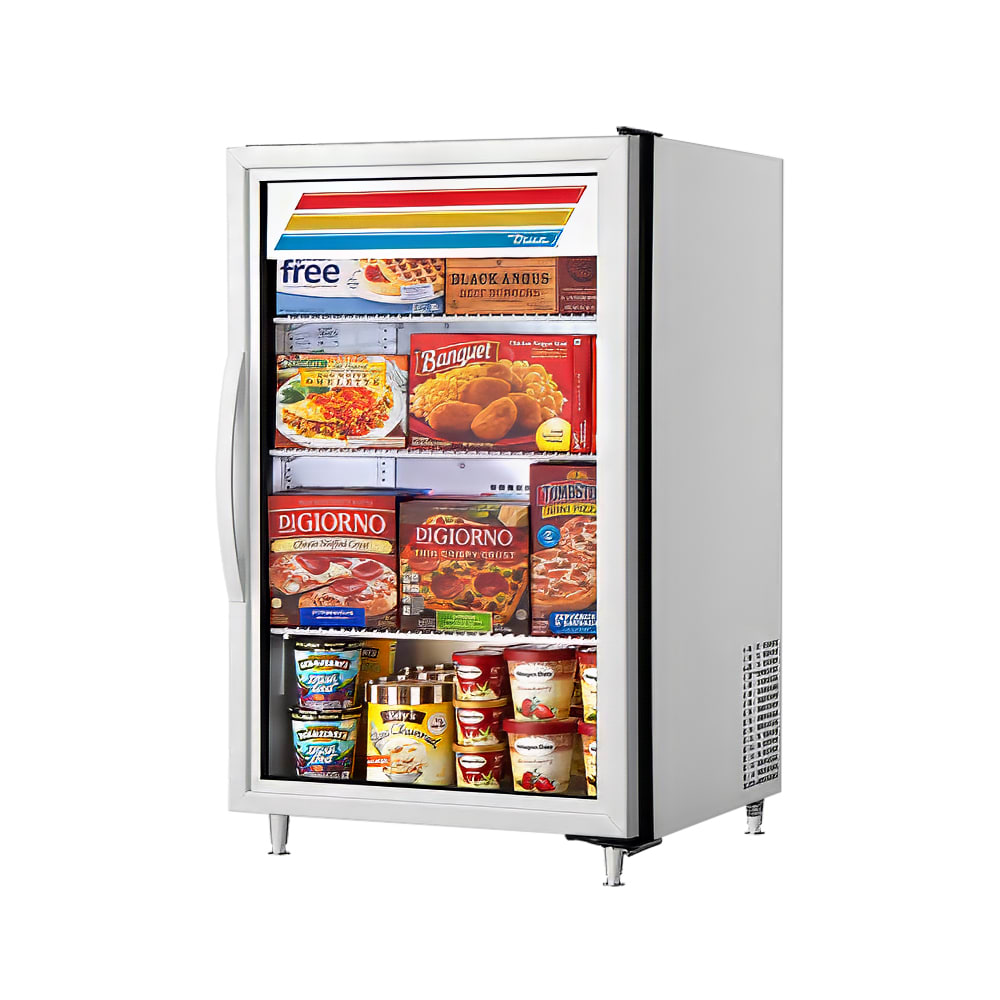

Model GDM-7F

True Glass Door Reach-In Counter Top Freezer, 7 Cubic Ft.

This product typically ships in 5 - 10 days.

Features

View Latest Color & Sign Offerings

Standard

Designed using the highest quality materials and components to provide the user with an attractive, point of purchase merchandiser that brilliantly displays frozen food and ice cream, resulting in high impulse sales.

Oversized, factory balanced, refrigeration system holds -10° F (-23.3° C).

Exterior - non-peel or chip white laminated vinyl; durable and permanent.

Interior - attractive, NSF approved, white aluminum interior liner with 300 series stainless steel floor.

Self closing door. Positive seal, torsion type closure system.

Triple pane thermal glass door assembly with extruded aluminum frame.

Entire cabinet structure and solid door is foamed-in-place using high density, CFC free, polyurethane insulation.

MODEL SPECIFIC

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Back guard and floor rack insures optimum airflow.
• NSF-7 compliant for pre-packaged and bottled product.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains -10° F (-23.3° C).
• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blade gives True merchandisers a superior low velocity, high volume airflow design. This unique design insures faster temperature pull down of warm product, colder holding temperatures and faster recovery in high use situations.
• Defrost system time-initiated, temperature-terminated.

CABINET CONSTRUCTION

• Exterior - non-peel or chip white laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor.
• Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.
• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection. Rail fitted with leg levelers.
• Back-lit door sign decal. Variety of decal options available.

DOORS

• Triple pane thermal glass.
• Self closing door. Positive seal, torsion type closure system.
• Door fitted with 15" (381 mm) extruded aluminum handle.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING

• Two (2) adjustable, heavy duty PVC coated wire shelves 19-11/16" L x 18" D (501 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

• Cabinet lighting utilizes electronic ballast and T-8 bulbs for brighter illumination, longer bulb life and increased energy efficiency.

ELECTRICAL CHARACTERISTICS

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.

Optional Features / Accessories, Up-charge and lead times may apply

Black exterior.

Rosewood exterior.

1-1/4" (32 mm) pricing strips.

Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
