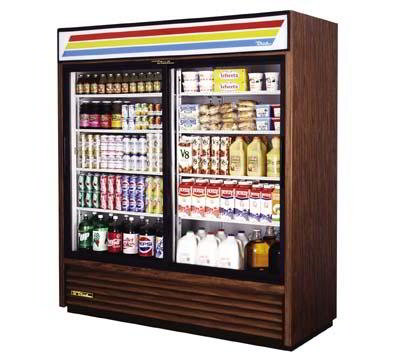

Refrigerated Merchandiser, 2 Section/Glass Sliding Doors, 8 Shelves, 61 cu ft

CABINET CONSTRUCTION:

Durable and permanent non-peel or chip rosewood vinyl exterior.

White, vinyl coated aluminum interior cabinet liner with 300 series stainless steel floor. Construction of liner in accordance with NSF standards.

Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection.

Fluorescent interior lighting (safety shielded).

DOORS:

Double pane thermal insulated glass. Doors extend for full view of product. Door gaskets of one piece construction.

Counter-balanced weight system; self closing doors. The face of each door fitted with a 12" long handle.

INSULATION:

Entire cabinet structure insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

4 adjustable vinyl coated wire shelves. Shelves capable of supporting up to 250 lbs.

Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

REFRIGERATION SYSTEM:

Refrigeration system factory balanced using CFC free 134A refrigerant.

Bottom mounted condensing-unit - easy access for maintenance.

Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33° F to 38° F interior cabinet temperature. (non adjustable capillary tube system superior to problematic expansion valve)

Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

A sole use circuit is required.

OPTIONS:
(typically special order and may be at additional cost. Call for quote and availability)

Gravity-feed TrueTrac shelving.

Wine racks.

Novelty Baskets.

Additional shelves available.



Ratchet door locks available.

Available with 2 1/2" diameter castors.

Available with stainless steel or optional seismic legs.

Remote units also available.

Wide variety of sign panels available.

Click Image for Larger View

Rough - In Data

• Model: GDM-61
• Doors: 2
• Capacity (Cu. Ft.): 61
• # of Shelves: 8
• Dimensions (Inches):
  • L: 70
  • D*: 29-1/2
  • H : 78-1/4
• HP: 1/2
• Volts: 115/60/1
• Amps: 11.3
• NEMA Config.: 5-15
• Cord Length (total feet): 9

• This Product is recommended for commercial purposes only.
• Specifications subject to change without notice.
• * Depth does not include 3/8" for door handle.
