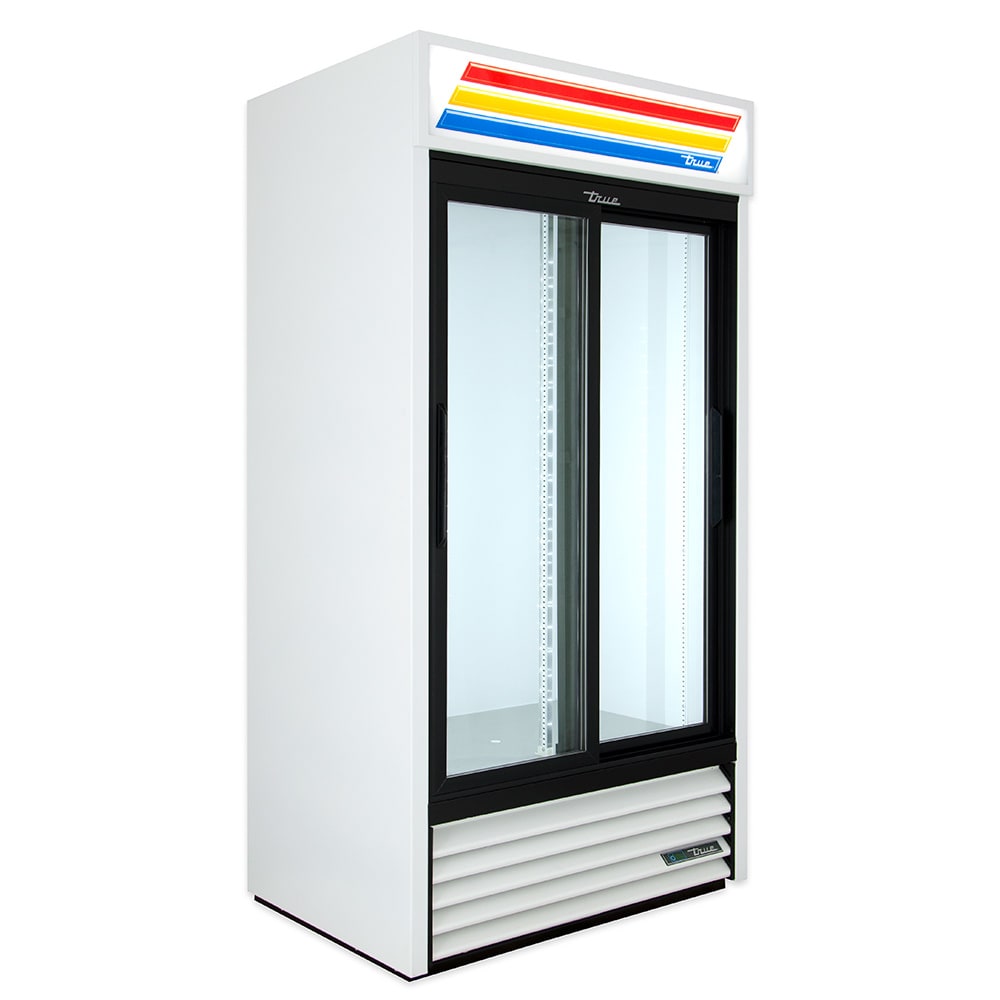

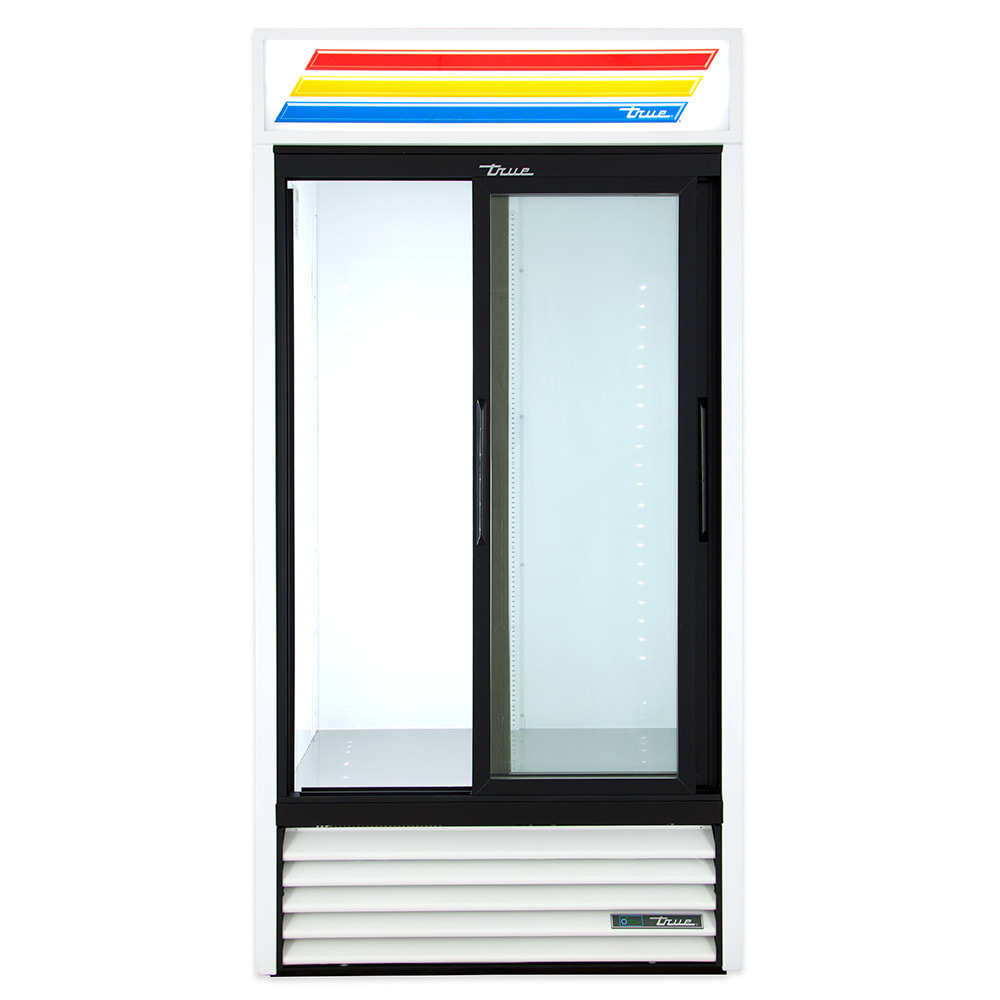

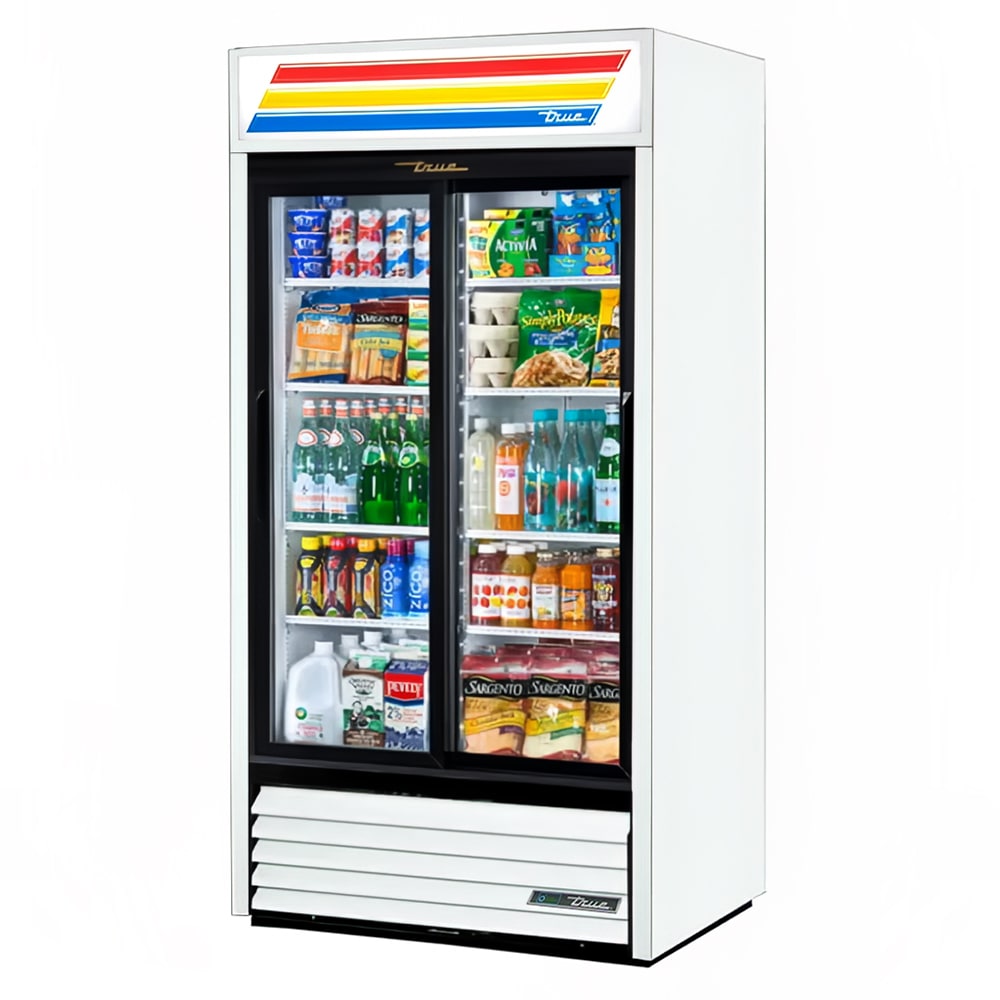

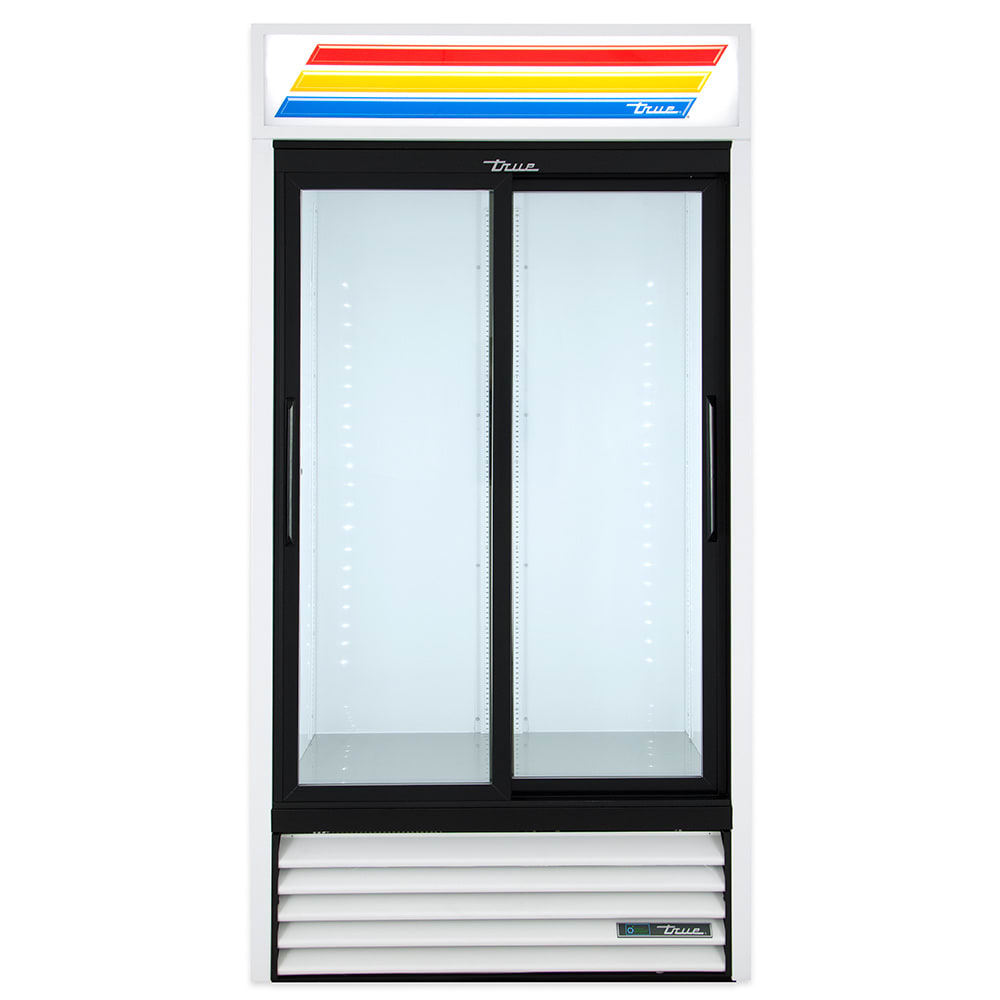

Refrigerated Merchandiser, 2 Section/Glass Sliding Doors, 8 Shelves, 33 cu ft

MODEL GDM33

• The world’s #1 manufacturer of glass door merchandisers.
• Trues commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.
• Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
• Exterior - non-peel or chip rosewood laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, white aluminum interior liner with 300 series stainless steel floor.
• Self closing doors. Counter-balanced weight system for smooth, even positive closing.
• Low-E, double pane thermal glass door assembly with extruded aluminum frame. The latest in energy efficient technology.
• Entire cabinet structure are foamed-in-place using high density, CFC free, polyurethane insulation.

  Bottom mounted units feature

• No stoop lower shelf to maximize product visibility.
• Storage on top of cabinet.
• Easily accessible condenser coil for cleaning

CABINET CONSTRUCTION:

• Exterior - non-peel or chip rosewood laminated vinyl; durable and permanent.

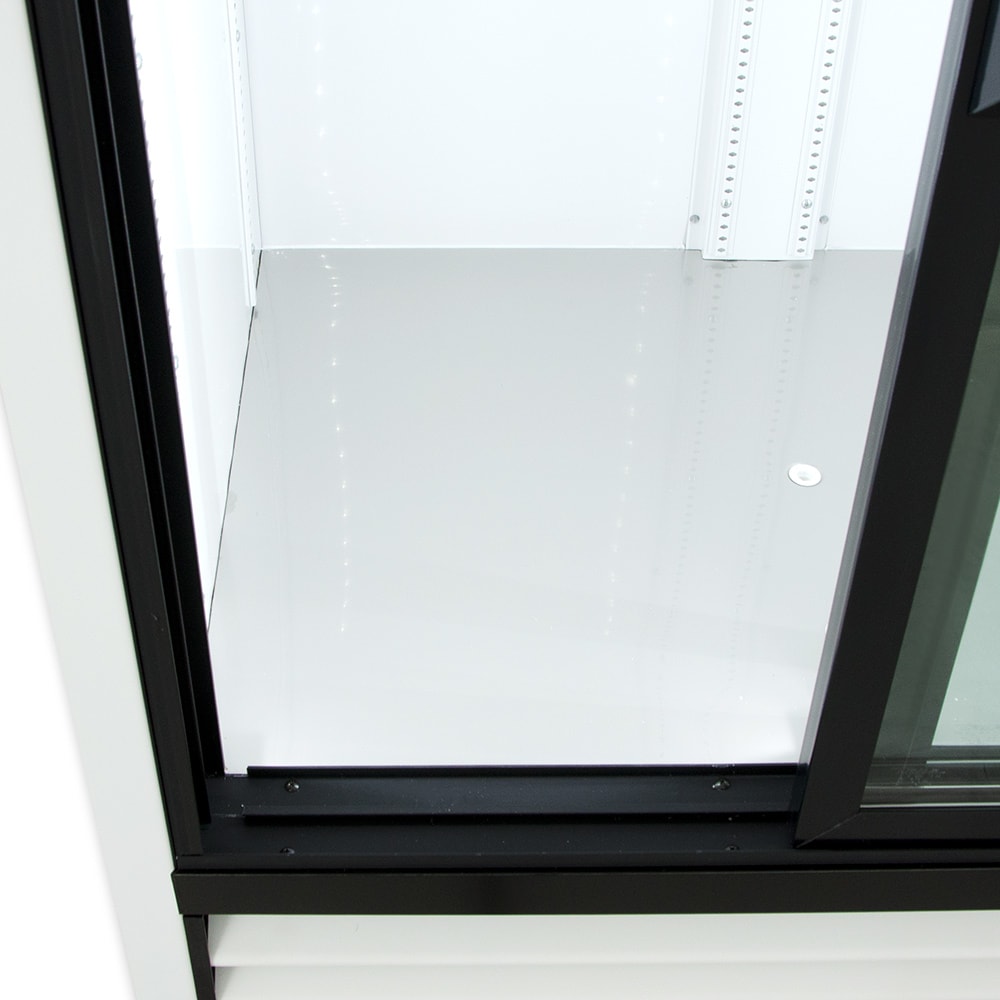

• Interior - attractive, NSF approved, white aluminum liner with 300 series stainless steel floor.

• Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

• Frame rail fitted with leg levelers.

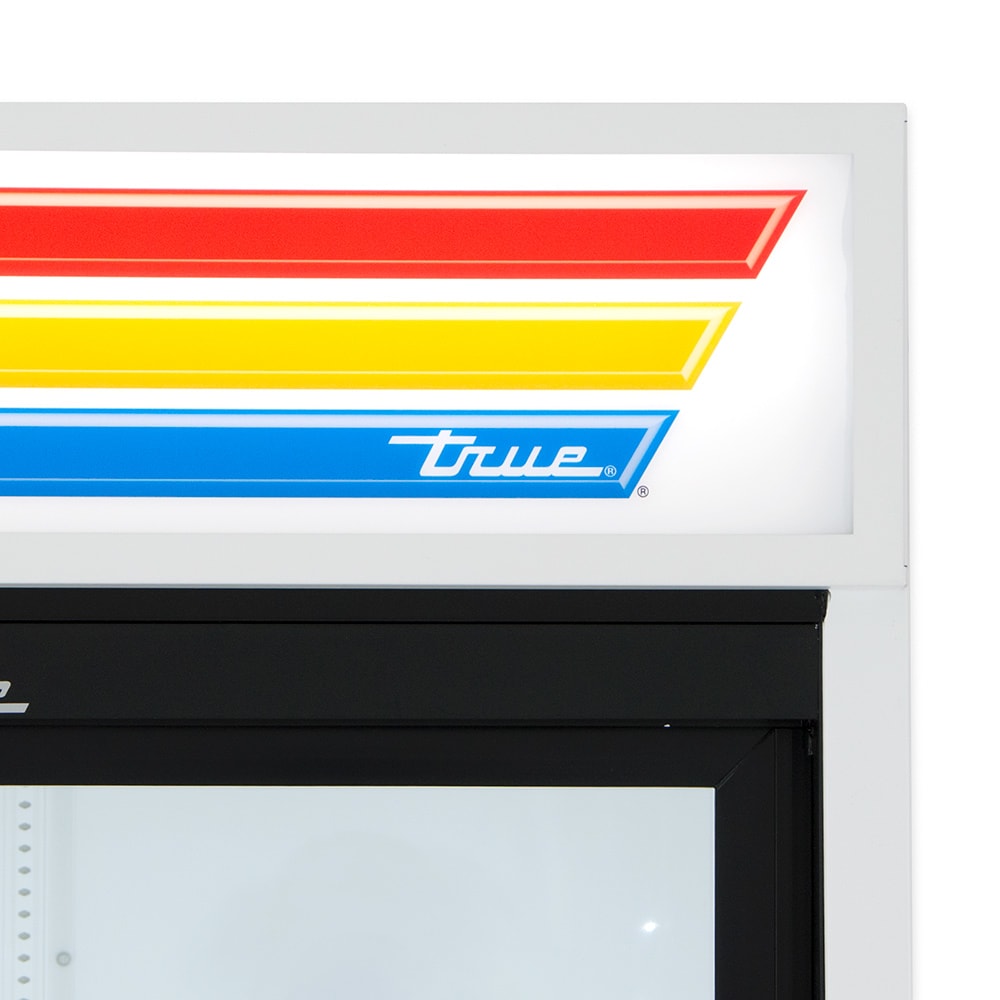

• Illuminated exterior sign panel. Variety of sign options available.

DOORS:

• Low-E, double pane thermal glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology. Adjustable, self closing, torsion type closure system.  The face of each door fitted with a 12" long handle.

• Self closing doors. Counter-balanced weight system for smooth, even positive closing.

• Each door fitted with 12" (305 mm) handle.

INSULATION:

• Entire cabinet structure insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Eight (8) adjustable, heavy duty PVC coated wire shelves 171/4"L x 209/16"D (439 mm x 523 mm). Four (4) chrome plated shelf clips included per shelf.

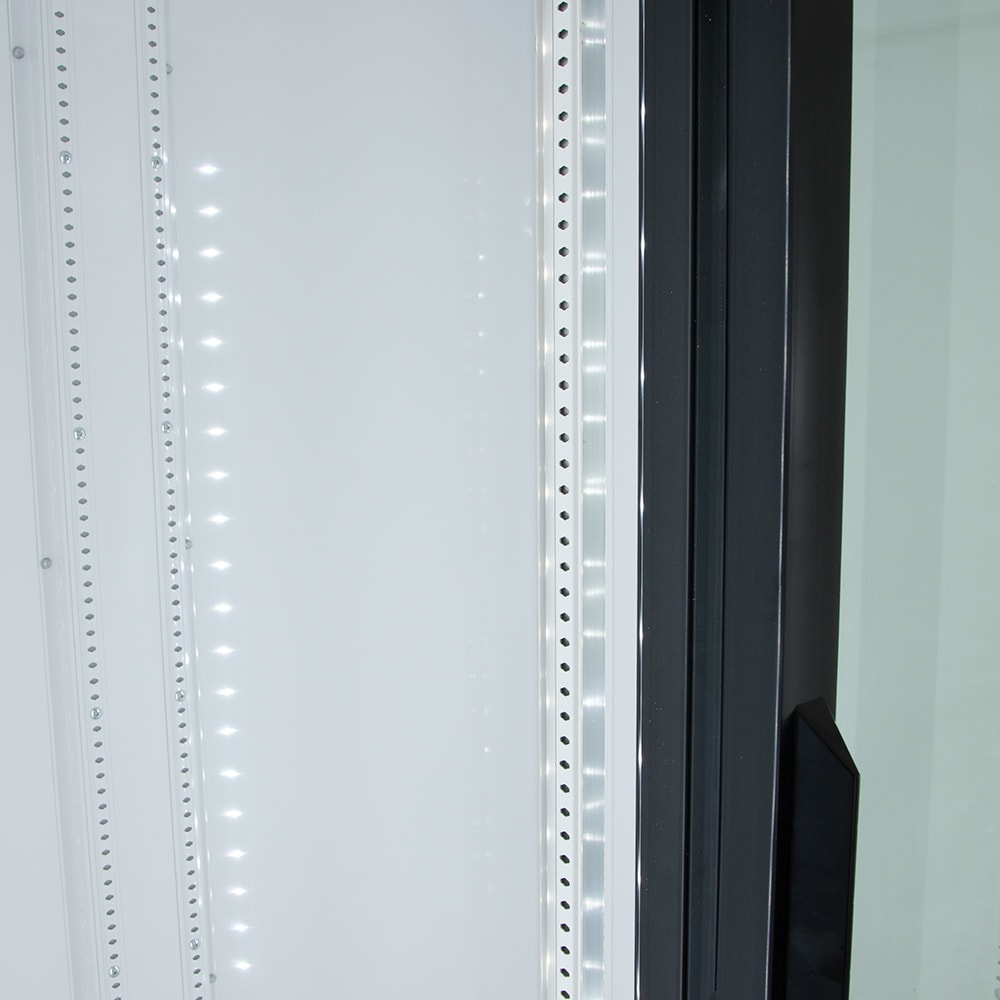

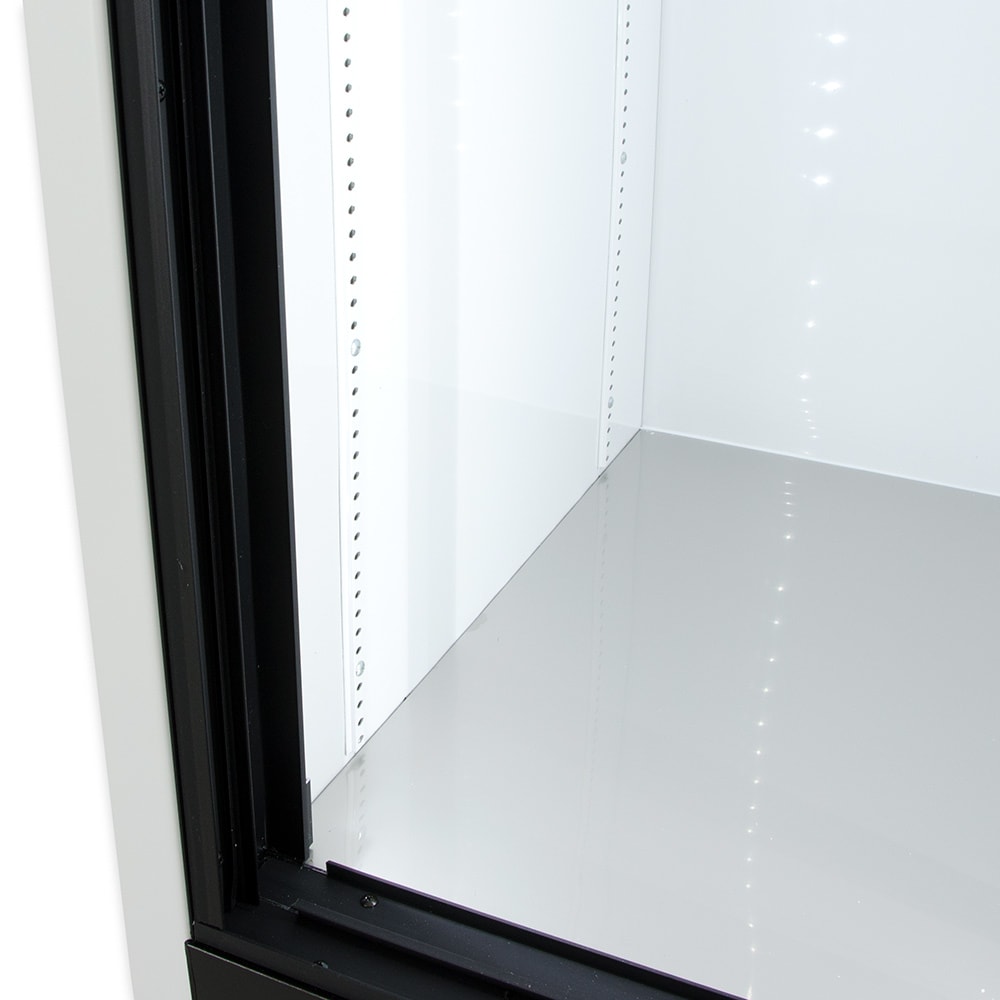

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains 33° F to 38° F (.5° C to 3.3° C).

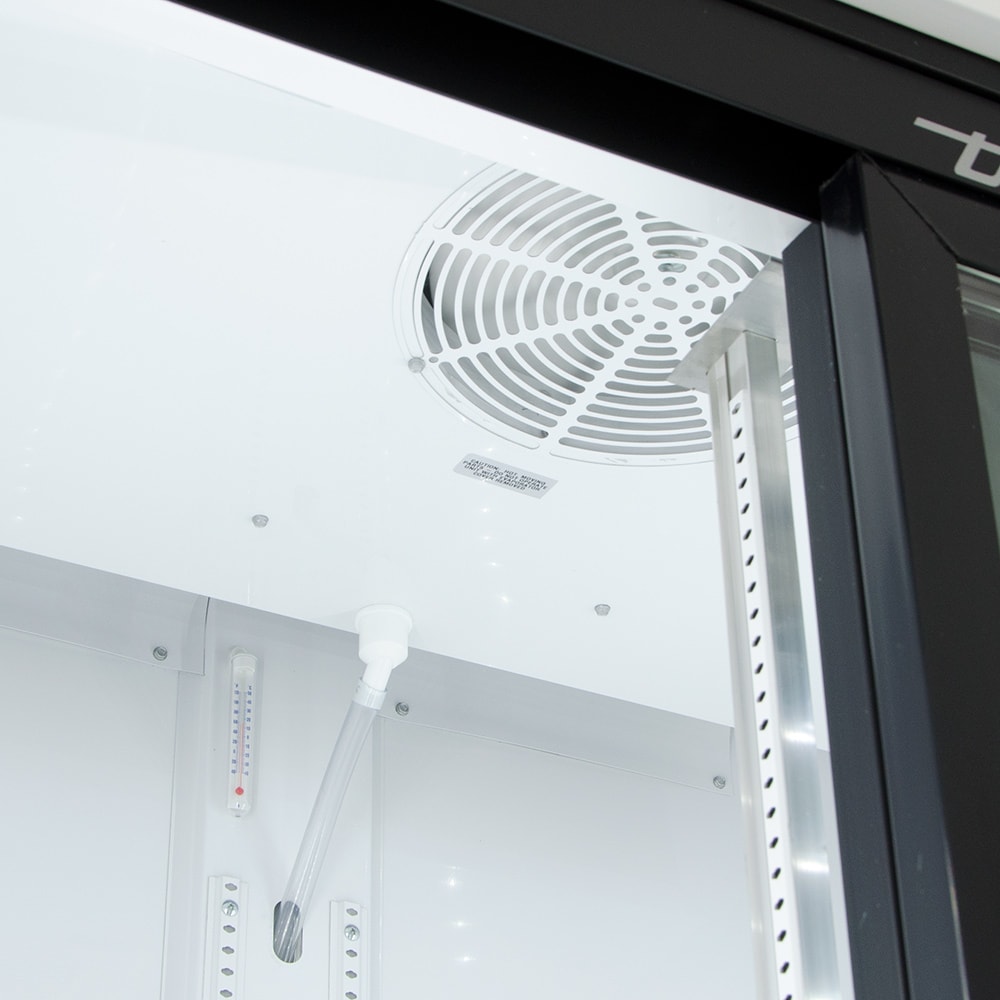

• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True merchandisers a superior low velocity, high volume air flow design. This unique design insures faster temperature pull down of warm product, colder holding temperatures and faster recovery in high use situations.

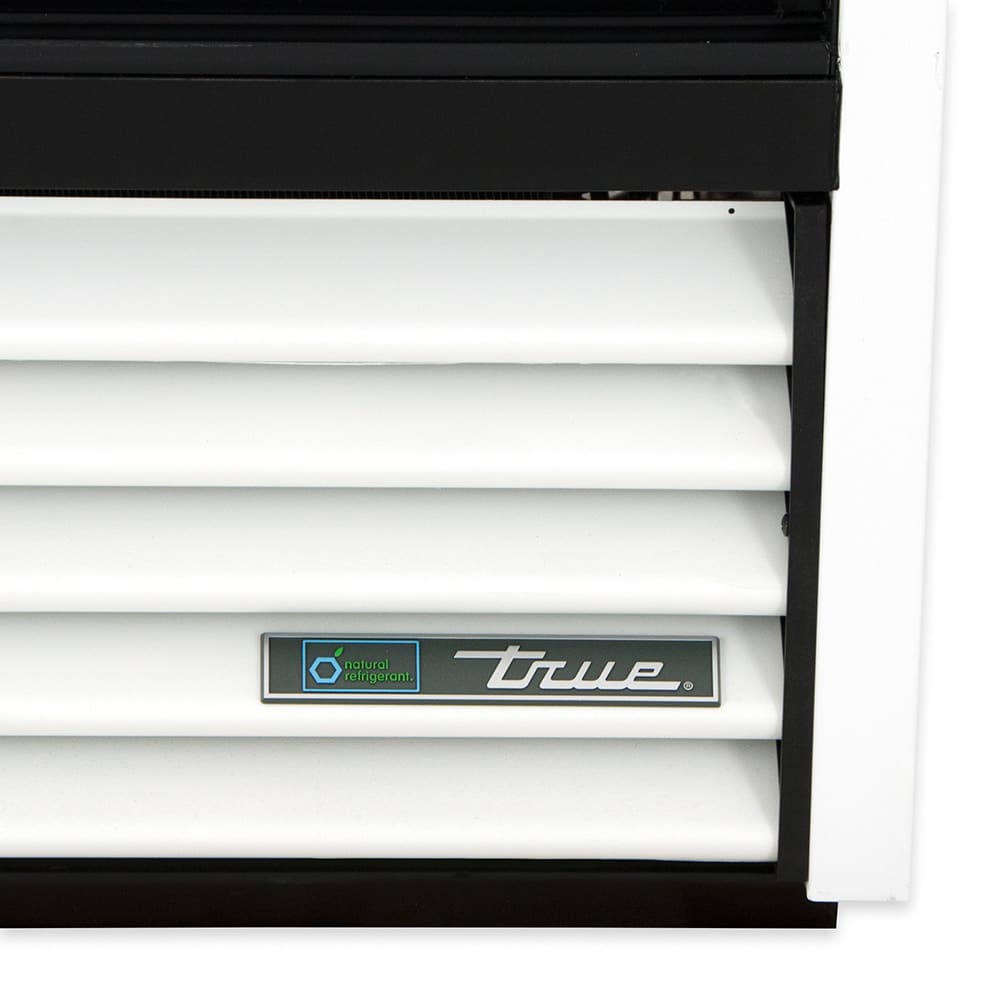

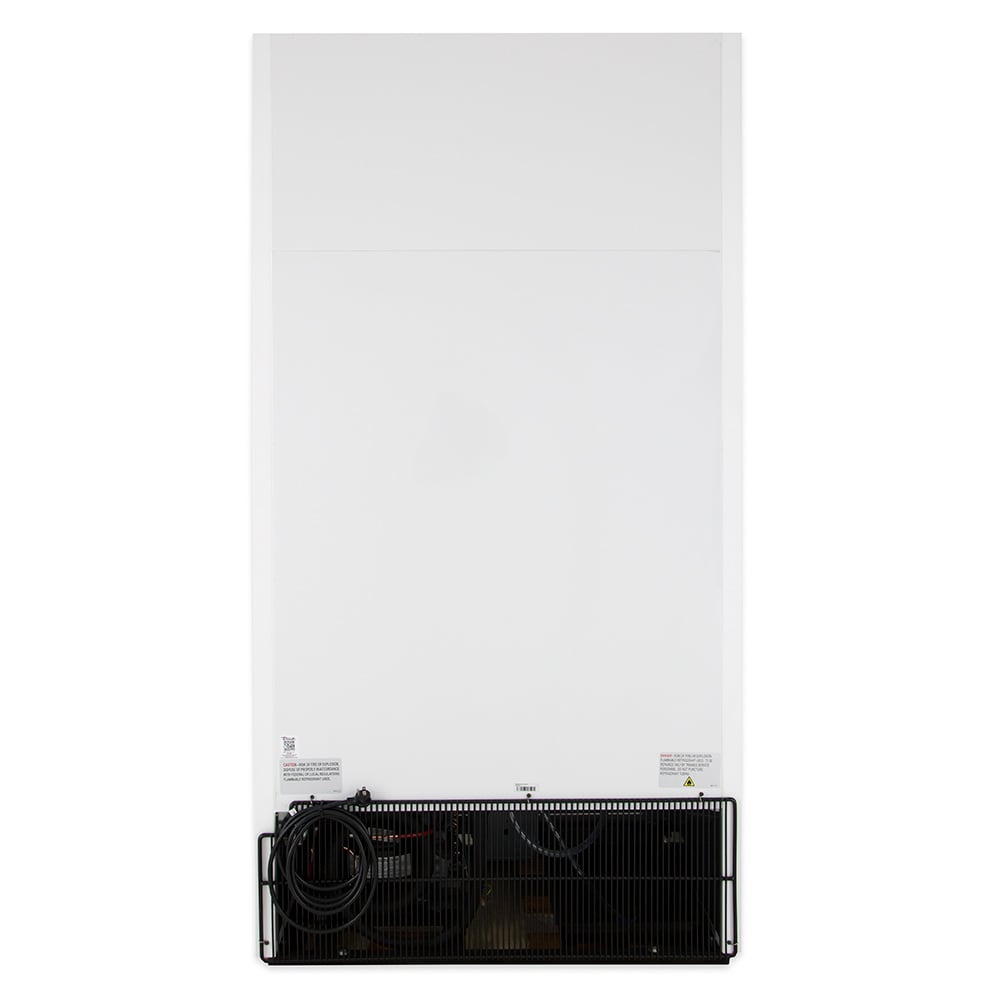

• Bottom mounted condensing unit positioned for easy maintenance. No stoop lower shelf maximizes visibility by raising merchandised product to higher level.

ELECTRICAL CHARACTERISTICS:

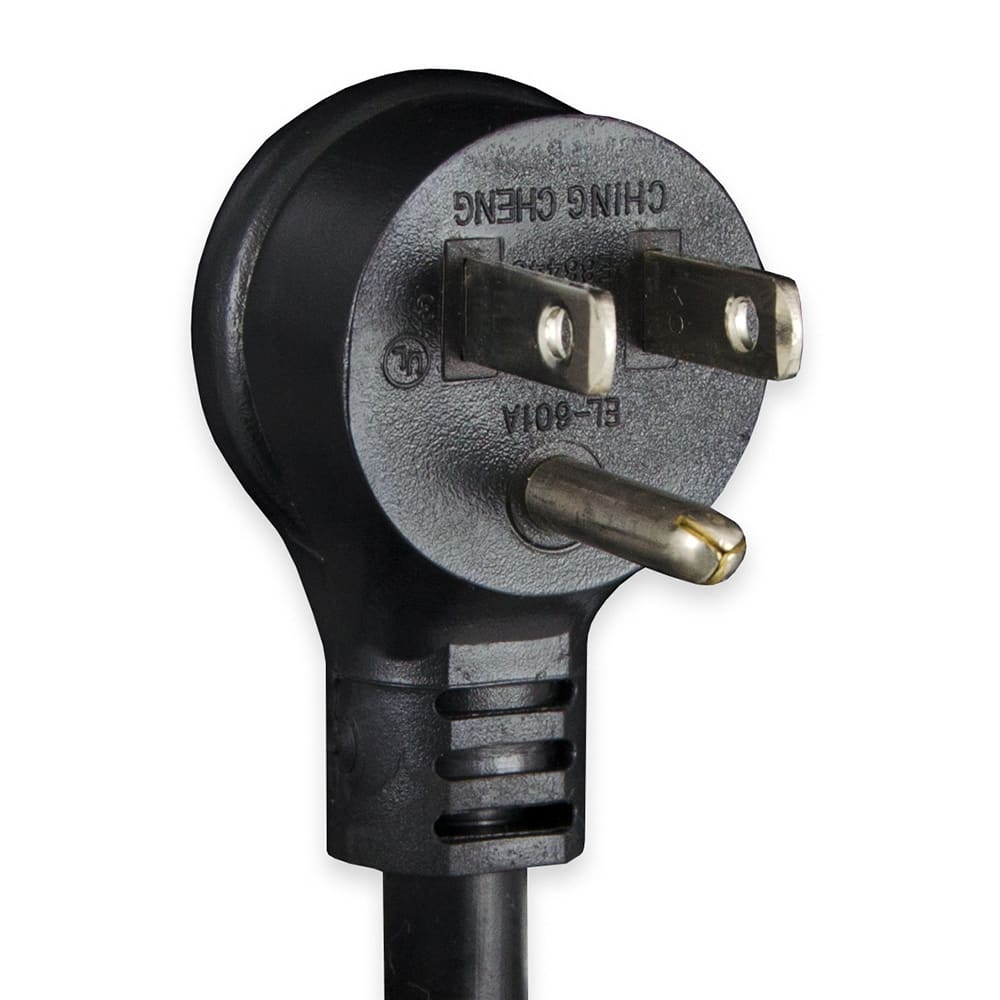

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet.  A cord and plug set to be included.

• A sole use circuit is required.


• Safety shielded fluorescent interior lighting.
• Cabinet lighting utilizes electronic ballast and T-8 bulbs for brighter illumination, longer bulb life and increased energy efficiency.

MODEL FEATURES:

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• For latest color and sign offerings.

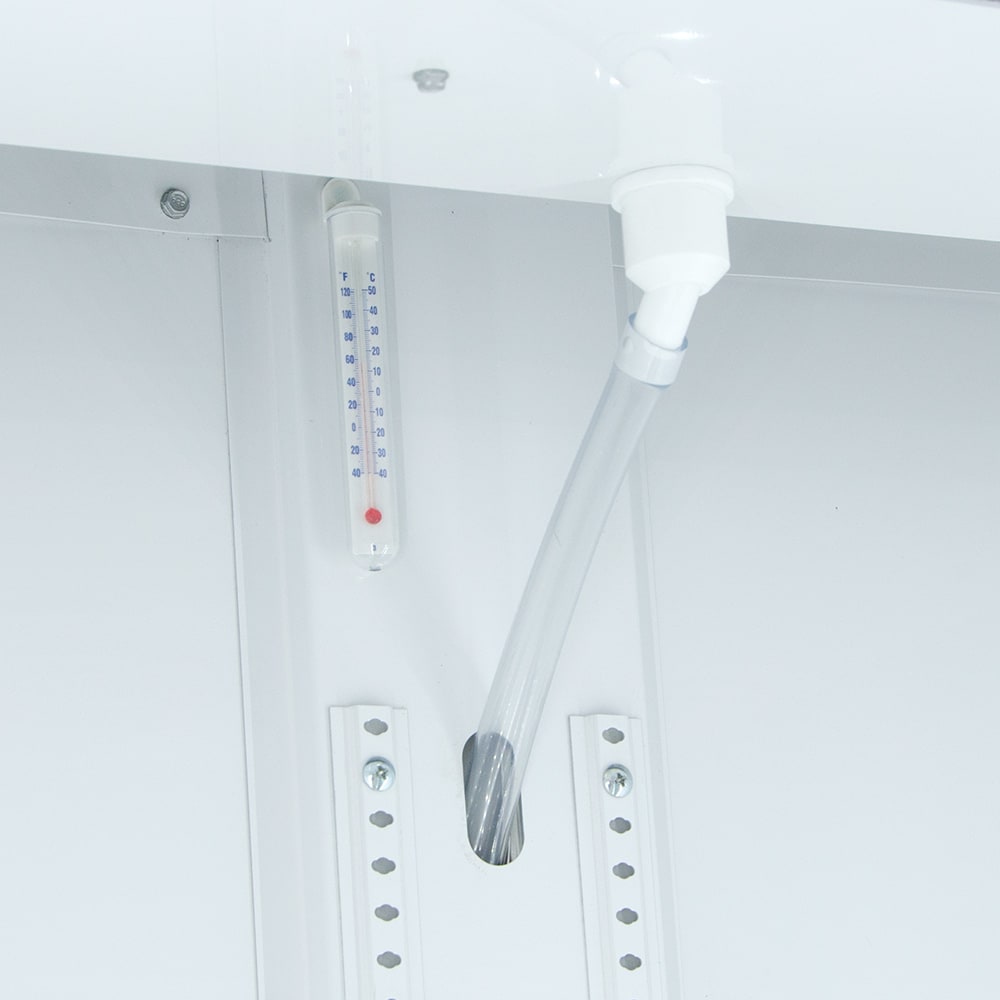

• Convenient clean-out drain built in cabinet floor.
• NSF-7 compliant for pre-packaged and bottled product.

OPTIONAL FEATURES / ACCESSORIES:
 (Up charge and lead times may apply.)

• 230 - 240V / 50 Hz.

• Black exterior.

• White exterior.

• Walnut exterior.

• Stainless Steel exterior.

• Black aluminum interior liner with black shelving.

• Stainless interior liner.

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• 21/2" (64 mm) diameter castors.

• 4" (102 mm) diameter castors.

• Red wine thermostat.

• Chocolate thermostat.

• White wine thermostat.

• Barrel locks.

• Ratchet locks.

• Additional shelves.

• TrueTracII gravity feed organizers.

• TrueTrac4 gravity feed organizers

• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
