True GDM-23F-HC~TSL01 27" One Section Display Freezer w/ Left Hinged Swing Door - Bottom Mount Compressor, White, 115v

KaTom #: 598-GDM23FLH • MPN: GDM-23F-HC~TSL01 WHT/LH
  • 598-GDM23FLH Primary Thumbnail Image
Free Shipping Item
Lowest Price Guarantee

$5,552.02 /Each

Selected Hinge: Left Hinge

Right HingeRight Hinge

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Zach Mouso User Image
Ask a Foodservice Equipment Specialist

True Refrigeration GDM-23F-HC~TSL01 Description

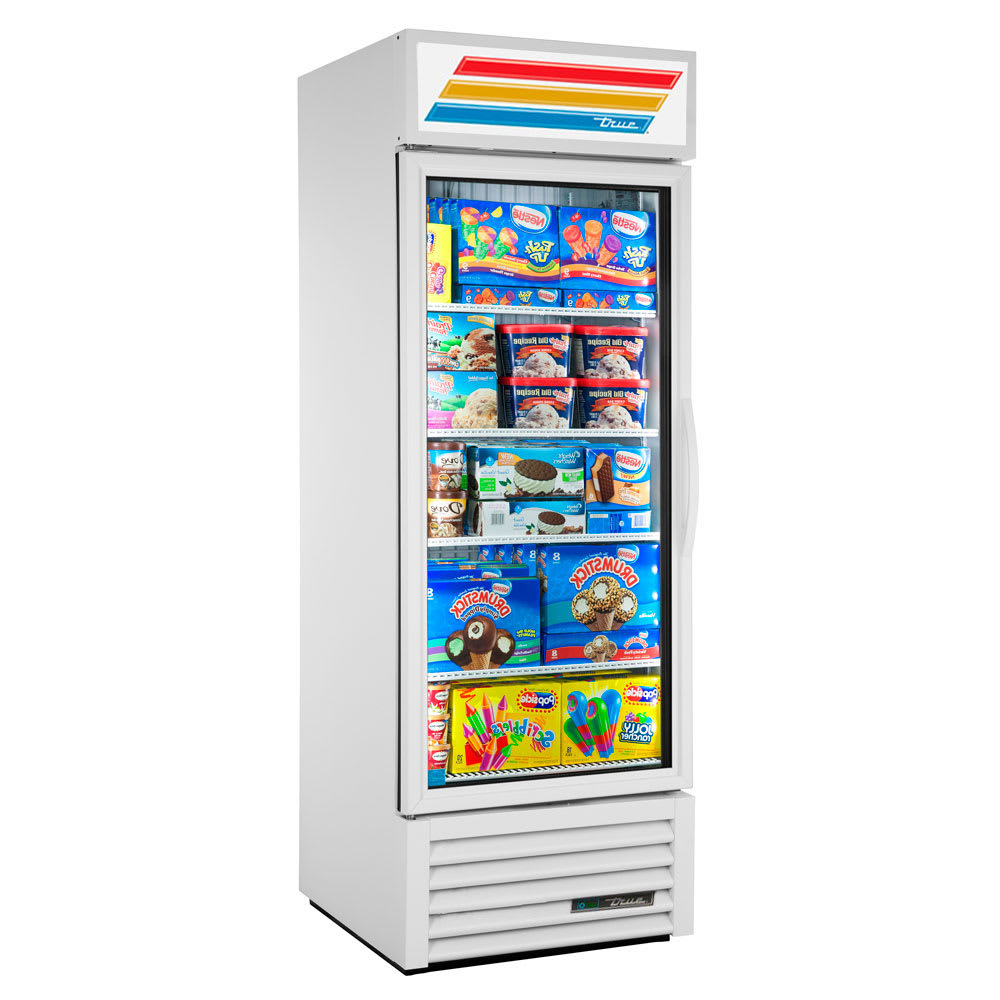

The True GDM-23F-HC~TSL01 LH one-section freezer merchandiser holds product on four adjustable shelves. Its LED lighting lasts longer than traditional fluorescent lights and provides product illumination. In the cabinet's interior, a durable aluminum lining and stainless steel floor facilitate cleaning. Since it features a white powder-coated exterior, this unit is chip and peel resistant.

Through its self-contained capillary tube system and R290 refrigerant, the freezer keeps product at -10 degrees Fahrenheit, perfect for holding and displaying ice cream and frozen food. Foamed-in-place polyurethane insulation keeps cold air in the unit. Since the condensing unit is mounted on the bottom, the lower shelf is raised to a visible level, and its coil can be wiped clean quickly. The True GDM-23F-HC~TSL01 LH one-section display freezer reduces energy usage and saves time with short, automatic defrost cycles that are time initiated and temperature terminated.

The condensing fan motor goes into its reverse mode upon start up for 20 seconds to blow debris, dirt, and dust off the condenser coil. When this part is automatically and regularly cleaned, the system operates efficiently without consuming an overload of energy. It also ensures the interior maintains consistent product temperatures while prolonging the system's lifespan. Despite this cleaning feature's many benefits, it won't replace the recommendations for routine preventative cleaning and maintenance.

Product visibility is offered by a triple-pane thermal glass door that helps maintain cold temperatures. Using the 12-inch handle, customers and staff can conveniently access the food while the door's self-closing design keeps chilled air inside. The door gaskets have a durable, one-piece construction and can be removed for cleaning without tools.

  • Heavy-duty, welded steel frame rail is durable for commercial applications
  • Powder-coated frame rail provides corrosion resistance
  • Rolled steel exterior is white and powder coated to resist chipping and peeling
  • White interior offers a bright, clean look
  • Interior is lined with aluminum to provide durability
  • Floor is made of heavy-duty, corrosion-resistant stainless steel
  • Staff can adjust the 4 PVC-coated wire shelves in 1⁄2-in. increments to accommodate different products
  • Safety-shielded LED lighting provides visibility
  • Merchandises the displayed items with an exterior sign panel

  • Maintained temperature: -10 degrees F
  • Self-contained capillary tube system uses R290 hydrocarbon refrigerant
  • Epoxy coating on the evaporator is corrosion resistant
  • Cold temperatures are kept inside by foamed-in-place polyurethane insulation
  • Bottom-mounted condensing unit elevates the bottom shelf for increased product visibility
  • Condenser fan motor reverses automatically for 20 seconds to clean coil
  • Automatic defrost system is time initiated and temperature terminated, saving energy and ensuring a short cycle

  • Left-hinge door opens on the right
  • Maximum visibility is provided by the glass door
  • Triple-pane thermal glass helps keep cold temperatures in the unit
  • 12-in. handle opens the door smoothly
  • Self-closing design helps keep cold air inside
  • Uses a positive seal, torsion-type closure system
  • Durability is provided by the extruded aluminum frame
  • Magnetic door gaskets have a sturdy, 1-piece construction
  • Gaskets can be removed without tools, aiding in the cleaning process

  • Shelves: 22 7⁄8 in. L x 21 1⁄4 in. D
  • Overall: 27 in. W x 31 1⁄2 in. D x 78 5⁄8 in. H
  • 9.5 A, 1 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration GDM-23F-HC~TSL01 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Freezer Merchandiser, one-section, True standard look version 01, -10°F, (4) shelves, (1) triple-pane thermal glass hinged door, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 9.5 amps, NEMA 5-15P, cULus, UL EPH Classified

Warranty Icon
7-year Parts & Labor; 7-year Compressor
