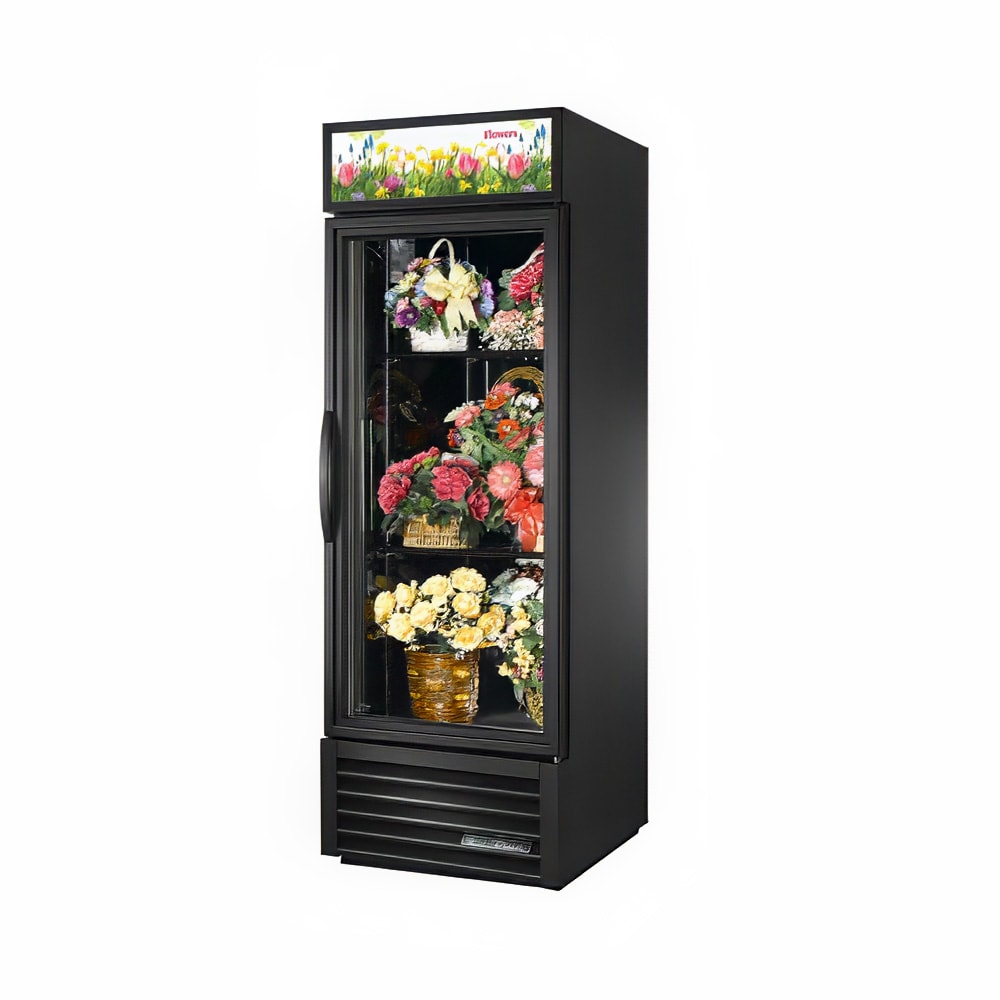

Floral Merchandiser, 1 Section/Glass Door, 2 Shelves, 23 cu ft

Click for Larger Image
Download Product Spec Sheet Download the Adobe Acrobat Reader software to view the spec sheet

Floral Merchandiser, 1 Section/Glass Door, 2 Shelves, 23 cu ft
Retail Price: $4,102.00
KaTom Price: $1,558.88
You Save: 62%
Manufacturer: True
Model #: 598-GDM23FC
Priced Per: Each
Shipping Weight: 295.00 pounds
Quantity in Basket: none

Select Options for this Product

Mirrored Interior Back (cost to be added)
Door Hinging
Select Exterior Color
Quantity:

GDM Series - Floral Cases

23 CUBIC FEET


TRUE is the world’s largest
manufacturer
of glass door merchandisers.



Photo Includes Optional Accessories!

A large selection of signage for your equipment!
View Latest Color & Sign Offerings

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

MODEL GDM23FC
STANDARD FEATURES:
  • Exterior - non-peel or chip black laminated vinyl; durable and permanent.
  • Interior - attractive, NSF approved, black aluminum interior liner with 300 series stainless steel floor.
  • Self closing door. Positive seal, torsion type closure system.
  • Low-E, double pane thermal glass door assembly with extruded aluminum frame. The latest in energy efficient technology.
  • Patented integrated door light (IDL) system for brighter, shadow free illumination. Special interior agro lighting designed for flowers to prevent premature discoloration.
  • Entire cabinet structure is foamed in-place using high density, CFC free, polyurethane insulation.
Bottom mounted units feature:
  • No stoop lower shelf to maximize product visibility.
  • Storage on top of cabinet.
  • Easily accessible condenser coil for cleaning..
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • 230-240V / 50 Hz.
  • White exterior.
  • Rosewood exterior.
  • Mirrored back.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 21/2" (64 mm) diameter castors.
  • Barrel locks.
  • White shelves.
  • 20 oz. TrueTrac 4 organizers.
  • Wine wire rack.
  • Sliding wine rack.
  • Chocolate thermostat.
  • White wine thermostat.
  • Red wine thermostat.
  • Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
Features, Options & Specifications Subject to Change Without Notice.




CLICK IMAGE FOR LARGER VIEW



ROUGH - IN DATA

This Product is recommended for commercial purposes only.
Chart dimensions rounded up to the nearest 1/8"
Specifications subject to change without notice.
Model Swing
Doors		 Capacity
(Cu. Ft.)
 		 # of
Shelves		 Dimensions
(Inches)		 HP Volts PH Amps NEMA
Config.		 Cord
Length
(total feet)
 		 Crated
Weight

L D H
GDM23FC * 1 23 2 27 29 1/2 78 1/4 1/3 115/60/1   7.5 5-15P 9 350

Depth does not include 11/8" for door handle.





Model Elevation Right Plan 3D
GDM23FC TFAZ03E TFAY03S TFAZ03P TFAZ033



View Installation Manuals for True Refrigeration Equipment
