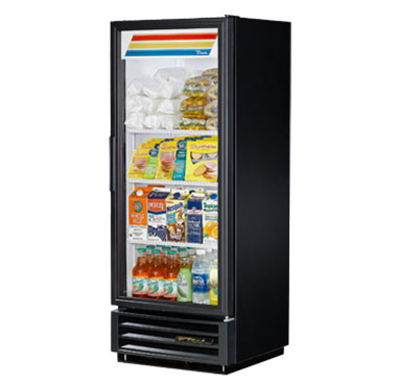

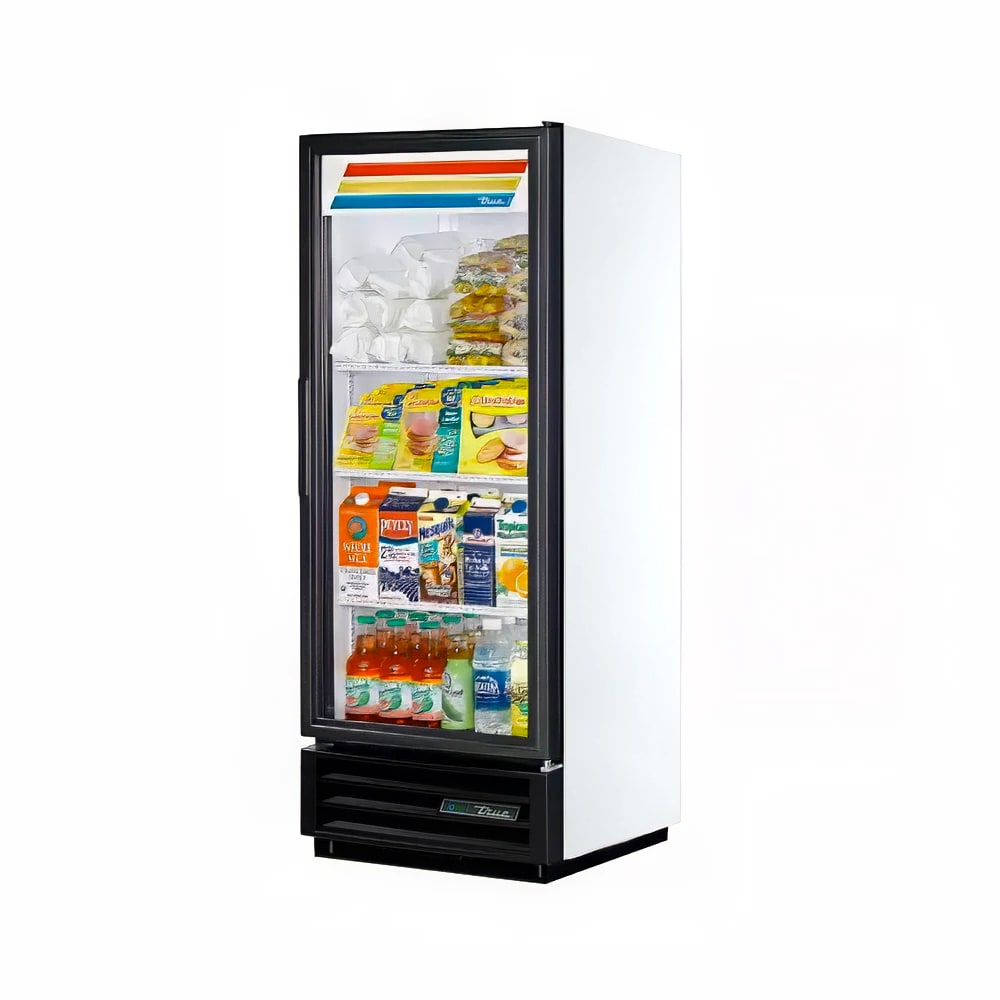

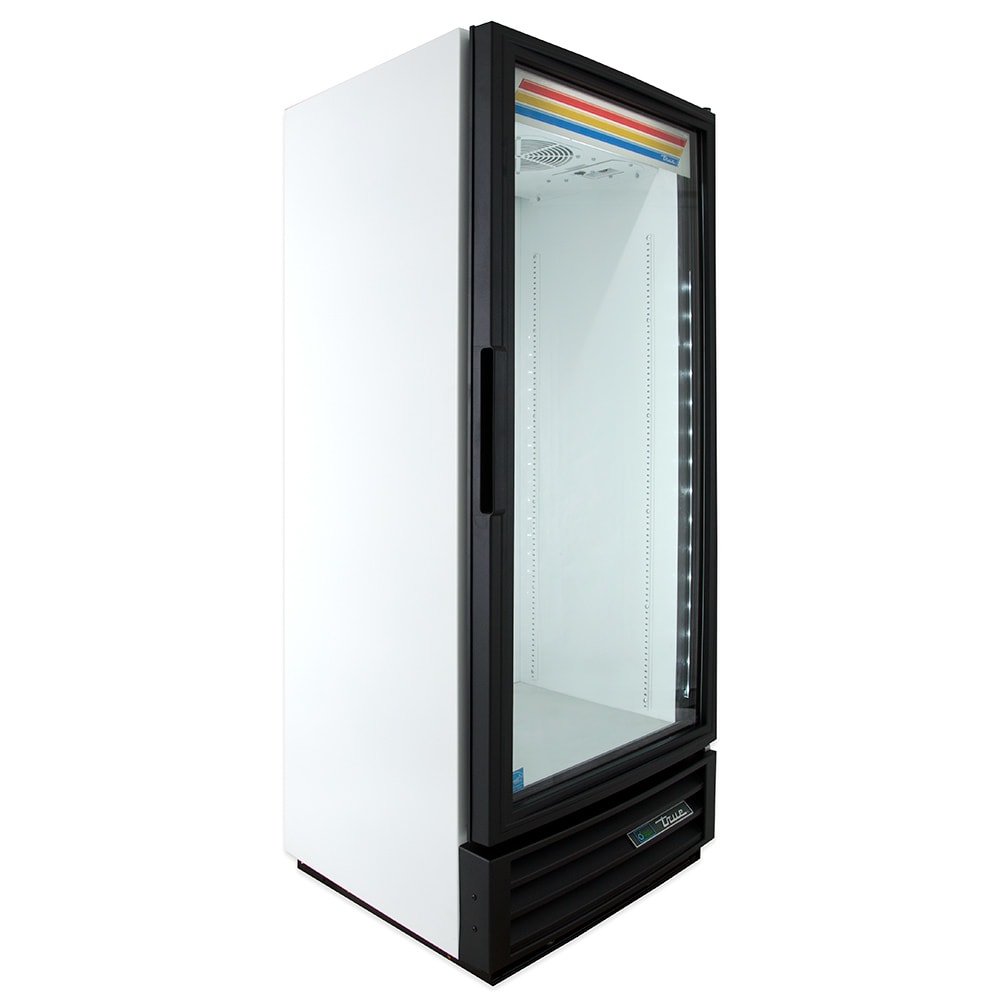

Refrigerated Merchandiser, 1 Section/Glass Door, 3 Shelves, 12 cu ft

CABINET CONSTRUCTION:

Durable and permanent non-peel or chip white vinyl exterior.

White, vinyl coated aluminum interior cabinet liner with 300 series stainless steel floor. Construction of liner in accordance with NSF standards.

Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection.

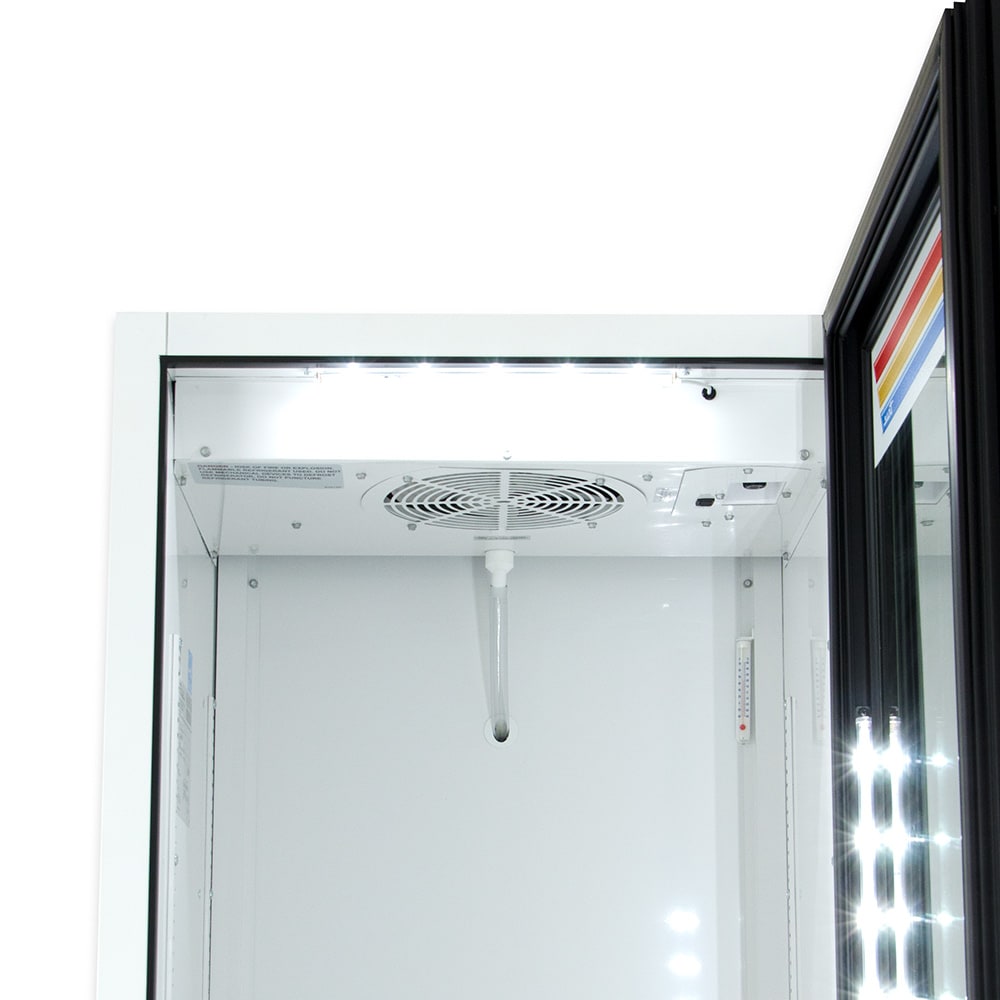

Fluorescent interior lighting (safety shielded).

DOORS:

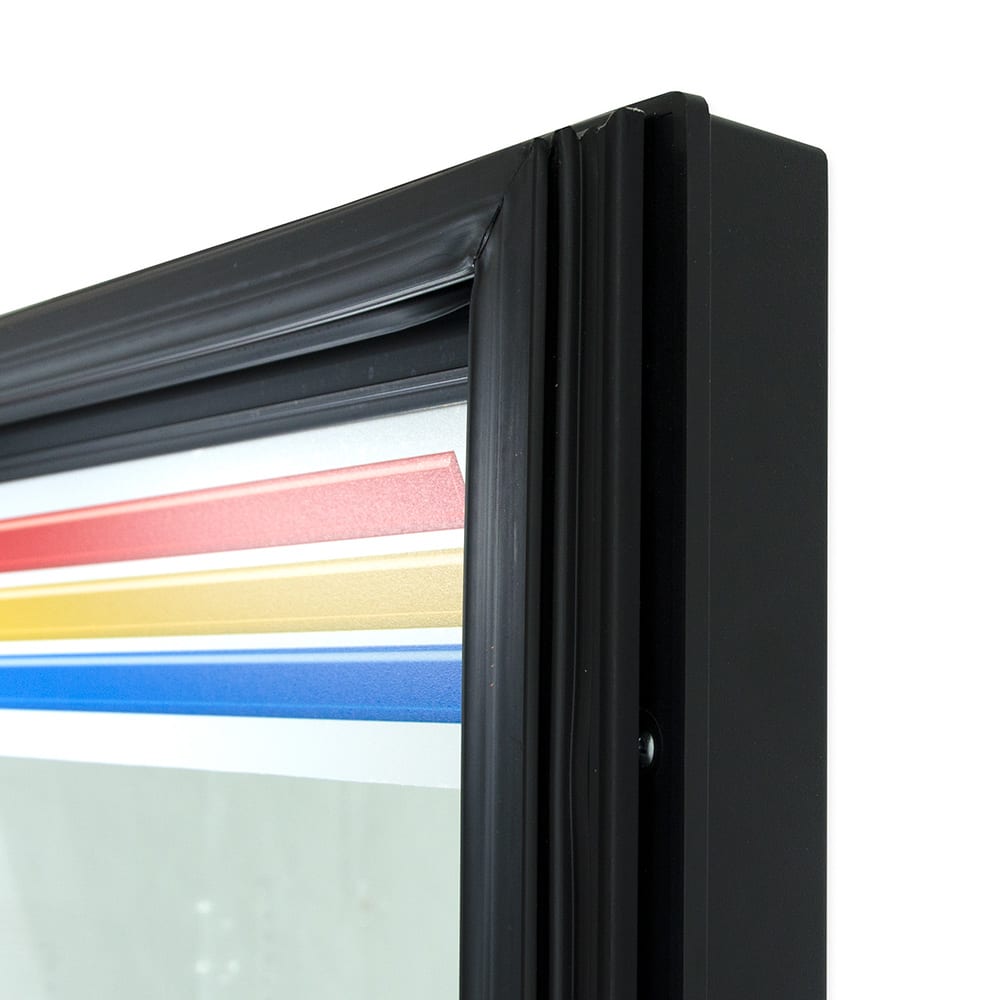

Double pane thermal insulated glass. Doors extend for full view of product. Door gaskets of one piece construction.

Adjustable, self closing, torsion type closure system. The face of each door fitted with a 12" long handle.

INSULATION:

Entire cabinet structure insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

3 adjustable vinyl coated wire shelves. Shelves capable of supporting up to 250 lbs.

Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

REFRIGERATION SYSTEM:

Refrigeration system factory balanced using CFC free 134A refrigerant.

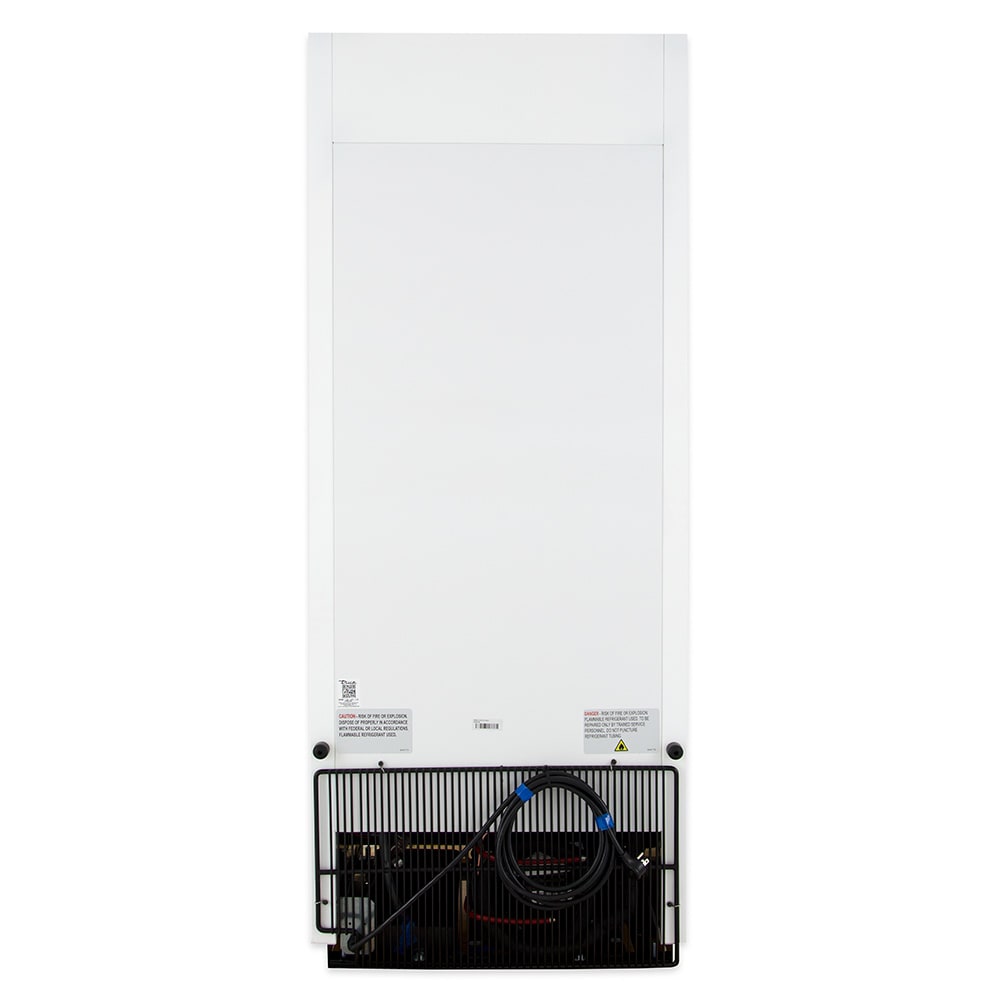

Bottom mounted condensing-unit - easy access for maintenance.

Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33° F to 38° F interior cabinet temperature. (non adjustable capillary tube system superior to problematic expansion valve)

ELECTRICAL CHARACTERISTICS:

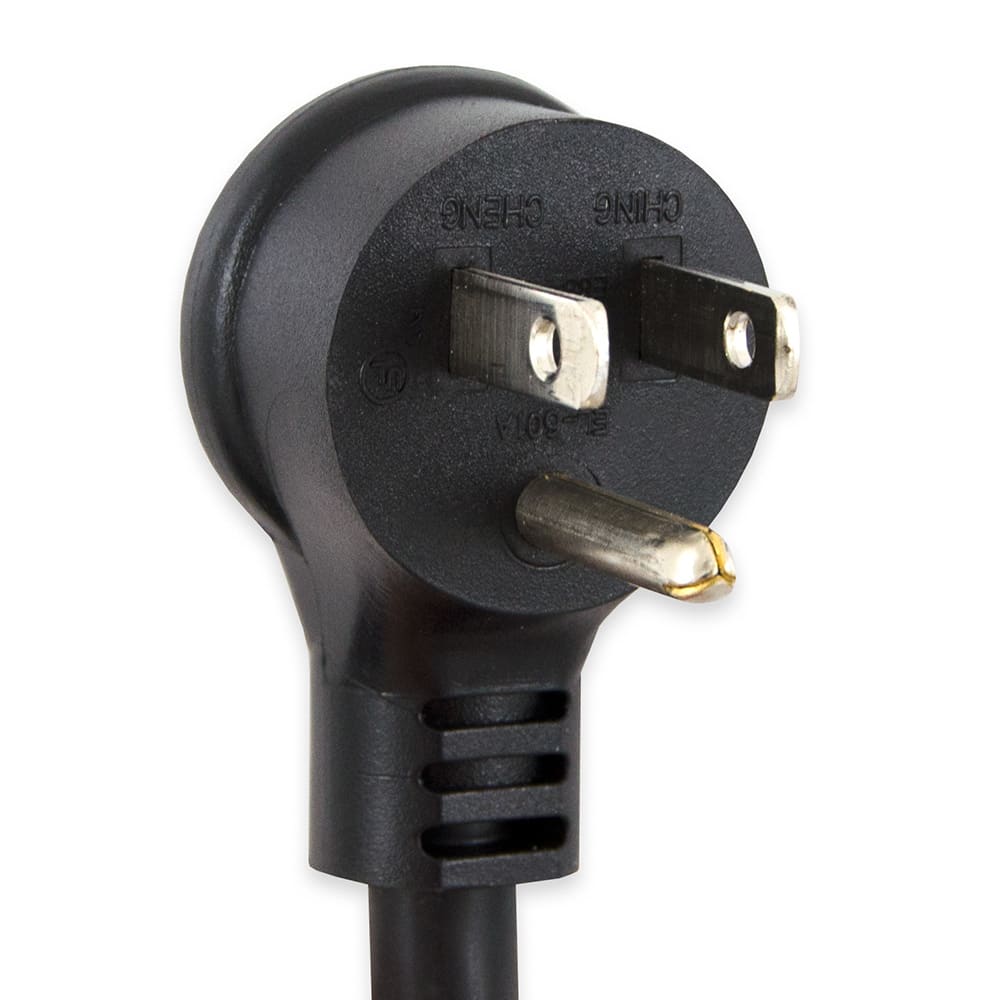

Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

A sole use circuit is required.

OPTIONS: (typically special order and may be at additional cost. Call for quote and availability)

Gravity-feed TrueTrac shelving.

Wine racks.

Novelty Baskets.

Additional shelves available.

Barrel locks available.

Available with 2 1/2" diameter castors.

A variety of sign panels available.

CLICK IMAGE FOR LARGER VIEW



CLEARANCES REQUIRED:

Top - 1"

Rear - 1"

Sides - 0"

Click Image for Larger View

Rough - In Data

• Model:GDM-12
• Doors: 1
• Capacity (Cu. Ft.): 12
• # of Shelves: 3
• Dimensions (Inches):
  • L: 27-7/8
  • DD*: 23
  • H : 62-3/8
• HP: 1/5
• Volts: 115/60/1
• Amps: 5.0
• NEMA Config.: 5-15
• Cord Length (total feet): 6

• This Product is recommended for commercial purposes only.
• Specifications subject to change without notice.
• * Depth does not include 1 3/8" for door handle.
