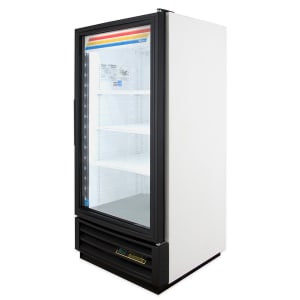

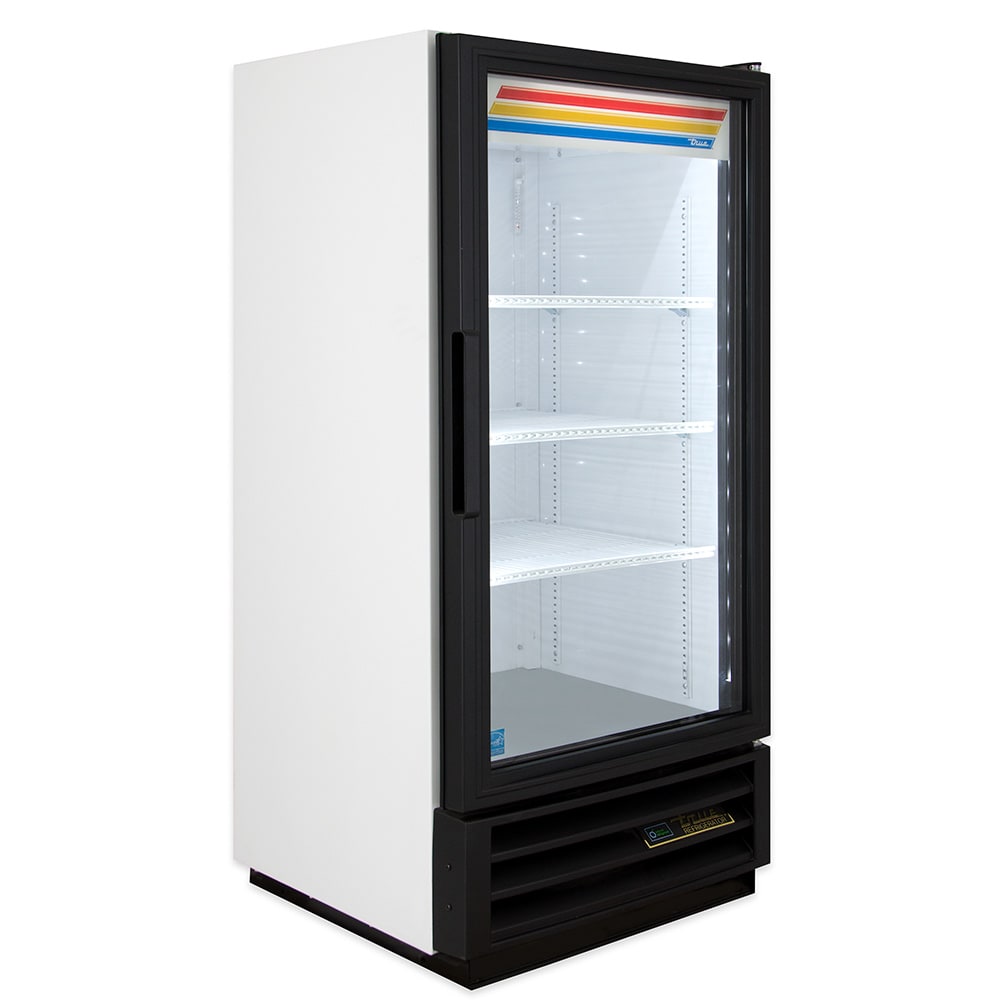

Refrigerated Merchandiser, 1 Section, 3 Shelves, 10 cu ft

MODEL GDM-10

STANDARD FEATURES:

• The world’s #1 manufacturer of glass door merchandisers.
• Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C).
• Exterior - non-peel or chip white laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, white aluminum interior liner with 300 series stainless steel floor.
• Self closing door. Positive seal self torsion type closing system.
• Low-E double pane thermal glass door assembly with external aluminum frame. The latest in energy efficient technology.
• Fluorescent interior lighting for brighter, shadow-free illumination.
• Entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

Bottom mounted units feature:

• No stoop lower shelf to maximize product visibility.
• Storage on top of cabinet.
• Easily accessible condenser coil for cleaning.

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5° to 3.3°C).

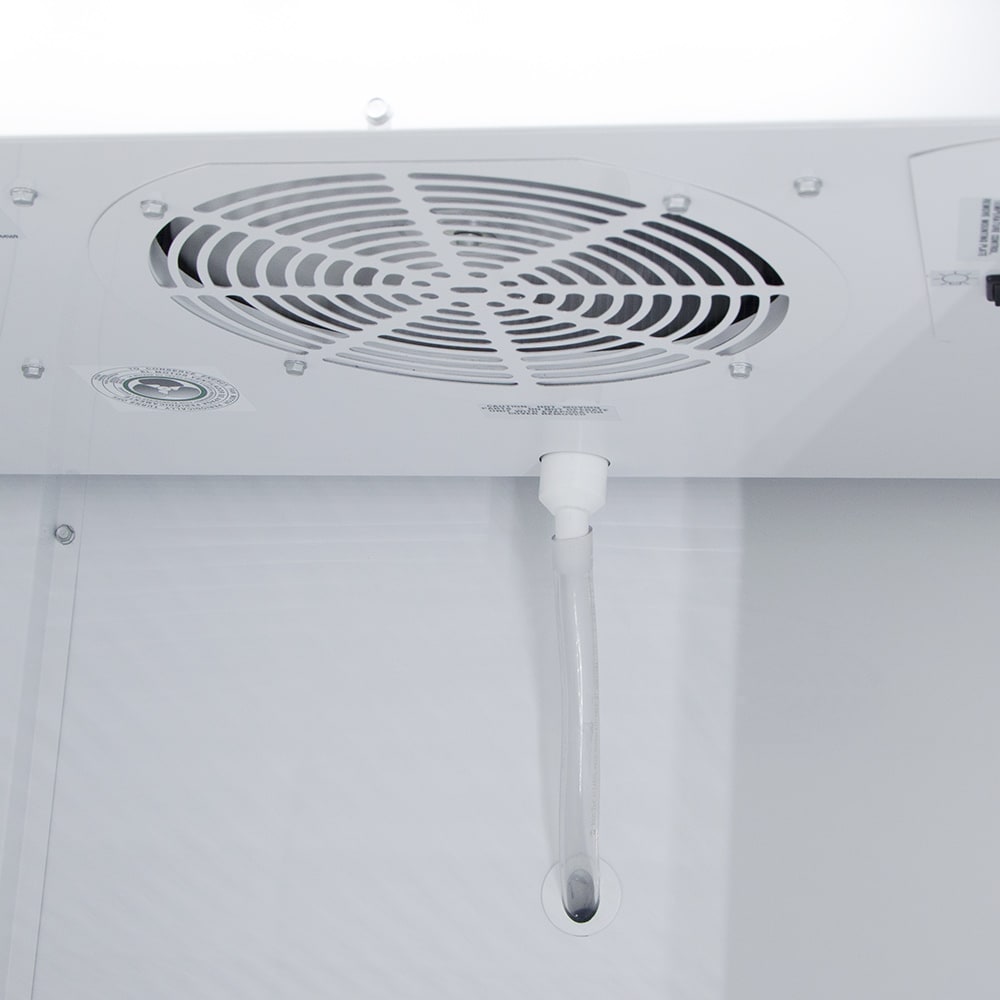

• Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blade gives True merchandisers a superior low velocity, high volume airflow design. This unique design insures faster temperature pull down of warm product, colder holding temperatures and faster recovery in high use situations.

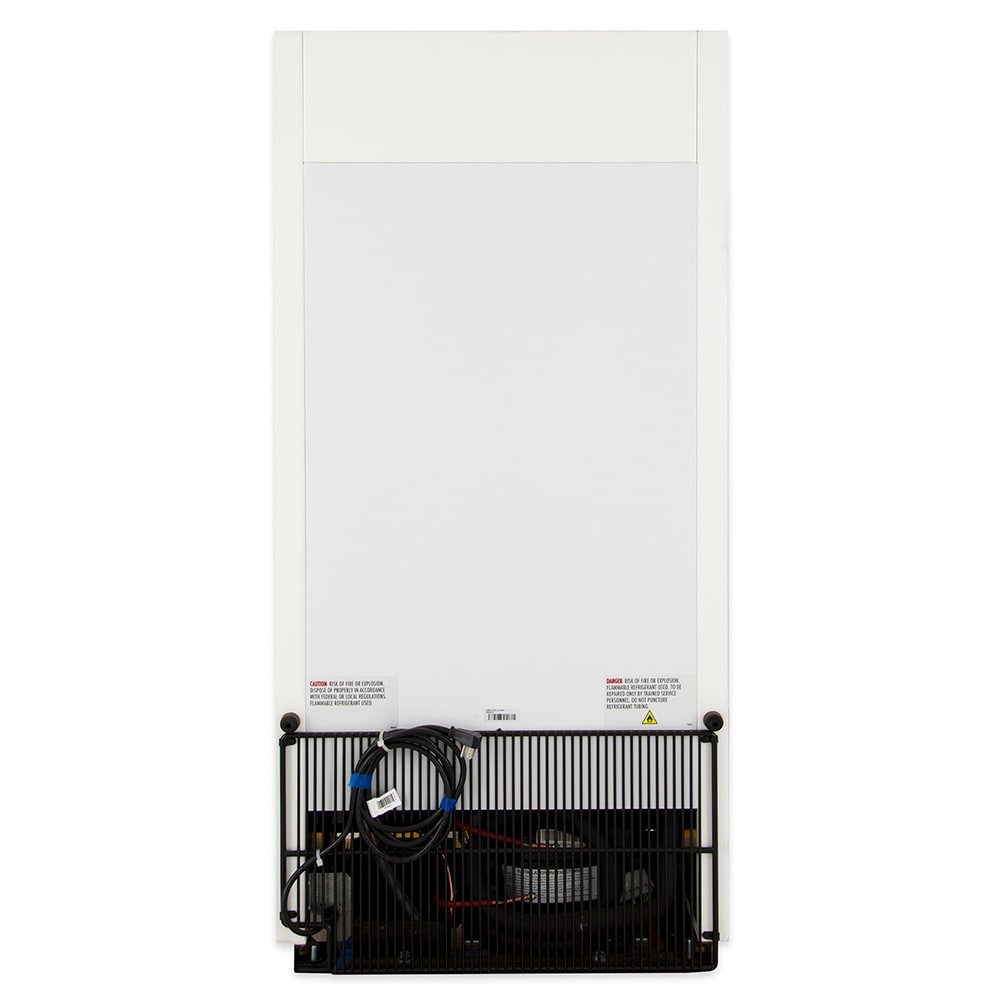

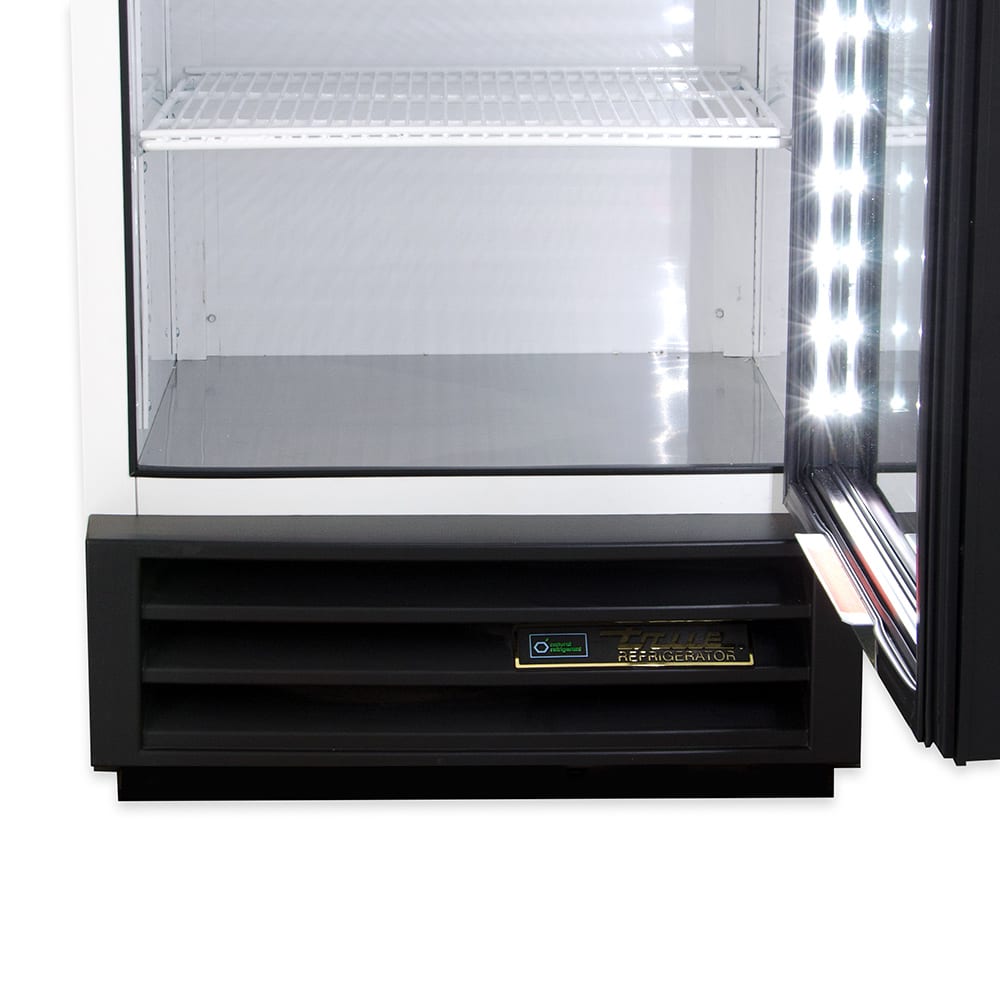

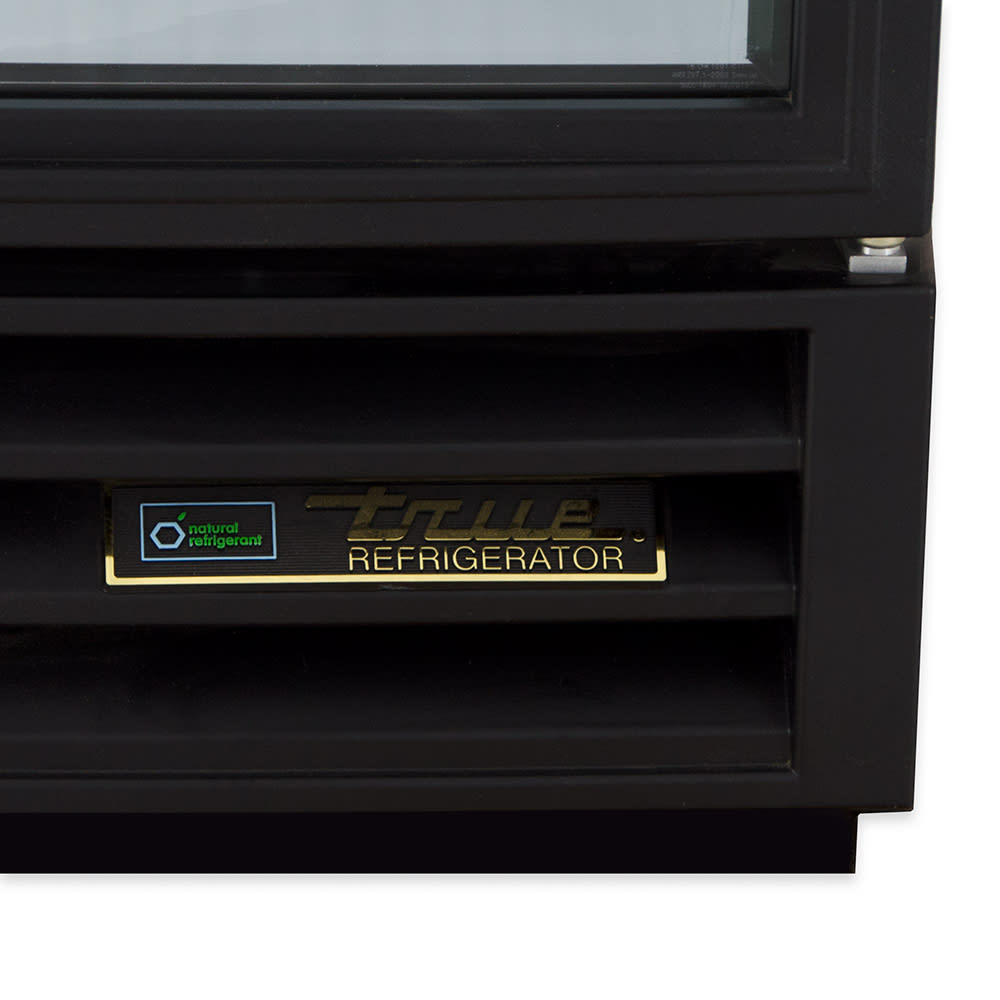

• Bottom mounted condensing unit positioned for easy maintenance. No stoop lower shelf maximizes visibility by raising merchandised product to higher level.

CABINET CONSTRUCTION:

• Exterior - non-peel or chip white laminated vinyl with durable and permanent.

• Interior - attractive, NSF approved, white aluminum liner with 300 series stainless floor.

• Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

• Frame rail fitted with leg levelers.

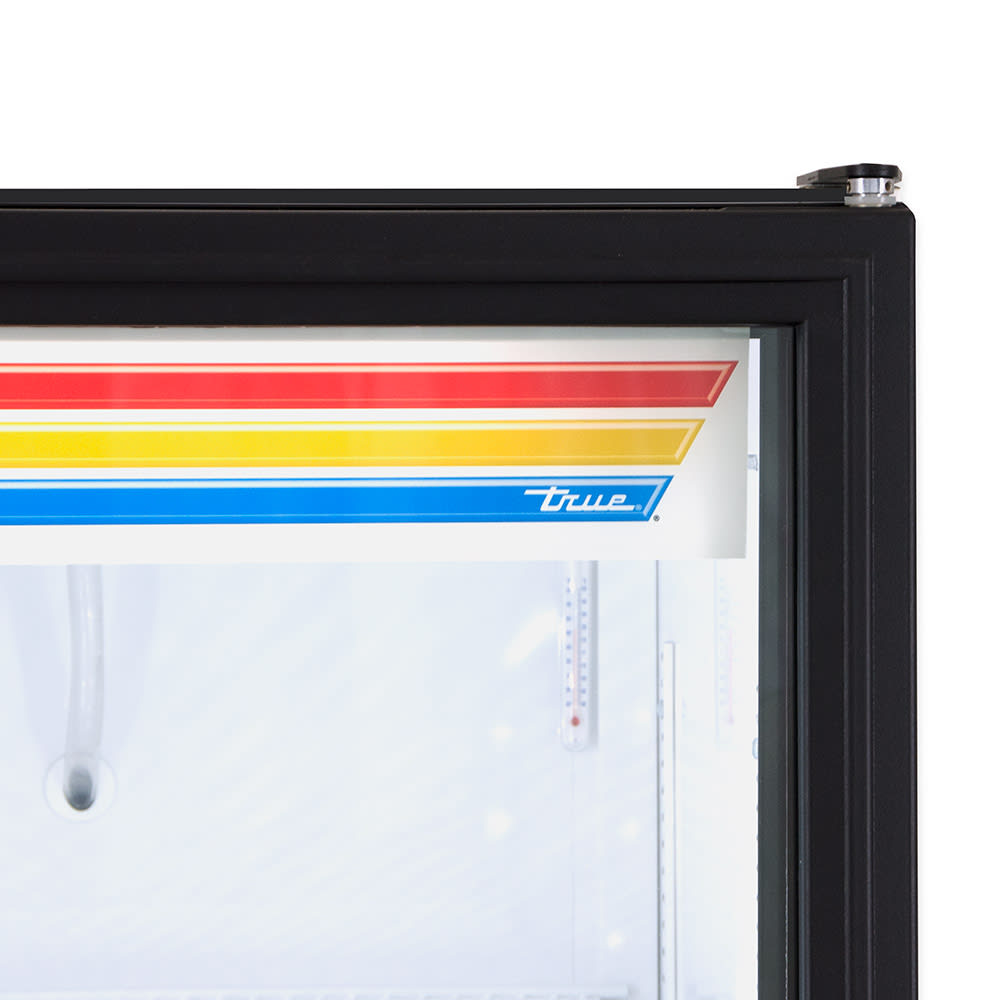

• Door sign decal. Variety of options available.

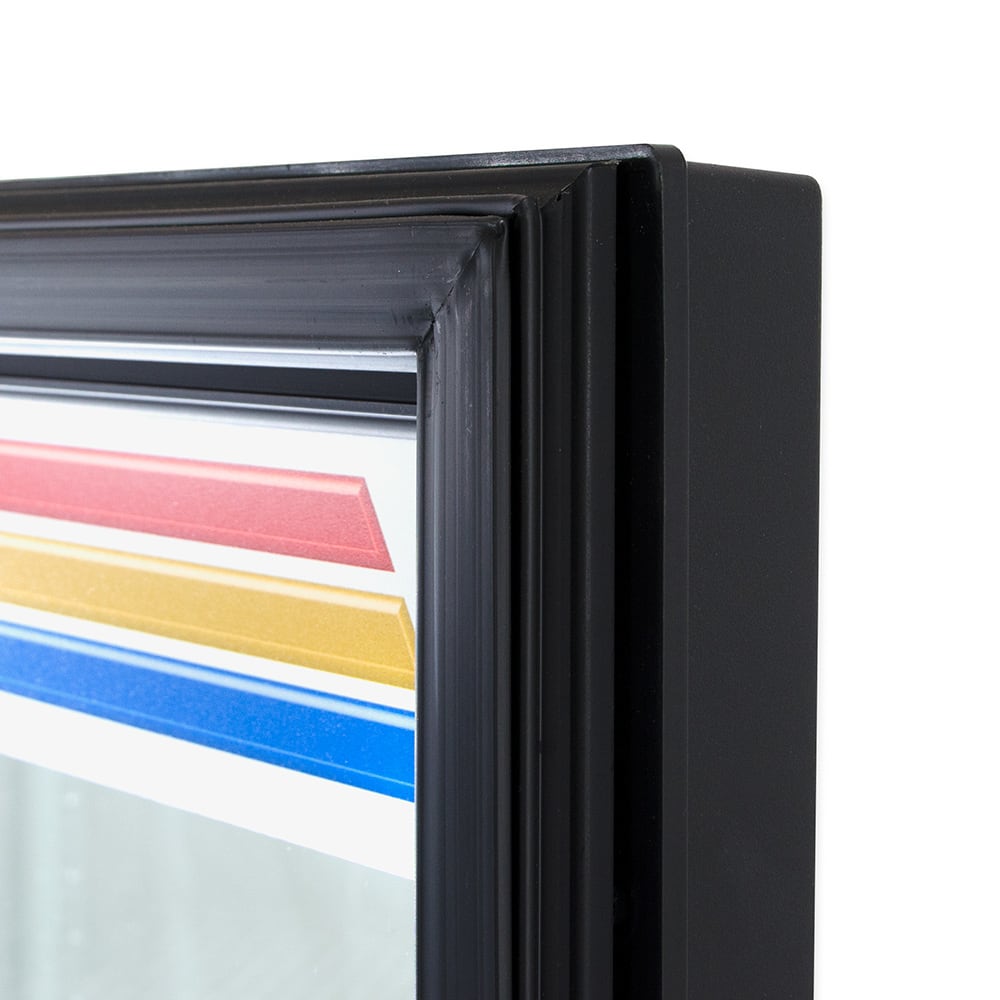

DOORS:

• Low-E, double pane thermal glass door assembly with extruded  aluminum frame. The latest in energy efficient technology.

• Self closing door. Positive seal, torsion type closure system.

• Door fitted with 12" (305 mm) extruded aluminum handle.

• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING:

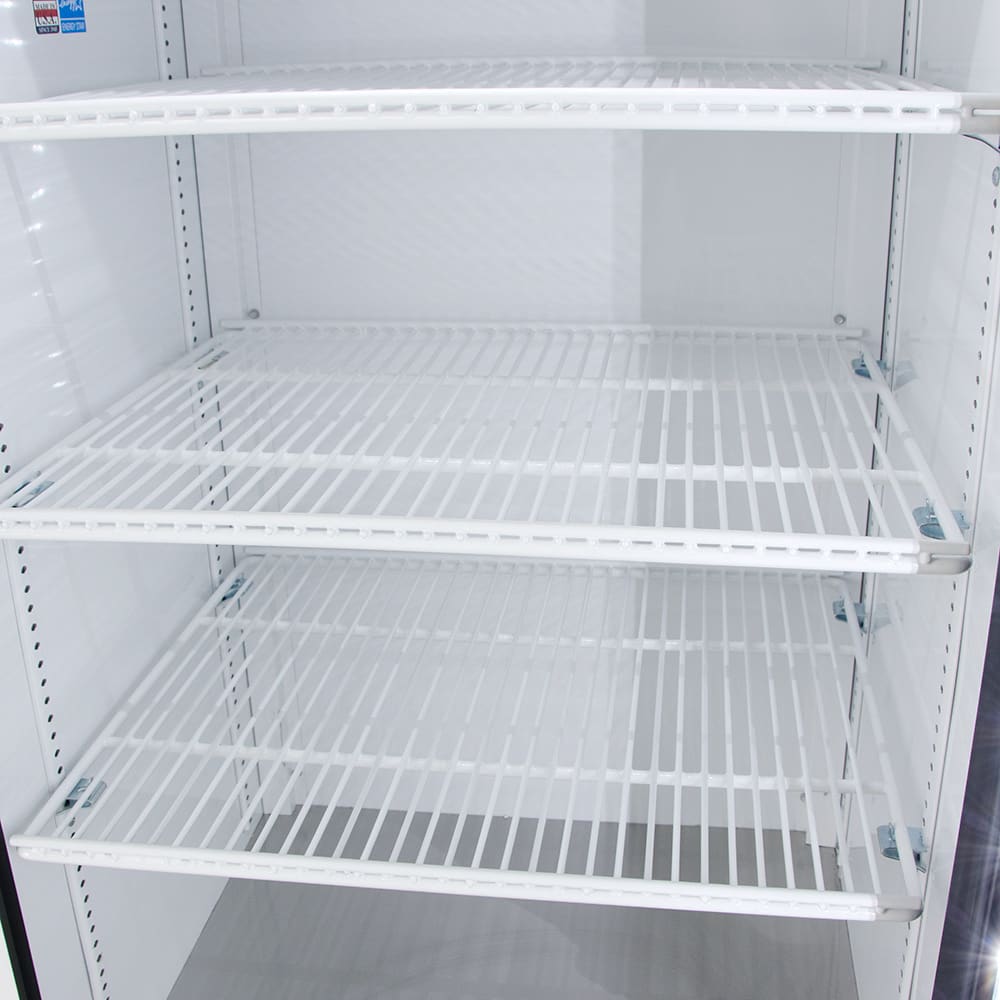

• Three (3) adjustable, heavy duty PVC coated wire shelves 205/8"L x 171/2"D (524 mm x 445 mm). Four (4) chrome plated shelf clips included per shelf.

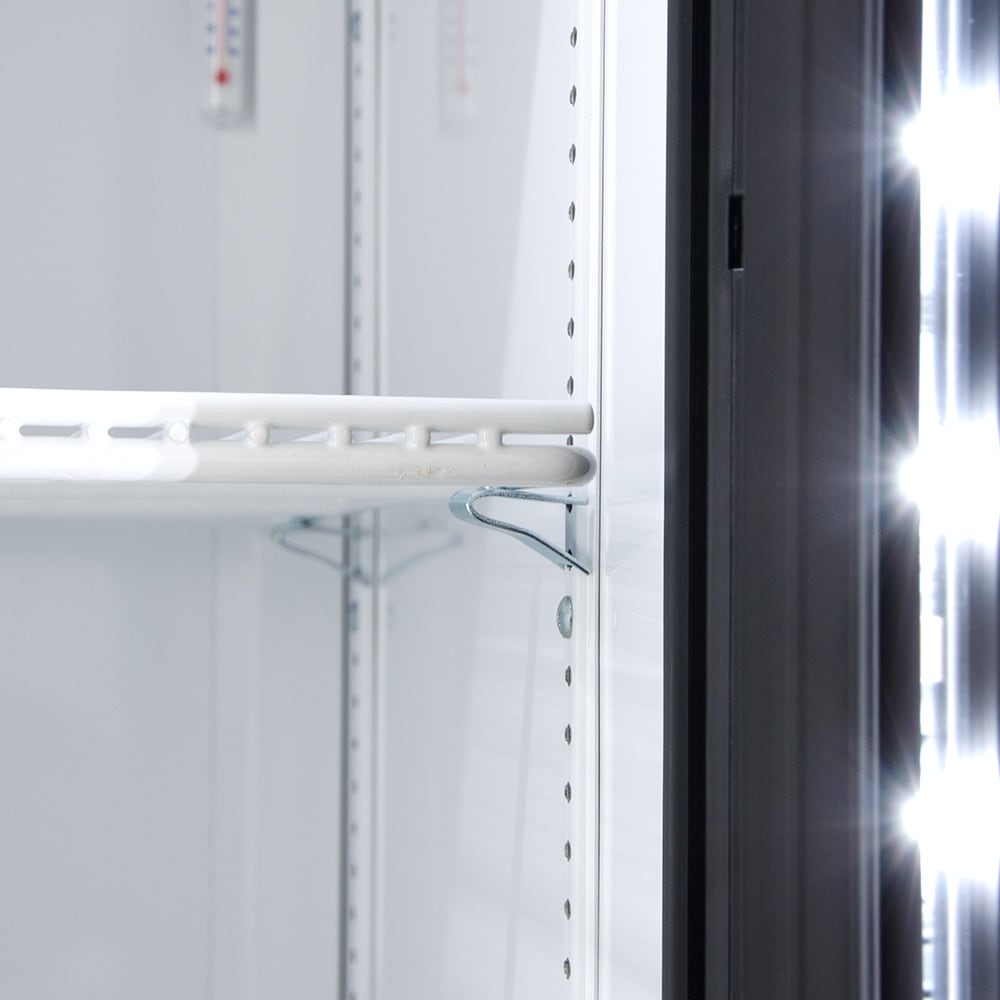

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING:

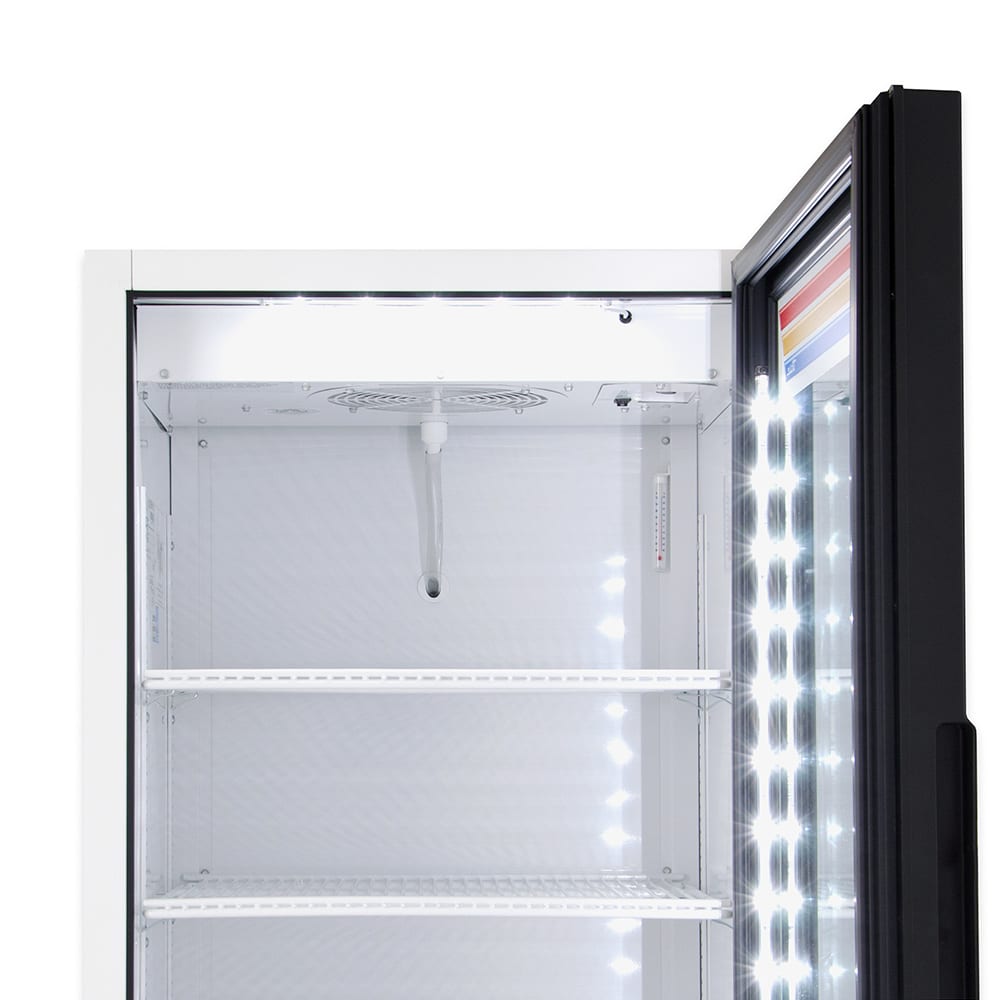

• Safety shielded fluorescent interior lighting.

• Cabinet lighting utilizes electronic ballast and T-8 bulbs for brighter illumination, longer bulb life and increased energy efficiency.

MODEL FEATURES:

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• Latest color and decal offerings.

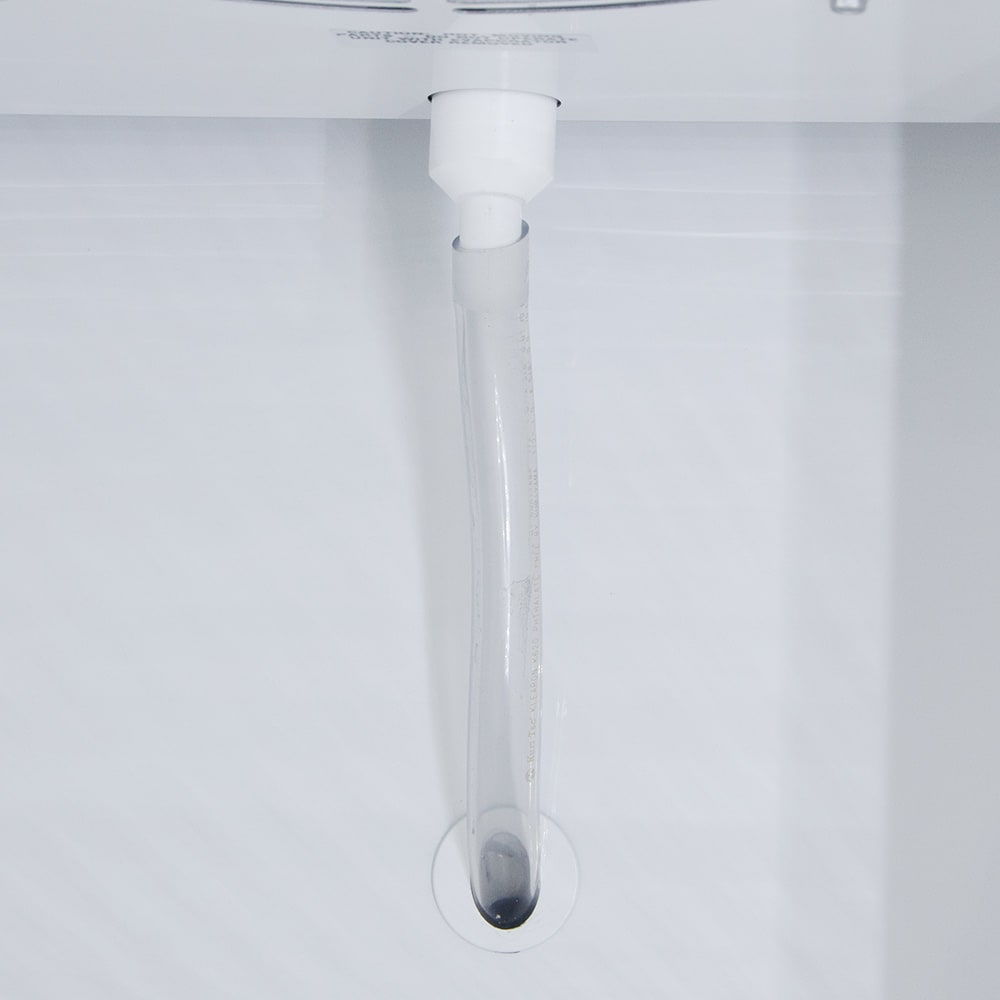

• Convenient clean-out drain built in cabinet floor.

• NSF-7 compliant for pre-packaged and bottled product.

ELECTRICAL CHARACTERISTICS:

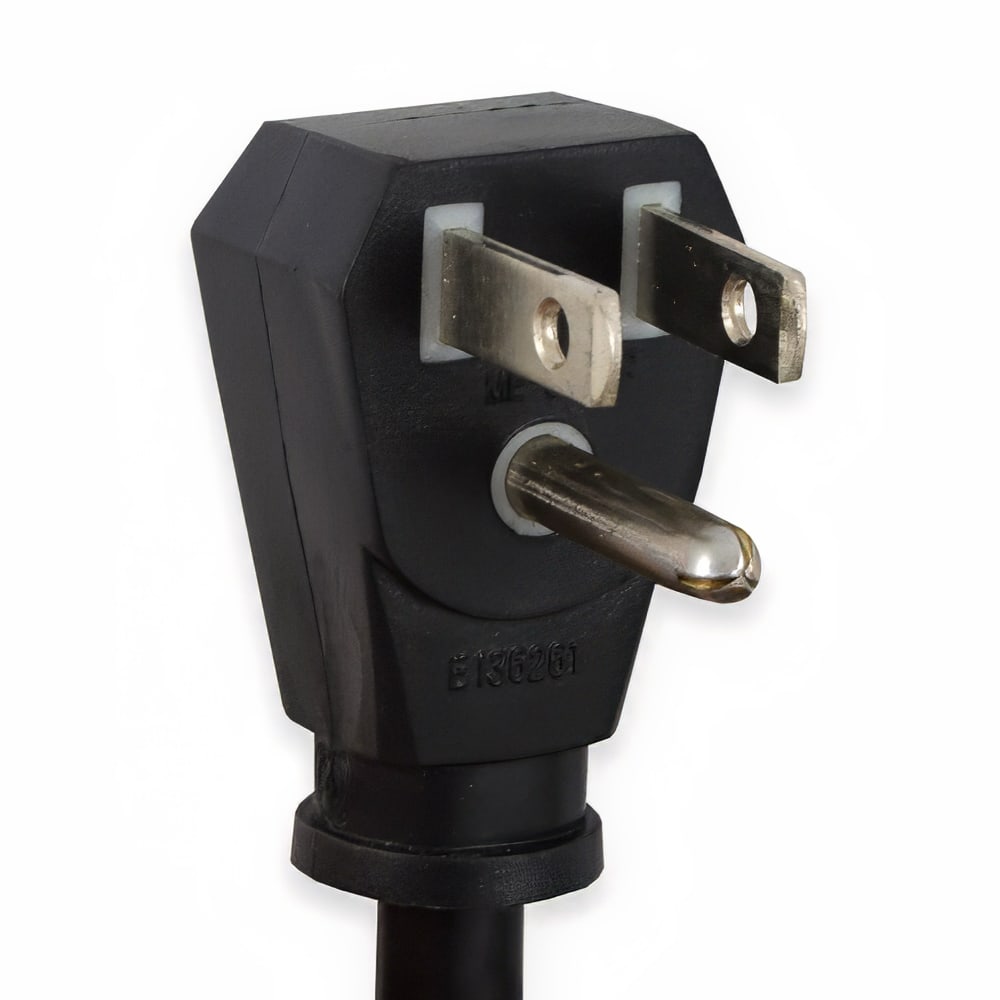

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.


OPTIONAL FEATURES/ACCESSORIES:
(At Extra Cost - Lead Time May Apply)

• 230-240V / 50 Hz.
• Black exterior.
• Rosewood exterior.
• Stainless steel exterior.
• Black aluminum interior liner with black shelving.
• Stainless interior liner.
• 21/2" (64 mm) diameter castors.
• Red wine thermostat.
• Chocolate thermostat.
• White wine thermostat.
• Barrel locks.
• TrueTrac4 gravity feed organizers.
• 11/4" (32 mm) pricing strips.
• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
