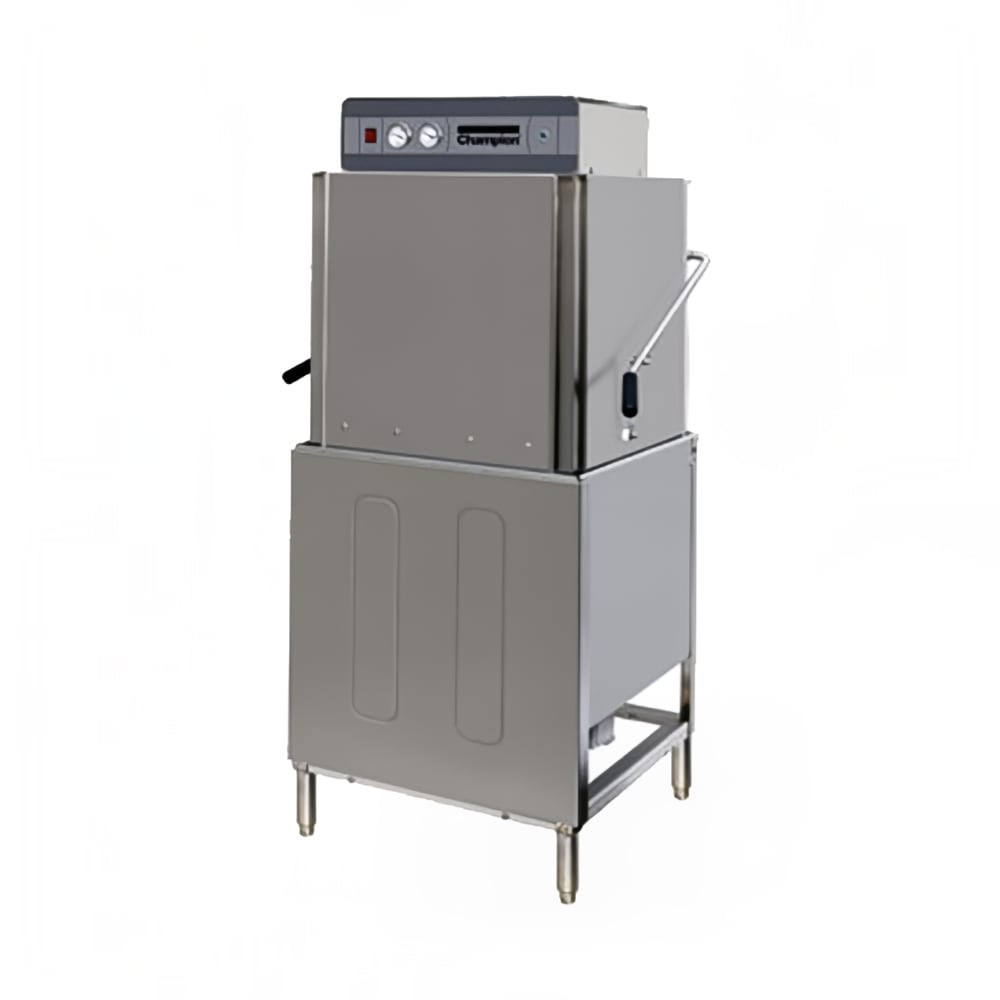

Champion DH-2000 Versa-Clean High Temp Door Type Dishwasher w/ 55 Racks/hr Capacity, Built-in Booster, 208v/3ph

KaTom #: 462-DH20002083 • MPN: DH-2000(40-70) 2083






Champion DH-2000 Description

The Champion DH2000 door-type dishwasher has a built-in booster heater that provides a 70 degrees Fahrenheit rise in water temperature. The rise sentry feature ensures the final rinse temperature reaches at least 180 degrees Fahrenheit. The full cycle starts when the door is closed. The water tank fills automatically, and the pump drains itself. There is a low water tank heat protection that keeps internal components from burning up when there is no water in the machine.

Up to 55 racks can be cleaned per hour. Each rack uses about 0.90 gallons per wash cycle. The wash tank has a capacity of 9.5 gallons for water. While this unit is a high-temperature dish machine, there are detergent and chemical connections so you can easily convert the unit if you wish. The Champion DH2000 door-type dishwasher has interchangeable wash and rinse arms that make cleaning more convenient.

Product Details

  • Can be converted in the field from a straight through to a corner model
  • Built-in booster heater is designed to produce a 70 degrees F rise
  • Rise sentry feature ensures the final rinse temperature reaches 180 degrees F
  • Unit starts automatically when the door is closed
  • Single point connection
  • Produces up to 55 racks per hour
  • Pump drains itself
  • Tank fills with water automatically
  • Detergent and chemical connections
  • Upper and lower wash arms are interchangeable for convenience
  • Controls are mounted on the top of the unit and are splash proof
  • Drain valve is automatic
  • Vent fan control
  • Pressure regulating valve
  • Low water tank heat protection keeps components from burning when there is no water in the tank
  • Wash tank has a capacity of 9.5 gal.
  • Uses 0.90 gal. of water per rack
  • 208 V/60 Hz/3 ph, 40 A, 1 HP, 7.5 kW
  • Overall Dimensions: 31 7⁄8 in. W x 28 3⁄8 in. D x 63 3⁄4 in. H

*Image may not depict product color, inclusions or accessories.

*Free shipping on Champion DH-2000 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Versa-Clean Dishwasher, door type, high temperature with built-in 40° & 70° F rise electric booster, self-draining pump, 55 racks/hour capacity, auto-fill, stainless steel construction, electric tank heat, NSF, cULus, 1hp, ENERGY STAR®, 208v/60/3ph

Warranty Icon
1-year Parts & Labor

Champion DH-2000 Specifications
