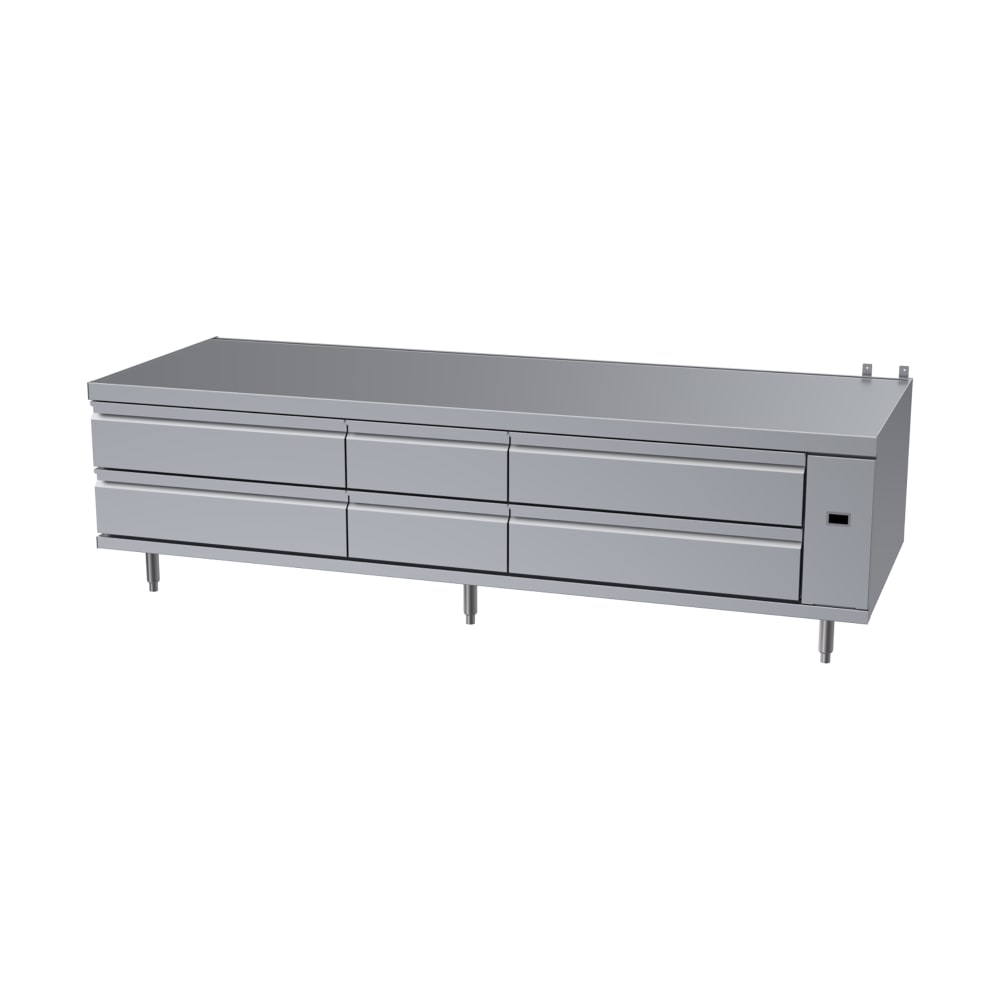

Garland UN17R90 90" Polar Cuisine Chef Base w/ (6) Drawers - 115v
$16,829.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Garland UN17R90 Description
Designed for balanced refrigeration performance, the Garland UN17R90 Polar Cuisine chef base ensures consistent cooling with its 2,850 BTU capacity and efficient R452A system. The vertically mounted blower coil improves air distribution, and solenoid-controlled flow keeps temperatures precise. Digital controls help maintain even drawer cooling through long, demanding shifts.
This Garland UN17R90 Polar Cuisine chef base centers on its 90-inch design built for versatile kitchen organization. Six drawers — two each in 19-, 27-, and 32-inch sections — keep ingredients sorted and accessible. Ten full-size pans fit within its durable structure, supported by heavy-duty slides that glide smoothly under frequent use in commercial setups.
- Polar Cuisine Series
- 3-section configuration
- 6 drawers — (2) 19-inch, (2) 27-inch, and (2) 32-inch section
- Accommodates (10) 12 × 20 × 4-in. deep hotel pans
- 2,850 BTU at 23 degrees F (-5 degrees C) evaporation temperature
- Stainless steel exterior front and sides
- Stainless steel interior top, rear, and bottom
- ABS interior door front and cabinet sides
- Galvanized steel bottom and back
- Santoprene magnetic door gasket
- CFC-free foamed-in-place polyurethane insulation
- Non-ODP, non-GWP thermal insulation
- Heavy-duty stainless steel drawer slides with stainless steel bearings
- Removable roller drawer assembly with self-lubricating stainless steel rollers
- Electronic control system with digital thermometer
- 6-in. adjustable legs
- Remote refrigeration base
- Uses R452A refrigerant
- Vertically mounted blower coil
- Solenoid valve, thermostat, and condensate evaporator supplied
- Supplied with 1⁄4-in. liquid line and 5⁄16-in. suction line
- Temperature consistency maintained across all drawer sections
- Overall: 90 in. W × 32 3⁄4 in. D × 26 3⁄16 in. H
- 1.5 A
- 115 V / 60 Hz / 1 ph, hardwired connection
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Refrigerated Base Only - Size May Vary
*Free shipping on Garland UN17R90 within the 48 contiguous states.
From The Manufacturer
Polar Cuisine Refrigerated Base, remote refrigeration, 90" W, three-section, (2) 19" & (4) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
Garland UN17R90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Garland |
| Depth (in) | 32.75 |
| Height (in) | 26.19 |
| Hertz | 60 |
| Number of Drawers | 6 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R404A |
| Sections | 3 |
| Series | Polar Cuisine |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor; 5-year Compressor; 10-year Drawer |
| Width (in) | 90 |
| Weight | 607.00 |
