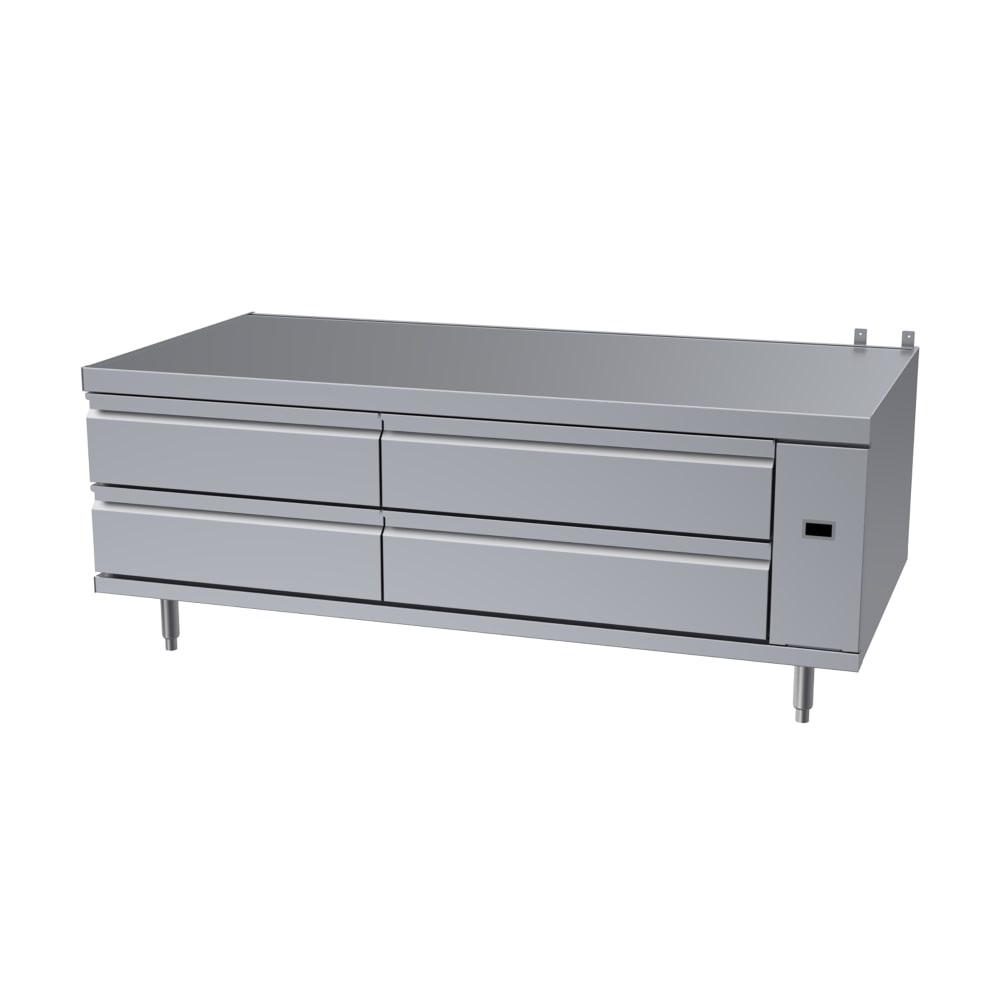

Garland UN17R66 66" Polar Cuisine Chef Base w/ (4) Drawers - 115v
$13,901.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Garland UN17R66 Description
Optimized for space-conscious commercial kitchens, the Garland UN17R66 Polar Cuisine chef base highlights its efficient R404A refrigeration system built for compact operations. A 1,425 BTU output ensures dependable cold performance, and vertical airflow design prevents heat concentration in storage zones. The condensate evaporator manages moisture buildup as the calibrated thermostat restores temperature stability after frequent drawer use.
This Garland UN17R66 Polar Cuisine chef base focuses on maximizing function within its 66-inch, two-section frame. Four drawers—(2) 27-inch and (2) 32-inch—organize storage for eight full-size pans, keeping essentials within reach. A digital temperature readout enables visual monitoring, and its stainless exterior withstands the wear and cleaning demands of high-volume kitchen environments.
- Polar Cuisine Series
- 2-section configuration
- 4 drawers — (2) 27-inch and (2) 32-inch section
- Accommodates (8) 12 × 20 × 4-in. deep hotel pans
- 1,425 BTU at 23 degrees F (-5 degrees C) evaporation temperature
- Stainless steel exterior front and sides
- Stainless steel interior top, rear, and bottom
- ABS interior door front and cabinet sides
- Galvanized steel bottom and back
- Santoprene magnetic door gasket
- CFC-free foamed-in-place polyurethane insulation
- Non-ODP, non-GWP thermal insulation
- Heavy-duty stainless steel drawer slides with stainless steel bearings
- Removable roller drawer assembly with self-lubricating stainless steel rollers
- Electronic control system with digital thermometer
- 6-in. adjustable legs
- Remote refrigeration base
- Uses R404A refrigerant
- Vertically mounted blower coil
- Solenoid valve, thermostat, and condensate evaporator supplied
- Temperature consistency maintained across all drawer sections
- Overall: 66 in. W × 32 3⁄4 in. D × 26 3⁄16 in. H
- 1.5 A
- 115 V / 60 Hz / 1 ph, hardwired connection
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Refrigerated Base Only - Size May Vary
*Free shipping on Garland UN17R66 within the 48 contiguous states.
From The Manufacturer
Polar Cuisine Refrigerated Base, remote refrigeration, 66" W, two-section, (2) 27" & (2) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
Garland UN17R66 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Garland |
| Depth (in) | 32.75 |
| Height (in) | 26.19 |
| Hertz | 60 |
| Number of Drawers | 4 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R404A |
| Sections | 2 |
| Series | Polar Cuisine |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor; 5-year Compressor; 10-year Drawer |
| Width (in) | 66 |
| Weight | 431.00 |
