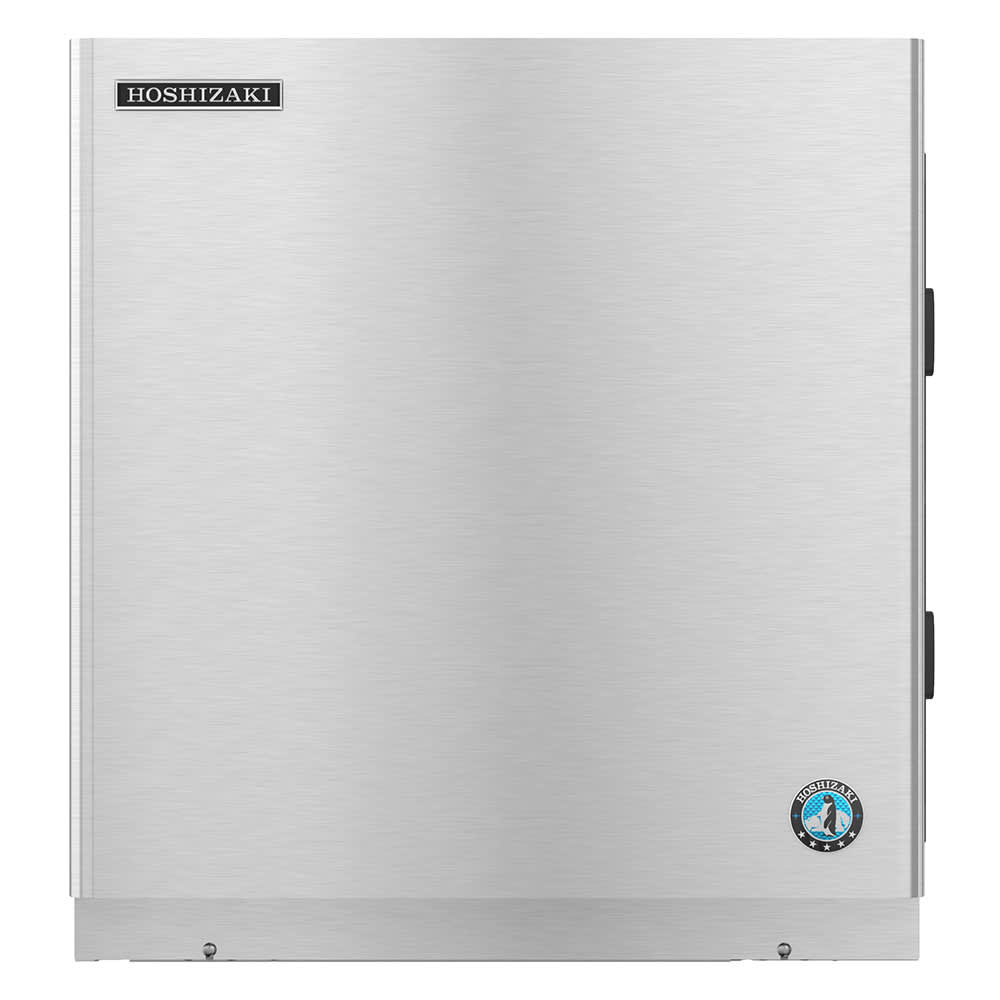

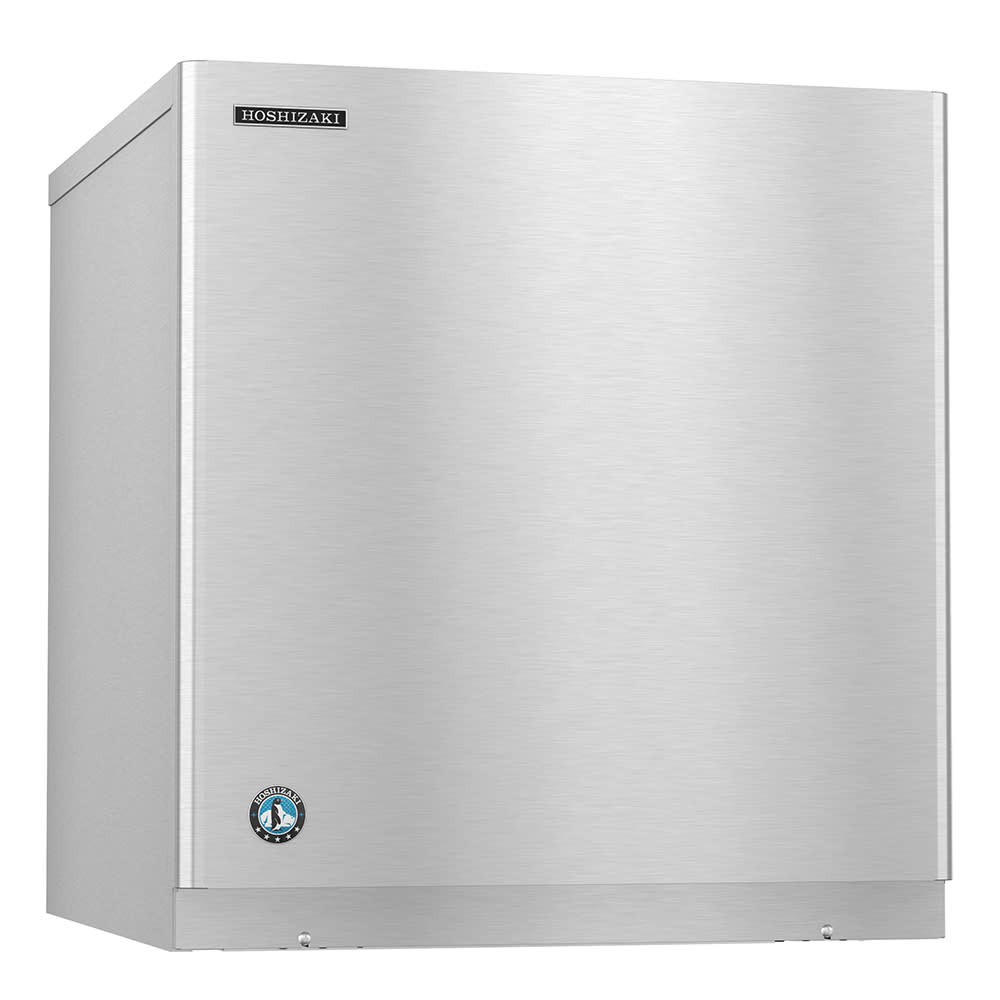

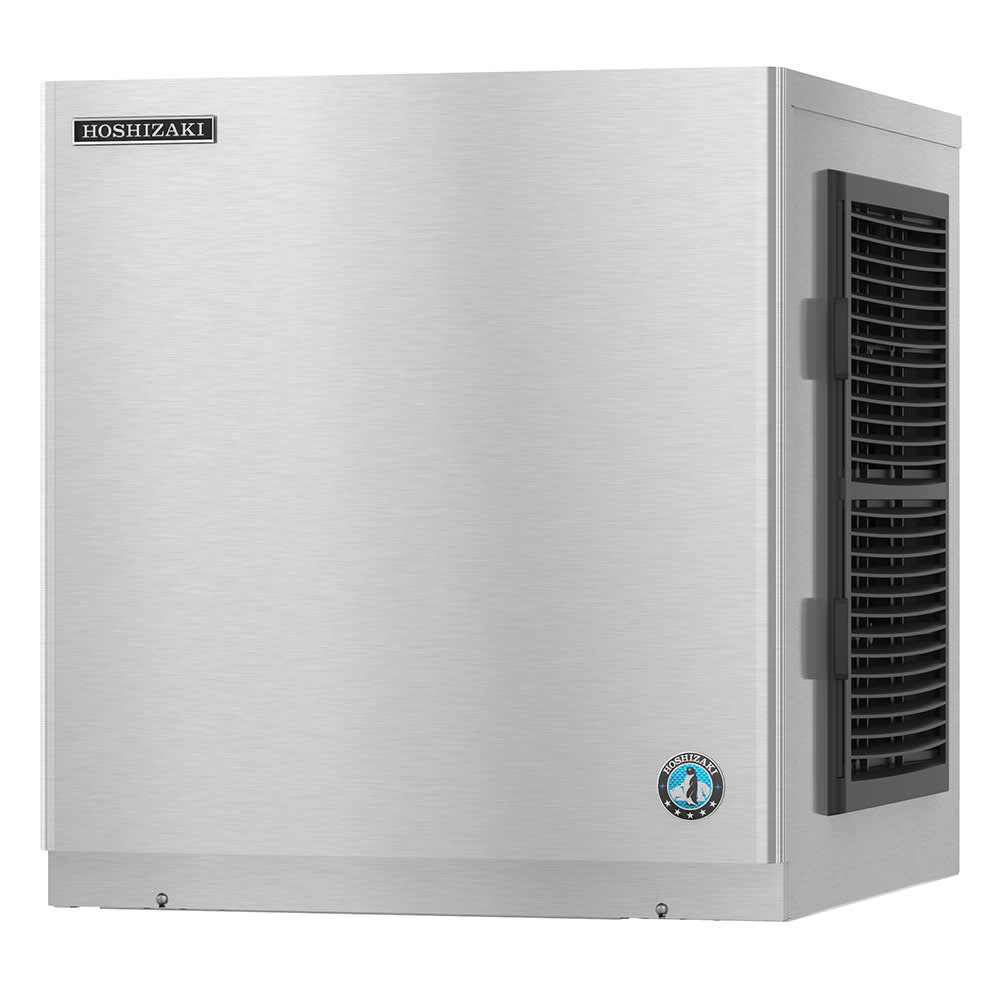

Hoshizaki KMD-410MAH 22" Crescent Cube Ice Machine Head - 415 lb/24 hr, Air Cooled, 115v

Producing crescent cube ice, the Hoshizaki KMD-410MAH ice machine head can be used in restaurants and bars. These cubes measure 1⁄2 inch by 1 1⁄8 inches by 1 1⁄2 inches and are designed to take up space in a glass, reducing drink expenses. In a single day, the unit makes as much as 415 pounds of ice, but this amount depends on ambient conditions. The condensing unit has an air-cooled design that uses fans to blow cool air over the evaporator plate. As the plate cools down, refrigerant removes heat so water freezes into ice cubes.

Because this Hoshizaki KMD-410MAH crescent cube ice maker has an EverCheck™ alert system, it uses a series of beeps to alert operators of system issues. If there is a problem that requires component access, the panels can be removed, and this convenient design also eases servicing and maintenance. The ice machine's exterior is made of stainless steel—a material that resists rusting and scratching.

Product Details

• 415-lb. daily ice production capacity
• 324-lb. AHRI-certified daily ice production capacity
• CycleSaver™ technology reduces the amount of cycles it takes to reach daily production volume
• Crescent cube ice works well in restaurants and bars
• Crescent cube size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
• Air-cooled condensing unit
• EverCheck alert technology uses a collection of beep series to alert operators of system issues
• Detachable panels provide component access for cleaning and servicing
• Removable air filter
• Strong, rust-resistant stainless steel exterior
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water temperature: 10-113 PSI
• Ideal clearances: 6 in. at top, rear, and left side; 12 in. at right side
• Ice storage bin or dispenser is sold separately

Product Features

Dimensions & Utilities

• 22.24 in. W x 24.13 in. D x 24 in. H
• 8 A, 5.8 kW
• 115 V/60 Hz/1 ph
