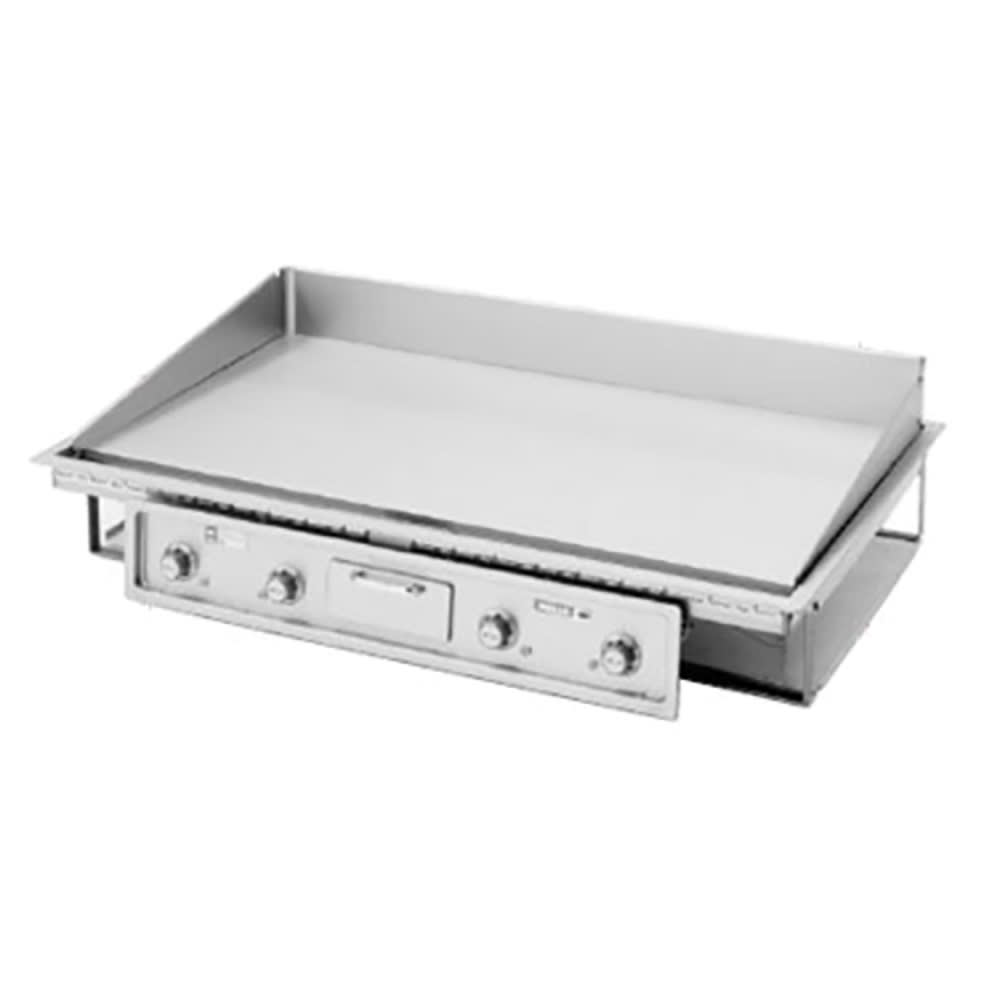

Wells G-246 49" Electric Griddle w/ Thermostatic Controls - 1" Steel Plate, 208v
$9,618.00 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells G-246 Description
With the ability to be built into a metal countertop, the Wells G-246 G-Series electric built-in griddle sports a 46 9⁄10-inch-wide by 24 3⁄10-inch-deep cooking surface with four separate cook zones for high production. Designed to cook as many as 1,450 hamburgers per hour, the unit uses enclosed heating elements located on the underside of the griddle for even heat distribution. The 1⁄2-inch-thick griddle plate pre-heats and reheats quickly—a great choice for sporadic use. Thermostats, shielded with protective guard rings, control the burners within a temperature range between 200 and 450 degrees Fahrenheit. A positive-off feature accompanies each thermostat to alert the operator when the thermostat is not in use.
The Wells G-246 commercial electric griddle resists dents and scratches as its top, control panel, and splash guards are constructed of stainless steel. The splash guards, which can be removed, help reduce spills on nearby surfaces and contain oil and leftover particles on the cooking surface. For removal and emptying, the 4-quart-capacity grease drawer collects the runoff.
- Installs into metal countertop
- Temperature range: 200-450 degrees F
- Tubular heating elements
- 4 positive-off thermostats with protective guard rings
- 1⁄2-in.-thick griddle plate is smooth polished steel
- 4 cook zones
- Stainless steel top, control panel, and removable splash guards
- 4-qt.-capacity grease drawer
- Back clearance: 1 in.
- Side clearances: 2 in.
- Bottom clearance: 9 in.
- Front clearance: 2 in.
- Griddle surface: 46 9⁄10 in. W x 24 3⁄10 in. D
- Overall: 49 in. W x 29 3⁄5 in. D x 7 3⁄4 in. H
- 76.9 A, 16 kW
- 208 V/60 Hz/3 ph (convertible to 1 ph)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Wells G-246 within the 48 contiguous states.
From The Manufacturer
Griddle, built-in, electric, smooth polished steel griddle plate, 46"W x 24"D cooking surface, stainless steel construction, zoned thermostatic heat control, RU, CE, 208/60/1ph/3ph
Wells G-246 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Application | Medium Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 46 |
| Heat | Electric |
| Hertz | 60 |
| kW | 21.5 |
| Overall Width (in) | 49 |
| Phase | 1 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | G Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 49 |
| Weight | 331.00 |
