Katom > Restaurant Equipment > Ovens & Ranges > Ranges > Ranges - 36 Inch > 36-in Range w/ 6-Burners & Convection Oven, LP
36-in Range w/ 6-Burners & Convection Oven, LP

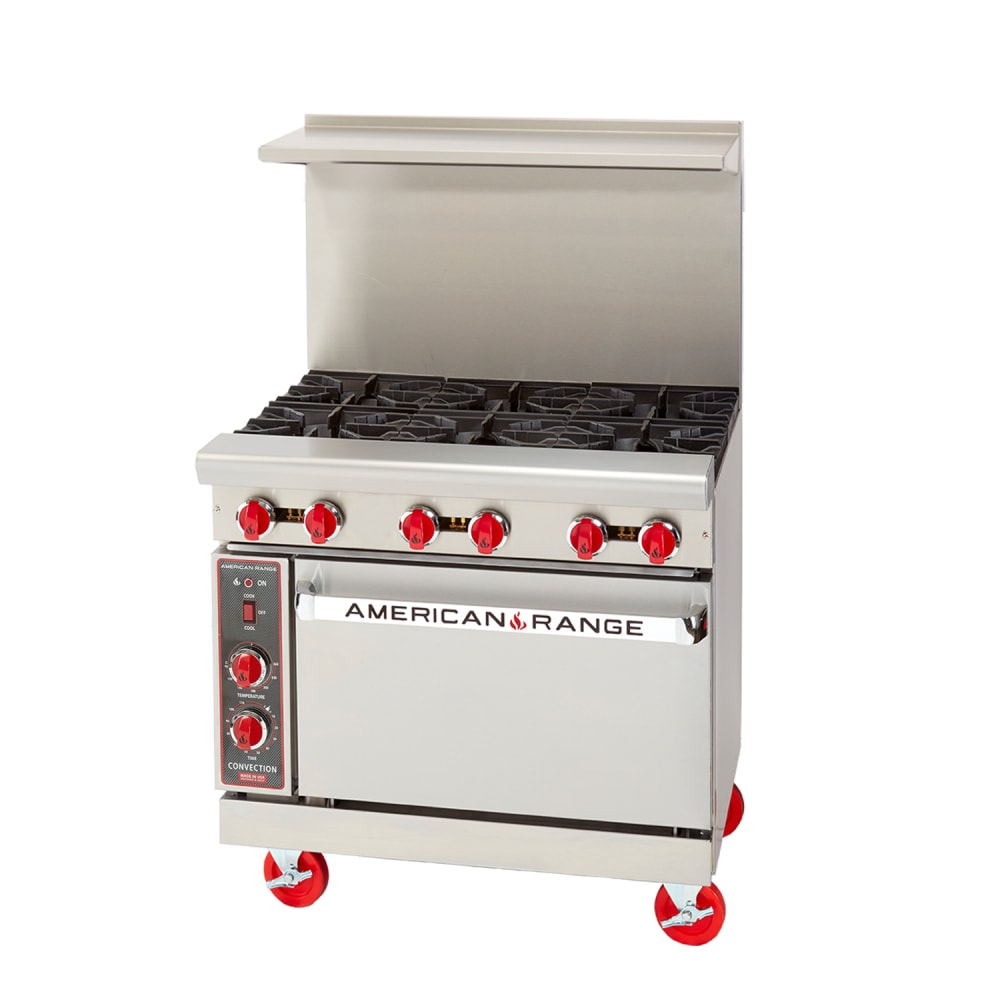

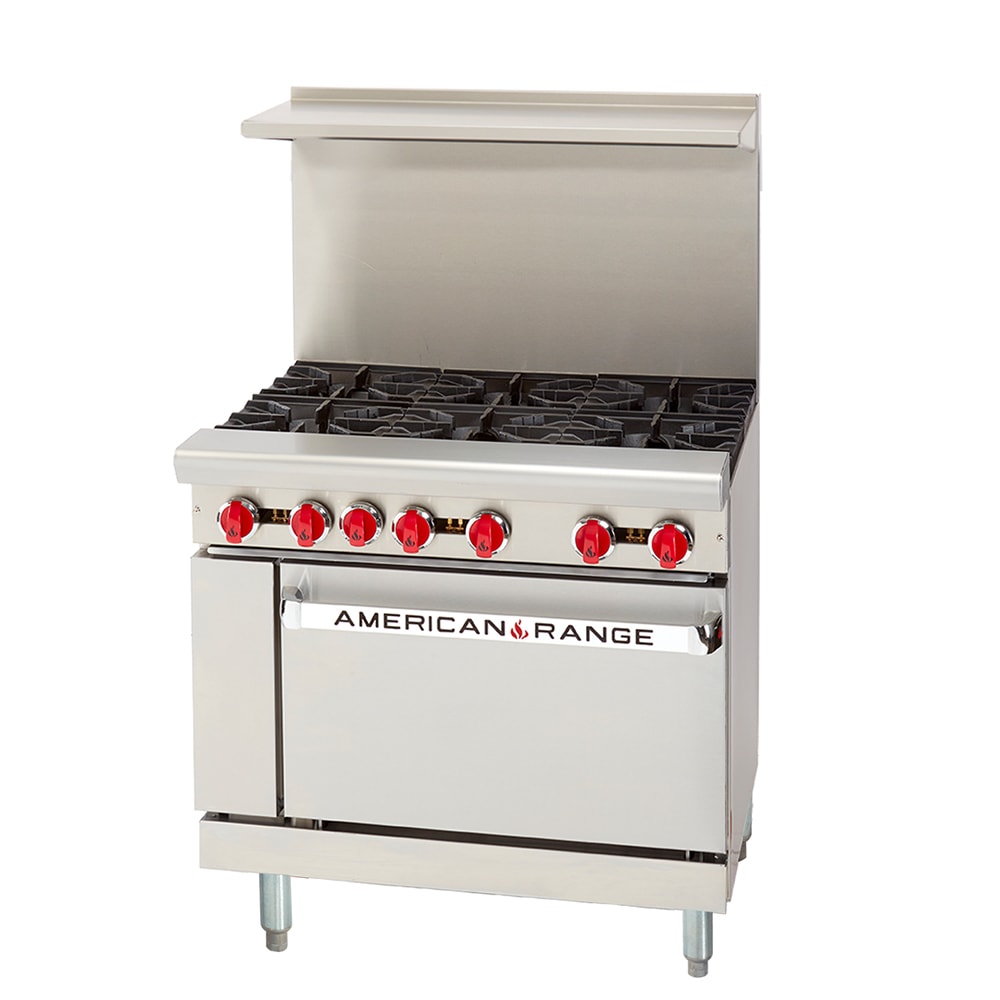

American Range AR6C LP 36-in Range w/ 6-Burners & Convection Oven, LP

36-in Range w/ 6-Burners & Convection Oven, LP
  • Product Code: 386-AR6CLP

Retail Price: $3,203.88

See Final Price At Checkout

The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

PDF

Image may not depict product color, inclusions or accessories.

American Range AR6C LP Description



American Range AR6CLP
6 Burner Range w / Convection Oven - LP


OPEN BURNERS:

  • Heavy duty sectioned cast iron top grates.
  • Two piece lift off top easy clean burners rated at 32,000 BTU/hr. each.
  • One standing pilot for each burner, for instant ignition.
  • Removable full width drip pan.

    GRIDDLES:
  •  Highly polished thick steel griddle plate.
  • 3" (76) Wide grease drawer.
  • One steel tube burner every 12" (305), rated at 20,000 BTU/hr.
  • Non clog S/S pilot for each burner for instant ignition
  • Manual control valve for each burner.
  • AGA, CGA, design certified, NSF listed.
  • S/S Spatula width grease trough with landing ledge.

    RADIANT BROILER:
  • Heavy duty reversible cooking tracks with integral runners to direct grease to trough. The heavy castings retain heat to minimize recovery time during peak periods.
  • Efficient top parted burners rated at 15,000 BTU/hr. each with individual pilot and precision brass valves.

    AVAILABLE OPTIONS:
  • 6: (152) Stub Back.
  • Casters (set of four)
  • Extra Chrome Oven Rack.
  • Cabinet base.
  • Thermostat Control Griddle
  • Grooved Griddle.
  • Fish grate (only for radiant broiler).
  • Convection Oven..


    •
    Gas manifold pressure is 5.0 W.C.  for natural gas or 10.0" W.C. for propane gas. 3/4" NPT Gas inlet. Specify type of gas and altitude if over 2000 ft.
    Clearances: For use only on non-combustible floors. Legs or casters are required, or 2" (51) overhang is required when curb mounted. Clearance from non-combustible wall is 0". When  unit is placed next to combustible walls, clearances must exceed 12" (305) on sides, and 4" from rear. Radiant broilers for non-combustible locations only!

    American Range Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product improvements theses specifications  are subject to change without prior notice.


    WARNING: This product is designed and approved for commercial food service use only. It is not safe for use in the home. Homeowners insurance may not be applicable if used in the home environment due to commercial usage specification!


    Click image to enlarge!

    AR-6 AR12G-4B AR24G-2B

    AR24G-2B AR-36G AR-3RB
     36" Wide Range (26-1/2" Wide Oven
    MODEL

    		 DESCRIPTION

    		 TOTAL BTU

    		 KW

    		 Ship WT.

    		 LBS. KG.
    AR6 (6) Burners 227,000 66.52   611 277
    AR12G-4G (1) 12" Griddle & (4) Burners 183,000 53.63 631 286
    AR24G-2B (1) 24" Griddle & (2) Burners 139,000 40.73 641 290
    AR36G (1) 36" Griddle 95,000 27384 662 300
    AR4B-12RG (4) Burners & (1) 12" Raised Griddle 203,000 59.49 645 292
    AR-3RB 36" Wide Radiant Broiler 125,000 36.63 647 293

    Optional Innovection Base Available: Add Suffix "NV"

    Heavy Duty Restaurant Range, gas, 36", (6) 32,000 BTU open burners, standard oven w/one rack, stainless steel front, sides, high shelf and riser, 6" chrome plated legs, AGA, CGA, NSF, 227,000 BTU

    Product Specifications
