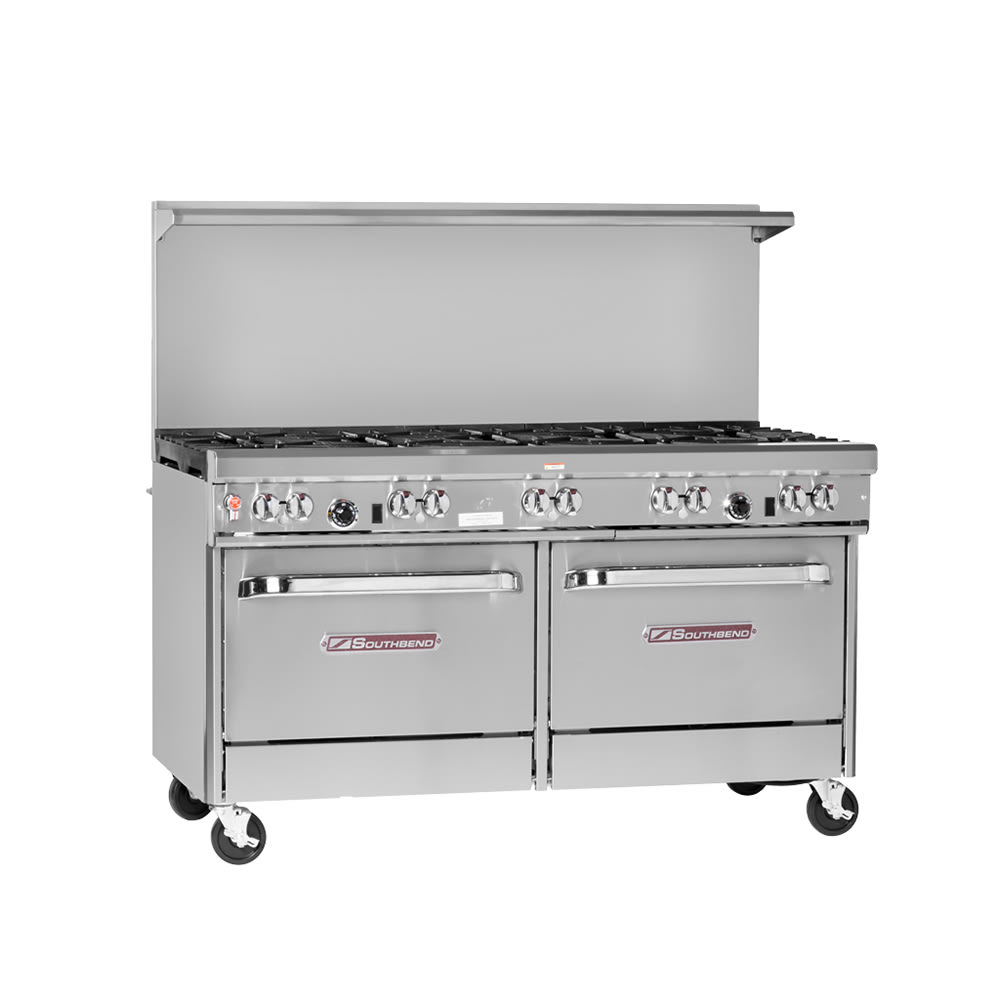

Southbend 4601DD-5R 60" 9 Burner Gas Range w/ (2) Standard Ovens, Natural Gas
$10,661.00 /Each
Call for details!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend 4601DD-5R Description

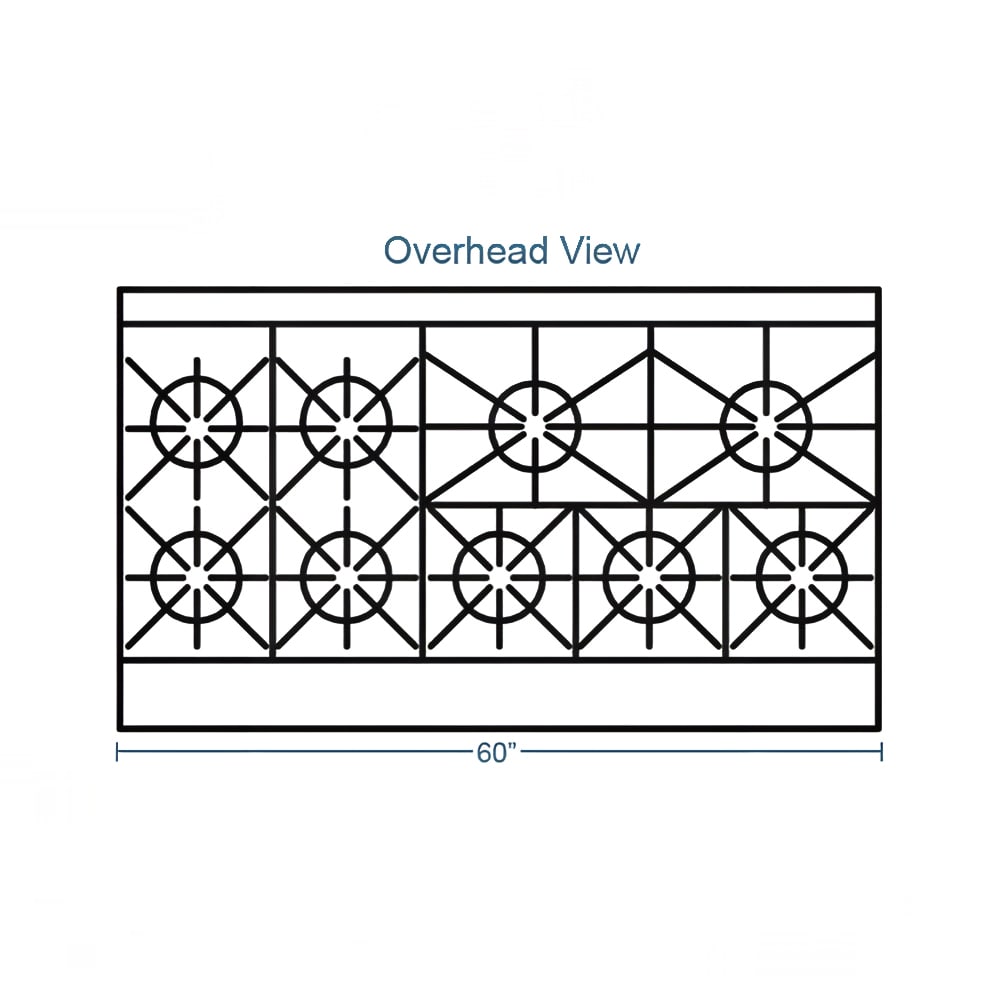

4601DD5RNG is a 60-in. range from Southbend that has two Pyromax burners on the back right of the range top, and seven additional standard burners. All the burners have a drip ring to prevent clogs and removable cast iron grates to make cleaning simple. The base consists of two standard ovens, which have coved corners to enhance airflow and ensure even heat distribution.
- Part of the Ultimate Restaurant Range series
- Powered by natural gas
- 60-in. Ultimate Restaurant Range includes:
- (2) 40,000 BTU Pyromax burners on the back right
- (7) 33,000 BTU standard burners, with 2 on the back left and 5 across the front
- Base made of (2) 45,000 BTU standard ovens
- All burners feature a drip ring that prevents clogging
- Pyromax burners are 50 percent larger than standard burners to support large stock pots
- Cast iron burner grates retain heat well for quick recovery times
- Standing pilot ignition for range top
- Gas regulator is installed at the factory for safety
- 4-in. stainless steel rail across the front protects the operator from burns
- Pressure regulator is factory-installed for safety
- Durable stainless steel construction
- 22 1⁄2-in. stainless steel flue riser with heavy-duty shelf
- 6-in. adjustable legs allow level installation
- Overall Dimensions: 60 3⁄4 in. W x 34 in. D x 59 1⁄2 in. H
- Each standard oven produces 45,000 BTU
- Ovens use battery spark ignition
- 175 to 550 degree F temperature range
- Oven doors are counter-balanced to make opening and closing smooth
- Porcelain enamel interiors are easy to clean and corrosion-resistant
- Coved corners make cleaning simple and help improve airflow to ensure even heat distribution
- Full-size pans can fit front-to-back or side-to-side
- Oven Interior Dimensions: 26 in. W x 26 1⁄2 in. D x 14 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-5R within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, natural gas, 60", (3) non-clog burners front right, (2) pyromax burners rear right, (4) non-clog burners left, standard grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 401,000 BTU, CSA, NSF
Southbend 4601DD-5R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 33000 |
| BTU / Burner | 40000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open/Pyromax |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 9 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 33000 |
| Open Burner BTU (ea) | 40000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 401000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
