Southbend 4601DD-3GL 60" 4 Burner Gas Range w/ Griddle & (2) Standard Ovens, Natural Gas
$13,281.00 /Each
Call for details!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend 4601DD-3GL Description
Southbend's 4601DD-3GL NG Ultimate Restaurant Range is built with four 33,000 BTU non-clog burners, a 36-inch griddle, and two 45,000 BTU standard ovens. Cast iron burners and burner grates heat evenly, are easy to maintain, and virtually indestructible. The manually-controlled griddle is built with a 1⁄2 inch thick griddle plate.
- Cooking top is at a comfortable 37-in. working height
- (4) 33,000 BTU non-clog burners
- Rugged, even-heating cast iron grates are fully removable for cleaning
- 4-in. stainless steel front rail
- Long-lasting, easy-to-clean stainless steel front and sides
- Manually-operated gas shut-off valve cuts gas supply to the entire range for safety and easy servicing
- Open burners are ignited with standing pilot light
- Overall Dimensions: 60 3⁄4 in. W x 34-in. D x 59 1⁄2 in. H

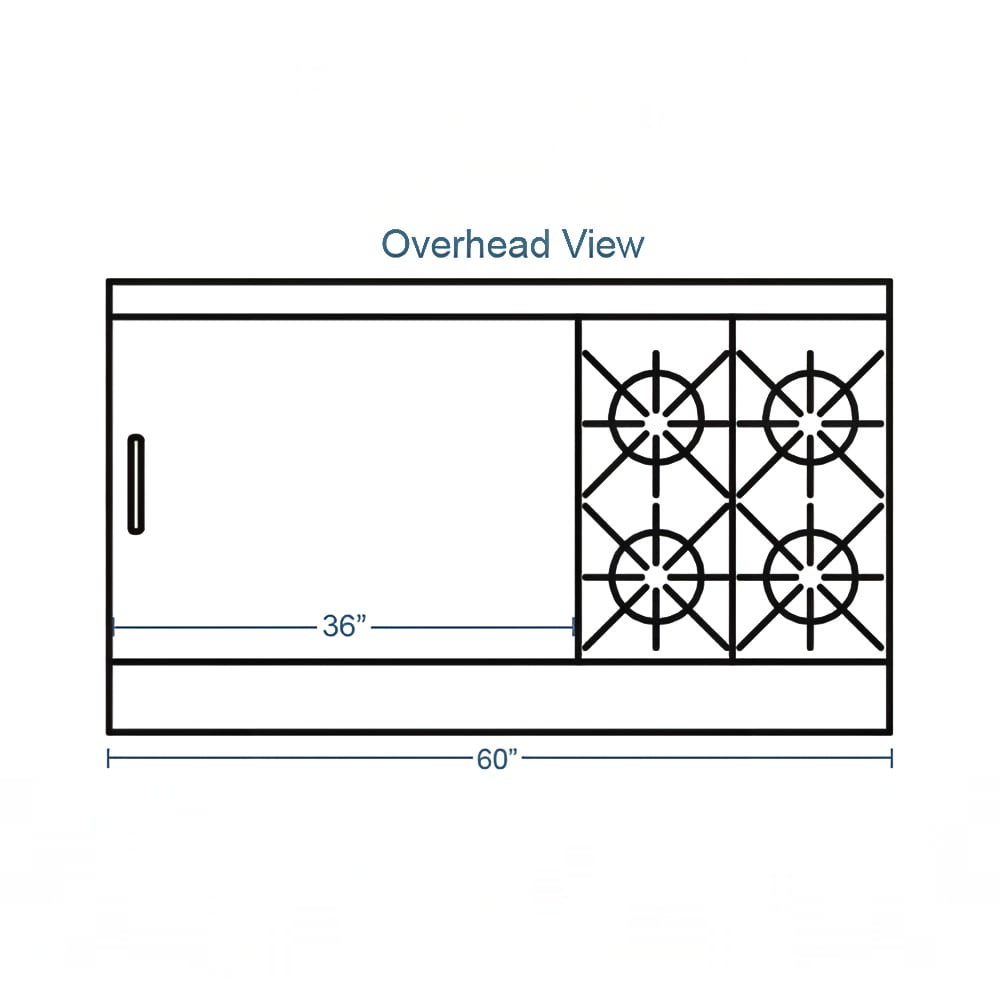

- 36-in. griddle to the left of the burners
- Smooth, polished 1⁄2 in. thick griddle plate heats evenly for reduced hot and cold spots
- Raised sides help to contain grease for easy cleanup
- Griddle is located on the left side of the range
- Manual controls provide operators with direct control over the intensity of the griddle burner flame
- 45,000 BTU heat input each
- Thermostatic controls from 175 to 550 degrees F
- Porcelain-enameled interiors make for even temperatures throughout oven and easy cleaning
- Oven interior measures 26-in. W x 26 1⁄2-in. D x 14-in. H
- Full-size pans fit both front-to-back and side-to-side in each oven
- One rack included with each oven; adjustable on two side rail positions
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-3GL within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, natural gas, 60", (4) non-clog burners, standard grates, (1) 36" griddle left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 286,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Southbend 4601DD-3GL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 33000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Griddle Location | Left |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 33000 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 286000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
