Southbend 4601DD-2GL 60" 6 Burner Gas Range w/ Griddle & (2) Standard Ovens, Natural Gas
$8,122.00 /Each
Call for details!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend 4601DD-2GL Description
Part of the Ultimate Restaurant Range series, the Southbend 4601DD-2GL range combines three essential methods of cooking to create one highly versatile piece of restaurant equipment. The 60-inch cook top consists of six 33,000-BTU open burners with cast iron grates and a 24-inch griddle with a 0.5-inch-thick griddle plate that heats quickly and evenly. This restaurant range's two standard ovens each come with their own oven rack, which are adjustable in two positions. These ovens also accommodate full-size sheet pans in both directions.
To endure daily scuffs, scrapes, and dents, the Southbend 4601DD-2GL commercial range has a corrosion-resistant stainless steel exterior. A 4-inch stainless steel rail lines the front of the burners, providing a plating area and a barrier between the operator and hot surfaces. Inside the oven, the porcelain enamel resists corrosion for a long service life, and its smooth surface is easy to clean. Its coved corners help evenly circulate airflow, preventing cold spots that could impact results. For high-volume loads, the oven's interior measures 26 inches wide by 26.5 inches deep by 14 inches high. Overall, this unit is 60.75 inches wide by 34 inches deep by 59.5 inches high.
- Part of the Ultimate Restaurant Range series
- Corrosion-resistant stainless steel front and sides
- (6) 33,000-BTU, clog-free cast iron burners with cast iron grates
- Top burners are ignited with a standing pilot flame
- Removable drip trays beneath burners
- 22.5-in. flue riser includes stainless steel shelf
- 37-in.-high cook top
- 4-in.-wide stainless steel front shelf
- Gas shutoff valve
- Factory-installed gas pressure regulator
- Rugged, 6-in. adjustable legs
- Thermostatic controls
- Temperature range: 175-550 degrees F
- Easy-to-clean porcelain enamel oven interior
- Oven capacity accommodates 1 full-size sheet pan
- 45,000-BTU burner in each oven
- Oven burners are lit by a battery spark ignition
- 1 adjustable oven rack per oven
- Spring-assisted, counterweighted oven doors
- 0.5-in.-thick griddle plate
- Polished stainless steel
- Raised, grease-containing sides
- Manual cooking controls

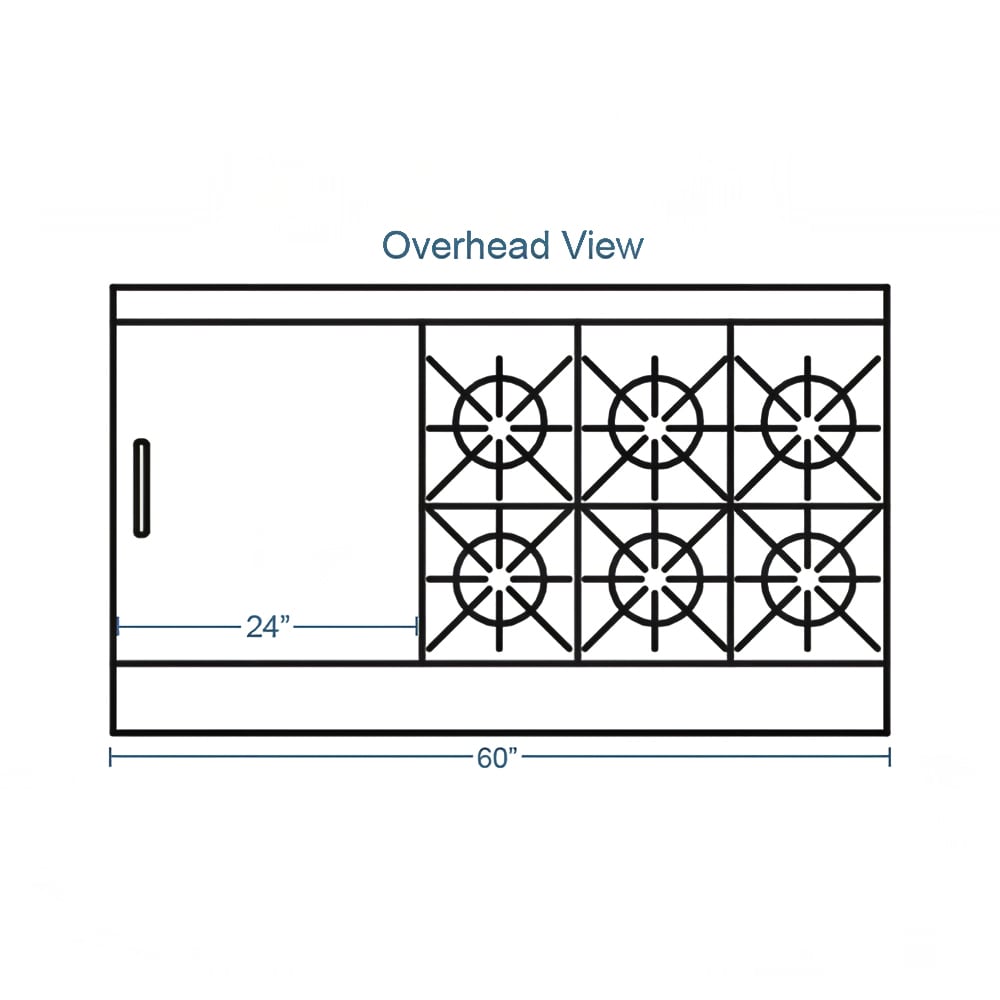

- Griddle: 24 in. W x 31 in. D
- Oven interior: 26 in. W x 26.5 in. D x 14 in. H
- Overall: 60.75 in. W x 34 in. D x 59.5 in. H
- Uses natural gas
- 0.75-in. female connection
- 7-in. W.C.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-2GL within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, natural gas, 60", (6) non-clog burners, standard grates, (1) 24" griddle left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 336,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Southbend 4601DD-2GL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 33000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Griddle Location | Left |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 33000 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 336000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
