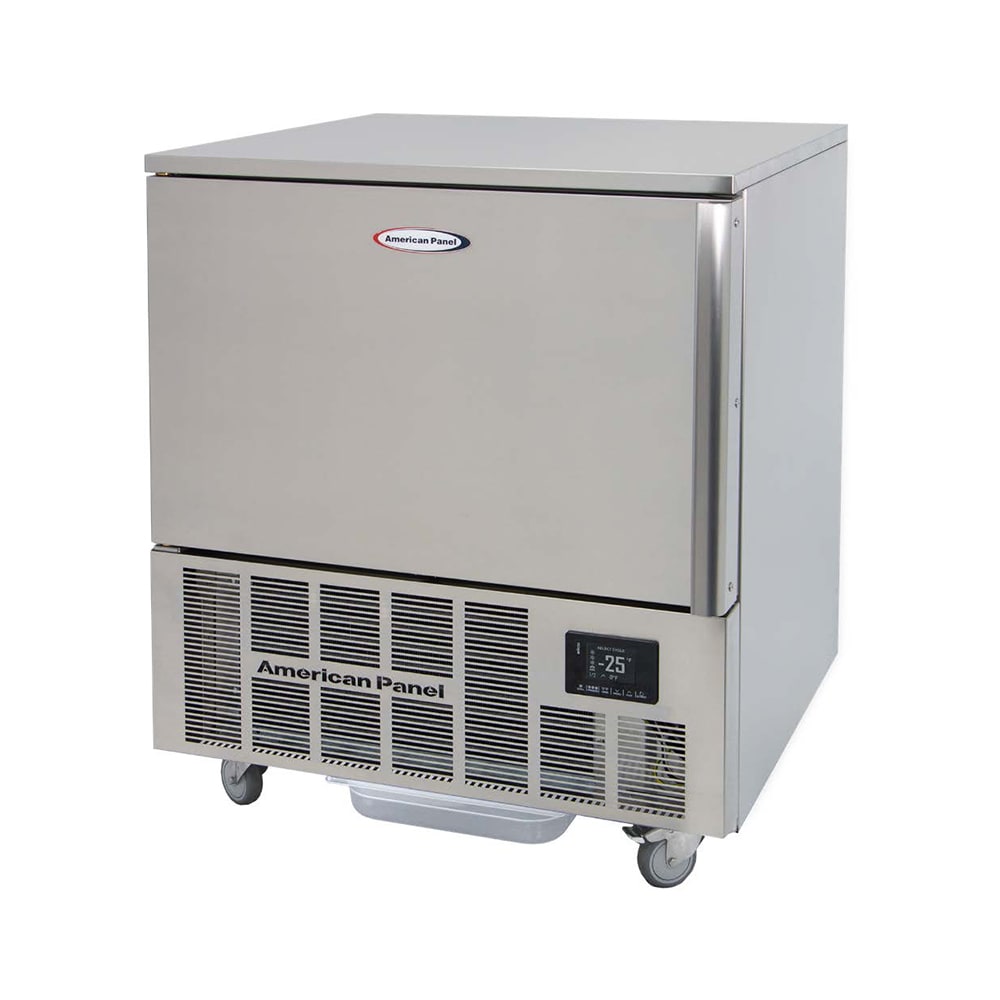

American Panel AP5BCF45-2-P 29 1/2" HURRiCHiLL™ Floor Model Blast Chiller/Shock Freezer - (5) Pan Capacity, 208v/1ph
$11,857.30 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

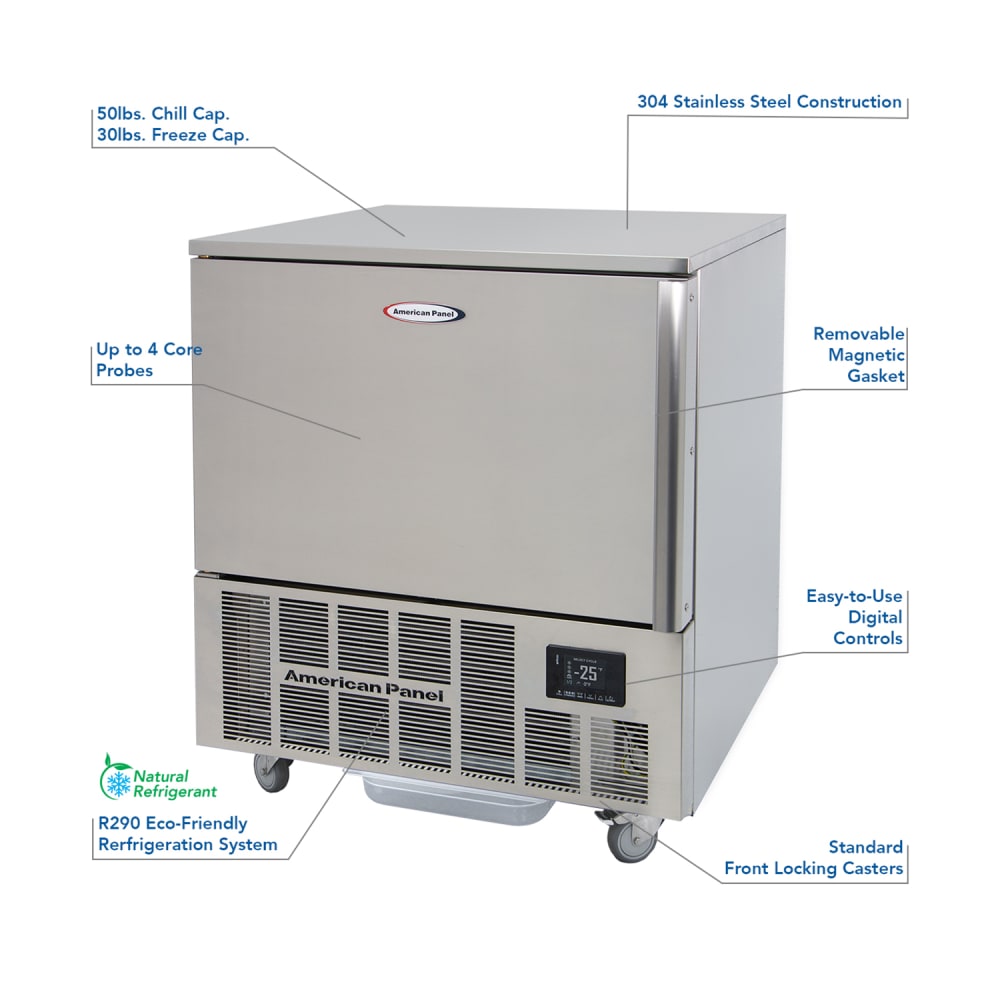

American Panel AP5BCF45-2-P Description
The American Panel AP5BCF45-2-P HURRiCHiLL™ blast chiller and shock freezer is a compact floor model designed to quickly reduce food temperatures while maintaining product quality and safety. Its solid-state electronic control panel with VFD display offers intuitive operation, with multiple cycle options including soft chill, hard chill, and freeze modes. This unit can chill up to 50 pounds of food from 160 degrees Fahrenheit to 38 degrees Fahrenheit in 105 minutes and freeze 30 pounds to 0 degrees Fahrenheit within 240 minutes. A heated core probe monitors internal product temperature, while high-velocity, indirect airflow ensures consistent cooling across all pan levels.
Built for durability in demanding kitchen environments, the American Panel AP5BCF45-2-P blast chiller features a polished stainless steel interior and exterior for long-lasting performance. The cabinet is mounted on casters for mobility and includes high-density insulation to help maintain stable internal conditions. Inside, five pan slides accommodate standard pans, and the rounded interior corners simplify cleaning. The removable magnetic door gasket enhances sanitation, while the self-contained refrigeration system uses R290 refrigerant and is engineered for efficient heat removal and dependable operation.
- Part of the HURRiCHiLL series
- Holds 5 pans sized 12 in. x 20 in. x 2 1⁄2 in.
- Blast chills 50 lbs. from 160 degrees F to 38 degrees F in 105 minutes
- Shock freezes 30 lbs. from 160 degrees F to 0 degrees F in 240 minutes
- Solid-state electronic control panel with VFD display and alarms
- Includes 1 heated food probe
- Stainless steel interior and exterior construction
- Rounded interior bottom for easier cleaning
- Removable magnetic door gasket
- Mounted on casters (2 with brakes)
- Uses R290 refrigerant
- Bottom-mounted compressor
- Motorized impeller fans suitable for washdown applications with sealed bearings and overload protection
- Multi-circuit evaporator engineered for blast chilling performance
- 29 1⁄2 in. W x 28 1⁄2 in. D
- 5 A, 3⁄4 HP
- 208 V/60 Hz/1 ph, 6-ft. cord with a NEMA 6-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on American Panel AP5BCF45-2-P within the 48 contiguous states.
From The Manufacturer
HURRiCHiLL™ Blast Chiller/Shock Freezer, Reach-in, self-contained, (5) 12" x 20" x 2.5" pan capacity, 50 lbs. from 160° F to 38° F blast chill capacity/105 minutes, 30 lbs. 160° F to 0° F freeze capacity/240 minutes, solid-state electronic control panel with VFD display & alarms, (1) heated food probe, manual defrost, stainless steel interior & exterior, 3" casters (2 braked), 3/4 HP, R290 refrigerant, cULus, UL EPH Classified
American Panel AP5BCF45-2-P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | American Panel |
| Compressor Location | Bottom |
| Depth (in) | 28.5 |
| Hertz | 60 |
| NEMA | 6-15P |
| Pan Capacity | 5 |
| Phase | 1 |
| Product | Blast Chillers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Series | HURRiCHiLL™ |
| Special Features | Casters Included - Installed |
| Special Features | Probe |
| Special Features | Shock Freezer Performance |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 29.5 |
| Weight | 373.00 |
