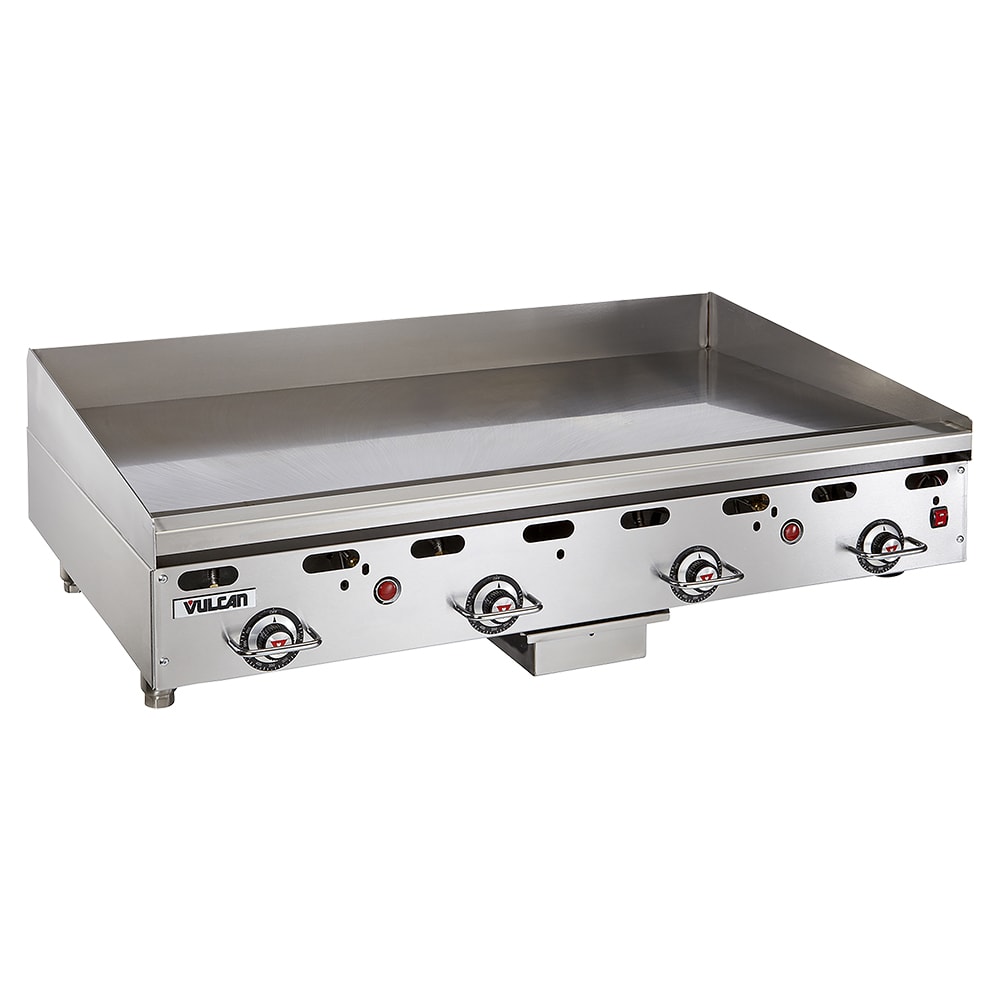

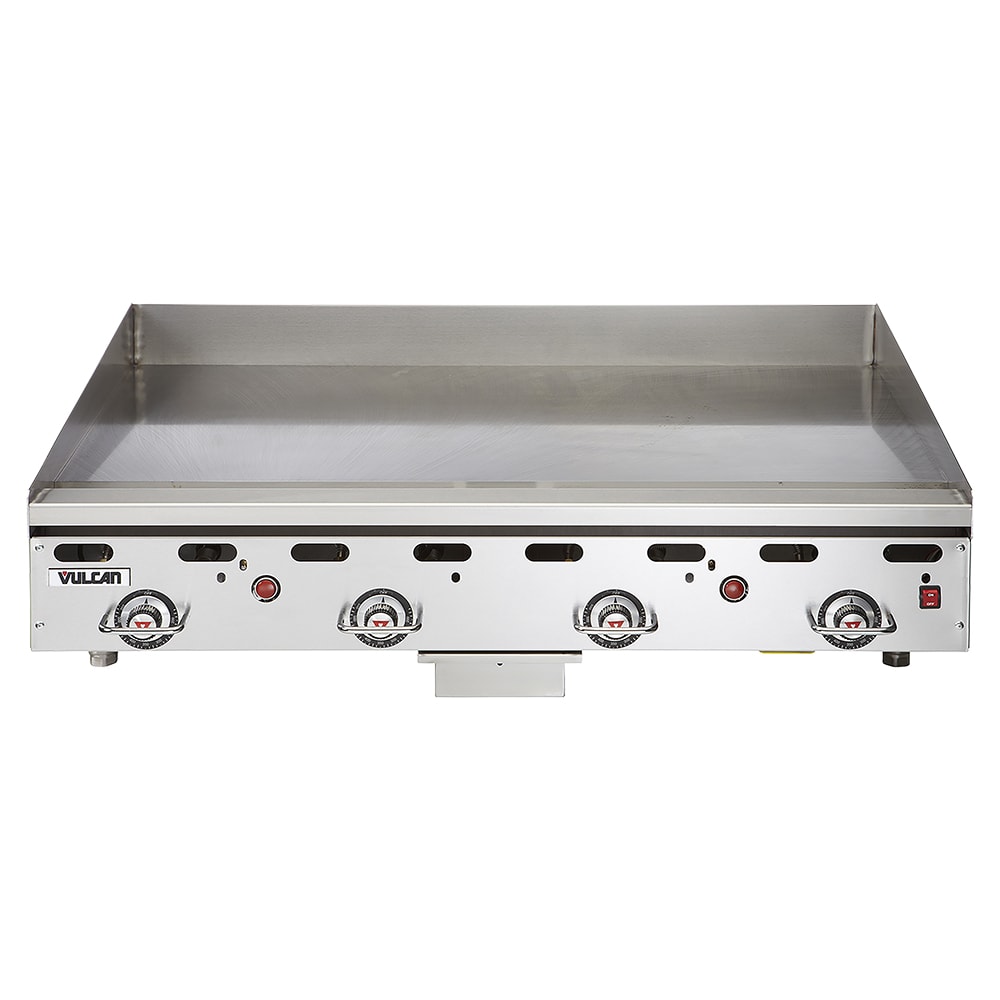

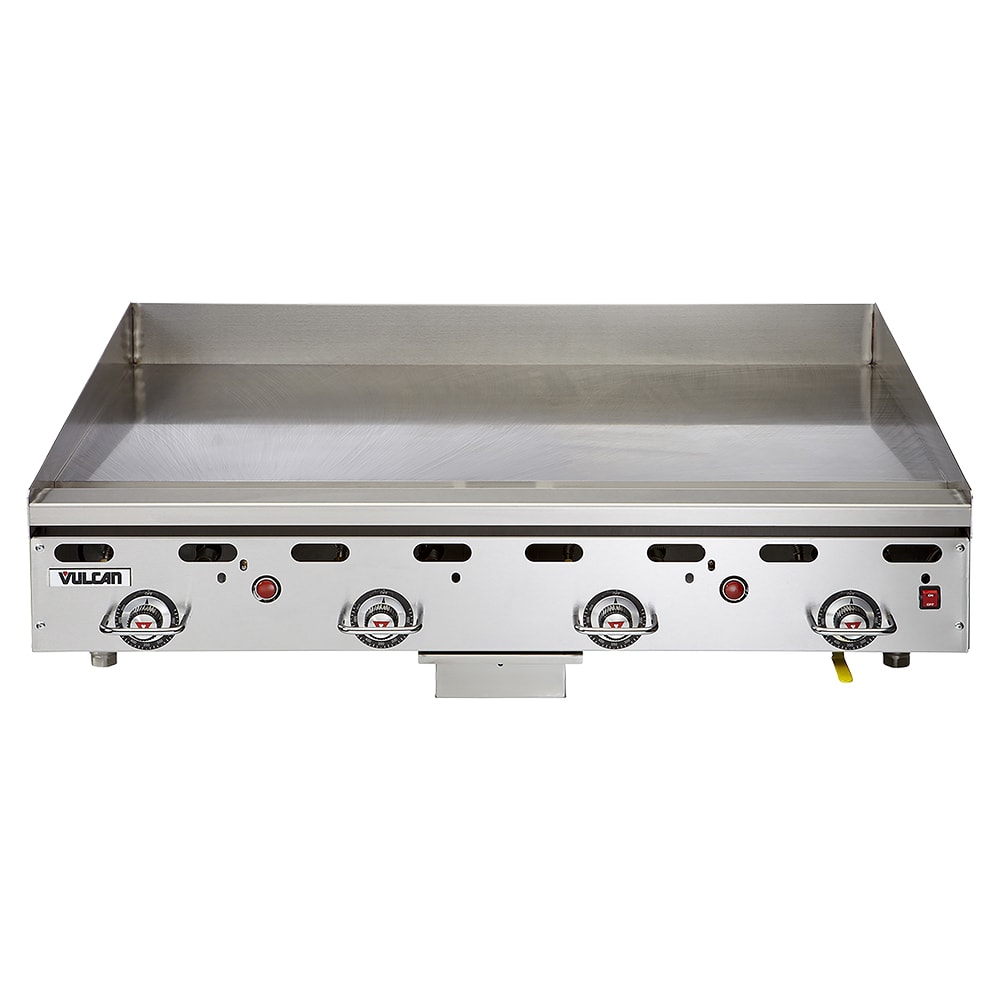

Vulcan 948RX-30 48" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
Typically ships in 2 - 3 weeks
Retail Price: $36,938.00
$13,851.69 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Vulcan 948RX-30 Description
The Vulcan 948RX-30 48-inch gas griddle is a heavy-duty countertop model for demanding kitchen environments. This griddle features four U-shaped burners that provide multiple cook zones across its cooking surface, and these burners are capable of being ignited by electric spark or manually. In the event of the pilot being extinguished a safety valve disables gas flow, and for further safety, the gas inlet can be manually shut off.
For precise temperature adjustments, heating of the Vulcan 948RX-30 48-inch gas griddle is thermostatically controlled. The griddle plate is a 1-inch-thick steel plate that facilitates streamlined cleanup and grease removal, while a wraparound splatter guard reduces messes and keeps excess grease safely contained to the cook area. The grease gutter enables quick removal of excess grease and accommodates spatulas. Waste grease is moved through the gutter down a welded chute for storage in the grease drawer, streamlining storage and cleanup.
- Countertop model
- Rust-resistant front, sides, and front top ledge constructed of stainless steel
- Temperature range: 200-550 degrees F
- 4 aluminized U-shaped steel burners
- Dual electric and manual burner ignition
- Pilot safety valve cuts gas flow if pilot is extinguished
- Burners are individually controlled to create separate cook zones
- Manual gas inlet shut-off
- Snap-action embedded thermostat design
- Chromed, heavy-duty thermostat knob guards
- Heat-resistant bull-nose design stays cool during use
- Smooth, 1-in.-thick polished steel griddle plate facilitates cleaning
- Wraparound splatter guard has tapered sides
- 12-ga. backsplash is 4 in. high
- Grease gutter is 3 1⁄2 in. wide
- Fully welded chute and gutter prevent leaking
- Grease drippings collect in the 6-qt. capacity stainless steel drawer
- Fully welded stainless and aluminized steel chassis frame supports the unit
- Countertops protected by integrated bottom heat shields
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 108,000 BTU
- Cook surface: 48 in. W x 30 in. D
- Overall: 48 in. W x 37 1⁄2 in. D x 15 1⁄4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3⁄4 in.
- Uses LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 948RX-30 within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 48" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 108,000 BTU, CSA, NSF
Vulcan 948RX-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 48 |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 48 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 535.00 |
