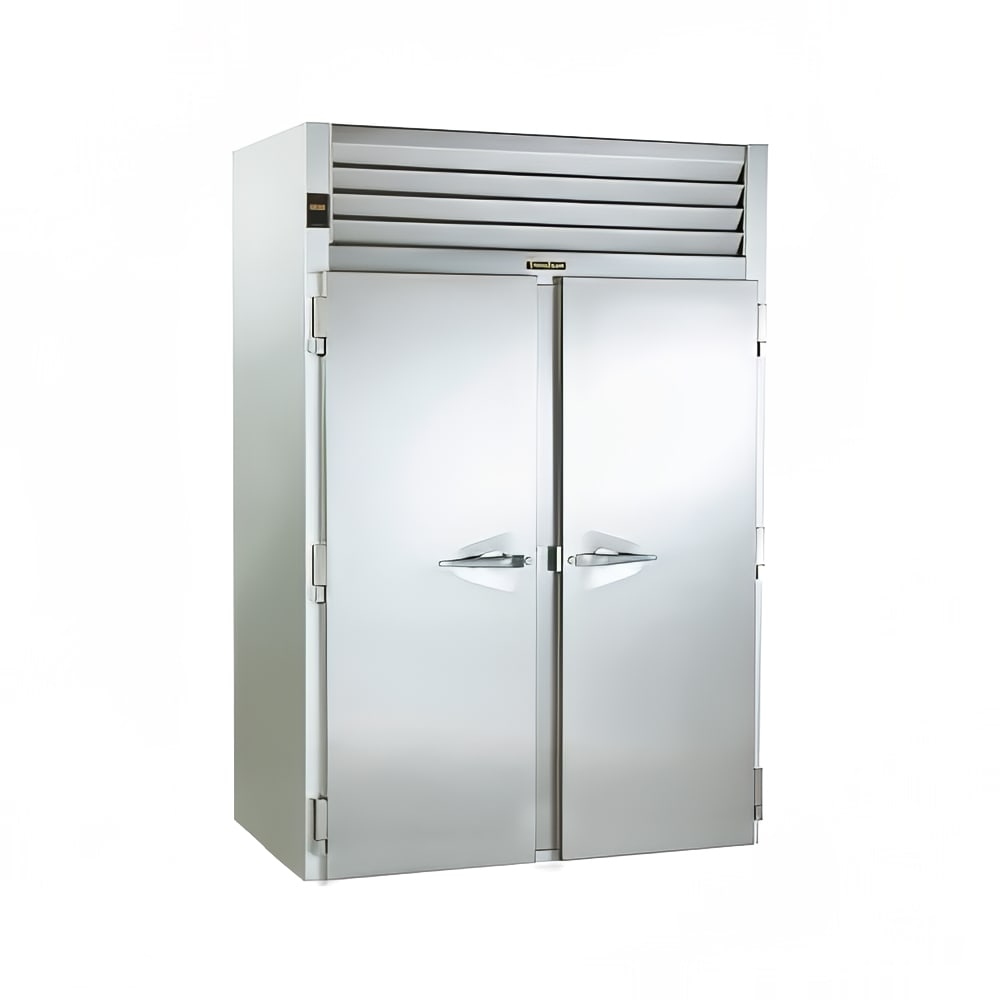

Traulsen RR232LP-COR01 58" Two Section Roll Thru Refrigerator, (4) Left/Right Hinge Solid Doors, 115v
Typically ships in 4 - 6 weeks
$40,044.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Traulsen RR232LP-COR01 Description
The Traulsen RR232LP-COR01 roll-thru refrigerator is a two-section refrigerated cabinet engineered for correctional and institutional foodservice operations requiring secure roll-thru cold storage. Its 80.2-cubic-foot interior accommodates roll-in racks as high as 66 inches, while stainless steel rack guides and threshold ramps simplify rack transfer between loading and unloading areas. Four full-height, solid-hinged doors incorporate self-closing cam-lift hinges with stay-open positioning to support workflow during high-volume production tasks, and automatically activated cabinet lighting improves product visibility. The Smart Control™ microprocessor system incorporates adaptive refrigeration monitoring, diagnostic functions, and LED alarm notifications, while a Lexan control cover and locking hasp support tamper-resistant operation.
Built of stainless steel inside and out, the Traulsen RR232LP-COR01 refrigerator incorporates gasket-protecting metal door liners, stainless steel breaker caps, and magnetic snap-in EZ-Clean™ door gaskets for long-term commercial durability. A heavy-gauge stainless steel mesh screen protects the top-mounted refrigeration assembly, which uses R450A refrigerant along with a thermostatic expansion valve, high-humidity evaporator coil, and front-facing StayClear™ condenser to maintain cabinet temperatures between 34 and 38 degrees Fahrenheit. The clockwise Load-Sure™ Guard airflow pattern supports even air circulation throughout the cabinet, while the non-electric condensate evaporator assists refrigeration system performance.
- 80.2-cu.-ft. interior capacity
- 2-section, roll-thru configuration
- Standard-depth cabinet
- 4 full-height, solid-hinged doors
- Left/right hinge configuration on both sides
- Accommodates roll-in racks up to 66 in. high
- Temperature range: 34-38 degrees F
- Smart Control microprocessor system
- LED temperature display
- Automatically activated cabinet lighting
- Locking hasp
- Lexan control cover
- Stainless steel mesh screen
- Stainless steel interior and exterior
- Stainless steel breaker caps
- Stainless steel rack guides and threshold ramps
- Magnetic snap-in EZ-Clean door gaskets
- Gasket-protecting metal door liners
- Self-closing doors with stay-open feature
- Workflow door handles
- Stainless steel 1-piece louver assembly
- Stainless steel ramp included
- Uses R450A refrigerant
- Top-mounted compressor
- Front-facing StayClear condenser coil
- Thermostatic expansion valve
- High-humidity evaporator coil
- Non-electric condensate evaporator
- Load-Sure Guard airflow pattern
- 68 in. W x 39 13⁄100 in. D x 83 1⁄4 in. H
- 8.9 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen RR232LP-COR01 within the 48 contiguous states.
From The Manufacturer
RRI232LPUT-FHS with Correctional Features, Refrigerator, Roll-thru, both sides hinged left-right, two-section, 80.2 cu. ft., self-contained refrigeration, stainless steel exterior and interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) includes cabinet lighting, locking hasp, mesh screen, lexan control cover and hinges without covers, microprocessor controls, 1/2 HP, cETLus, ETL-Sanitation
Traulsen RR232LP-COR01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Accommodates | 66" High Racks |
| Additional Info | Optional R-290 Refrigerant |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 80.2 |
| Depth (in) | 39.13 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Expansion Valve |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Interior Material | Stainless Steel |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Number of Shelves | None |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Spec |
| Refrigerant | R450A |
| Sections | 2 |
| Series | Spec-Line |
| Supports | Base |
| Thermometer Type | Digital |
| Type | Roll Thru |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 68 |
| Weight | 775.00 |
