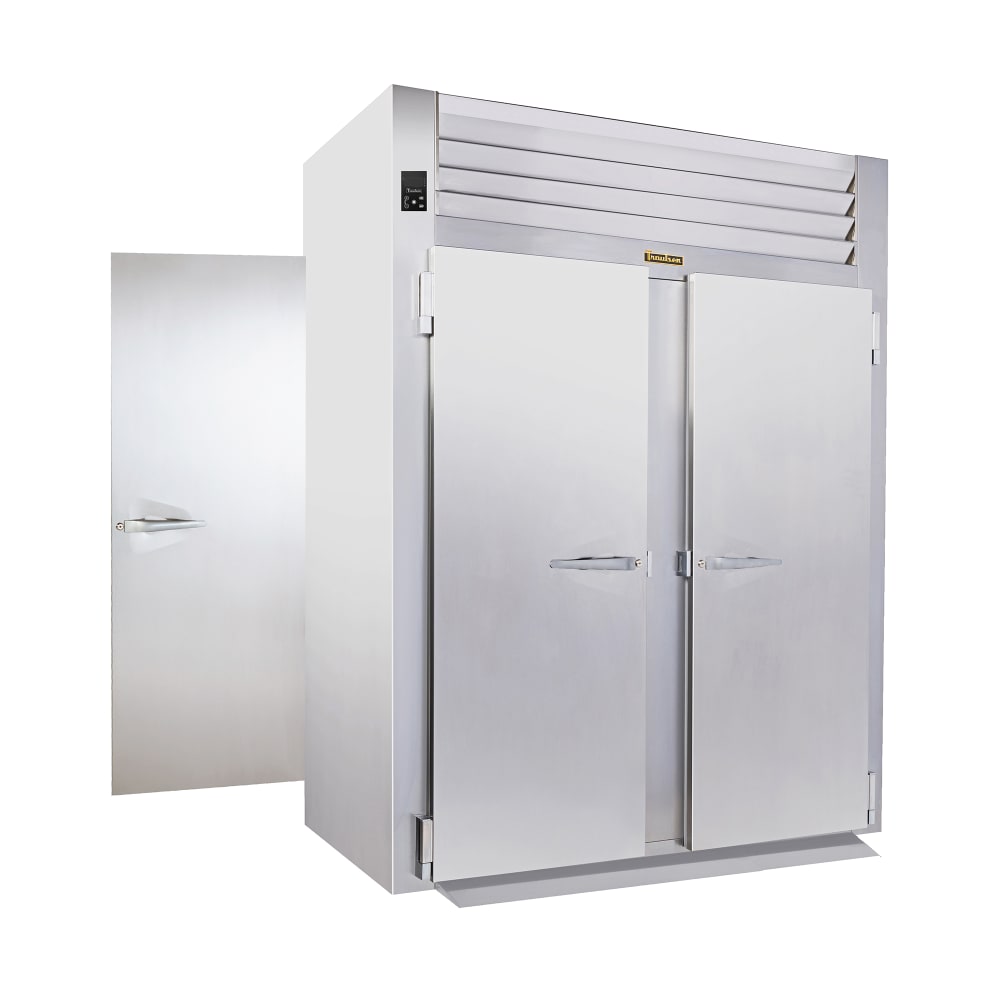

Traulsen ARI232LPUT-FHS 68" Two Section Roll Thru Refrigerator, (4) Left/Right Hinge Solid Doors, 115v

KaTom #: 206-ARI232LPUTFHS115 • MPN: ARI232LPUT-FHS 115

Traulsen ARI232LPUT-FHS Description

The Traulsen ARI232LPUT-FHS Spec-Line roll-thru refrigerator is configured for refrigerated rack transport between prep, storage, and service areas in commercial foodservice operations. This two-section cabinet provides 80.2 cubic feet of refrigerated storage and accommodates mobile racks up to 66 inches high behind four full-height doors positioned on both the front and rear of the unit. Smart Control microprocessor systems with LED displays manage cabinet temperatures, while automatically activated LED lighting improves visibility throughout the interior during loading and unloading procedures. Rear-biased airflow circulation supports temperature consistency across the cabinet interior during repeated access periods.

A stainless steel exterior paired with an anodized aluminum interior gives the Traulsen ARI232LPUT-FHS roll-thru refrigerator a construction suited for high-volume kitchen workflows involving mobile rack movement. Stainless steel threshold ramps and removable rack guides help protect cabinet surfaces during transport, while heavy-duty extruded wiper gaskets seal against the ramp openings during operation. Cam-lift hinges incorporate self-closing functionality with a 120-degree stay-open position, and recessed workflow handles reduce obstruction in aisleways. Magnetic EZ-Clean gaskets simplify maintenance access, while the top-mounted refrigeration assembly preserves usable cabinet space below the refrigeration compartment.

  • Part of the Spec-Line series
  • 2-section roll-thru cabinet
  • 80.2-cu.-ft. interior capacity
  • Accommodates racks up to 66 in. high
  • Maximum rack size: 27 in. W x 29 in. D x 66 in. H
  • 4 full-height solid doors
  • Left/right hinge configuration
  • Self-closing doors with 120-degree stay-open feature
  • Removable cylinder door locks
  • Smart Control microprocessor with LED display
  • Automatically activated LED lighting
  • Stainless steel exterior
  • Anodized aluminum interior
  • Rear-biased return air duct
  • Magnetic snap-in EZ-Clean door gaskets
  • Stainless steel interior rack guides and threshold ramps
  • Heavy-duty extruded wiper gaskets
  • Recessed workflow door handles

  • Uses R450A refrigerant
  • Top-mounted design
  • StayClear condenser coil
  • Air-cooled hermetic compressor
  • Thermostatic expansion valve
  • Large high-humidity evaporator coil
  • Non-electric condensate evaporator

  • 68 in. W x 39 1⁄8 in. D x 83 1⁄4 in. H
  • 8.9 A, 1⁄3 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Traulsen ARI232LPUT-FHS within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Spec-Line Refrigerator, Roll-thru, two-section, self-contained refrigeration, StayClear™ Condenser, stainless steel exterior, aluminum interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) with microprocessor controls, 1/3 HP, cETLus, ETL-Sanitation

Warranty Icon
6-year Parts & Labor; 7-year Compressor

Traulsen ARI232LPUT-FHS Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
