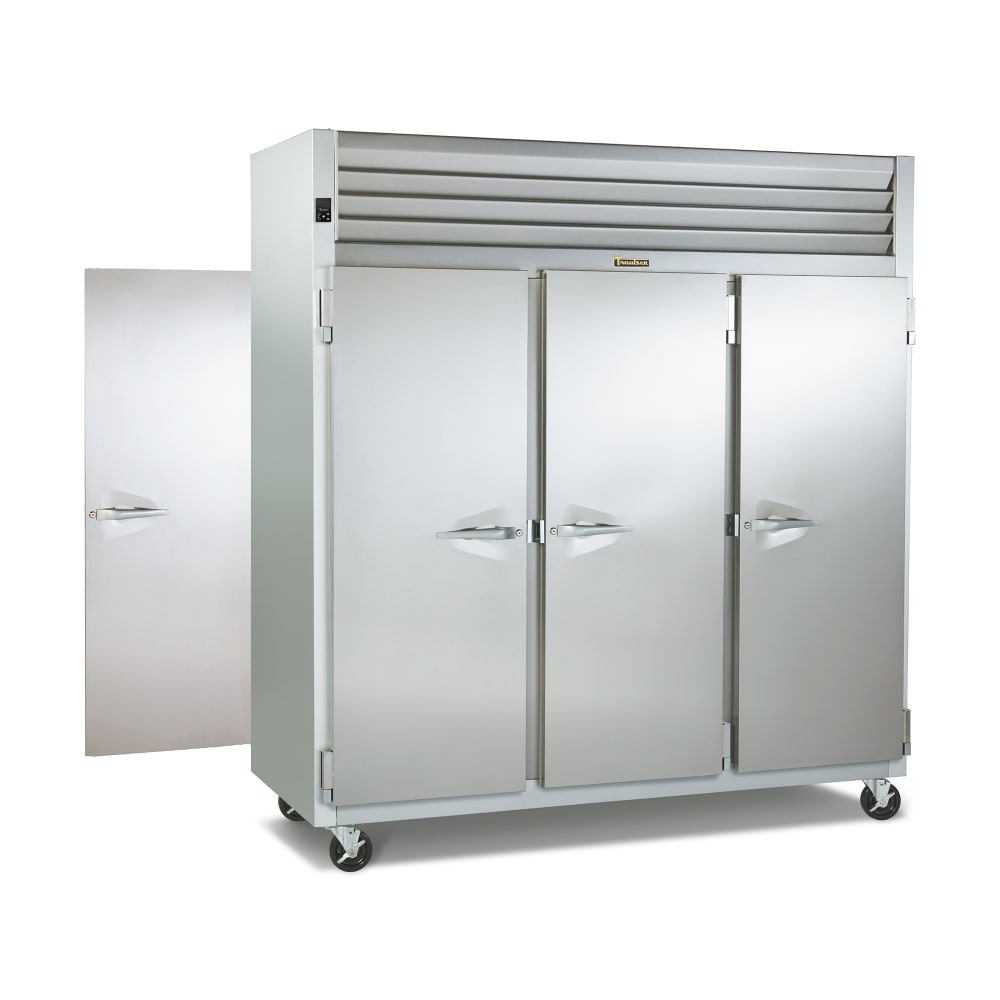

Traulsen AHF332WP-HHS Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph

The Traulsen AHF332WP-HHS Spec-Line heated pass-thru cabinet's serpentine-style heater produces and maintains temperatures between 140 and 180 degrees Fahrenheit to ensure precooked foods are held in a safe environment until they're served. To eliminate cold spots and circulate warm air evenly, this unit uses a ducted fan air distribution system, which starts up quickly. Because the doors and cabinet are made with 2-inch-thick, high-density polyurethane, temperatures are more likely to be preserved, even when the unit is stored in cool or warm environments. Operators can manage temperatures with the Smart Control system, and if a critical event occurs, such as a random power failure, its visual alarms will illuminate to notify the operator.

With its pass-thru configuration, the Traulsen AHF332WP-HHS heated cabinet provides access to the unit's shelves from the front or back of the unit. Six half-height stainless steel doors are built into the front and back of the unit, and they self-close when opened less than 120 degrees. When opened more than 120 degrees, they lock in place, enabling operators to load and retrieve product without holding the door open. This three-section cabinet is equipped with nine adjustable wire shelves that hold 225 pounds each. To withstand high-volume use, the interior is made of durable anodized aluminum, while the exterior is corrosion-resistant stainless steel.

Product Details

• Part of the A line
• Pass-thru, full-height unit with 3 sections
• 83.2-cu.-ft. capacity
• Anodized aluminum interior
• Stainless steel exterior
• 12 half-length, locking stainless steel doors (6 front and 6 back)
• Self-closing mechanism and Santoprene® E-Z clean gaskets
• 3 adjustable wire shelves per section
• 225-lb. shelf capacity each
• Doors and cabinet made with polyurethane insulation
• Temperature range: 140-180 degrees F
• Serpentine-style heater and ducted fan air distribution
• Top vent for controlled humidity
• Smart Control microprocessor system: smart sensors, critical event visual alarms, on/off switch, and 1-time startup temperature adjustment
• Automatic incandescent interior lights
• (4) 6-in. adjustable stainless steel legs

Dimensions & Utilities

• 86 1⁄8 in. W x 37 15⁄16 in. D x 83 1⁄4 in. H
• 15.5 A, 3000 W
• 208 V/60 Hz/1 ph

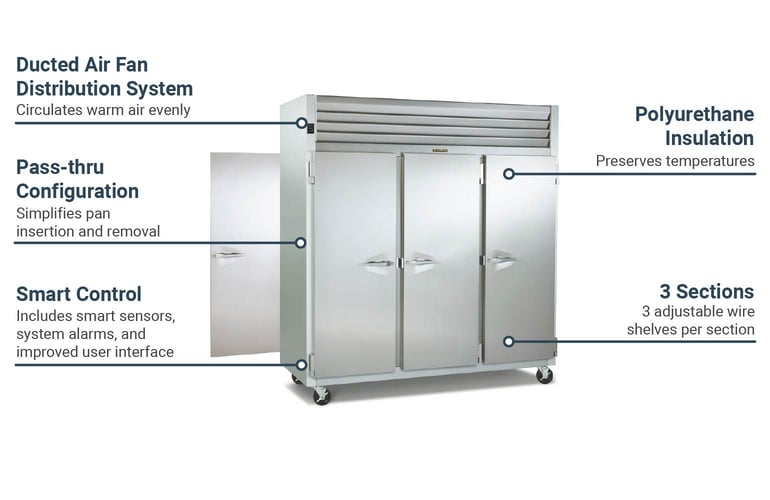

Product Features
