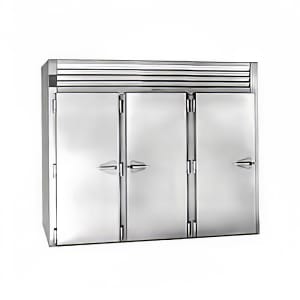

Traulsen RHF332W-FHS Full Height Insulated Heated Cabinet w/ (9) Pan Capacity, 208v/1ph
To help prevent heat loss and conserve energy, the Traulsen RHF332W-FHS full-height heated cabinet is insulated with foamed-in-place polyurethane. Adjustable with microprocessor controls, this unit op...

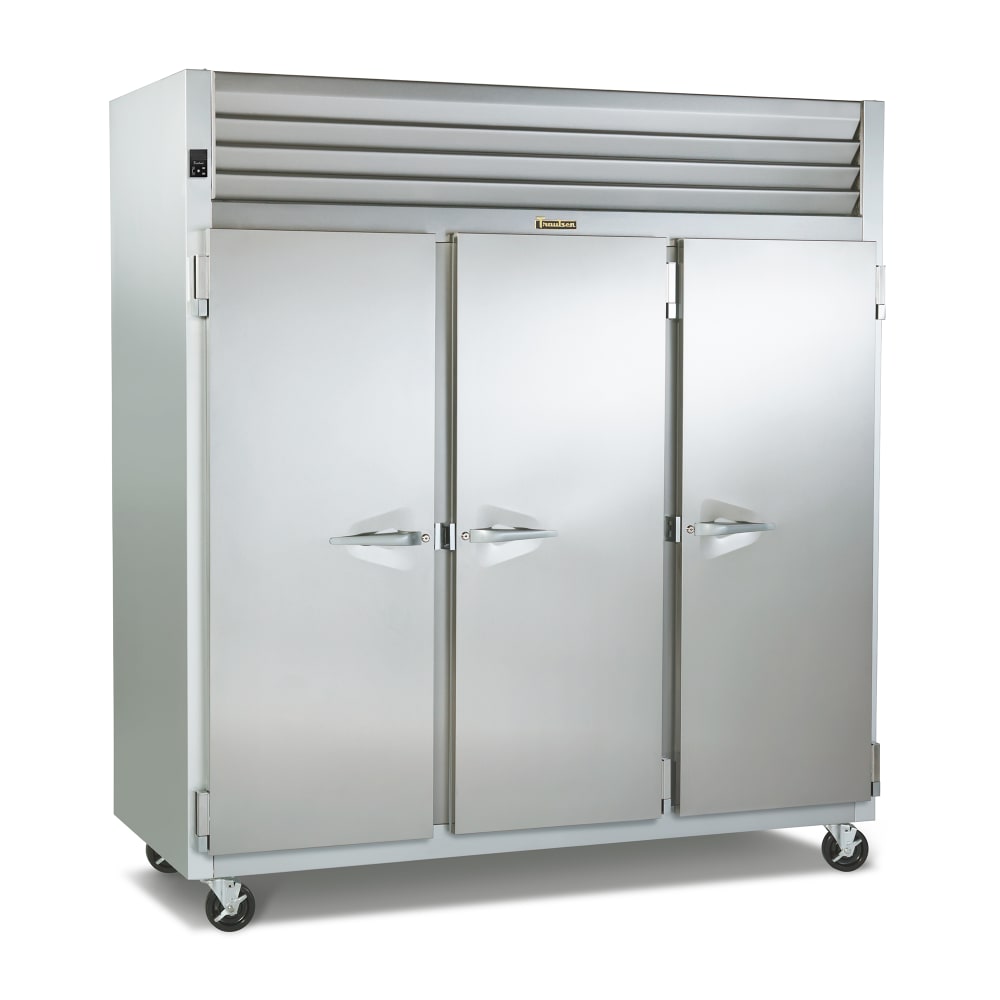

Traulsen AHF332W-FHS Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph
Traulsen AHF332W-FHS Description
To provide a long service life, the Traulsen AHF332W-FHS Spec-Line heated cabinet's exterior is made of durable, corrosion-resistant stainless steel, while the interior is anodized aluminum. Its three-section configuration includes three adjustable wire shelves per section, which can hold 225 pounds of product each. Because this is a reach-in unit, operators can access product directly, and the three solid, full-height doors stay in a locked position when opened past 120 degrees to simplify product loading and retrieval. To ensure stability on uneven flooring, it's fitted with 6-inch, adjustable stainless steel legs.
The Traulsen AHF332W-FHS heated cabinet produces temperatures between 140 and 180 degrees Fahrenheit—an ideal temperature range to ensure product is held in a safe environment before it's served. The ducted fan air distribution system circulates warm air uniformly throughout the cabinet while preserving product textures. To prevent temperature changes, the doors and cabinet are insulated with high-density, foamed-in-place polyurethane. Operators can monitor and manage temperatures with the Smart Control system, which provides a temperature readout, operative status, smart sensors, and critical system alarms.
Product Details
- Part of the A line
- Reach-in, full-height unit
- 79-cu.-ft. capacity
- 3 sections
- Stainless steel exterior and anodized aluminum interior
- 3 full-height, solid doors with self-closing mechanism and locks
- 1 left-hinged door and 2 right-hinged doors
- Santoprene® E-Z clean gaskets
- 3 adjustable wire shelves per section
- Shelf capacity: 225 lbs.
- Temperature range: 140-180 degrees F
- Ducted fan air distribution system with serpentine-style heater
- Top vent for humidity control
- 2-in.-thick, high-density, foamed-in-place polyurethane insulation built into doors and cabinet
- Smart Control user-friendly interface with LED display
- 1-time startup temperature adjustment
- Hinge-activated incandescent lights
- (4) 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 86 1⁄8 in. W x 35 in. D x 83 1⁄4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph

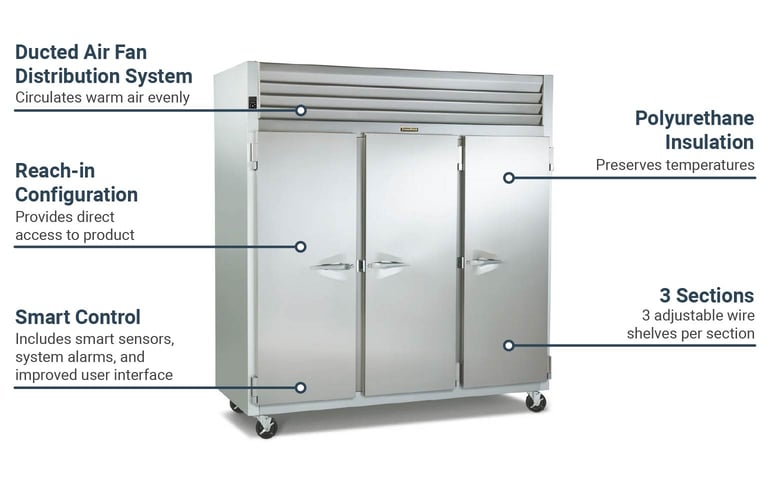

Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen AHF332W-FHS within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Reach-in, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height doors, with EZ-Clean Gaskets, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
Traulsen AHF332W-FHS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 79 |
| Depth (in) | 35 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 3 |
| Load Type | Reach In |
| No. of Doors | 3 |
| Pan Capacity | 9 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Spec-Line |
| Size | Full Height |
| Slide Type | Shelves |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 86.13 |
| Weight | 851.00 |
