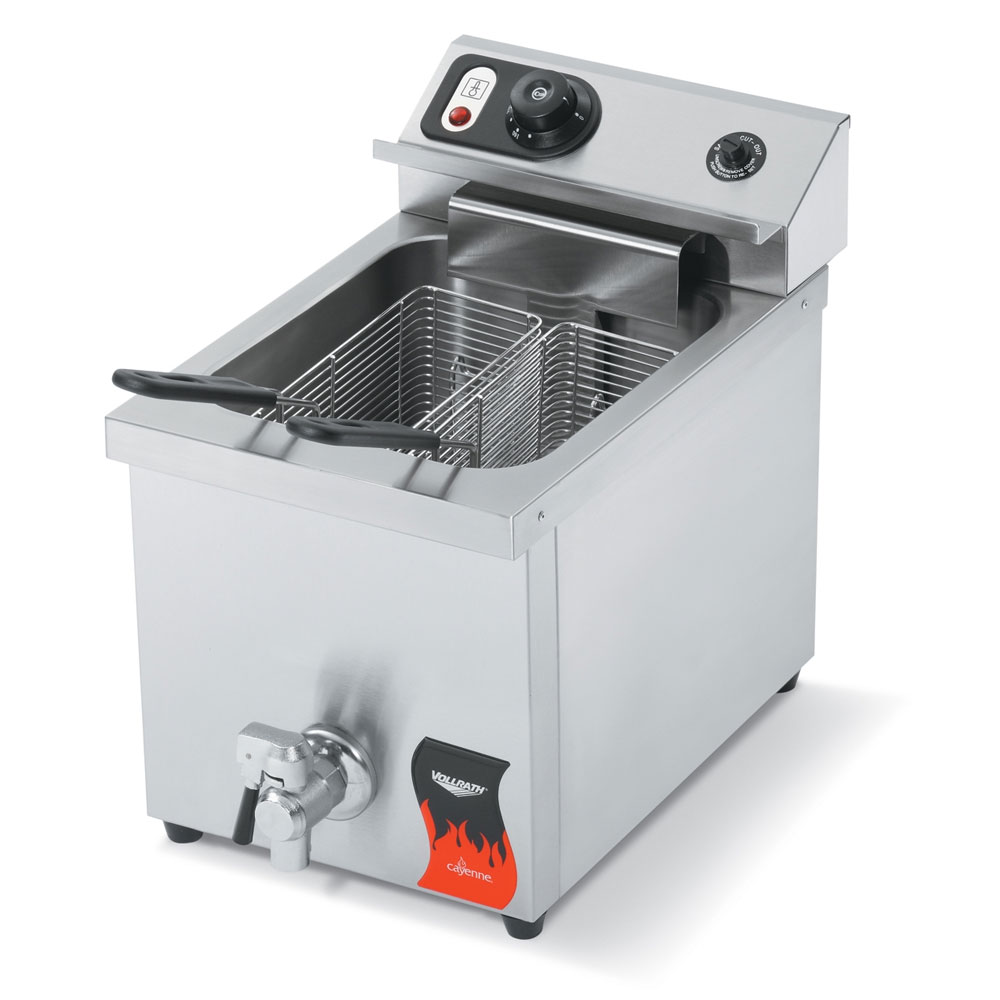

Vollrath CF4-3600 Countertop Electric Fryer - (1) 15 lb Vat, 208-240v/1ph
The compact Vollrath CF4-3600 countertop electric fryer has a small footprint and measures 20 7⁄8 inches deep. The tank’s 15-pound capacity holds two small, wire-style baskets with cool-to-the-touch h...
Vollrath 40709 Countertop Electric Fryer - (1) 15 lb Vat, 220v1ph
Attention: Order by 07-01-2026 to save before the price increases!
Vollrath 40709 Description
The Vollrath 40709 countertop electric fryer has a fully welded tank that has a safety interlocked drainage valve that makes cleaning the frypot and draining the oil simple. The tank can hold up to 15 pounds of oil. The fryer's cold zone collects sediment from heavily breaded product to preserve the oil's natural flavor by keeping those food particles from burning. The fryer is thermostatically controlled up to 374 degrees Fahrenheit, and the thermal overload shut-off automatically cuts the power when oil reaches a temperature of 446 degrees Fahrenheit.

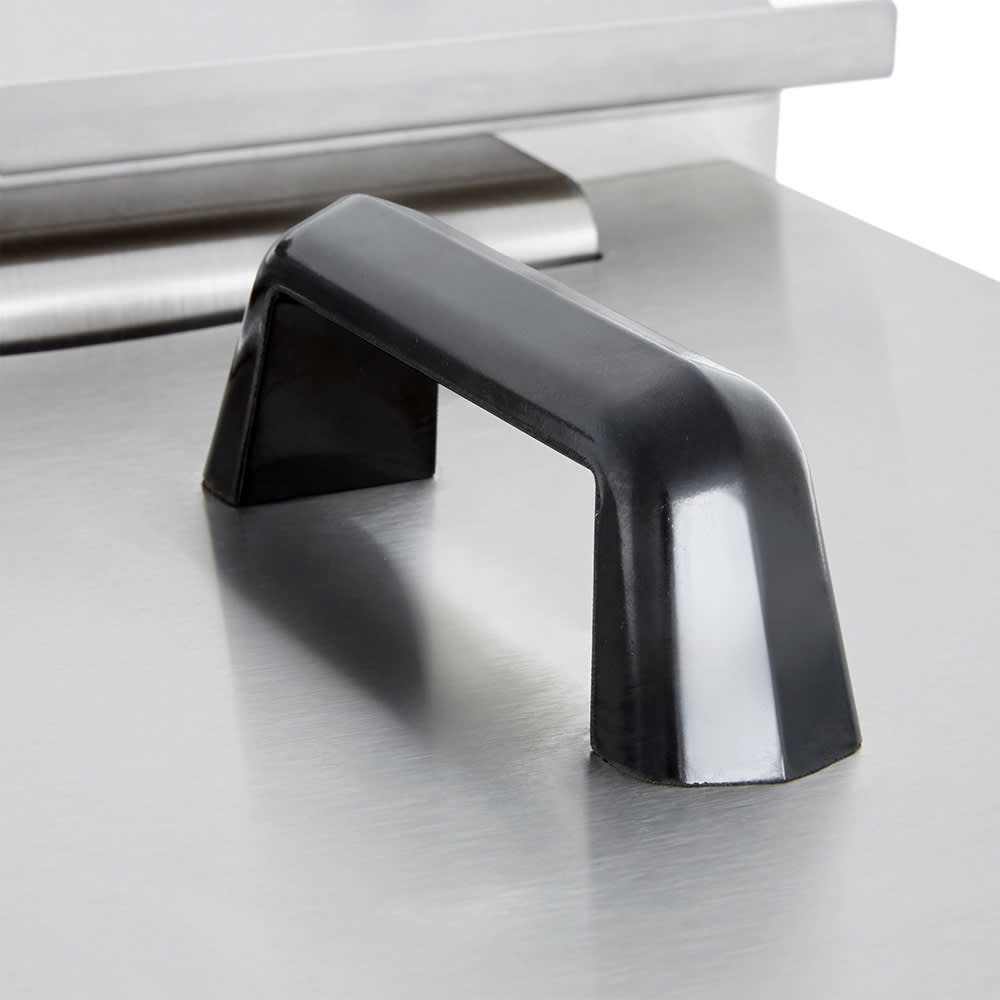

The fryer's element box assembly easily removes for cleaning. When the box is removed, an internal micro-switch disconnects the power. A "Power On" indicator light lets you know the fryer is on so you can help prevent injuries. Rubber feet on the bottom of the unit prevents it from sliding around. The Vollrath 40709 countertop electric fryer comes with nickel-plated, steel wire baskets that have a cool-to-the-touch handle.
Product Details
- 15-lb. oil capacity
- 3500 W elements quickly heat up and recover temperatures between each load
- Draining and cleaning are easy with the safety interlocked drainage valve in the fully welded tank
- Thermostatically controlled up to 374 degrees F
- Thermal overload shutoff is automatic when the temperature reaches 446 degrees F
- "Power On" indicator light helps keep you from injuries
- Cold zone collects sediment from heavily breaded product to keep the oil's natural flavor
- Nickel-plated steel wire baskets have handles that stay cool to the touch
- Element box assemblies easily remove for cleaning
- An internal micro-switch disconnects the power when the element box is removed
- Rubber feet on the bottom of the unit keep it from sliding all over the place

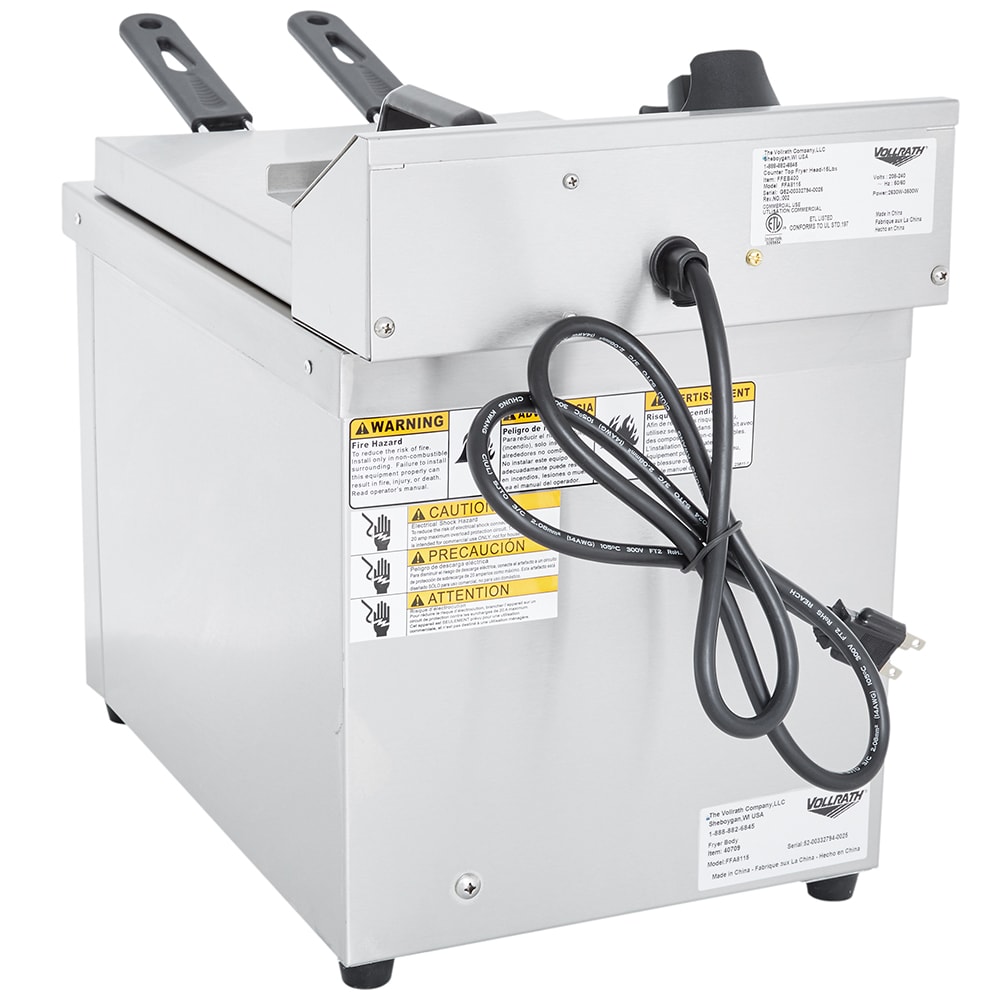

- Element box has its own cord and plug and is wired separately
- 220 V/60 HZ/1 ph, 3.0 kW, 13.6 A, 2630-3500 W, 5-ft. cord with a NEMA 6-15 plug
- Overall Dimensions: 11 1⁄2 in. W x 19 3⁄4 in. D x 16 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vollrath 40709 within the 48 contiguous states.
From The Manufacturer
Cayenne® Fryer, counter top, electric, single fry pot, 11-3/8"W x 20-3/8"D x 11"H, 15 lb fat capacity fry pot, (2) small basket, 122°F - 374°F thermostatic control, lift-out elements, interlocked drain valve, stainless steel construction, 3.0 kw, 13.6amps, NEMA 6-15P, 220v/60/1-ph, ETLus, NSF, (US Only) model# FFA8115
Vollrath 40709 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vollrath |
| Also Known As | FFA8115 |
| Food Type | Frozen |
| Frypot Style | Open Pot |
| Heat | Electric |
| Hertz | 60 |
| Number of Fry Pots | 1 |
| Oil Capacity/Fryer (lb) | 15 |
| Phase | 1 |
| Product | Fryers |
| Product Type | Countertop Cooking Equipment |
| Series | Cayenne® |
| Special Features | Swing-Up Element |
| Type | Countertop |
| Voltage | 220 |
| Warranty | 1-year Parts & Labor |
| Weight | 25.00 |
- Vollrath CF4-3600 (Replacement)
- Wells LLF-14-QS
- Globe PF16E
- Star 301HLF
Compare to Similar Items
| Attributes |
Vollrath 40709 Vollrath 40709 Countertop Electric Fryer - (1) 15 lb Vat, 220v1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,345.00 / Each | $798.00 / Each | $858.94 / Each | |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days | |
| Oil Capacity/Fryer (lb) | 15 | 15 | 16 | 15 |
| Heat | Electric | Electric | Electric | Electric |
| Frypot Style | Open Pot | Open Pot | Open Pot | Open Pot |
| Number of Fry Pots | 1 | 1 | 1 | 1 |
| Voltage | 220 | 208/240 | 208/240 | 208/240 |
| Warranty | 1-year Parts & Labor | 2-year Limited Parts & Labor | 1-year Limited Parts & Labor | 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Not for high volume
This fryer works good and is easy to clean. Good for light to medium volume but not high volume. Takes about 8 minutes to cook fries in both baskets. That's way to long. My Star Mfg. fryer does it in half the time.
