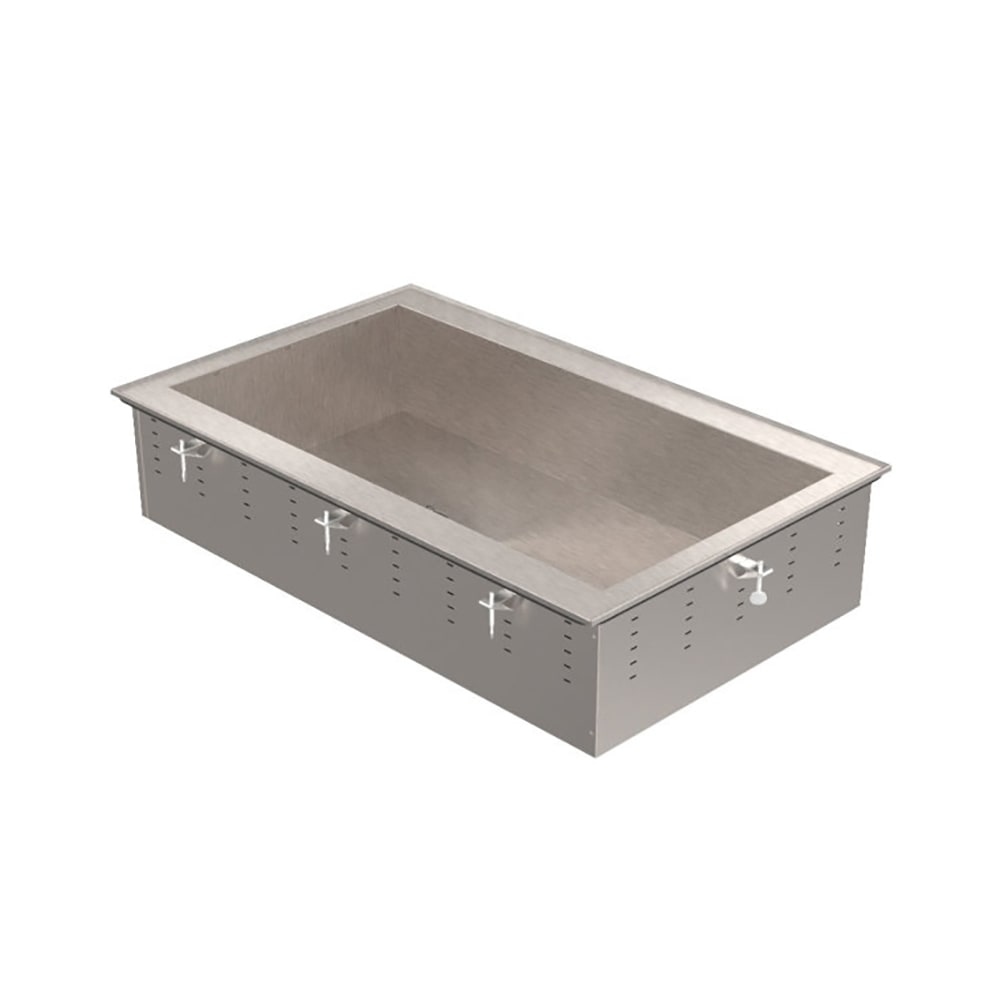

Vollrath 36490R 15" Drop-In Refrigerator w/ (1) Pan Capacity, Cold Wall Cooled, 120v

KaTom #: 175-36490R • MPN: 36490R
  • 175-36490R Primary Thumbnail Image
Free Shipping Item

$1,773.00 /Each

  • Protect Your Product
  • Coverage starting at $143.70
  • Edit Remove

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Non Returnable Item

anthony schoggen User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 07-01-2026 to save before the price increases!

Vollrath 36490R Description

The Vollrath 36490R drop-in refrigerator is ideal for small-volume kitchens wanting to keep cold product near workstations to reduce prep time. Designed to fit one pan and the ice required to keep it chilled, it has an 8-inch-deep well and can slot into a countertop cutout measuring 14 1⁄2 inches by 25 1⁄4 inches. Its body of galvanized steel and 18/8 stainless steel that is resistant to scratching and temperature damage due to its chromium and nickel construction. To reduce kitchen messes, its framed with a drip-resistant rim.

Insulated with polyurethane foam and equipped with copper tubing, the Vollrath 36490R drop-in cold food well can be connected to an external thermostat control unit (not included) to maintain an ideal temperature and reduce losses due to spoiling. The unit is designed to be paired with a customer-provided remote compressor that regulates the well's internal temperature.

  • 18/8 stainless steel well with 18-gauge galvanized steel housing
  • 1-pan capacity
  • 8-in.-deep pan well
  • Liquid-catching flange reduces spills and cross contamination
  • Polyurethane insulation
  • Bottom mount for remote compressor (sold separately)
  • Support for an external thermostat (not included) using copper tubing
  • Fits 14 1⁄2-in. x 25 1⁄4-in. cutout

  • Well: 12 in. W x 19 7⁄8 in. D x 9 1⁄4 in. H
  • Overall: 15 in. W x 26 in. D x 17 in. H
  • 120 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vollrath 36490R within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

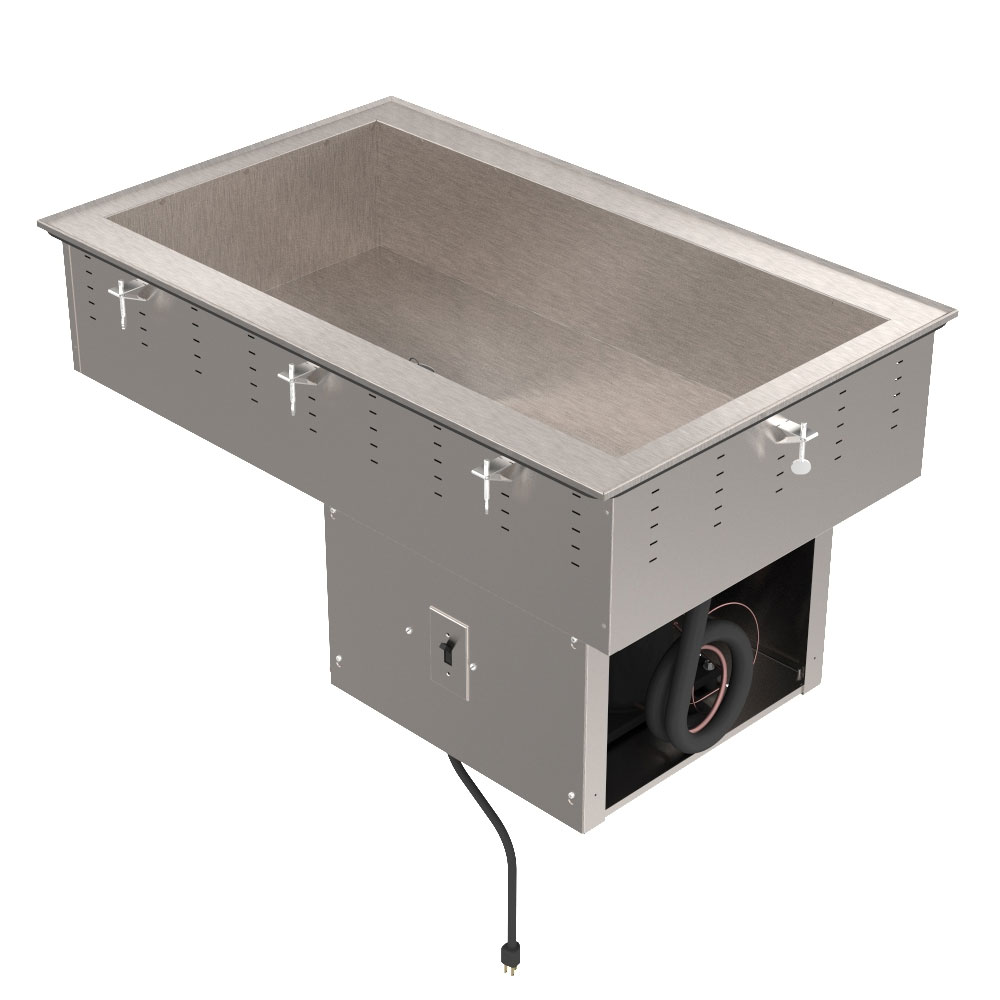

1-PAN STANDARD REMOTE REFRIGERATED COLD PAN DROP-IN, 18/8 stainless steel, 14-1/2" x 25-1/4" cutout, drip free flange, polyurethane foam insulated, 8" deep well, UL listed, Made in U.S.A. (note: remote units do not include compressor), 120v/60/1ph

Warranty Icon
1-year Parts & Labor

Vollrath 36490R Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
