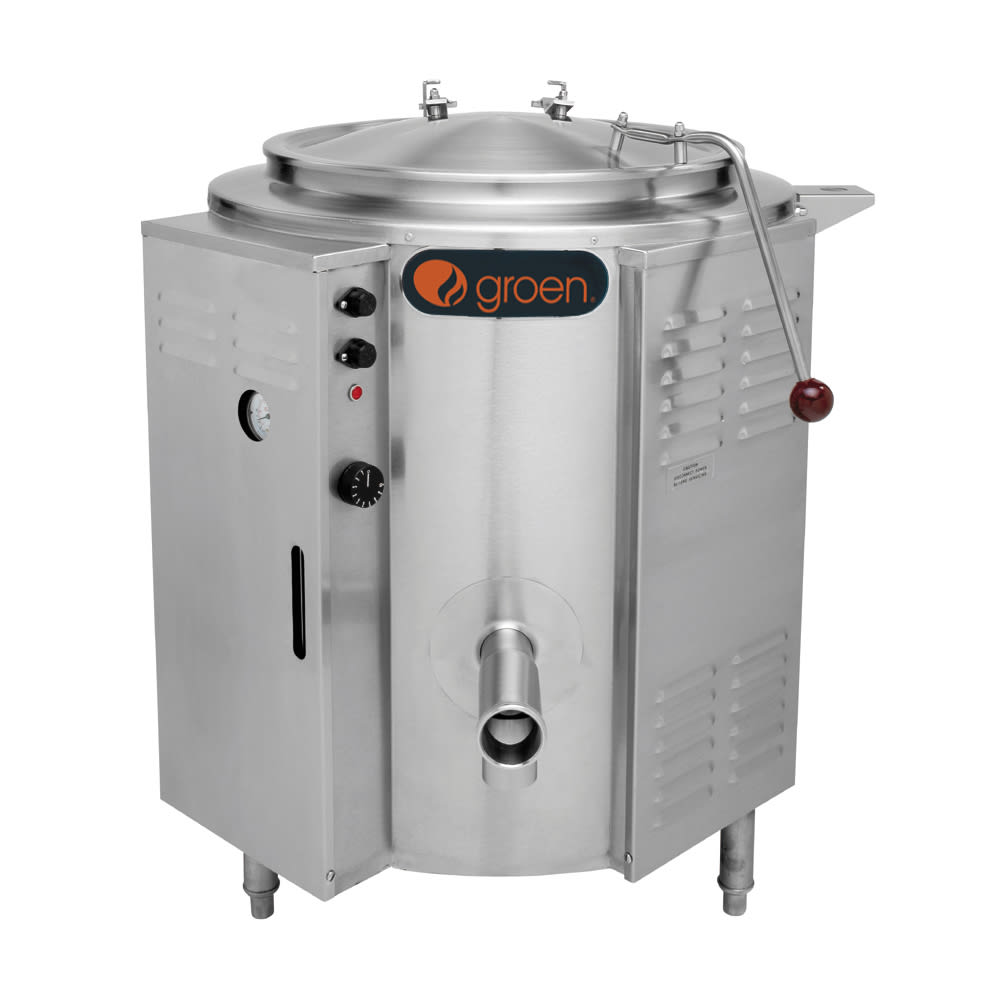

Groen EE-20 20 gal Steam Kettle - Stationary, 2/3 Jacket, 208v/3ph
$16,765.21 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Groen EE-20 Description
The Groen EE-20 stationary kettle can hold 20 gallons, meaning it is ideal for cooking large volumes of food and is a great alternative to a stock pot range because it requires less labor and monitoring while products cook. It is a self-contained steam unit, so it is already charged with pure water in its hollow jacket. When the kettle is heated, this water heats up and turns into steam that cooks the food while the jacket surrounds two-thirds of the unit instead of covering the entire machine. This saves power and water, though it does not heat quite as evenly as the full jacket. In the kettle, the liner is made of 316 stainless steel—a material that is highly resistant to corrosion for use with acidic product. Because the unit is sheathed in stainless steel and insulated, it retains heat and maintains a cool-to-the-touch exterior.
This Groen EE-20 steam-jacketed kettle has a 2-inch draw-off valve so operators can drain stock and other liquids from product. With the valve, users can also clean the interior by draining the water out, and a perforated strainer keeps large debris out of the valve to prevent clogging. Its control system is set in an accessible position and enclosed in stainless steel for protection against splashing. A thermostat controls set temperatures between 150 and 270 degrees Fahrenheit, shutting the contactor on and off to operate the heating element.
- 20-gal. capacity
- Temperature holding range: 150-270 degrees F
- Self-contained steaming with pure, factory-charged jacket water
- Two-third jacket surrounds the bottom two-thirds of the kettle in steam
- Maximum steam pressure: 30 PSI
- 316 stainless steel interior liner avoids corroding with highly acidic food
- Sheathed in stainless steel and air-gap insulated to retain heat and maintain a cool-to-the-touch exterior
- 1-piece, hinged dome cover
- 2-in. tangent draw-off valve drains the interior for cleaning
- 1⁄4-in. perforated strainer keeps debris out of the valve to prevent clogs
- Valve can be disassembled without tools
- Open tri-leg base
- Pilot light indicates unit is heating
- Thermostat temperature control
- Contactor turns the heating element on and off and is controlled by the thermostat
- Pressure/vacuum gauge shows steam pressure and air is in the jacket
- Safety valve releases steam if jacket pressure is too high
- Water level sight glass enables users to check how much water is in the jacket
- Low-water cut-off feature prevents elements from overheating by turning off power if water is low
- Components are enclosed in a stainless steel housing that protects them from splashing
- Placed in an accessible position
- 32 1⁄8 in. W x 33 3⁄4 in. D x 37 in. H (H is measured to the rim; 60-in. H with the cover open)
- 30 A, 10.8 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Groen EE-20 within the 48 contiguous states.
From The Manufacturer
Kettle, electric, 20-gallon capacity, 2/3 jacket, 316 stainless steel liner, insulated & sheathed, open tri-leg base, stainless steel construction, 2" TDO, 1/4" perforated strainer & hinged cover, bullet feet, 30 PSI
Groen EE-20 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Base | Tri Leg |
| Capacity (gallons) | 20 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Weight | 410.00 |
