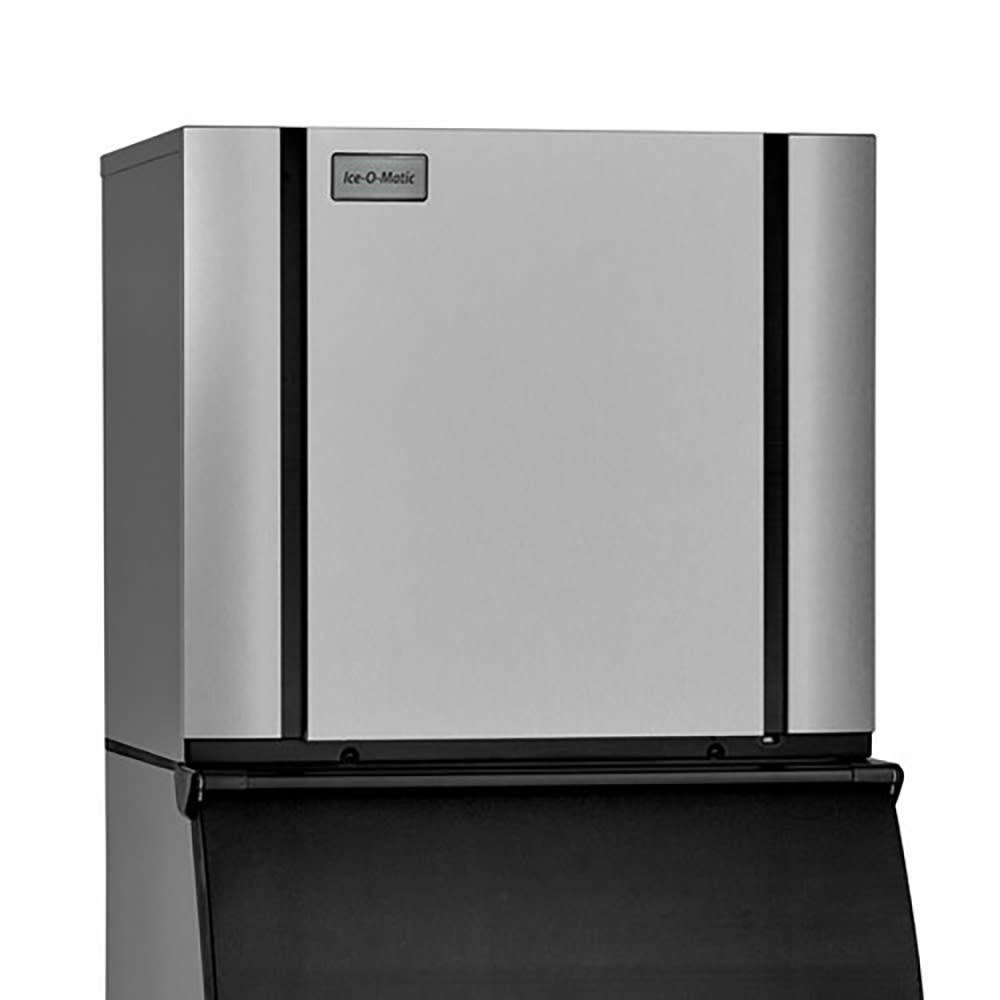

Ice-O-Matic CIM1136HW90 30 1/4" Elevation Series™ Half Cube Ice Machine... Replacement Image
Free Shipping Item

Ice-O-Matic CIM1136HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 968 lb/24 hr, Water Cooled, 208-230v/1ph

Suitable for high-volume operations, the Ice-O-Matic CIM1136H half-cube ice maker can produce a maximum of 968 pounds of ice per day in ideal environmental conditions. It produces half-size cubes, a t...

Ice-O-Matic ICE1006HW 30" ICE Series™ Half Cube Ice Machine Head - 960-lb/24-hr, Water Cooled, 208-230v/1ph

KaTom #: 159-ICE1006HW • MPN: ICE1006HW
  • 159-ICE1006HW Primary Thumbnail Image

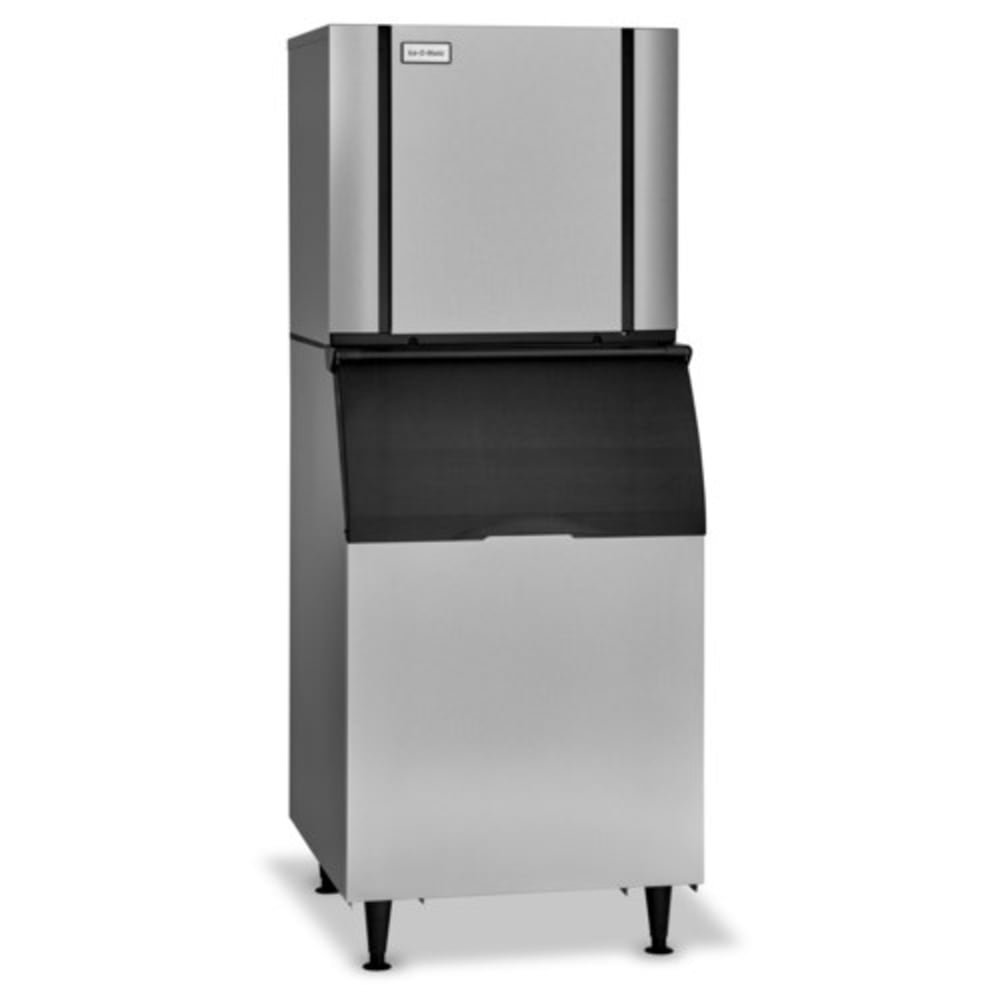

  • 159-ICE1006HW Multiple Thumbnail Image #1

Ice-O-Matic ICE1006HW Description

This ice machine from Ice-O-Matic allows you to produce up to 960 pounds of ice per day in a small 30-inch-wide footprint. The half-cube ice made by the ICE1006HW ice machine head is 3⁄8 inch by 7⁄8 inch by 7⁄8 inch in size. The unit is compatible with the IFQ2 water filter manifold, which can help ensure you are serving your customers the cleanest, clearest ice possible. Ice-O-Matic's Pure Ice® compound helps impede the growth of harmful microorganisms such as fungus and bacteria.

The ICE1006HW uses Harvest Assist to ensure reliable ice production, using heat and pins to harvest ice quickly and efficiently. The evaporator plates are nickel-plated to make them durable and corrosion-resistant. Because this model is water-cooled, it requires two separate inlet and outlet connections for condenser water.

Product Details

  • Part of the ICE Series™ by Ice-O-Matic

  • Water-cooled ice machine head

  • Produces up to 960 lbs. of half-cube ice per 24 hour period

  • Ice Cube Dimensions: 3⁄8 in. w x 7⁄8 in. D x 7⁄8 in. H

  • Compact 30-in. width for space-challenged locations

  • Harvest Assist uses heat and harvest pins to ensure fast harvest cycles

  • Evaporator plates are nickel plated to ensure durability

  • Exterior is made of easy-to-clean stainless steel and fingerprint-proof plastic

  • Pure Ice antimicrobial inhibits bacteria and fungus from spreading on internal ice machine components

  • Water connections:

  • Potable water in: 3⁄8 in. FPT

  • Potable water out: 3⁄4 in. FPT

  • Condenser water in: 3⁄8 in. FPT

  • Condenser water out: 1⁄2 in. FPT

  • Uses R404a refrigerant

  • 208-230 V/60 Hz/1 ph, 12.8 A

  • Overall Dimensions: 30 1⁄8 in. W x 24 1⁄4 in. D x 26 1⁄16 in. H

*Image may not depict product color, inclusions or accessories.

*Free shipping on Ice-O-Matic ICE1006HW within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

ICE Series™ Modular Cube Ice Maker, water-cooled, approximately 960 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 208-230v/60/1-ph, 12.8 amps, cULus, NSF, CE

Ice-O-Matic ICE1006HW Specifications

Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
