Automatic Hand Dryer with Chrome Finish 208-240V

American GX Series Hand & Hair Dryers

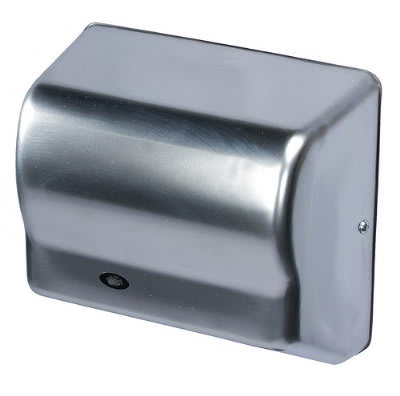

Model 155-GX3C - Surface Mounted, Chrome Plated Steel, Automatic Hand Dryer

Why buy American Dryer?

The GX automatic hand dryers offer the best value in a maintenance-free hand dryer. The GX is designed to provide many years of trouble-free service. The stylish, compact design provides great performance while consuming less electricity.

Description

The American Dryer GX3C automatic hand dryer offers a great value while providing years of trouble-free, maintenance-free operation. The economical design of this stylish hand dryer will provide excellent performance while consuming far less electricity than most competitive brands.

The one piece heavy-duty, flame retardant ABS polymer white finished cover is both aesthetically pleasing and easy to clean. The permanently lubricated, maintenance-free brushless 1/12 HP induction motor has an automatic resetting thermal protector. A microprocessor controlled infrared sensor turns off the hand dryer when hands are removed from beneath the outlet. The sensor also turns off automatically after 80 seconds if hands or objects are left beneath the air outlet. The heating elements in this commercial hand dryer are constructed of NiChrome resistant wire and operate in the black range, allowing for a maximum life span. Two tamper resistant screws secure the cover to the base, minimizing the risk of vandalism.

American Dryer stands behind their GX model hand dryers with a 10-year limited warranty.

Construction Features

• Cover – One-piece heavy duty, flame retardant ABS polymer with white finish. Optional one-piece 18 gauge steel cover finished with electrostatically applied, chip-resistant white epoxy finish (M), or chrome plated satin finish (C).
• Motor – Permanently lubricated, maintenance-free, brush-less induction motor with automatic resetting thermal protector. 1/12 HP, 3200 RPM.
• Automatic Sensor – 100% solid state design eliminates relay contact failures. Microprocessor controlled infrared sensor turns dryer on when hands are under the air outlet. Dryer turns off when hands are removed. Override turns off in 80 seconds if hands are not removed.
• Heating Element – Constructed of NiChrome resistance wire with automatic resetting thermostat. Heating element operates in the black range for maximum life.
• Tamper Resistant – Two tamper resistant screws secure cover to base.

General Information on the 155-GX3C Hand Dryer

• Dryer Placement - Dryers should be placed at least 2 feet apart and at least 12” from washbasin. Do not install dryer over washbasin. Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
• Dryer Installation - Hand dryers require a dedicated circuit (max. 20 amp) and must be properly grounded. One side of dryer should be mounted to stud. All surface mount dryers are provided with conduit entrances for both between wall and surface wiring.
• Recommended Quantity Estimation -

  Average traffic washroom..............1 dryer per 2 washbasins
  Heavy traffic washroom..................1 dryer per washbasin
  54” Bradley sink..............................4 dryers per sink

Warranty:  This top-of the-line model comes standard with a 10-year limited warranty
