Automatic Hand Dryer with ABS Cover 208-240V

American GX Series Hand & Hair Dryers

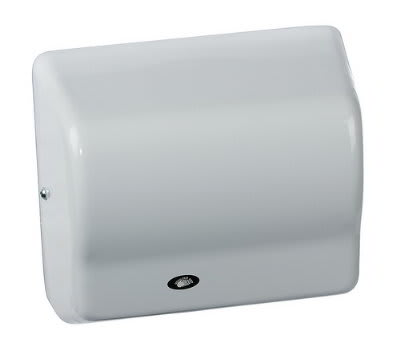

Model 155-GX3 - Surface Mounted, White ABS Plastic, Automatic Hand Dryer

Why buy American Dryer?

The GX automatic hand dryers offer the best value in a maintenance-free hand dryer. The GX is designed to provide many years of trouble-free service. The stylish, compact design provides great performance while consuming less electricity.

Description

This American Dryer GX3 surface mounted automatic hand dryer was designed with durability and affordability in mind. This GX series hand dryer offers the best value in hand dryers, with years of maintenance free service. This sleek commercial hand dryer uses significantly less electricity than competitive brands while still offering exceptional performance.

This quality commercial hand dryer features a one-piece, heavy-duty, flame retardant ABS polymer cover with a white finish. The vandal resistant cover has two tamper resistant screws that secure it to the base of the unit. The permanently lubricated, maintenance-free, brushless induction motor is 1/12 HP and has an automatic resetting thermal protector. The automatic sensor has a 100% solid state design that eliminates relay contact failures. This eco-friendly unit automatically turns off when hands are removed from beneath the air outlet and turns off after 80 seconds if hands or objects are not removed. The heating element in this American Dryer hand dryer operates in the black range to ensure maximum life for the heating element and the hand dryer as a whole.

American Dryer backs this American made product with a 10-year limited warranty.

Construction Features

• Cover – One-piece heavy duty, flame retardant ABS polymer with white finish. Optional one-piece 18 gauge steel cover finished with electrostatically applied, chip-resistant white epoxy finish (M), or chrome plated satin finish (C).
• Motor – Permanently lubricated, maintenance-free, brush-less induction motor with automatic resetting thermal protector. 1/12 HP, 3200 RPM.
• Automatic Sensor – 100% solid state design eliminates relay contact failures. Microprocessor controlled infrared sensor turns dryer on when hands are under the air outlet. Dryer turns off when hands are removed. Override turns off in 80 seconds if hands are not removed.
• Heating Element – Constructed of NiChrome resistance wire with automatic resetting thermostat. Heating element operates in the black range for maximum life.
• Tamper Resistant – Two tamper resistant screws secure cover to base.

General Information on the 155-GX3 Hand Dryer

• Dryer Placement - Dryers should be placed at least 2 feet apart and at least 12” from washbasin. Do not install dryer over washbasin. Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
• Dryer Installation - Hand dryers require a dedicated circuit (max. 20 amp) and must be properly grounded. One side of dryer should be mounted to stud. All surface mount dryers are provided with conduit entrances for both between wall and surface wiring.
• Recommended Quantity Estimation -

  Average traffic washroom..............1 dryer per 2 washbasins
  Heavy traffic washroom..................1 dryer per washbasin
  54” Bradley sink..............................4 dryers per sink

Warranty:  This top-of the-line model comes standard with a 10-year limited warranty
