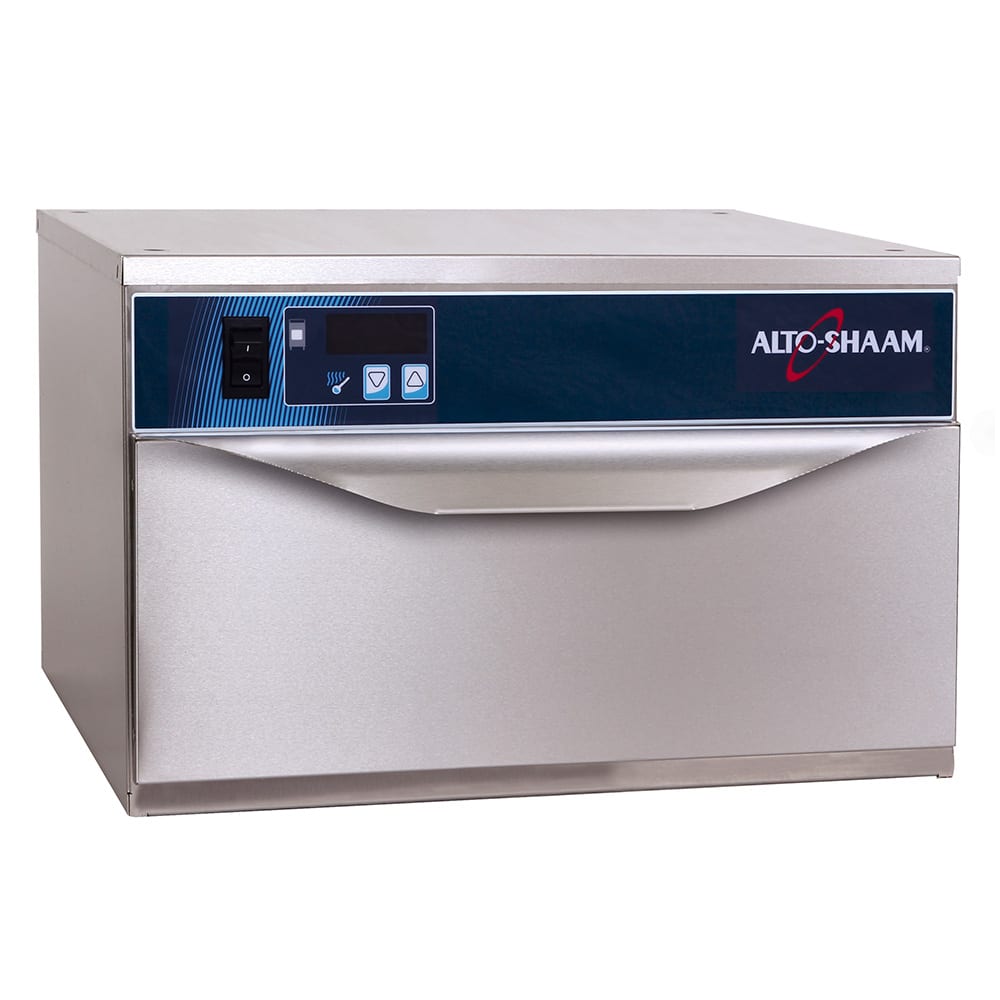

Alto-Shaam 500-1DN 16.69"W Freestanding Warming Drawer w/ (1) 15" Compartment, 230v/1ph
Typically ships in 3 - 4 weeks
$1,545.06 /Each
Contact us for details!
Selected Voltage: 230V, 1 Phase
| 230V, 1 Phase |
| 120V, 1 Phase |
| 208V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Alto-Shaam 500-1DN Description
To hold a pan of rolls or baked potatoes until serving, the Alto-Shaam 500-1DN Halo Heat® narrow warming drawer generates temperatures from 60 to 200 degrees Fahrenheit. Its Halo Heat technology system produces low-intensity heat to preserve moisture without adding water. Operators can adjust drawer temperatures with the simple up and down arrows, while its temperature display button provides an accurate readout. Because its digital control quickly senses temperature drops, it can expedite temperature recovery.
As a narrow, single-drawer unit, this Alto-Shaam 500-1DN drawer warmer measures 16 11⁄16 inches wide by 31 3⁄16 inches deep by 11 5⁄8 inches high, accommodating a 12-inch by 20-inch by 6-inch food pan. Built for high-volume use, it's made of stainless steel—a durable, rust- and corrosion-resistant metal that's simple to wipe clean. The included food pan can be placed on its stainless steel drawer rail supports, which can be removed for cleaning between uses. To save counterspace in compact kitchens, this unit can be safely stacked atop other drawer warmers.
- Stackable, narrow design
- 1 heated holding drawer
- Accommodates (1) 12-in. x 20-in. x 6-in. pan
- Can hold 50 rolls or 34 baked potatoes
- Halo Heat technology
- Temperature range: 60-200 degrees F
- Up/down arrows for temperature control
- Heat indicator light
- Temperature display button
- Digital display
- Power switch
- Nonmagnetic stainless steel construction
- Removable stainless steel drawer rail supports
- Non-vented
- Requires level installation
- Requires 3-in. rear clearance
- Requires 2-in. top clearance
- Requires 1-in. clearance on each side
- 16 11⁄16 in. W x 31 3⁄16 in. D x 11 5⁄8 in. H
- 2.6 A, 0.59 kW
- 230 V/50/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Alto-Shaam 500-1DN within the 48 contiguous states.
From The Manufacturer
Halo Heat® Narrow Warming Drawer, free standing, one drawer, digital controller, (1) 12" x 20" pan, (50) rolls or (34) baked potatoes capacity, adjustable thermostat, stainless steel exterior, EcoSmart®, non-vented, cULus, UL EPH ANSI/NSF 4, CE, EAC
Alto-Shaam 500-1DN Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Controls | Thermostatic |
| Depth (in) | 31.19 |
| Design | Stationary |
| Doors | Drawers |
| Drawer Style | Narrow |
| Exterior Construction | Stainless Steel |
| Height (in) | 11.63 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Interior Width (in) | 15 |
| kW | 0.59 |
| No. of Compartments | 1 |
| Overall Width (in) | 16.69 |
| Phase | 1 |
| Product | Warming Drawers |
| Product Type | Food Warming Equipment |
| Series | Halo Heat® |
| Voltage | 230 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 16.69 |
| Weight | 75.00 |
