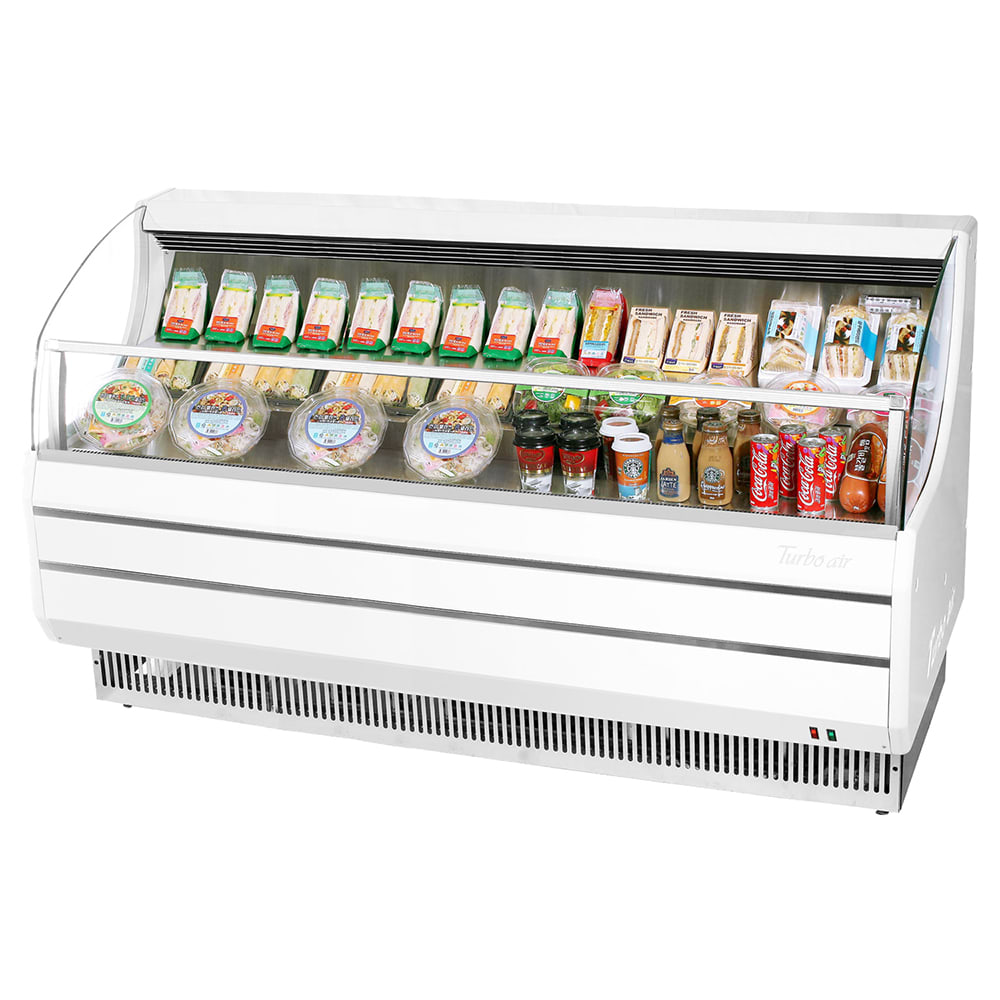

Turbo Air TOM-75S 75" Horizontal Open Air Cooler w/ (3) Levels, 115v

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TOM-75SW-N. Here are details about that model:

Horizontal Open Display Merchandiser, slim-line, 13.5 cu. ft. capacity, 75 5⁄8" W x 34 5⁄8" D x 41 1⁄2" H, self-cleaning condenser device, open front, tempered glass front shield and side walls, self-contained, plug-in installation, front air intake & rear air discharge, (3) stainless steel bottom shelves, LED lighting, hot gas condensate system, 300 stainless steel interior, white exterior, R290 Hydrocarbon refrigerant, (2) 3⁄4 HP, 115v/60/1-ph, 11.3 amps, NEMA 5-20P, cETLus, ETL-Sanitation

The Turbo Air TOM-75S horizontal open air merchandiser has a white exterior that will easily fit into virtually any venue. Tempered glass shields on the front and sides provide clear visibility of products. LED lights brighten the interior of the cabinet, ensuring products are easily seen. A back guard and perforated interior back wall and top improve the flow of air over products to keep them cold. Three tiered, stainless steel shelves hold customers' favorite packaged products.

Keeping the condenser and its coils clean is essential to a properly working refrigeration system. If this integral part of the refrigeration system becomes cluttered with dirt, it could cause the system to fail. To prevent this from happening, Turbo Air TOM-75S horizontal open air merchandiser comes with a patented, built-in condenser cleaner that brushes debris off every day. The refrigeration system is mounted on the bottom of the unit for easy access to service. R-134A refrigerant maintains cool temperatures so products stay in the food safety zone.

Product Details

• White exterior is durable
• LED interior lighting brightens the cabinet and makes products easier to see
• Perforated interior back wall and top improve the flow of air
• Stainless steel interior is durable and easy to clean
• Foamed-in-place polyurethane insulation retains cold air and provides a rigid structure
• Front air intake and rear discharge
• Tempered glass front and side shield walls allow for more visibility of products
• 3 stainless steel bottom shelves for maximum product capacity
• 115 V/60 Hz/1 ph, 3⁄4 HP, 15.5 A, NEMA 5-20 plug
• Overall Dimensions: 75 5⁄8 in. W x 34 5⁄8 in. D x 41 1⁄2 in. H

Refrigeration System

• Self-cleaning condenser helps prevent system failure by brushing the condenser coils daily
• Condensate system has been treated to resist corrosion, preventing refrigerant leaks and condensate water overflow
• Uses R-134A refrigerant to maintain cool temperatures
• Refrigeration system is bottom mounted for easy access to service

Operating Conditions

• Should be placed in an environment that will not exceed 75 degrees F and 55 percent relative humidity
• Air curtain will be disrupted if placed near HVAC vents, doorways, or fans
• Runs most efficiently when fully loaded with product
