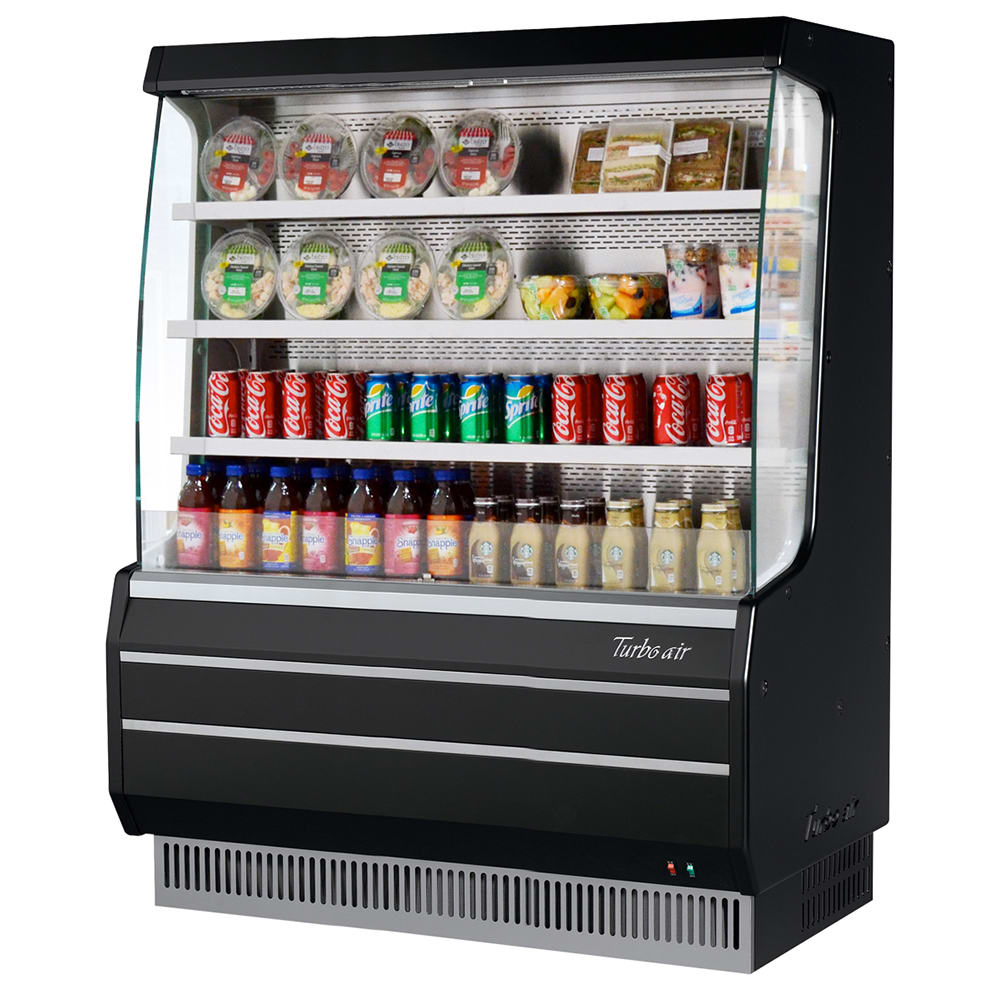

Turbo Air TOM-50MB 50" Vertical Open Air Cooler w/ (4) Levels, 115v

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TOM-50MB-N. Here are details about that model:

Vertical Open Display Merchandiser, mid-height, 11.1 cu. ft. capacity, 50 7⁄8" W x 28" D x 60 1⁄2" H, self-cleaning condenser device, open front, tempered glass front shield and side walls, self-contained, R404 refrigeration, plug-in installation, front air intake & rear air discharge, black exterior, (3) adjustable stainless steel shelves in 1" increments, LED lighting, temperature range 38°F to 40°F, 300 stainless steel interior, R290 Hydrocarbon refrigerant, (2) 3⁄4 HP, 115v/60/1-ph, 15.5 amps, NEMA 5-20P, CSAus, CSA-Sanitation

The Turbo Air TOM-50MB vertical open air cooler has four levels of holding space with three adjustable shelves and a bottom floor level. Since the top three shelves are adjustable, they can accommodate a variety of product sizes. The LED interior lighting makes it easy to see product. Constructed of stainless steel, the interior is durable to support commercial use and is easy to clean.

Cold temperatures in the Turbo Air TOM-50MB vertical open display merchandiser are maintained with R-404A refrigerant. With a perforated interior back wall and top, air is circulated efficiently throughout the unit. Balanced temperatures and quick cooling are implemented thanks to the large evaporator and condenser design. Dust is brushed off the condenser by the self-cleaning system, ensuring it runs smoothly.

Product Details

• Items can be held on 3 adjustable shelves and a floor level
• LED interior lighting provides visibility of products
• Corrosion and minor damage are resisted with the easy-to-clean stainless steel interior
• Retains cold air and adds structure with foamed-in-place polyurethane insulation
• Plug-in installation makes it easy to install the unit
• 115 V/60 Hz/1 ph, 15 A, 1 HP, NEMA 5-20P plug
• Top (2) Shelves Dimensions: 48 1⁄4 in. W x 11 1⁄4 in. D
• Middle Shelf Dimensions: 48 1⁄4 in. W x 12 1⁄2 in. D
• Bottom Level Dimensions: 48 1⁄4 in. W x 15 in. D
• Interior Dimensions: 48 3⁄8 in. W x 15 in. D x 33 7⁄8 in. H
• Overall Dimensions: 50 7⁄8 in. W x 28 in. D x 60 1⁄2 in. H

Product Features

Refrigeration System

• R-404A refrigerant keeps temperatures within an ideal holding range
• Backguard, perforated back wall, and perforated top are designed to improve air flow
• Large evaporator and condenser offer quick cooling and balanced temperatures
• Dust is removed from the condenser daily with the self-cleaning system
• Corrosion-resistant hot gas condensate system prevents condensate water overflow and eliminates the risk of refrigerant leakage
• Includes a night curtain to take pressure off the air curtain during closed hours

Recommended Operating Conditions

• Temperatures should not exceed 75 degrees F
• Humidity should not exceed 55 percent
• Installation near fans, HVAC vents, or doorways disrupts the air curtain
• Needs to be completely filled with product to run efficiently
