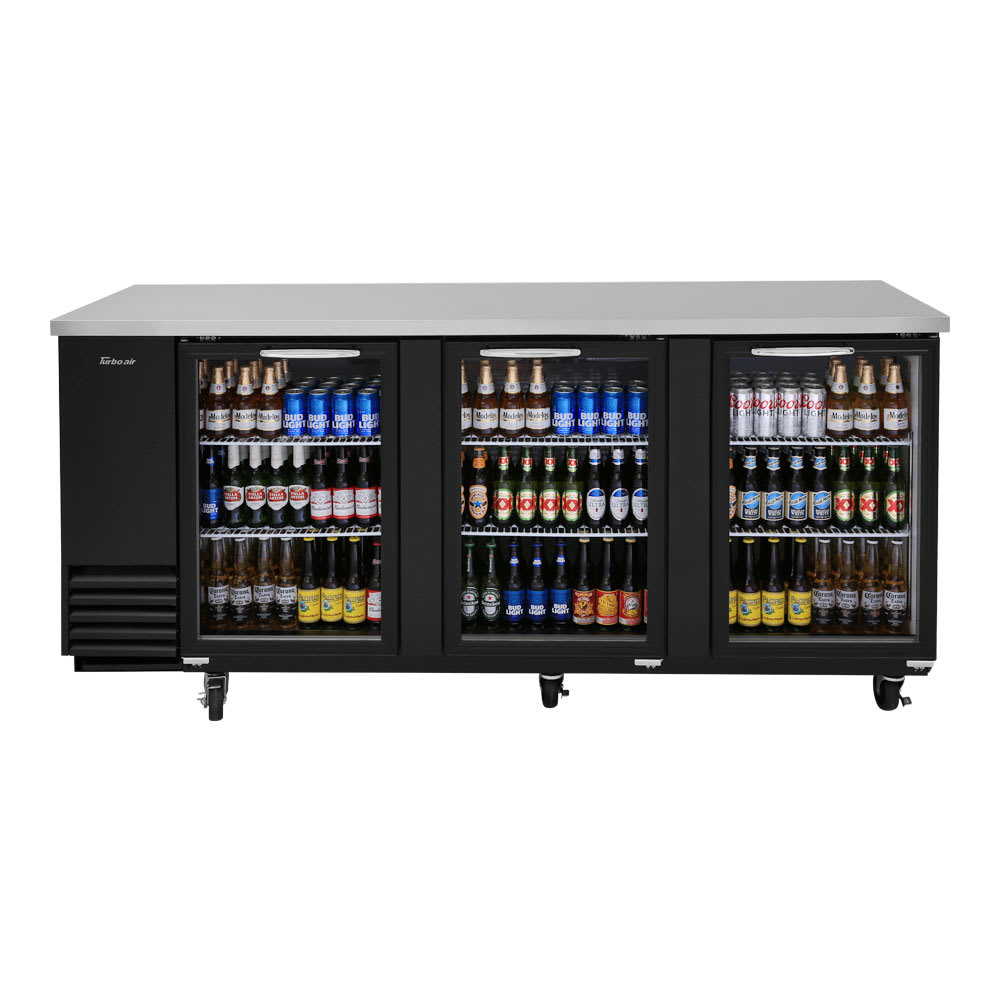

Turbo Air TBB-4SG 90" (3) Section Bar Refrigerator - Swinging Glass Doors, 115v

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TBB-4SG-N. Here are details about that model:

Back Bar Cooler, three-section, Glass Doors, 90 3⁄8" W x 27 1⁄4" D x 37 1⁄8" H, 30 cu.ft., self-contained, side mount, front breathing, (8) PE coated adjustable shelves, LED interior light, black laminated exterior & stainless steel countertop, stainless steel interior floor, white powder coated galvanized steel interior top & walls, (3) glass doors-double pane, Low-E glass, 4" swivel casters (standard), R290 Hydrocarbon refrigerant, 1⁄3 HP, 115v/60/1-ph, 3.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

The Turbo Air TBB-4SG-N Super Deluxe back bar refrigerator adds product visibility with the Low-E, double pane glass doors. The three easy-grip doors have ergonomic handles. LED lighting in the interior enhances the display so staff can see the contents. Since the countertop is made of stainless steel, it can be used for prepping garnishes and straightforward cleanup. The exterior is finished with a black vinyl material that adds durability.

With R-290 hydrocarbon refrigerant, temperatures in the refrigerator stay between 33 and 38 degrees Fahrenheit. Foamed-in-place, high-density polyurethane insulation retains cold temperatures and creates structure in the cabinet. Using a forced air cooling system, the interior is cooled quickly and the temperatures are balanced. The self-cleaning device brushes dust off the condenser daily to prevent a premature system failure. Mounted on the side of the unit, the compressor is accessible when servicing is needed. The Turbo Air TBB-4SG-N Super Deluxe back bar cooler can be moved for cleaning and servicing with six 4-inch casters.

Product Features

Product Details

• Glass doors provide a view of the stored product
• Low-emissivity, double pane glass seals in cold air
• Doors have easy-grip, ergonomic handles
• Durable stainless steel countertop is easy to clean and corrosion resistant
• Black vinyl exterior provides durability
• Galvanized steel construction is built for commercial applications
• 8 corrosion-resistant, polyethylene-coated wire shelves can be adjusted for accommodating various products
• CFC-free, foamed-in-place polyurethane insulation adds structure and maintains cold temperatures
• LED-illuminated interior makes products noticeable
• Mobile with (6) 4-in.-dia. swivel casters
• 115 V/60 Hz/1 ph, 3.3 A, 1⁄3 HP, 9-ft. cord with a NEMA 5-15P plug
• Right shelf dimensions: 22 1⁄4 in. W x 19 3⁄8 in. D
• Left shelf dimensions: 26 1⁄2 in. W x 19 3⁄8 in. D
• Middle shelf dimensions: 25 3⁄4 in. W x 19 3⁄8 in. D
• Overall dimensions: 90 3⁄8 in. W x 30 1⁄4 in. D x 42 1⁄8 in. H

Self-contained Refrigeration System

• Temperature range: 33-38 degrees F
• R-290 hydrocarbon refrigerant maintains the cold temperatures
• Forced air system offers quick, balanced cooling
• Self-cleaning condenser device prevents a premature system failure by removing dust 2-3 times daily
• Coated evaporator is resistant to corrosion
• All components are built together with the self-contained system

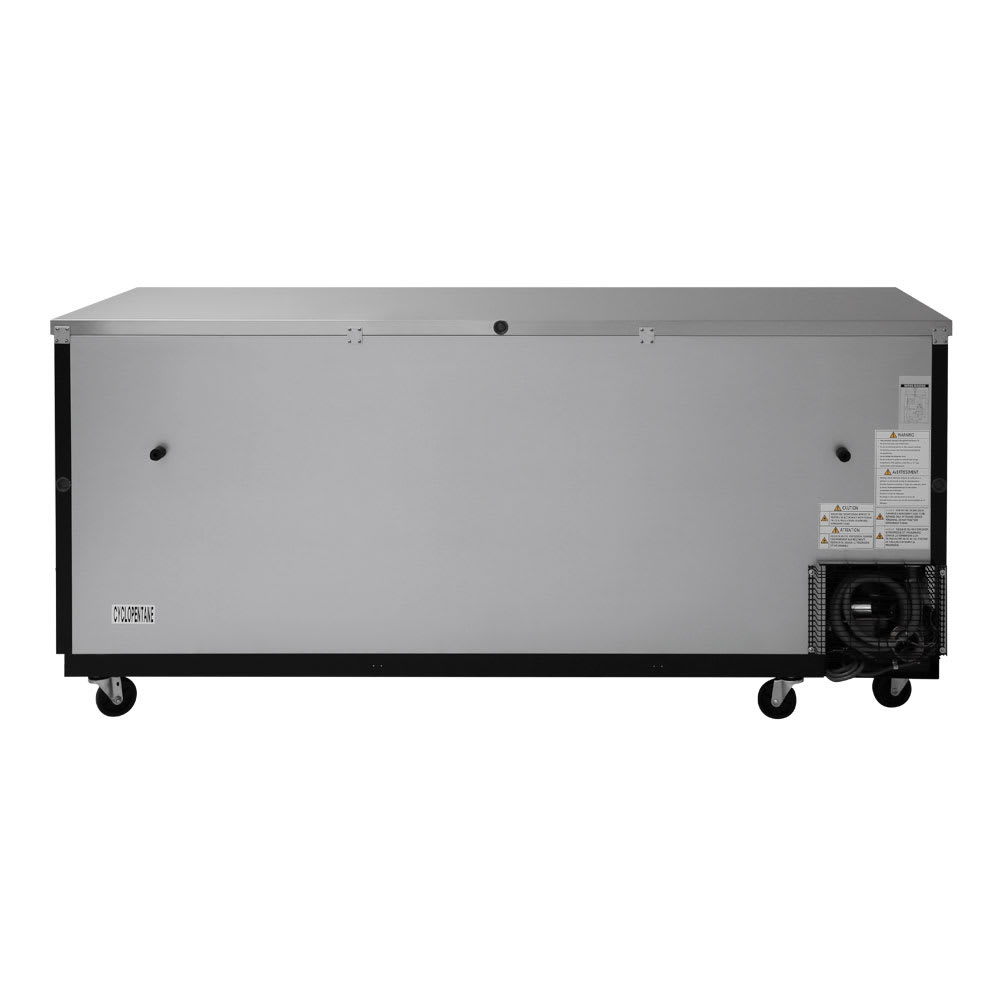

• Side-mounted compressor is accessible for servicing
